JiuTu Machine

500*750mm CCD Laminating Machine

500*750mm CCD Laminating Machine

$42,800.00 USD
$42,800.00 USD
Sale Sold out
Shipping calculated at checkout.

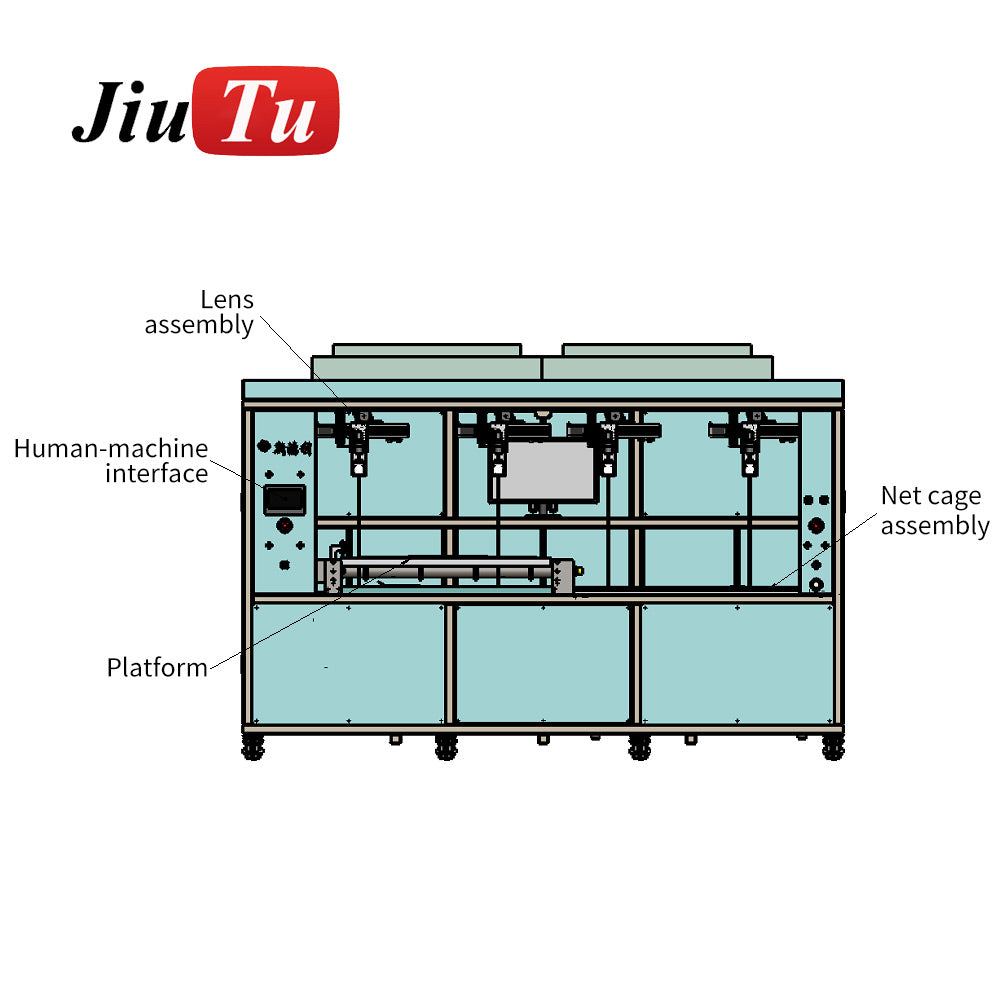

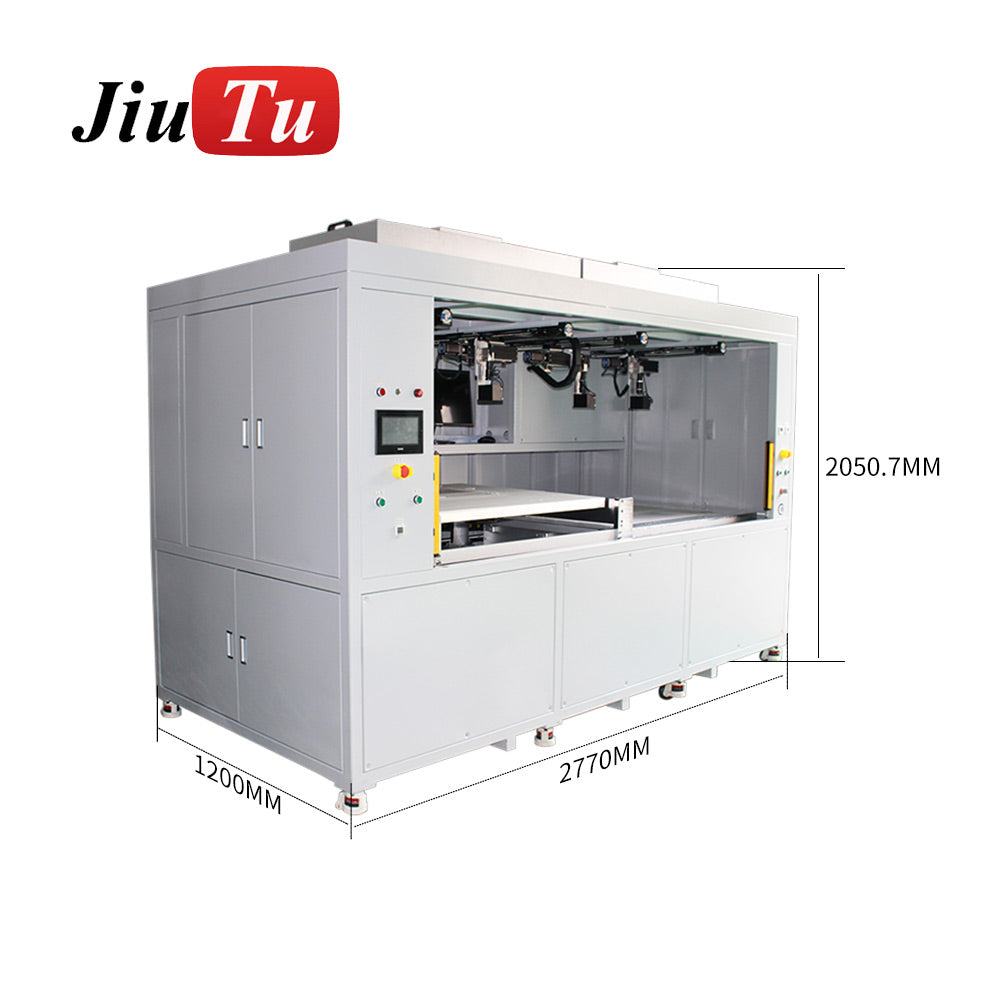

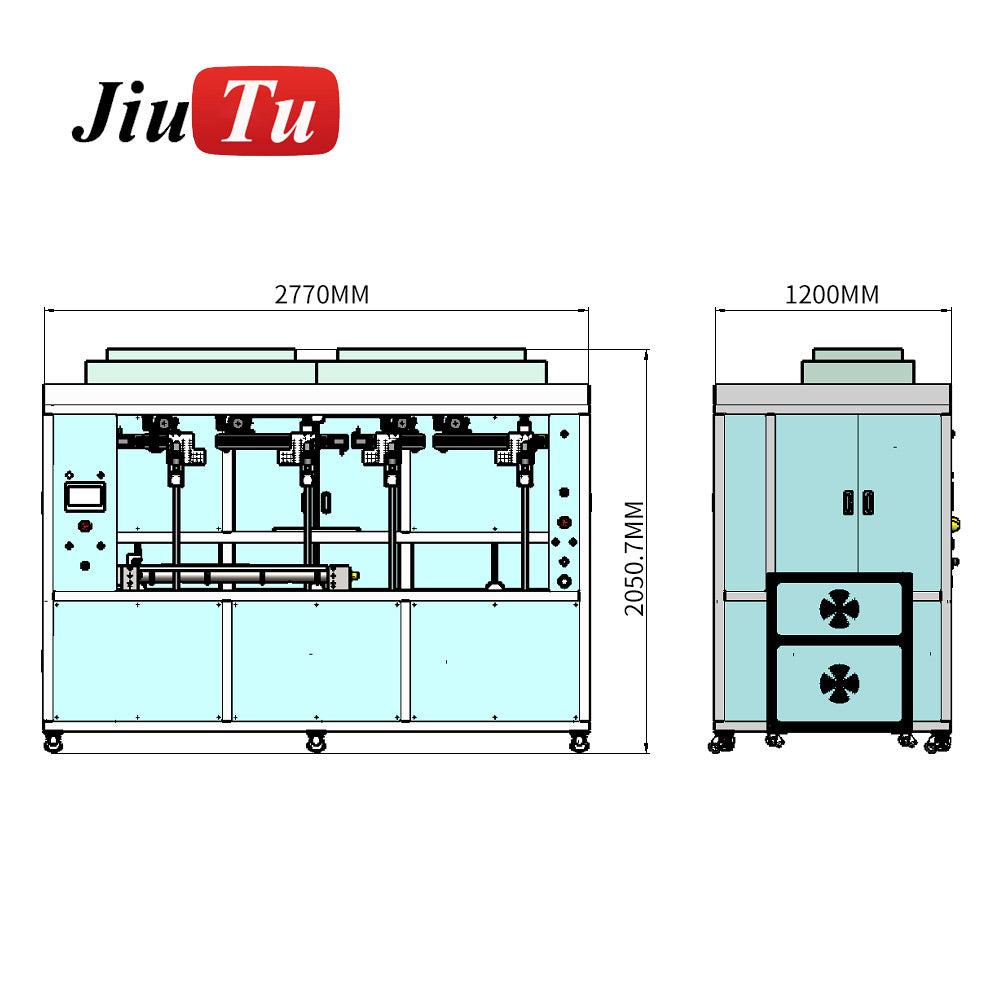

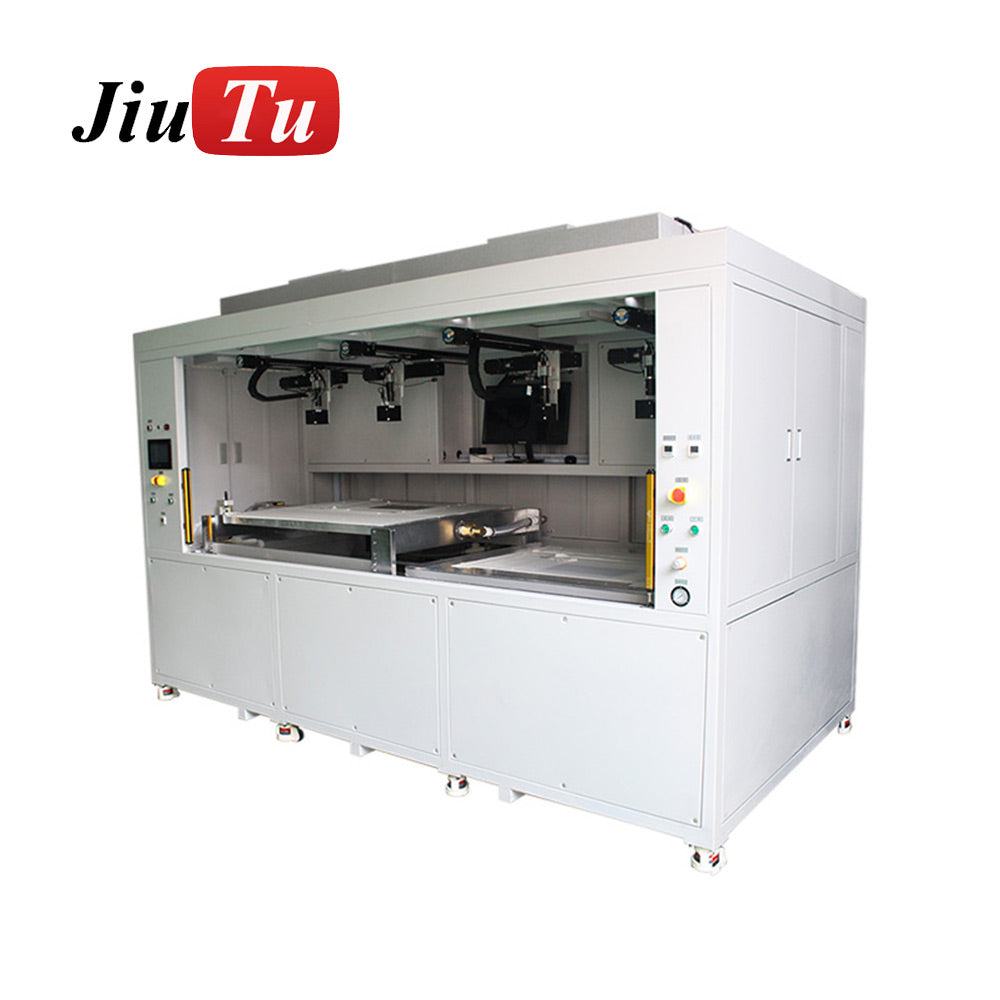

500×750mm CCD Laminating Machine. Large-format laminating machine with CCD optical alignment system for precision film and glass bonding on panels up to 500×750mm. Ideal for large tablet displays, automotive screens, and industrial monitor lamination requiring accurate CCD-guided alignment.

Frequently Asked Questions

How does the 500×750mm CCD laminating machine differ from the 340×500mm model?

The 500×750mm model offers a significantly larger working area, accommodating larger automotive displays, industrial monitors, and large-format tablet panels that exceed the capacity of the 340×500mm model. Both feature CCD optical alignment for precision lamination.

What types of large-format displays is this machine designed for?

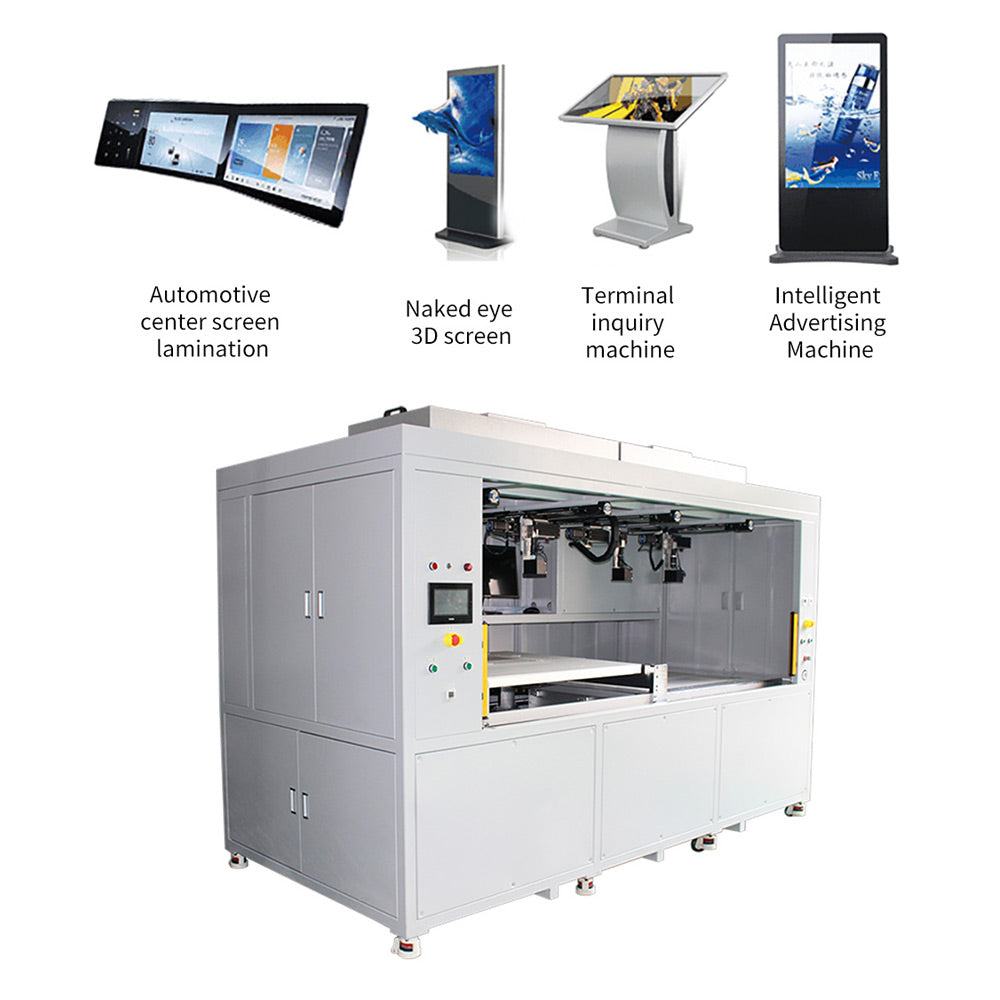

This machine is designed for large automotive infotainment screens, industrial HMI panels, large-format tablet displays, and commercial display panels up to 500×750mm requiring precision CCD-aligned film or glass lamination.

Does the CCD alignment system scale effectively for larger panel sizes?

Yes, the CCD alignment system on this machine is calibrated for the larger 500×750mm working area, maintaining alignment accuracy across the full panel surface. Larger panels may require additional alignment reference points for optimal accuracy.

What is the maximum film or glass thickness this machine can laminate?

Please contact our technical team for the maximum substrate thickness specifications for this model, as the acceptable thickness range depends on the machine’s pressure system and platen gap adjustment range.

View full details

Frequently Asked Questions

What are the main advantages of the 500×750mm CCD laminating machine compared to smaller models?
The 500×750mm CCD laminating machine provides a larger working area, suitable for bigger panels like automotive screens and industrial monitors, while maintaining precise CCD-guided alignment for accurate lamination.
Can this CCD laminating machine be used for industrial-grade panel lamination?
Yes, this large-format CCD laminating machine is designed for industrial applications, including the lamination of large tablet displays, automotive screens, and industrial monitors requiring high precision.
Is the CCD optical alignment system effective for large-sized panels?
Absolutely, the CCD alignment system on this machine is calibrated to maintain high accuracy across the entire 500×750mm surface, ensuring precise film and glass bonding on large panels.
What types of substrates can I laminate with this machine?
This CCD laminating machine is suitable for laminating various substrates such as film and glass on panels up to 500×750mm, ideal for large displays and industrial panels.
How do I determine the maximum thickness of materials I can laminate with this machine?
For specific maximum substrate thickness and compatibility details, it’s best to contact our technical team, as these depend on the machine’s pressure system and platen gap adjustment range.
