JiuTu Machine

Optical Laminating Equipment With CCD FFU

Optical Laminating Equipment With CCD FFU

$48,500.00 USD
$48,500.00 USD
Sale Sold out
Shipping calculated at checkout.

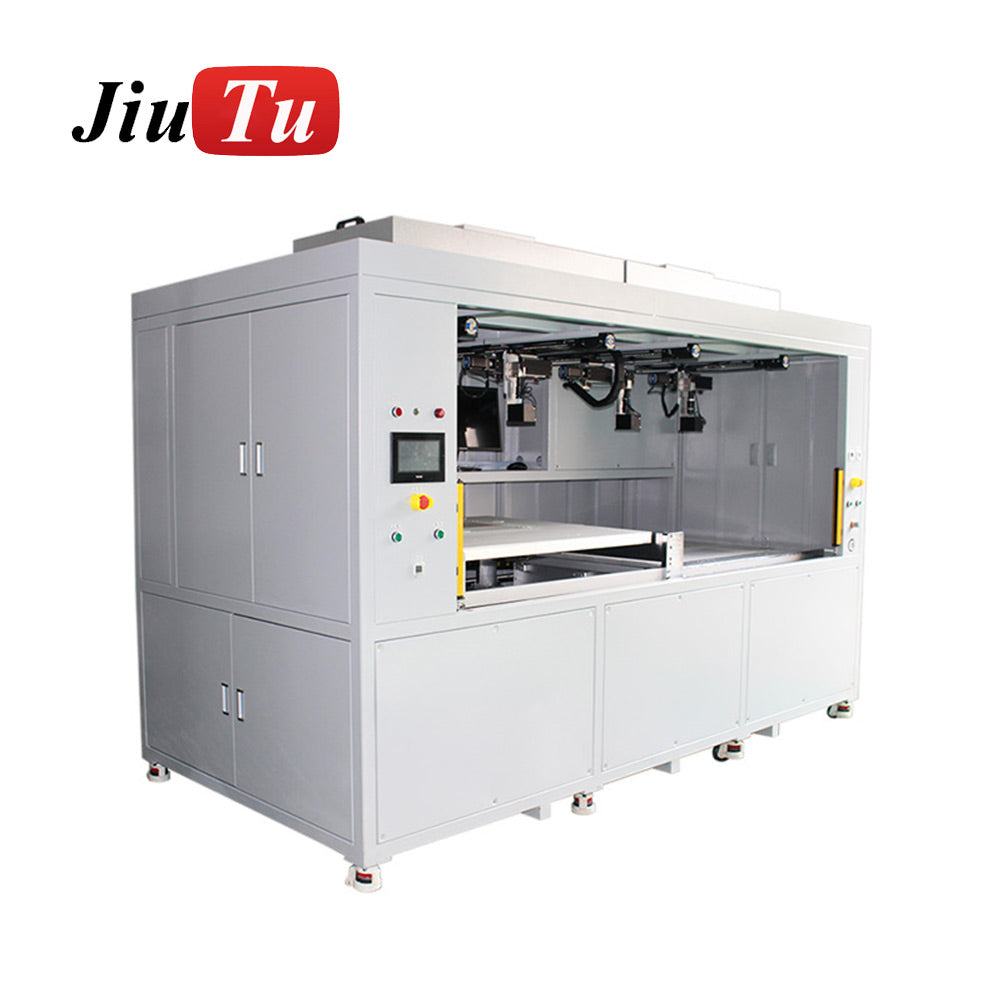

Optical Laminating Equipment with CCD alignment and FFU (Fan Filter Unit) dust control. Combines precision CCD optical alignment with a clean-room-grade FFU dust filtration system for the highest quality optical film and glass lamination. Ideal for professional display manufacturing and refurbishment requiring both alignment accuracy and contamination-free bonding.

Frequently Asked Questions

What is the role of the FFU (Fan Filter Unit) in this optical laminating equipment?

The FFU (Fan Filter Unit) creates a localized clean-room environment around the lamination area by continuously filtering airborne dust particles. This prevents dust contamination between film and glass layers during lamination, which is critical for achieving optically clear, defect-free bonding results.

How does combining CCD and FFU improve lamination quality compared to CCD-only machines?

CCD alignment ensures precise positioning, while the FFU eliminates dust contamination. Together, they address the two most common causes of lamination defects — misalignment and dust inclusions — delivering the highest possible optical quality without requiring a full clean-room facility.

What cleanliness level does the FFU system achieve around the lamination area?

The FFU system typically achieves ISO Class 5–6 (Class 100–1000) cleanliness levels in the immediate lamination zone. Please contact our team for the specific filtration rating and air flow specifications of this model.

Is this equipment suitable for OLED display lamination where dust sensitivity is critical?

Yes, the combination of CCD alignment and FFU dust control makes this equipment particularly well-suited for OLED display lamination, where even microscopic dust particles can cause visible defects in the finished display assembly.

View full details

Frequently Asked Questions

How does the CCD alignment feature enhance the quality of lamination in this optical laminating equipment?
The CCD alignment ensures precise positioning of optical films and glass, which is crucial for high-quality, defect-free lamination, making it ideal for professional display manufacturing and refurbishment.
What are the benefits of having a Fan Filter Unit (FFU) integrated into this optical laminating equipment?
The FFU creates a clean environment by filtering airborne dust particles, significantly reducing contamination during lamination and resulting in clearer, higher-quality optical bonded products.
Can this optical laminating equipment be used in a cleanroom environment?
While it features a built-in FFU that achieves ISO Class 5–6 cleanliness levels in the lamination zone, it is designed for use in controlled environments rather than a full clean-room facility, offering a cost-effective solution for contamination-sensitive lamination.
Is this equipment suitable for lamination processes involving OLED displays?
Yes, the combination of precise CCD alignment and effective dust control with the FFU makes this optical laminating equipment particularly suitable for OLED display lamination, where dust sensitivity is critical.
What makes this optical laminating equipment ideal for professional display manufacturing and refurbishment?
Its advanced CCD alignment for accuracy, combined with the clean-room-grade FFU dust filtration, ensures high optical quality, making it perfect for professional jobs requiring contamination-free, precise lamination.
