Anti-Glare Film Laminator for Industrial Displays: Film Types, Dust Control and Process Checks

Selecting an Anti-Glare Film Laminator starts with the display and film requirement, not simply the machine size. AG film is used to control sharp glare, AR film reduces surface reflection, and AF treatment improves fingerprint and cleaning behaviour. The laminating setup must also fit the complete panel and fixture, support the film during first contact, control dust and static, and meet the required alignment and defect standard.

A smaller flat panel may only need a compact working area and repeatable mechanical stops. A framed HMI or industrial computer can require more fixture and connector clearance, while a larger panel with narrow borders, printed windows or sensor openings may justify CCD alignment. The sections below show how to make that choice without treating every display project as the same laminating process.

Which Laminator Direction Fits Your Project?

Use these three routes as an initial filter. Final equipment matching should still be based on the complete panel, fixture, film construction and sample result.

CCD is not automatically the better choice. A simple rectangular panel with wide margins and stable fixture stops may be controlled more efficiently without camera alignment.

How to Match an Anti-Glare Film Laminator to the Required Surface Function

AG, AR and AF are often grouped together as display surface films, but they solve different problems. Choosing the correct film function comes before deciding how the film should be laminated.

Multifunction films may combine two or more treatments. That does not make film selection automatic. Added surface structures and coatings can change clarity, reflection, scratch visibility, surface feel and bonding behaviour, so the complete film construction still needs to be confirmed.

AG Film: Reduce Glare Without Hiding Required Detail

An AG surface spreads reflected light so a bright lamp, window or outdoor light source is less likely to appear as one sharp reflected image. This can improve readability on factory HMIs, outdoor terminals, vehicle displays and control panels.

Stronger diffusion is not automatically better. It can soften small text, reduce perceived detail or reveal a grain-like sparkle over fine pixels. Film approval should therefore use the real powered display rather than a clear glass coupon alone.

Check black text, grey lines, fine grids, colour gradients and dark screens from the normal operating distance. A texture that looks obvious during close inspection may be acceptable in actual use, while a visually clear film may still leave distracting reflections under overhead lighting.

AR Film: Lower Reflection While Protecting the Coated Surface

AR film uses an optical coating structure to reduce surface reflection and can retain a smoother appearance than a strongly textured AG surface. Its appearance can still change with the coating design, light source and viewing angle.

A slight residual coating colour seen from a selected angle is not automatically a defect. The project standard should define the lighting, viewing position and display images used for approval. Protective liners should remain in place until the controlled application stage because scratches and handling marks can be visible under low-angle light.

AF Film: Confirm Which Surface Must Remain Exposed

AF treatment is used where fingerprints, smearing and routine wiping affect the appearance of touch interfaces and frequently handled displays. It can improve maintenance behaviour, but it should not be described as creating a completely fingerprint-free surface.

Cleaning liquid, wiping material, gloves, coating chemistry and repeated maintenance can all influence the result. Qualification should therefore include the cleaning method expected in actual use.

For films designed with AF as the exposed top surface, confirm the coating and adhesive orientation from the film supplier specification before loading. Reversing the intended construction can cause bonding or surface-performance problems depending on the film design. Top-side and adhesive-side identification should remain visible on removable liners until the sheet is loaded.

Balance Glare Control With Display Clarity

No single optical number can decide whether a film is suitable. Haze, transmission, reflection, adhesive clarity, pixel structure and ambient lighting interact with one another. A film that controls reflections more strongly may reduce perceived sharpness, while a clearer surface may preserve detail but leave more visible glare.

This trade-off is also reflected in AGC's technical discussion of anti-glare display surfaces: the microstructure used to suppress reflected images changes both reflective and transmissive behaviour and can introduce visible sparkle. That is why the final decision should be made on the assembled display, not from one film value alone. See AGC technical reference .

Compare samples on the same panel model using fixed lighting, display content and viewing distance. If photographs are used for records, keep the camera position and exposure consistent so automatic exposure does not hide real differences.

Use More Than One Display Pattern

Black, white and grey screens expose different surface problems. A black screen makes reflections, smears and light contamination easier to see. A white screen helps reveal dark particles, local bubbles and colour variation.

Mid-grey can expose pressure marks or optical unevenness that disappears against stronger colours. Fine grids help show whether AG texture affects line definition. Dark moving content can also reveal reflection behaviour that one static test image misses.

Include Touch and Cleaning in the Approval

Touch performance should be checked on the completed assembly using the gloves, stylus and gestures expected in the final application. Surface feel also matters: a strongly textured AG film and a smoother AF surface may feel noticeably different during repeated use, and the preferred result depends on the actual interface rather than a general rule.

Control Dust and Static Before the Adhesive Surface Is Exposed

Dust can enter the stack long before final bonding. Film cutting, cartons, wipes, clothing, fixtures, liners and nearby maintenance work can all introduce particles. A final wipe cannot compensate for an uncontrolled route from unpacking to lamination.

Separate particle-producing activities from cleaned material. Panels that have already been prepared should wait in covered trays, while the final protective liner should remain attached until the film is close to the bonding position.

Cleaning Materials Can Become a Contamination Source

A wipe can shed fibres and a cleaning liquid can leave residue that changes adhesive wetting. Glass, coated glass, acrylic and polycarbonate may also require different cleaning methods, so materials should be qualified against the actual surface.

A controlled one-direction wiping method can make particle movement easier to manage than repeatedly moving contamination across the optical area. Use a clean section of the wipe as cleaning continues instead of carrying collected material back across the surface.

Liner Peeling Can Generate Static

Separating a liner from film can generate electrostatic charge. Dry air, fast peeling, plastic holders and synthetic clothing can increase the risk, allowing a freshly exposed adhesive surface to attract particles within seconds.

Grounded work surfaces, grounded fixtures, suitable clothing, static-dissipative holders and correctly maintained ionizing equipment can help control that risk. An ionizer does not clean contaminated air, so its position, condition and airflow still need to be managed.

Match the Machine to the Complete Loading Envelope

Nominal panel dimensions do not describe all of the space required during lamination. The fixture, film tabs, liner pull distance, alignment marks, cable tails, connectors and unloading route also need room. A panel can physically fit inside a stated work area while the complete process does not.

Panel construction matters as much as size. Thin glass can flex, while a framed HMI may rock on raised rear features. Cable tails and connectors can prevent flat support. The fixture should locate the optical area repeatably without loading fragile components.

You can compare the broader equipment range in the film laminating machine category . The three machines below represent different starting directions; project drawings and representative samples should confirm the final fit.

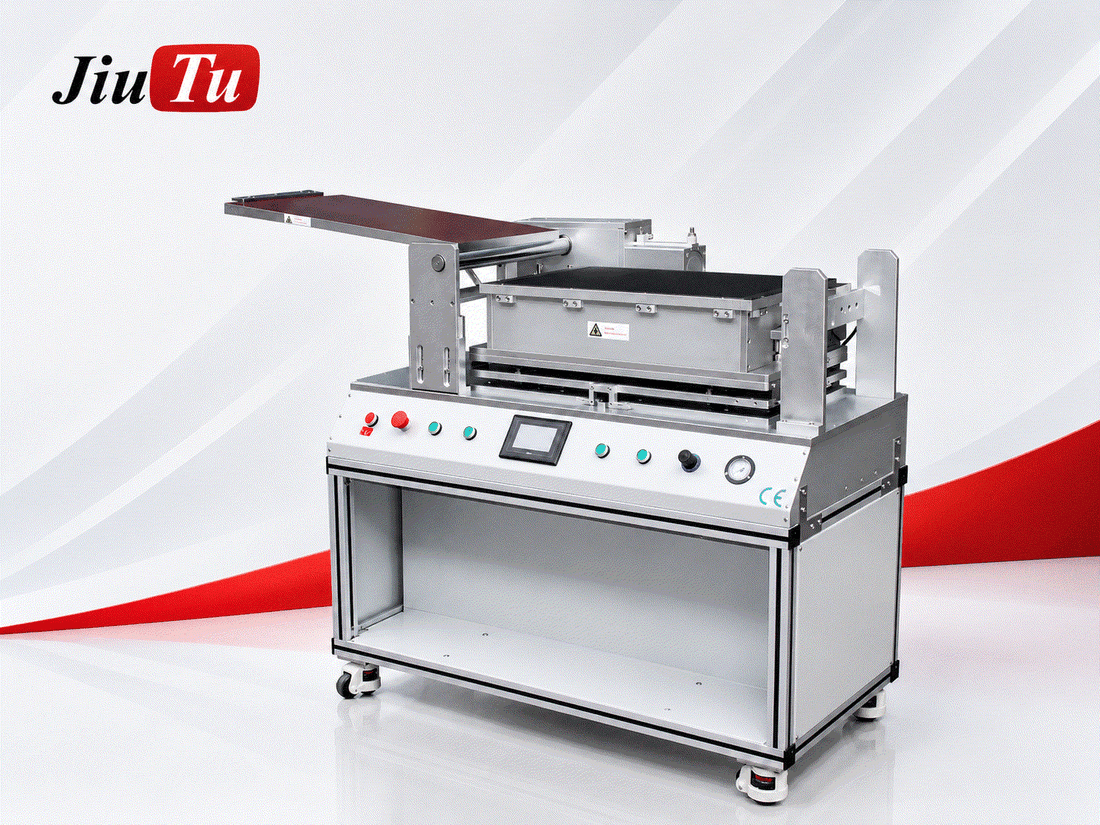

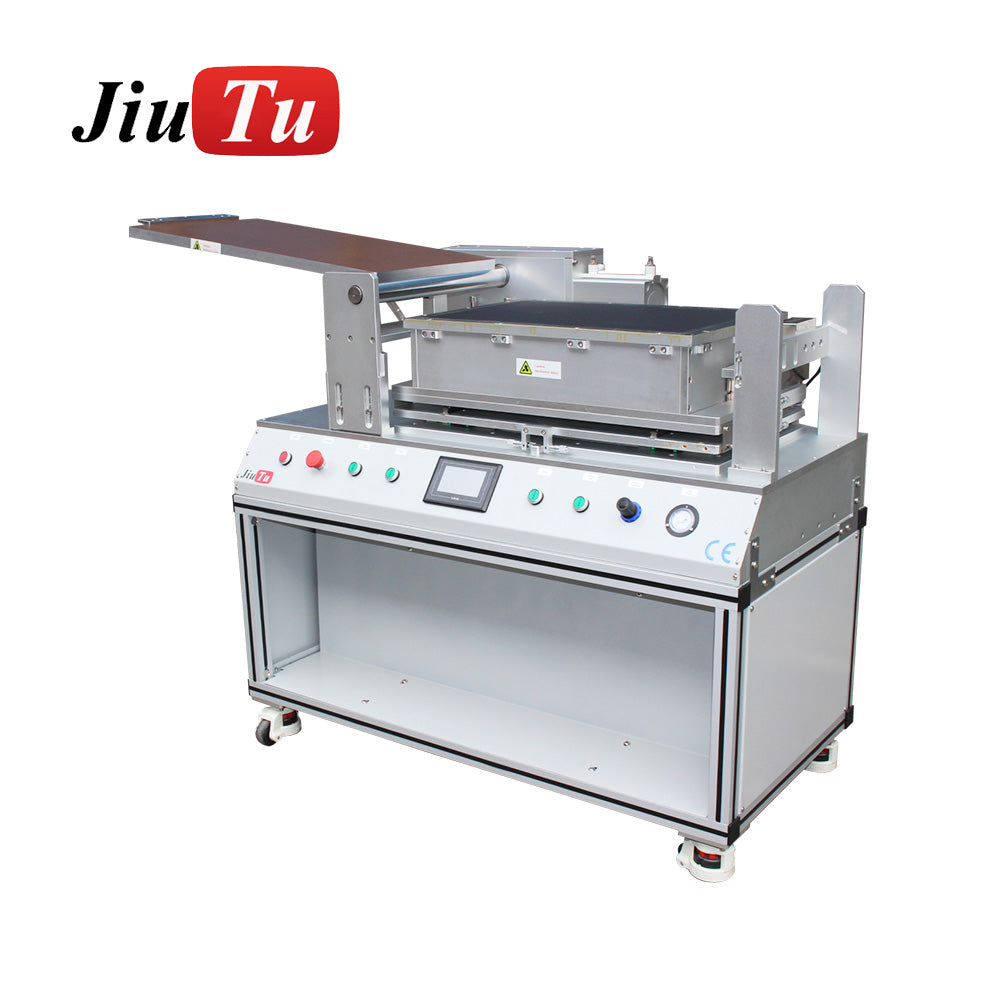

300×400mm Mesh Film Laminating Machine

A practical starting point for smaller and medium display panels when the complete fixture and film-handling area fit within the confirmed working envelope. The product page lists mesh, AG, AR and other optical-film applications.

Review 300×400mm Machine

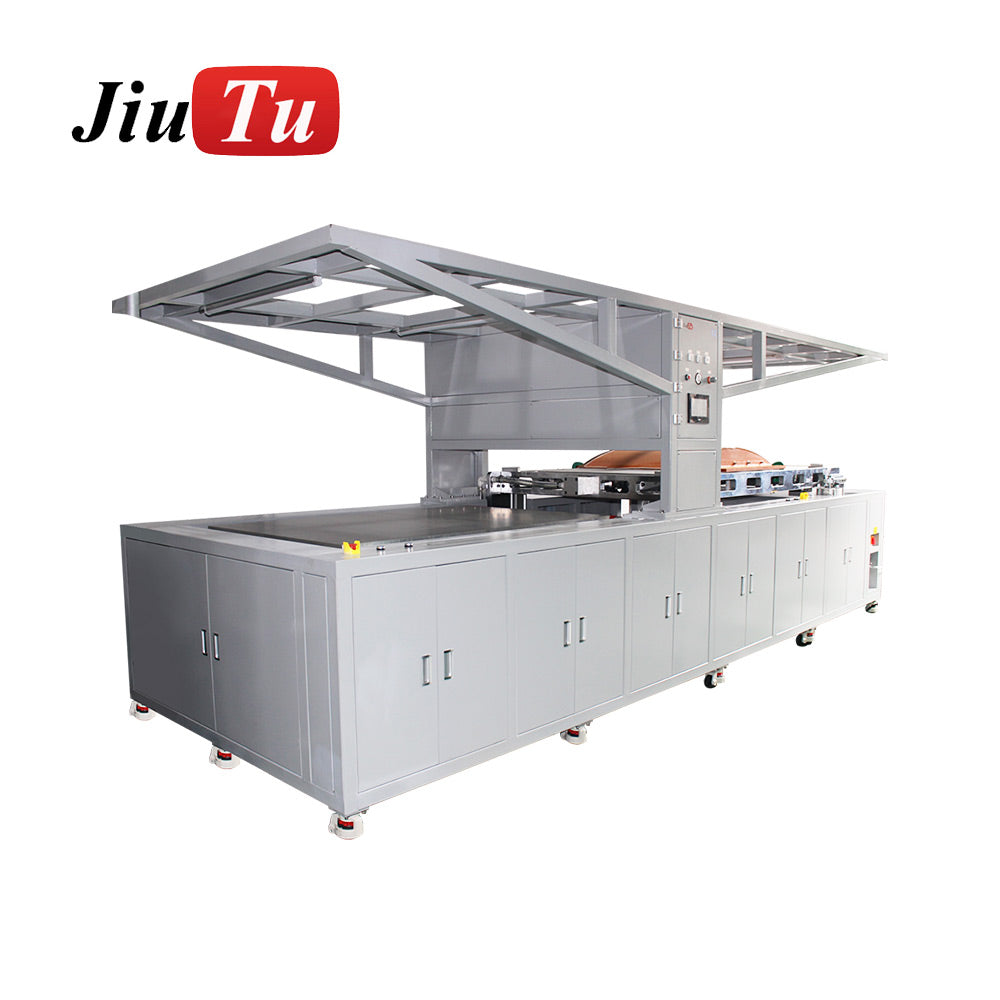

Industrial Computer Film Lamination Machine

More relevant when HMI screens, panel PCs, rugged housings, cable positions or mixed display structures make loading and support more complex. The product page lists AG, AR, AF, OCA and PET film applications.

Review Industrial HMI Machine

600×900mm CCD Laminating Machine

A stronger route for larger panels and applications where positional error becomes more visible. The product page lists a 600×900mm working area and CCD optical alignment.

Review 600×900mm CCD Machine

Do not select by panel width alone. Machine configuration, current availability and project suitability should be confirmed from the full panel drawing, fixture requirements and actual film structure before ordering.

When Does CCD Add Real Process Value?

CCD becomes more useful when the film has a narrow visible border, printed graphics, sensor openings, asymmetrical cutouts or a strict positional limit. Larger panels can also magnify angular error: a small rotation at one corner can create a more noticeable shift at the opposite edge.

Camera alignment still depends on stable reference features. Printed marks, corners, holes or panel edges must remain visible under consistent lighting, and the fixture must remain stable after alignment. Film curl or sideways movement during first contact can still move the final position.

If the part is a simple rectangle with generous borders and a dedicated fixture can repeat the datum reliably, CCD may add little practical value. The decision should follow the required tolerance and cost of misalignment rather than the assumption that more automation always gives a better result.

Process Checks That Protect Film Quality

Confirm Film Orientation Before Loading

Similar-looking surfaces can hide an expensive orientation mistake. Work instructions should identify the functional side, adhesive side, liner sequence, panel top edge and loading direction according to the actual film construction. Lot identity should remain traceable after sheets are cut.

Define the First-Contact Edge

The first-contact line affects how air leaves the interface. Starting beside a raised frame, printed step or opening can make local air trapping more likely. Choose an edge that supports continuous contact without film sag, uncontrolled corner contact or sudden direction changes.

Check the Setup Before Each Batch

Adhesive fragments, liner scraps or embedded particles on the table, fixture or roller can repeat the same mark across many panels. CCD lenses and alignment lighting should also remain clean and stable when camera positioning is used.

Establish production settings from representative samples and change one important variable at a time during troubleshooting. Useful records include the panel revision, film lot, fixture revision, cleaning route, film orientation, alignment method, observed defect and inspection stage.

Read the Defect Pattern Before Changing Machine Settings

Defect shape, position and repetition often provide more useful information than a general rejection label. Record a full-panel view together with close photographs so the location pattern is not lost.

Silvering

Silvering appears as a pale or reflective region where optical contact looks incomplete. On textured AG film, visible micro-air or limited adhesive wetting can contribute, while film curl, contamination, orientation, support variation and material compatibility should also be checked. Do not increase pressure automatically: a defect that follows one film lot suggests a different cause from one that repeatedly follows the same fixture position.

Dust Points

A trapped particle may appear as a bright dot, dark dot, raised point or bubble centre. Fibres can come from wipes or clothing, while flakes may come from liners and trimming. Random defects point more strongly toward handling or airborne contamination; repeated defects at one coordinate deserve inspection of the fixture, roller, table and panel packaging.

Edge Lift

Edge lift can involve contamination, film curl, surface condition, film construction, frame interference, sharp corners or unsupported geometry. Check when the lift becomes visible as well as where it appears, because an edge that looks acceptable immediately after lamination may behave differently after the required storage or environmental stage.

Offset and Rotation

A consistent shift in one direction can point toward the datum, cutting dimensions, fixture stops or alignment program. Angular error may come from panel rotation, unequal support or film movement during first contact. If dry alignment is repeatable but the bonded film shifts, investigate liner tension, film support and the first-contact route.

Local Bubbles

Bubble shape and location help separate possible causes. A bubble centred on a visible particle differs from a long bubble following an edge or raised feature. Record when the bubble appears, where it sits and which lighting reveals it before adjusting several process variables at once.

What to Send Before Requesting Equipment Matching

A useful quotation request defines the display, film and process instead of relying on phrases such as “industrial screen” or “anti-glare film.” Drawings, film information and representative samples reduce guesswork when the machine and fixture are reviewed.

For larger equipment, also confirm floor space, access route, electrical supply, required air conditions, grounding and material flow with the technical team. Product titles and nominal work areas do not define every installation requirement.

Frequently Asked Questions

Choose the Machine After the Panel and Film Are Defined

A suitable laminating setup should support the required AG, AR or AF surface function, the complete loading envelope, film-handling route, alignment requirement and defect standard. Representative samples should confirm both optical appearance and bonding behaviour before production settings are fixed.

If you need equipment matching, prepare the panel drawing, complete dimensions, surface material, film specification, fixture constraints, expected quantity and photographs of any current defects. Jiutu can then review whether a compact laminator, industrial HMI configuration or CCD system is the more appropriate starting point.
