G+F Lamination Machine Guide: Touch Film Alignment, Tension and Bubble Prevention
A G+F Lamination Machine bonds rigid cover glass to a flexible touch sensor film through OCA. The equipment must support the film without stretching it, keep functional marks aligned, and create a controlled contact front before full pressure develops.
Stable results come from the complete process rather than one setting. Film orientation, liner removal, mark recognition, holding force, vacuum timing, contact direction and inspection all influence wrinkles, offset and trapped air. This guide focuses only on those G+F-specific decisions and the project information needed before equipment selection.
How a G+F Lamination Machine Handles Glass and Flexible Film
G+F means glass plus film. A rigid cover glass is bonded to a flexible touch sensor film, usually through optically clear adhesive. The film may carry conductive traces, an active touch area, printed references and a flexible connection tail.
G+G means glass plus glass. Both principal layers remain rigid during loading and alignment. Glass flatness and adhesive control still matter, but the second layer does not curl or stretch like a thin sensor film.
That difference changes the fixture and process logic. A hard stop can locate rigid glass reliably, while the same stop may compress a flexible edge and create a wave. Likewise, an aligned film can move after temporary holding force disappears.
G+F process focus
Flexible-film support, functional mark alignment, low-distortion holding, liner control and rebound inspection.
G+G process focus
Rigid-part flatness, glass references, adhesive coverage and uniform contact between two stable layers.
The outside film edge is not always the best reference. Cutting variation or elastic strain can change its relationship to the active sensor pattern. A dimensioned drawing should identify whether acceptance depends on fiducials, active-area boundaries, printed borders, tail position or a combination of features.

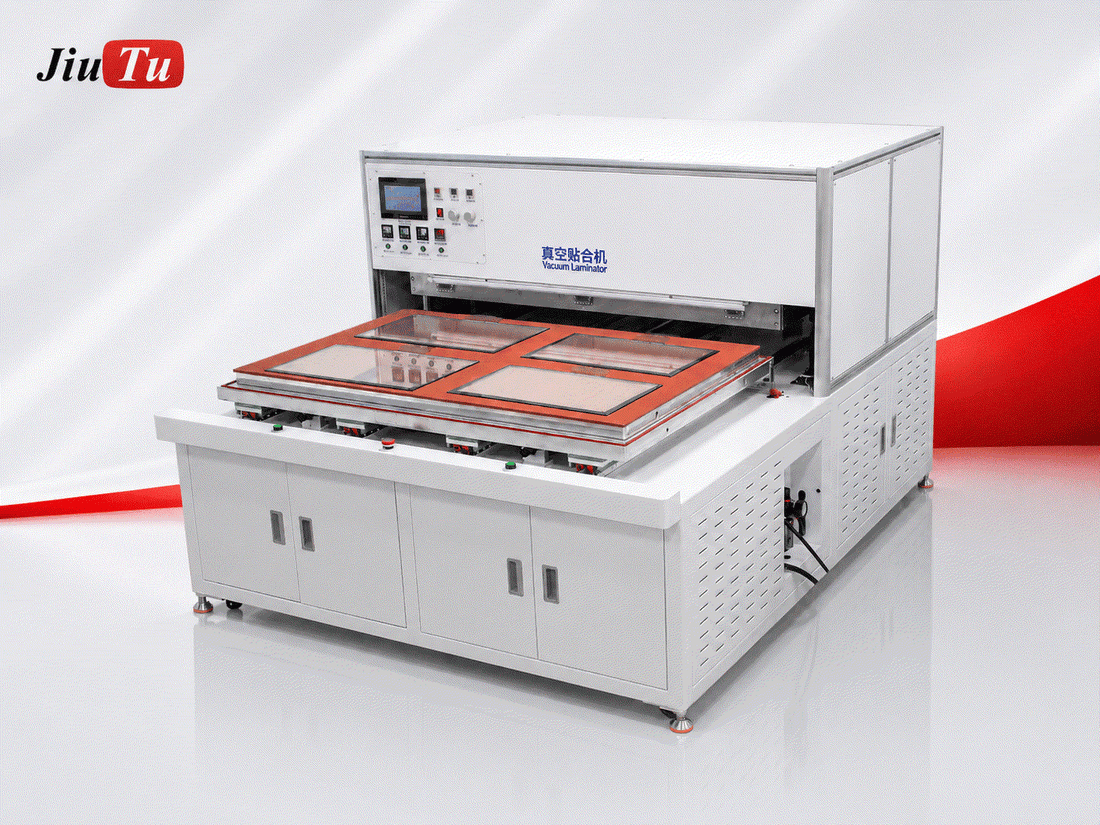

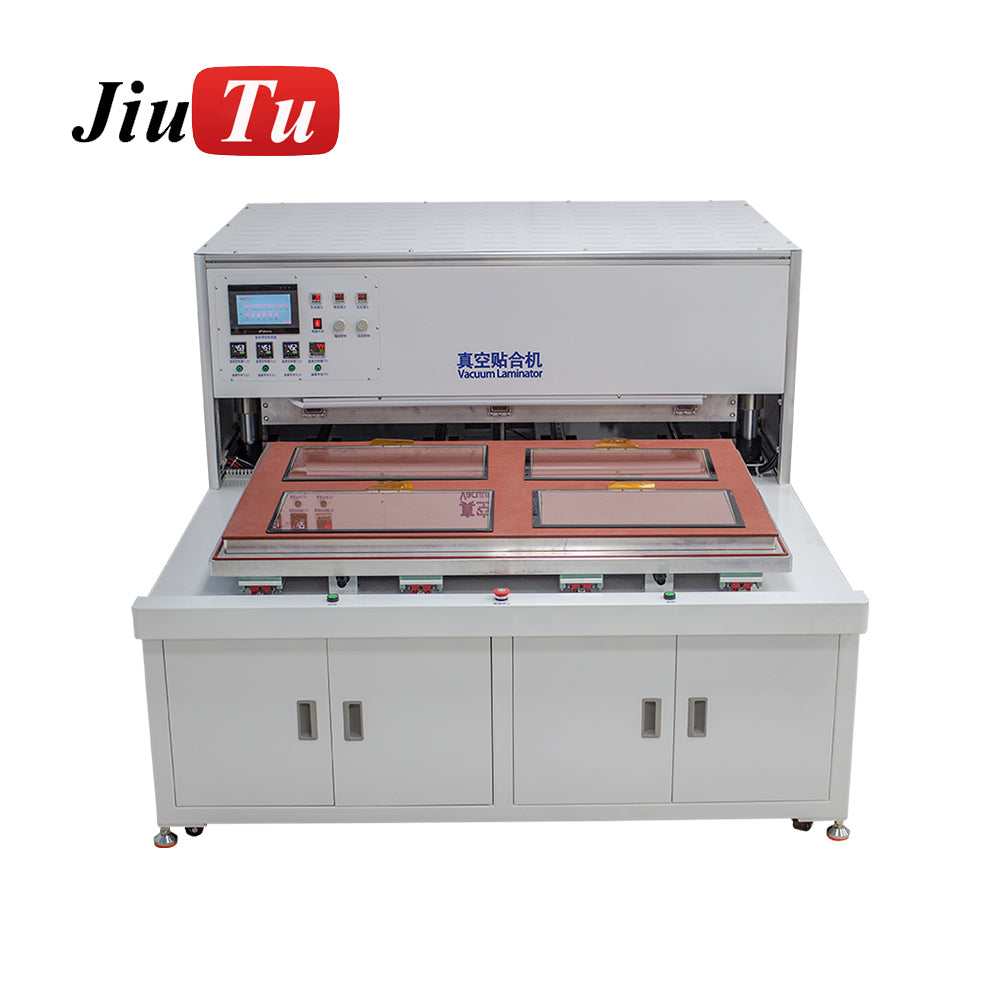

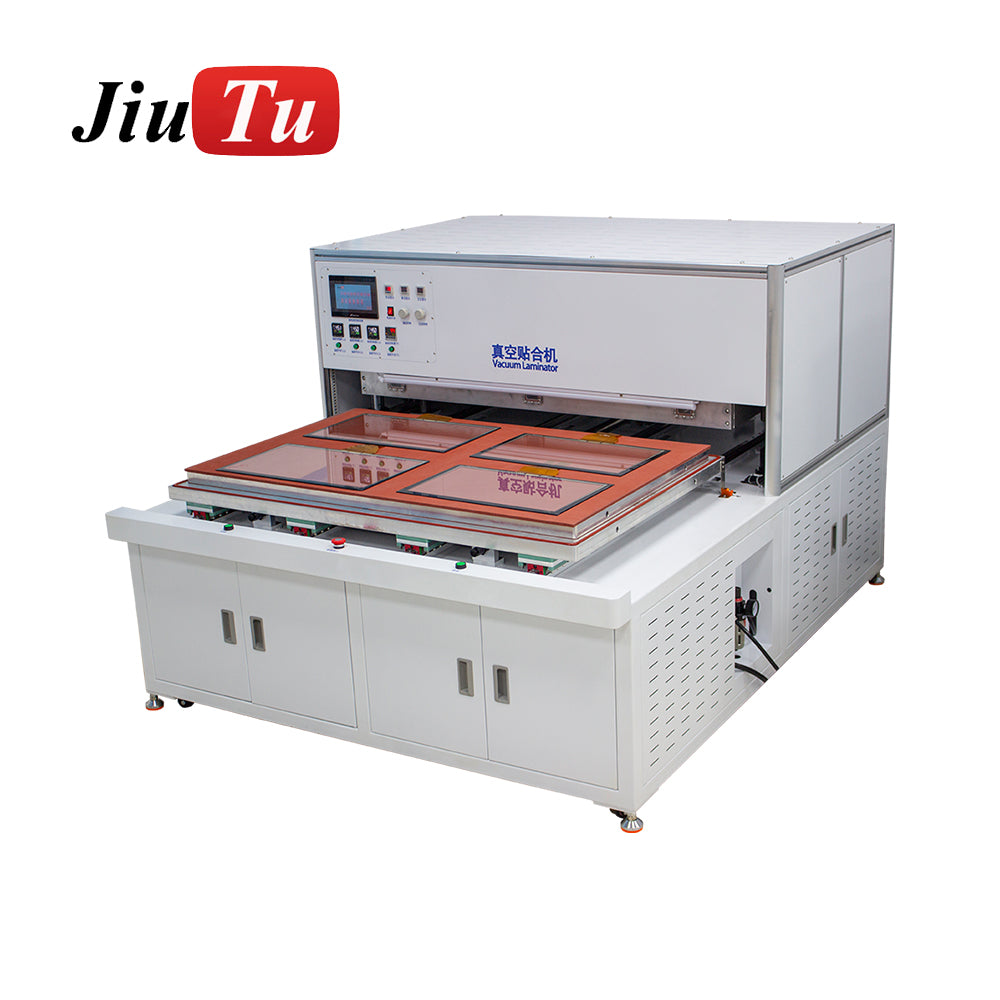

The Jiutu G+F vacuum bonding machine is presented for cover glass and flexible touch sensor film bonding with OCA under vacuum. Film type, film thickness, glass size and the final fixture route still require confirmation for the actual stack.
Why Flexible Touch Film Wrinkles, Stretches and Moves
Flexible touch film rarely enters the fixture in a perfectly neutral condition. Roll processing, sheet cutting, storage, release liners and packaging can leave a preferred curl direction. Tail weight can add another pulling force before bonding begins.
A visible wrinkle forms when one region advances faster than another. The difference may start during liner peeling, temporary holding, chamber evacuation or first contact. Once OCA grips the glass, the film can no longer redistribute freely.
Stretching is less obvious. One mark may reach its target while another remains displaced because the distance between them has changed. Rebound appears later, after the holding force releases and the film attempts to return toward its relaxed geometry.
Wrinkle
A fold, ridge or wave caused by unequal movement across the film.
Stretch
A dimensional change between marks, edges or conductive features.
Rebound
Movement after pulling, vacuum holding or temporary restraint is removed.
Offset
The sensor pattern, film edge or tail sits away from the approved position.
These defects can appear together, but they should not receive one generic correction. Extra pressure may flatten a visible wave while leaving the conductive pattern distorted. Stronger clamping may stop movement while increasing stored stress.
Film orientation should stay consistent during trials. Rotating a sheet by 180 degrees can change which edge rises first. Without orientation records, a material change can be mistaken for a machine-setting improvement.
Check material behavior before changing the recipe
- Observe the film in a relaxed state and record the curl direction.
- Compare mark spacing before loading and while the film is held.
- Support the tail so that it does not rotate one side downward.
- Keep liner peel direction and speed consistent during comparison trials.
- Reject creased, contaminated or dimensionally unstable samples before process tuning.
A useful material record separates four conditions
Photograph the same film while relaxed, supported, aligned and released after bonding. Keep the tail direction and camera angle unchanged. This makes it easier to see whether the final offset began with material curl, fixture restraint, liner removal or post-release rebound.
Alignment and Tension Must Be Controlled Together
Alignment begins with a clear definition of what must match. The controlling feature may be the sensor active area, a printed fiducial, a conductive boundary, the glass border or the tail exit. The outside cut edge should only be used when its relationship to the functional pattern is stable.
Mechanical references can provide a repeatable loading position. Pins, stops, nests or shaped supports work best when they locate the part without squeezing the flexible edge. Excessive side contact can introduce compression before the camera or operator sees the marks.
Optical references become useful when the functional geometry matters more than the outline. Camera assistance can compare two or more marks, but image recognition alone cannot stop rebound. The film still needs stable support after the marks reach position.
A reliable alignment check follows the complete cycle
The initial mark image is only one checkpoint. Position should be compared after liner removal, after temporary holding, after evacuation, after full contact and after fixture release. This sequence shows exactly where movement begins.
Before vacuum
Record mark position, film orientation, tail direction and any visible edge lift.
After bonding
Measure the same references before removing the part from controlled support.
After release
Check for delayed shift, rotation, edge lift and tail-side rebound.
Correct tension means smooth, not stretched
Tension control is not a single force value that fits every film. The goal is a smooth presentation without changing mark spacing or active-area geometry. Film construction, thickness, panel size, liner stiffness and tail design all influence the workable condition.
Pulling from two corners can make the surface look flat while creating diagonal strain. Distributed support is often more useful because it reduces sag without concentrating force. The actual holding route still needs confirmation with production-representative samples.
Liner removal can undo careful alignment. A steep peel angle or fast motion may pull the film away from its references. When that pattern repeats, the solution may involve a revised holding method, a temporary carrier or a different loading sequence rather than stronger clamping.
The proposed glass-to-film lamination route should be reviewed with the actual marks, tail, liners and OCA position. A generic statement about alignment assistance does not replace project-specific fixture validation.
Build a Stable Bonding Sequence Before Adjusting Pressure
Alignment, vacuum and pressure cannot be tuned as isolated steps. A strong hold may stabilize one edge while stretching another. Early contact may remove a large air pocket while locking in rotation. A useful trial therefore follows the entire sequence from loading to release.
1. Load and support
Seat the glass on clean, stable references. Keep the film and tail away from sharp edges, unsupported gaps and accidental adhesive contact.
2. Remove the liner
Use a consistent direction and restrained motion. Keep the final bonding surface protected until references and holding points are ready.
3. Confirm final position
Check functional marks and active-area relationships. Avoid correcting one mark by stretching the remaining film.
4. Evacuate and create contact
Hold curled edges securely and develop a controlled contact front that leaves air a defined escape direction.
5. Apply pressure and release
Use only confirmed machine and material conditions. Inspect again after holding forces disappear and the assembly settles.
OCA position changes the handling plan
The RFQ should state whether OCA arrives on the glass, on the sensor film or as a separate sheet. Each arrangement changes mark visibility, liner removal and the point at which accidental contact becomes difficult to reverse.
OCA dimensions and edge position also matter. Adhesive that overlaps a fixture reference may interfere with seating. An undersized adhesive layer may leave a visible unbonded border. A drawing should show the adhesive boundary relative to glass printing and the active area.
Contact direction should follow the stack
A controlled contact front gives displaced air a route out of the assembly. However, no universal edge-first or corner-first rule applies. Tail position, film curl, panel shape, printed borders and OCA geometry all influence the safer direction.
Exact vacuum, pressure and timing values should come from the confirmed machine configuration and material trial. Copying values from another panel can hide a fixture problem or damage a different film construction.
Record the first-contact decision during trials
Note which edge or region touched first, where the tail was supported, when the liner was fully removed and whether the contact front stayed continuous. This record is more useful than writing only the final pressure and vacuum time because it shows how air and film movement were controlled before full bonding.
Prevent G+F Bubbles at Their Actual Source
This process can create bubble patterns that are closely tied to flexible-film behavior. A curled edge may contact late and leave a perimeter channel. Uneven tension may create a diagonal line. Tail-side rotation may force one region to touch before the opposite side is ready.
Dust remains a separate problem. A particle raises the film above the adhesive and can create a bubble ring around a hard centre. More chamber pressure cannot remove contamination already sealed inside the stack.
Edge bubble on the same side
Review: curl direction, edge support, adhesive boundary and fixture interference.
Evidence: compare the defect after rotating an equivalent film sheet.
Diagonal bubble or wrinkle line
Review: corner pulling, uneven support and contact-front direction.
Evidence: mark spacing and wrinkle direction before bonding.
Bubble near a fiducial
Review: local pressure, printed thickness, contamination and repeated repositioning.
Evidence: magnified image and local stack information.
Edge lift after release
Review: stored tension, late contact, incomplete wetting and tail load.
Evidence: immediate and delayed photographs from the same orientation.
A post-bond bubble-removal stage may be considered when the initial assembly is clean, correctly aligned and free from wrinkles, yet suitable residual air remains. It should not be used to hide film distortion, shifted marks, damaged OCA or sealed particles.
Vacuum bonding is intended to reduce bubble formation, while a later autoclave or bubble-removal step may belong in some critical workflows. The decision should follow the actual stack and defect evidence rather than a fixed rule for every panel.
Broader residual-air diagnosis is covered in the LCD bubble removing machine guide. This G+F article stays focused on flexible-film causes that begin before or during bonding.
Approve the First Piece Before Expanding the Batch
A clean-looking first piece can still contain a shifted sensor pattern. A correctly centred assembly can hide a small crease beneath a printed border. Approval should therefore combine traceability, position checks, optical inspection and the relevant functional test.
Before bonding
- Glass, film and OCA identification
- Film orientation and tail direction
- Mark visibility and liner condition
- Fixture and recipe identification
After bonding
- Mark position and sensor rotation
- Active-area and border clearance
- Wrinkles, particles and bubble lines
- Tail stress and adhesive boundary
After release or rest
- Delayed shift or edge lift
- Bubble return under side light
- New pressure or support marks
- Approved touch or electrical check
Lighting should reveal both large and fine defects. Front light may show particles, while shallow side light reveals waves, edge lift and narrow air lines. Black borders and printed areas deserve a separate look because they can hide local adhesive steps.
Defects should receive specific names and positions. “Tail-side edge lift after fixture release” provides a useful process clue. “Poor lamination” does not indicate where the investigation should begin.
Batch checks should react to change
A new first-piece review is sensible after a film, OCA or glass batch change. The same applies after fixture replacement, recipe adjustment, mark revision, machine maintenance or a long interruption.
During routine output, trend defects by type and location. A slow rise in one repeated position may indicate fixture contamination. A sudden shift across several samples may point to a new material lot or a changed loading method.
When a process trial is needed, change one handling variable at a time. The existing three-sample validation method provides a useful record structure without repeating that full topic here.
Match the Equipment Route to the Real G+F Project
A machine title does not confirm fit. Selection should begin with the layer stack, film behavior, reference marks, fixture envelope, output target and current defect pattern. The application should be described as rigid cover glass to flexible touch sensor film, not only as screen lamination.
Projects that fit this process direction
- Rigid cover glass must bond to a separate flexible touch sensor film.
- Functional fiducials matter more than the outside film edge alone.
- Current defects include film wrinkling, rebound, tail-side rotation or G+F edge bubbles.
- Several panel sizes require a reviewed fixture or changeover plan.
Projects that need another route or earlier correction
- Both principal layers are rigid glass and require a G+G handling strategy.
- The task is only to place OCA on cover glass without bonding a separate sensor film.
- The only remaining issue is suitable residual air after an otherwise acceptable bond.
- The film arrives creased, contaminated or dimensionally unstable before loading.
The Jiutu film laminating machine collection includes several bonding directions. That broader category is useful for comparing process routes, while the final proposal should identify the exact G+F stack and tooling requirement.
Working area means more than glass size
Glass length and width are only the starting point. Film margins, tail extension, carriers, loading clearance and fixture movement also use space. Each required model should be listed rather than represented by one maximum dimension.
Alignment method should match the drawing
The proposal should state whether positioning relies on glass edges, film edges, printed marks, camera fiducials or conductive boundaries. Mark size, contrast, spacing and visibility through the material stack also affect the practical route.
Daily output should include handling time
Practical capacity includes cleaning, liner peeling, alignment, bonding, inspection, changeover and any approved post-bond step. Chamber time alone does not describe the complete daily workflow.
RFQ information for a useful technical review
Cover glass
Length, width, thickness, shape, openings, printed border, coatings, reference edges and a dimensioned drawing.
Touch sensor film
Length, width, thickness, construction, active area, tail geometry, curl direction, marks, liners and storage method.
OCA
Material identification, thickness, sheet dimensions, stack position, adhesive boundary, liner arrangement and confirmed handling guidance.
Alignment
Controlling features, mark drawings, permitted translation and rotation, active-area relationship and inspection method.
Current defects
Orientation-labelled photos of wrinkles, offset, edge bubbles, tail-side lift, OCA overflow or incomplete contact.
Production plan
Daily quantity, operating hours, model mix, changeovers, current workflow, available utilities and sample quantity.
Photographs should show the film both relaxed and held. Short videos can capture liner pull, rebound and tail movement more clearly than one still image. Unknown values should remain marked as unconfirmed rather than estimated.
The written proposal should confirm the selected machine configuration, supported part and fixture envelope, alignment route, utility requirements, supplied tooling, sample-test scope, delivery arrangement and service terms. Values not published for the project should remain open until technical confirmation.
Current product-page availability should also be confirmed before payment. For a project-based machine, the main action is technical review and written configuration confirmation rather than selecting only from the product title or image.
Frequently asked questions
G+F Touch Film Bonding FAQ
What is the practical difference between G+F and G+G bonding?
G+F combines rigid cover glass with flexible touch sensor film. G+G combines two rigid glass layers. The flexible layer can curl, stretch and rebound, so G+F needs a different support, alignment and release strategy.
Why does the film wrinkle even when the centre looks flat?
A flat centre can hide diagonal strain or unsupported material near an edge. Corner pulling, liner removal, tail weight or early adhesive contact may make one region advance faster than another. Mark spacing and wrinkle direction help identify the cause.
How should film tension be judged?
The film should remain smooth without changing the distance between functional marks. A suitable holding method supports the sheet and tail without pulling the active area into a new shape. The final condition requires sample validation for the actual construction.
Should alignment follow film edges or printed fiducials?
The approved drawing should decide. Functional marks, active-area boundaries or conductive features are often stronger references when the cut edge has variable distance from the sensor pattern. Mechanical edges remain useful when that relationship is stable.
Is a separate post-bond bubble-removal stage always required?
No fixed rule applies to every stack. A later stage may help suitable residual air after a clean and correctly aligned bond. It should not be expected to repair wrinkles, offset, damaged OCA, particles or stored film stress.
What information is most important before requesting a proposal?
The technical package should include glass dimensions, film structure and thickness, OCA information, mark drawings, tail geometry, defect photographs, model mix, required daily quantity and production-representative samples. Unknown details should remain clearly marked.
Next step
Submit the Stack, Defects and Output Plan
A useful review starts with dimensioned glass and film drawings, OCA identification, fiducial details, tail orientation, current wrinkle or bubble photographs, daily output and sample availability. These records allow the technical team to evaluate fixture direction, alignment references, film support and whether a separate post-bond stage belongs in the workflow.
- Send relaxed and held-film photos from the same orientation.
- Label every defect image by edge, tail side and process stage.
- Include the required model mix, daily quantity and available sample quantity.
- Keep unconfirmed dimensions or material details clearly marked.
With that package, the proposed G+F Lamination Machine can be reviewed against the real material stack instead of guessed settings or a generic screen-lamination description.
