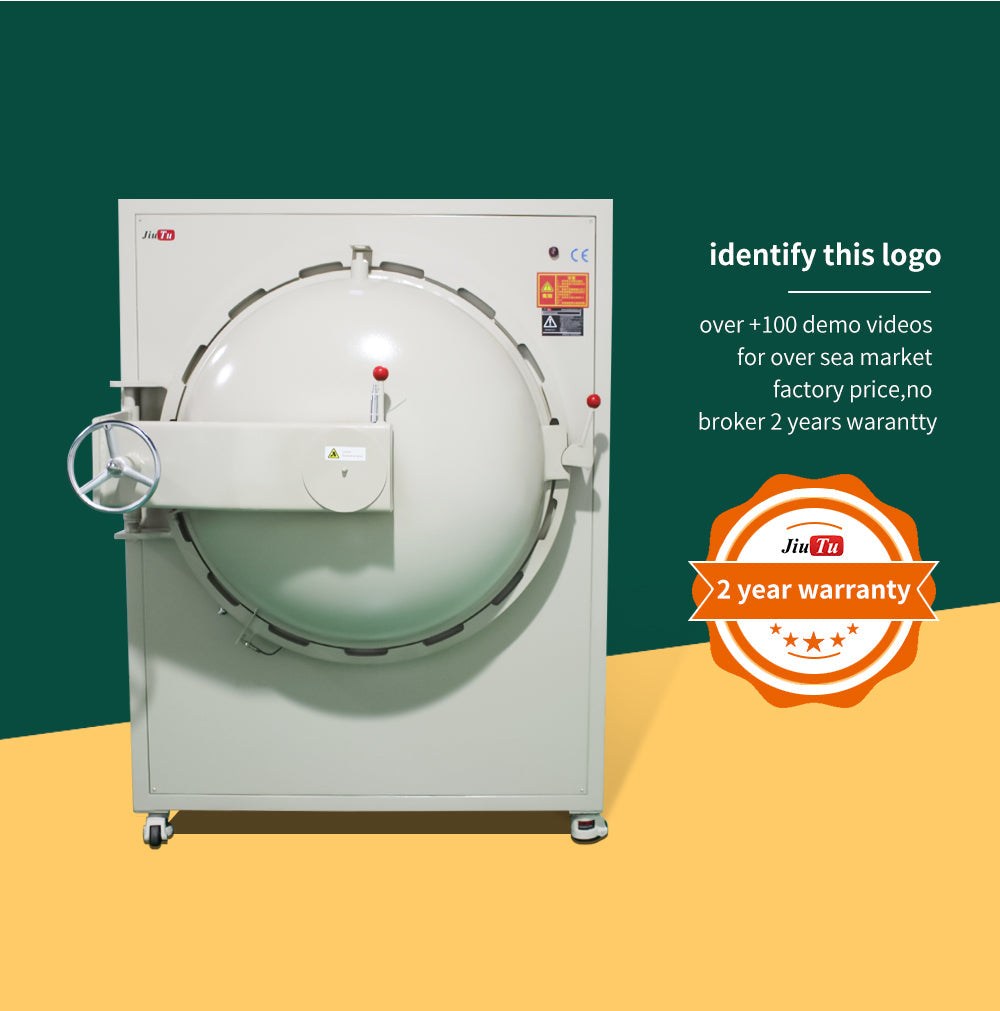

Industrial Bubble Removal Machine Selection Guide for Display Factories
Share
Select an industrial bubble removal machine by matching the usable chamber envelope, pressure and temperature control, loading method, fixture strategy, utility conditions, recipe governance, and validation plan to the actual industrial display stack. Nameplate values alone do not establish process suitability; representative samples and recorded evidence should drive the decision.
Define the Application Before Comparing Machines
Start with the product and process rather than an equipment catalog. Document display dimensions, stack thickness, cover material, adhesive family, edge geometry, sensitive components, expected incoming bubble pattern, and the lamination step that precedes bubble removal. The removal cycle must support the complete assembly without introducing excessive mechanical or thermal stress.
Build a product-family matrix
Group displays by shared construction and risk instead of creating one vague requirement. A matrix can include minimum and maximum panel dimensions, adhesive type, target batch quantity, carrier dimensions, permitted temperature range, and inspection method. This reveals whether one chamber and fixture concept can cover the intended mix.
Match Chamber Size to the Real Load
A chamber should be evaluated by usable space after accounting for shelves, door geometry, internal piping, thermal circulation paths, and the loading carrier. External dimensions and nominal chamber volume can be misleading. Confirm how the greatest planned load enters, rests, and exits without contact with seals or walls.
Check all three axes
Width and height receive attention, but depth often controls tray access and spacing. Allow room for repeatable placement and for air and heat movement around each assembly. Crowding can produce uneven exposure even when every panel physically fits.
Machine capability
Usable chamber space, stable control, alarms, records, safety functions, and utility interfaces describe what the equipment can do. These items should be demonstrated through documents and functional checks.
Process suitability
The actual display stack, adhesive, incoming condition, loading pattern, and inspection method determine whether that capability produces an acceptable result. Suitability requires representative process evidence.
Evaluate Pressure, Temperature, and Time Controls
Pressure assists trapped gas reduction while temperature changes adhesive flow behavior and time allows the mechanism to progress. Equipment must control these variables consistently enough for the validated window. Review control ranges, resolution, sensor location, ramp behavior, stabilization logic, and how actual values are displayed or recorded.
Focus on usable control, not extreme values
A high maximum is not automatically valuable. The relevant question is whether the machine can reach, stabilize, and repeat the conditions required by the display stack. Excessive pressure or temperature may create other risks, so selection should support a practical window with suitable adjustment.
Review Loading, Fixtures, and Material Flow
Fixtures should support panels without concentrated stress, preserve clearance between parts, and help operators reproduce the same loading arrangement. The machine selection and fixture plan are one decision because usable capacity depends on tray pitch, panel orientation, carrier stiffness, and handling steps.
Design against movement and contact
Pressure transitions can move loosely placed items. Define locating features that restrain the load without covering bubble-prone zones or sensitive edges. Contact materials should be compatible with the display surfaces and the expected thermal environment.
Do not select on maximum pressure, nominal chamber volume, or cycle speed in isolation. Select the system that can repeatedly execute a justified process window with the real product, load, fixtures, utilities, and quality controls.
Assess Utilities, Safety, and Factory Integration
Verify electrical supply, compressed-air quality and pressure where applicable, heat rejection, ventilation needs, floor loading, access clearances, and environmental limits. The factory should understand connection interfaces and isolation points before arrival. Safety review should cover the pressure boundary, door interlock behavior, overpressure protection, emergency stopping, hot surfaces, and alarm response.
Use site data, not assumptions
Record available voltage, frequency, phase, air pressure range, ambient conditions, doorway dimensions, and intended location. Differences between planning assumptions and site conditions can delay commissioning by the factory team.
Compare Data, Recipes, and Traceability
Industrial display factories often need to connect a processed lot with the recipe and actual cycle. Determine what the controller stores, how records are identified, whether timestamps are available, and how data can be exported if required. Traceability should be proportional to product risk and the factory quality system.
Protect validated settings
Role-based access or another controlled method helps prevent unintended edits. Recipe revisions should be approved, dated, and linked to validation evidence. A change to pressure, temperature, time, loading, or fixture can affect results even when the recipe name stays the same.
| Decision area | Evidence to request | Factory question |
|---|---|---|
| Chamber and load | Internal drawing and loading layout | Does the greatest real carrier fit with clearance? |
| Process control | Setpoint and actual-value demonstration | Can the required window be repeated and protected? |
| Traceability | Example cycle record and export check | Can a lot be linked to recipe and actual conditions? |
| Acceptance | Agreed protocol and sample plan | What objective evidence closes each requirement? |
Use Samples and Evidence to Compare Suppliers
A selection trial should use representative assemblies with known incoming conditions, a controlled loading arrangement, and an agreed inspection method. Record starting defects, settings, actual cycle behavior, and post-cycle findings. The purpose is to establish evidence for the intended process, not to create a dramatic demonstration with unusually easy samples.
Make comparisons fair
Use matched samples where possible and hold upstream lamination variables constant. If one trial changes the adhesive, fixture, and cycle simultaneously, the equipment contribution cannot be interpreted clearly.
Write a Technical Purchase Specification
Translate the application study into measurable requirements. Include usable chamber envelope, accepted load and fixture arrangement, required process-variable controls, recipe protection, records, alarm behavior, utility interfaces, document package, and acceptance test responsibilities. Avoid requirements that state only a model number or marketing phrase.
Connect requirements to verification
Every important requirement should have a verification method: drawing review, document review, visual inspection, functional check, or sample test. This makes acceptance clearer for both the factory and JiuTu.
Frequently Asked Questions
What is the first specification to define?
Define the actual product and carrier envelope, including handling clearance. This prevents nominal chamber dimensions from becoming a misleading starting point.
Is higher maximum pressure always preferable?
No. The useful capability is stable, repeatable control within the justified process window for the specific adhesive and display construction.
How should capacity be calculated?
Calculate capacity from the validated loading layout and cycle, including loading, unloading, inspection, and planned hold time. Chamber volume alone is insufficient.
Why do fixtures matter during selection?
Fixtures determine spacing, support, orientation, movement restraint, and usable load count. They can also influence thermal and pressure exposure.
Should a factory require cycle records?
Require records when lot traceability and process review need them. Define the fields, retention, access control, and export method rather than requesting data in general.
How can suppliers be compared fairly?
Use matched representative samples, a common inspection method, documented incoming defects, and an agreed loading plan. Keep upstream conditions controlled.
Can one recipe cover every display size?
It should not be assumed. Product families may need separate evidence because geometry, adhesive thickness, edge design, and load thermal mass can change behavior.
What belongs in acceptance criteria?
Include measurable equipment functions and representative process tests, with responsibilities, sample quantities, inspection timing, and deviation handling defined in advance.
Build a Selection Brief Around Your Display Stack
Share product dimensions, stack construction, adhesive information, planned batch arrangement, utility conditions, and quality-record needs. JiuTu can use that information to discuss an appropriate equipment and evaluation path.
Process guidance should be confirmed with the actual display stack, adhesive system, fixtures, and production controls. JiuTu can review application information supplied by your engineering team.
