Pressure, Temperature, and Time: Building a Bubble Removal Process Window
Share

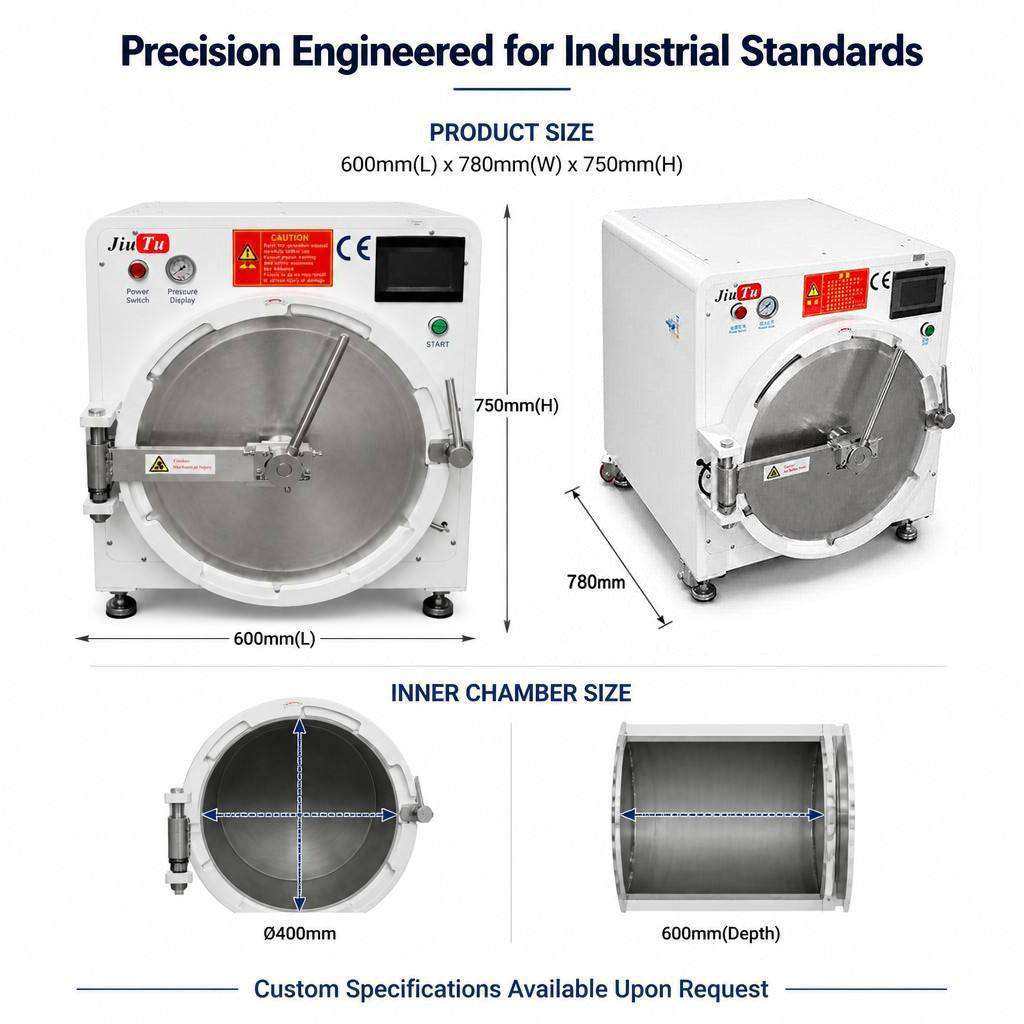

A bubble removal process window is the documented combination of pressure, temperature, and hold time that reduces eligible trapped gas without creating unacceptable effects in the display assembly. Develop it with representative samples, controlled loading, staged experiments, and defined inspection criteria. The goal is a robust region, not one isolated passing recipe.
Understand the Three-Variable System
Pressure, temperature, and time act together. Pressure changes the gas volume and the force environment around the laminated stack. Temperature affects adhesive flow and gas mobility. Time allows these mechanisms to progress. Because the variables interact, changing one can alter the useful setting of the others.
Treat the recipe as a path
The process is more than three final numbers. Ramp rates, stabilization, hold definition, depressurization, load temperature, and inspection delay can influence observations. Document the complete path so another shift can reproduce the cycle.
Pressure: Contribution and Limits
Applied pressure can reduce bubble volume and encourage intimate contact while the adhesive can flow. Yet pressure does not remove particles, cure contamination, or correct an unbonded region caused by geometry. A greater setpoint is not automatically a stronger process if other mechanisms limit the result.
Evaluate actual pressure behavior
Review rise, stabilization, deviation, and release rather than only the setpoint. Sensor location, load size, air supply, and control logic can affect actual behavior. A cycle record helps determine whether a defect correlates with a pressure event.
Nominal recipe
A nominal recipe is the chosen target path for pressure, temperature, time, ramps, and transitions. It supports daily execution but does not by itself describe the proven boundaries.
Validated window
The validated window describes tested limits and conditions under which output met predefined criteria. It includes load rules, product scope, inspection method, and known exclusions.
Temperature: Adhesive Mobility and Product Risk
Temperature commonly increases adhesive mobility, which may help trapped gas migrate or compress into the bondline. It can also affect optical appearance, coatings, dimensional behavior, and sensitive parts. The relevant temperature is the load response, not simply the chamber display at the start of a hold.
Account for thermal lag
A large carrier or dense batch may take longer to approach chamber conditions than a small load. Stabilization studies can use suitable measurement approaches defined by the factory. Changing batch mass may therefore require review even when the recipe is unchanged.
Time: Mechanism Completion Versus Throughput
Hold time should be long enough for the intended mechanism under stable conditions, but added time may offer diminishing benefit. Cycle duration also includes ramps, stabilization, release, loading, and unloading. Throughput analysis should use the complete operation rather than the programmed hold alone.
Study response over intervals
A staged time study can reveal whether improvement occurs early, continues gradually, or reaches a plateau. If a defect remains unchanged across justified intervals, reconsider its classification before extending the cycle.
Pressure compresses trapped gas, temperature changes adhesive mobility, and time lets the response progress. A stable bubble removal cycle balances all three within product limits and controls ramps, load, and inspection timing.
Design a Structured Experiment
Begin with a baseline supported by material knowledge and safe operating boundaries. Vary factors systematically while controlling product lot, lamination method, delay before bubble removal, loading pattern, and inspection. Screening trials can locate a promising region; confirmation trials then test repeatability.
Use a clear response definition
Possible responses include eligible bubble count by size band, affected area, edge distance, optical appearance, assembly movement, and occurrence of new anomalies. State the lighting, magnification if used, and inspector rules.
Find the Edges of the Window
A center point that passes does not show robustness. Challenge settings toward justified low and high edges while observing both bubble response and unintended effects. The operating target should have margin from failure boundaries and from ordinary equipment or material variation.
Separate lower and upper constraints
Low pressure, temperature, or time may leave eligible bubbles. High exposure may create visual, dimensional, or material concerns. Document both sides so operators understand why the target cannot simply be moved upward.
| Study stage | Main purpose | Typical output |
|---|---|---|
| Baseline | Confirm safe, observable starting behavior | Initial response and issue list |
| Screening | Identify influential variables and interactions | Promising region |
| Edge study | Locate practical failure boundaries | Proposed window and margin |
| Confirmation | Test repeatability with representative variation | Controlled recipe and evidence package |
Translate the Window Into a Controlled Recipe
The validated window becomes an operating target, allowable limits, loading rule, and inspection plan. Recipe control should specify ramps, holds, transitions, and alarm response. Operators need concise instructions for selecting the correct recipe and identifying the correct fixture layout.
Set action rules for deviations
Define what happens when actual pressure or temperature leaves a limit, a door event interrupts the cycle, or the wrong load arrangement is discovered. Product disposition should follow the factory quality system and evidence, not an informal restart habit.
Monitor and Revalidate
Routine monitoring confirms that the process continues to operate inside the established window. Trend eligible residual bubbles, alarms, actual cycle values, and product mix. A trend can signal upstream lamination drift, material change, loading inconsistency, or equipment-control variation.
Use triggers rather than arbitrary repetition
Revalidation triggers can include adhesive change, stack redesign, fixture revision, software or control change, relocation, major pressure-system work, or an unexplained defect shift. Periodic review can verify that assumptions remain current.
Frequently Asked Questions
Which variable should be adjusted first?
There is no universal first variable. Start from material and product limits, then use a structured study that can distinguish pressure, temperature, time, and their interactions.
Does longer time always remove more bubbles?
No. Improvement may plateau, and persistent features may have another cause. Use interval evidence and defect classification before extending exposure.
Why is chamber temperature not enough?
The load can lag behind chamber conditions. Carrier mass, batch density, starting temperature, circulation, and hold definition affect the product exposure.
How many trial levels are needed?
Use enough levels to identify a useful region and its boundaries. The number depends on risk, prior knowledge, product variation, and experimental design.
Can the highest passing setting be the production target?
A target should sit inside a robust region with margin from unwanted effects and ordinary variation. An edge setting can be sensitive to drift.
What should be recorded in each trial?
Record sample identity, incoming map, stack and adhesive, conditioning, load layout, complete recipe, actual values, alarms, inspection method, timing, and observations.
When should a recipe be revalidated?
Review it after meaningful changes to materials, stack, fixture, loading, control system, location, or observed defect pattern, according to the factory change system.
How is throughput included in window development?
Measure full operation time and validated load count. Evaluate throughput after process suitability, then look for supported reductions in non-value-added time or hold duration.
