Residual Bubble Defect Diagnosis in Industrial Display Lamination
Share

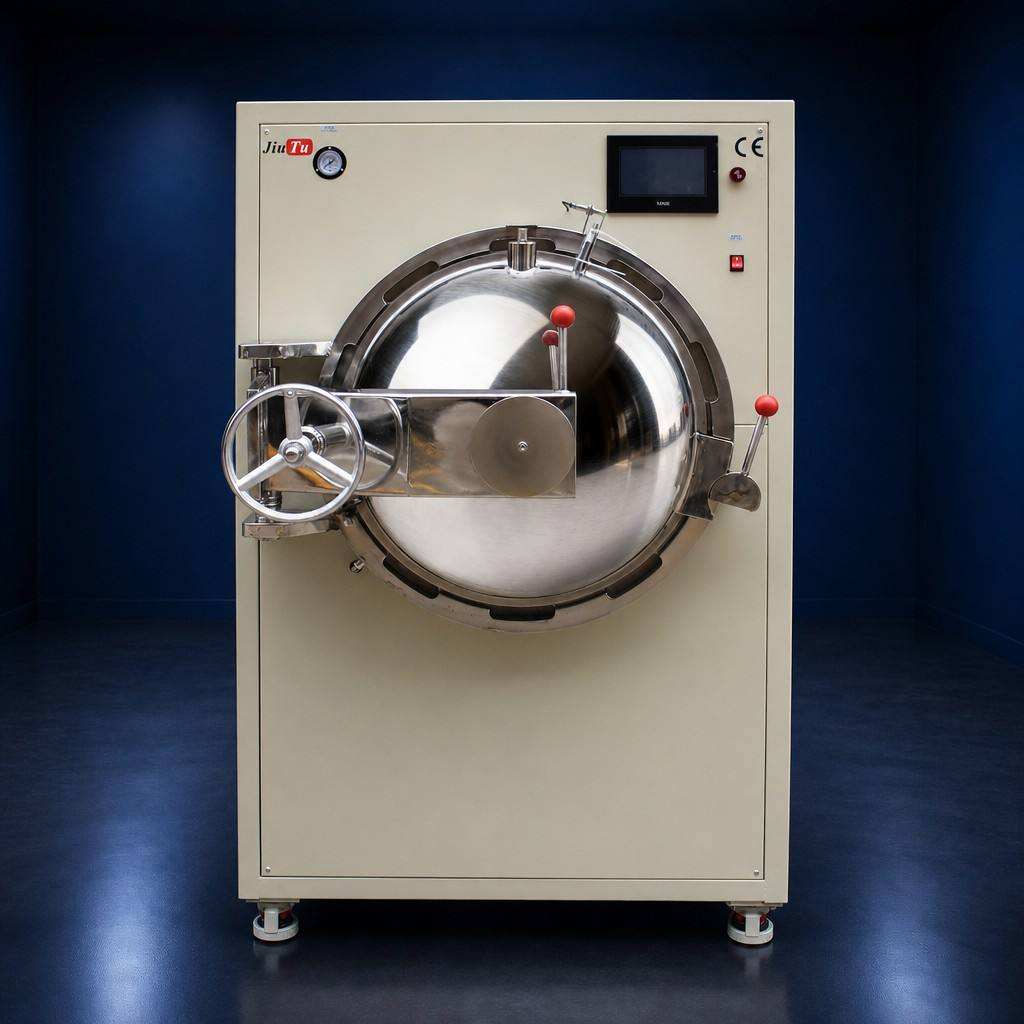

A residual clear feature after bubble removal is not automatically a trapped bubble. Diagnose it by location, shape, boundary, response to pressure and temperature, recurrence pattern, and destructive evidence where justified. Voids, particles, contamination, poor wetting, edge geometry, and material outgassing require different corrective paths.
Start With Defect Classification
The word bubble is often used for several visually similar features. That shortcut can send engineers toward higher exposure when the actual cause is a particle or persistent non-wetted area. Begin with a standard defect vocabulary, calibrated examples, and a method for recording location, size, shape, contrast, and change after processing.
Describe before interpreting
Write what is visible without naming the cause: circular or irregular, sharp or diffuse edge, flow-responsive or fixed, near an ink boundary or in an open area, isolated or clustered. Objective description allows another reviewer to challenge the interpretation.
Recognize a Compressible Trapped-Gas Bubble
An eligible trapped-gas bubble may decrease in size, change shape, or disappear when pressure, temperature, and time allow gas compression and adhesive flow. Response must be interpreted cautiously because a temporary visual change does not always represent stable resolution.
Look for process response
Compare a mapped feature through a controlled cycle. Record actual conditions and inspect at a defined post-cycle interval. A reproducible response across similar features supports, but does not prove by itself, the trapped-gas classification.
Likely bubble behavior
A mapped feature changes size or shape under a controlled, suitable cycle and remains improved after the defined inspection interval. The pattern is consistent with trapped gas in a flow-responsive interface.
Likely non-bubble behavior
A feature remains fixed, centers on debris, repeats at a structural coordinate, or reappears according to material history. Investigate particles, wetting, geometry, contamination, or gas generation.
Distinguish a Void or Non-Wetted Region
A void is an area where intended interface contact is absent. It may result from insufficient wetting, surface-energy conditions, geometry, an adhesive boundary, or an obstruction. Unlike a compressible gas pocket in flow-responsive adhesive, a structural non-wetted zone may remain fixed despite added cycle exposure.
Study the boundary
Sharp, stationary boundaries or shapes aligned with printed steps, cut edges, spacers, or surface features suggest a contact or geometry issue. Map whether the feature repeats at the same location or shape.
Identify Particle and Contamination Signatures
A particle can create a raised point with a surrounding halo or tented region. Contamination can inhibit wetting and form irregular areas. These defects may be mistaken for bubbles because they contain a clear-looking ring, but the central obstruction or surface chemistry remains after gas compression.
Use optical clues
Change illumination angle and focus to look for a central point, fiber, speck, or surface mark. Consistent size and position after processing support an obstruction hypothesis. Appropriate magnification can help when defined in the inspection method.
Do not use added pressure, heat, or time as a universal response to every clear spot. First classify the feature and predict how each plausible cause should behave under a controlled observation.
Evaluate Material Outgassing
Outgassing occurs when materials release volatile species or moisture that forms gas at an interface. It can appear after lamination, during heating, or after an initially acceptable cycle. Sources may include adhesives, inks, coatings, plastics, cleaning residues, or stored moisture. Confirmation requires material and timing evidence.
Use timing as a clue
Record when the feature first appears: immediately after lamination, during the bubble removal cycle, after cooling, or after storage. A delayed or heat-associated recurrence can support an outgassing investigation.
Run a Response-Based Diagnostic Test
Use a small, safe, documented trial matrix to observe whether mapped defects respond to changed pressure, temperature, or time. Hold all unrelated variables constant. The purpose is diagnosis, not immediate recipe expansion. Stop if product limits or new anomalies are approached.
Define competing hypotheses
For example: compressible trapped gas should change under a suitable cycle; a rigid particle center should persist; a geometry-linked void should recur at a coordinate; outgassing may recur after heat or time. Writing predictions makes the trial more informative.
| Observed pattern | Leading hypothesis | Next useful check |
|---|---|---|
| Shrinks during controlled cycle | Compressible trapped gas | Confirm stability and upstream entry path |
| Fixed halo with central point | Particle obstruction | Optical review and contamination-source audit |
| Repeats at print or edge step | Geometry-linked void | Drawing correlation and interface study |
| Appears again after heat or storage | Material outgassing | Controlled lot, conditioning, and timing comparison |
Connect Defect Patterns to Root Causes
Single defects can be ambiguous, but population patterns are powerful. Edge clustering may indicate contact-front or seal behavior. Repeated fixture coordinates may indicate support or contact. Lot-specific delayed features may indicate material history. Random central specks can direct attention to cleanliness.
Separate occurrence from detectability
Lighting, inspector technique, cooling time, and acceptance threshold can change reported rates without changing the process. Verify the measurement system before attributing a trend to equipment or materials.
Prevent Recurrence Through Process Controls
Corrective action should address the mechanism. Trapped gas may call for lamination-front and process-window control. Particles require source control and cleanliness discipline. Voids may require geometry, material placement, or wetting changes. Outgassing requires material-history and exposure controls supported by evidence.
Update work instructions and limits
When the cause is confirmed, revise relevant instructions, control plans, defect examples, and change records. Train internal personnel through the factory system using real images and clear decision rules.
Frequently Asked Questions
How can a particle look like a bubble?
A particle can hold interfaces apart and create a clear halo around a central obstruction. Changing illumination or focus may reveal the center.
What is the difference between a bubble and a void?
A bubble is commonly treated as trapped gas that may compress or migrate in a flow-responsive interface. A void describes missing intended contact and may be fixed by geometry, wetting, or obstruction.
Does disappearance under pressure prove the defect is solved?
Not necessarily. Inspect after a defined cooling or hold interval. Temporary compression can change appearance without establishing stable interface contact.
What suggests outgassing?
Delayed appearance, recurrence after heat, and correlation with material lot, storage, conditioning, or exposure history can support the hypothesis. Controlled comparisons are needed.
Should the cycle be increased when residual features remain?
Not until the defect is classified and product limits are understood. Higher exposure may not affect a particle or geometry-linked void and may introduce another concern.
Why map defect location?
Location patterns connect visual evidence to lamination direction, fixture points, printed borders, cut edges, and material boundaries, making root-cause tests more focused.
How should inspection variation be controlled?
Define lighting, background, viewing angle, timing, size rules, and example images. Periodically compare inspectors and resolve ambiguous classes.
When is destructive analysis useful?
Use it when non-destructive evidence cannot separate important hypotheses and the factory quality plan justifies the sample cost and analysis method.
