In optical bonding, a clean result rarely comes from “more pressure.” Instead, clarity comes from steady vacuum control, predictable adhesive flow, and disciplined handling. That is why Laminator OCA often becomes the process “anchor” for teams trying to stabilize yield. Even small improvements—less dust, calmer pressure ramps, fewer rushed transfers—show up quickly under bright inspection lights. Over time, those small improvements also protect thin glass and reduce repeated peel-and-rework cycles.
Why bubbles and haze show up even when the cycle looks correct
Optical bonding looks simple on paper: place the stack, evacuate air, press, and hold. In practice, the stack behaves like a living material system. Adhesive viscosity changes with temperature, surfaces change with handling, and air finds the smallest path. As a result, defects often come from “hidden” conditions rather than obvious mistakes.
A bubble is not always a single trapped pocket. Often, the first defect starts as a micro-channel that turns into a visible bubble later. For example, a fine particle line can create a path that seals too early at the edge. Over the next hours, that path feeds a cluster of tiny bubbles under heat or stress.
Haze has a different story. Usually, haze grows when adhesive thickness varies across the panel. In other words, the bond might be complete, but light still scatters. That scattering becomes obvious on dark screens and under angled light.
Micro-bubbles, macro-bubbles, and “edge tunnels”
Micro-bubbles look like sparkle or dust under a flashlight. However, they typically trace back to surface texture, micro-scratches, or small contamination islands. In addition, micro-bubbles can appear after lamination when outgassing occurs during warm storage.
Macro-bubbles look like obvious circles or ovals. Generally, they come from trapped air that never had an escape path during the first contact. Still, they also appear when a fast pressure ramp seals edges too quickly.
Edge tunnels deserve special attention. In many lines, edges fail first because edges seal first. Consequently, the process can trap a thin air corridor that slowly spreads inward. That corridor can also cause later “white edge” lines, especially on larger panels.
Wetting, viscosity, and why timing matters
Adhesive wetting means the film spreads and contacts the surface without leaving gaps. When wetting is uniform, optical clarity improves and stress remains more balanced. On the other hand, when wetting stalls, the bond can look clean at first yet degrade later.
Viscosity controls how quickly the adhesive flows. Therefore, temperature stability becomes a quiet quality lever. Even a small temperature drift can change spread speed and edge behavior, especially on larger panels.
Timing matters because the “first touch” locks in the rest of the cycle. If the stack touches down unevenly, air can get trapped before vacuum finishes its work. As a result, the best-looking settings can still produce repeatable bubbles in the same zone.
Newton rings and thickness variation
Newton rings often appear as rainbow-like patterns or curved bands. In many cases, they signal a thickness gradient or micro-gap pattern rather than air alone. For example, a slight platen high spot can thin the adhesive locally and create rings.
Thickness variation also relates to support and tooling. If a fixture allows a panel to flex, the bond line changes across the surface. Consequently, the optical result can look “patchy,” even when bubbles remain low.
What stable lamination really improves
The first win is clarity. When vacuum, pressure, and temperature stay consistent, the bond line becomes more uniform. As a result, dark scenes look deeper and fine text appears sharper under backlight.
The second win is yield stability. Even if average yield looks acceptable, unstable equipment or handling creates spikes of rejects. Over time, those spikes become expensive because they disrupt planning and pull resources into rework.
Reliability improves too. A uniform bond distributes stress better across the glass and module. In addition, cleaner edges resist lift during thermal cycling and vibration. That matters for panels exposed to heat, sunlight, and long duty cycles.
Finally, stable lamination improves decision-making. When a process behaves predictably, troubleshooting gets faster. For example, defect mapping often points clearly to an edge issue, a vacuum leak, or a transfer shear problem. In short, stability makes causes easier to see.
The practical benefits that show up on real production floors
-
Cleaner appearance under inspection lights, because micro-voids and haze decrease.
-
More consistent edges, which helps bezel cosmetics and reduces “white line” complaints.
-
Lower glass risk, because controlled ramps reduce sudden stress on thin parts.
-
Fewer repeated peel cycles, which protects coatings and reduces contamination loops.
Meanwhile, process documentation becomes more useful. When settings remain stable, a parameter log tells a real story. Over time, teams can link defect patterns to specific adjustments without guessing.
Where OCA lamination fits best
Small displays in refurbishment work benefit from controlled alignment and gentle contact. Even so, small panels can still trap edge tunnels if film transfer creates wrinkles. That is why fixture quality and transfer control matter, even at small sizes.
Mid-size panels, like tablets and notebooks, raise the stakes. Surface area increases the chance of dust landing during staging. In addition, larger glass flexes more during handling. Consequently, consistent support across the bed becomes a bigger priority.
Large-format panels introduce another problem: uniformity across the entire width. Heat distribution, platen flatness, and vacuum stability become harder as size increases. As a result, many large lines use staged contact and careful edge management to avoid late bubbles.
Industrial and automotive displays add reliability requirements. Long duty cycles, vibration, and temperature swings test the bond line over time. Therefore, uniform thickness and stable edges matter as much as “zero bubbles on day one.”
Typical production scenarios that benefit from a structured workflow
-
Refurbishment lines with frequent model changes
Even with mixed models, stable tools reduce repeated defects. Moreover, consistent fixtures shorten changeovers without sacrificing cosmetics. -
Pilot builds and engineering validation
During early builds, materials and coatings change often. As a result, a controllable process window speeds up learning. -
Batch lamination for multiple small panels
Batch fixtures can improve throughput. Still, uniform pressure across all pockets must stay consistent to avoid “one bad corner” parts.
The equipment blocks that make a clean workflow easier
A strong optical bonding workflow usually combines several functional blocks. Each block reduces a different defect type. When those blocks work together, the process becomes calmer and less dependent on “hero tuning.”

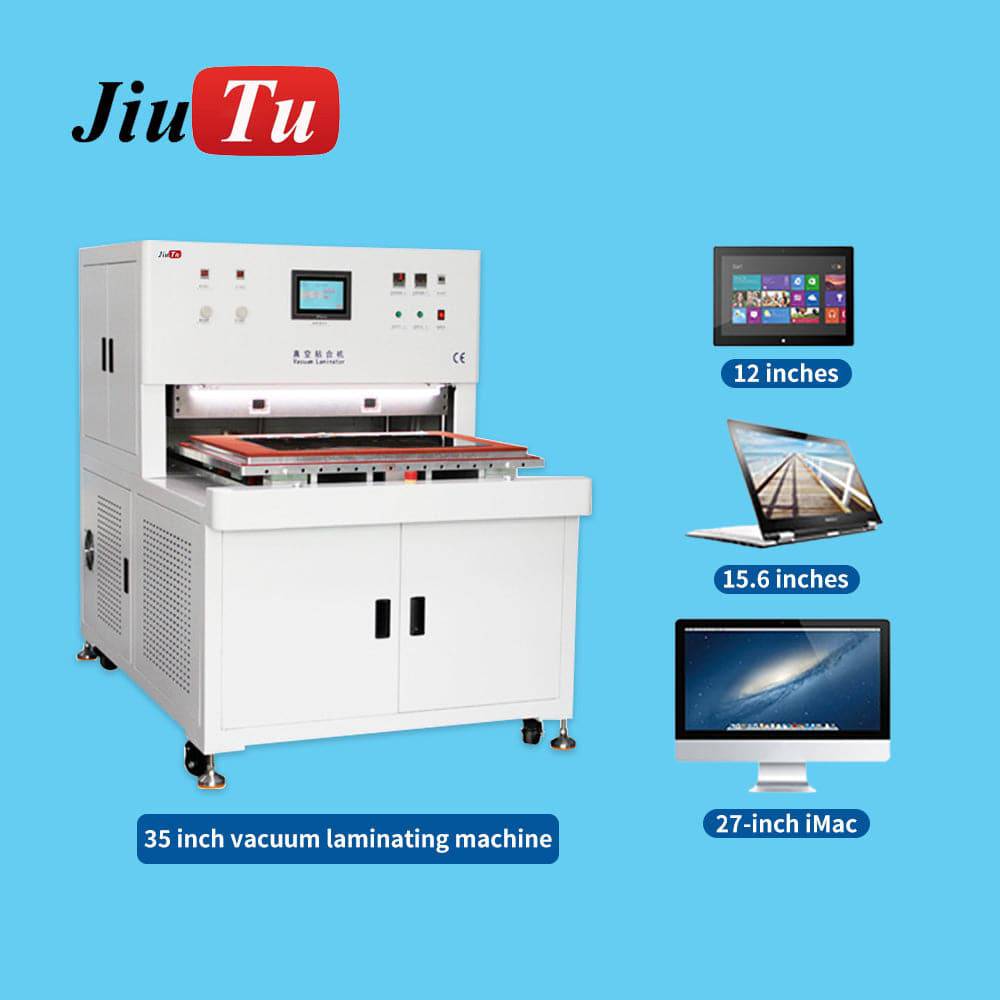

Vacuum lamination: stable contact without trapping air
Vacuum lamination helps most at the moment the stack first touches. When evacuation and contact stay controlled, air has time to exit before edges seal. As a result, the bond line forms smoothly and looks cleaner under angled light.
Another advantage is repeatability. A stable vacuum stage reduces random outcomes that come from small day-to-day shifts. Moreover, consistent motion and pressure ramps reduce shear that can wrinkle film edges.
In practice, steady vacuum and smooth ramps protect thin glass while keeping the bond line uniform.

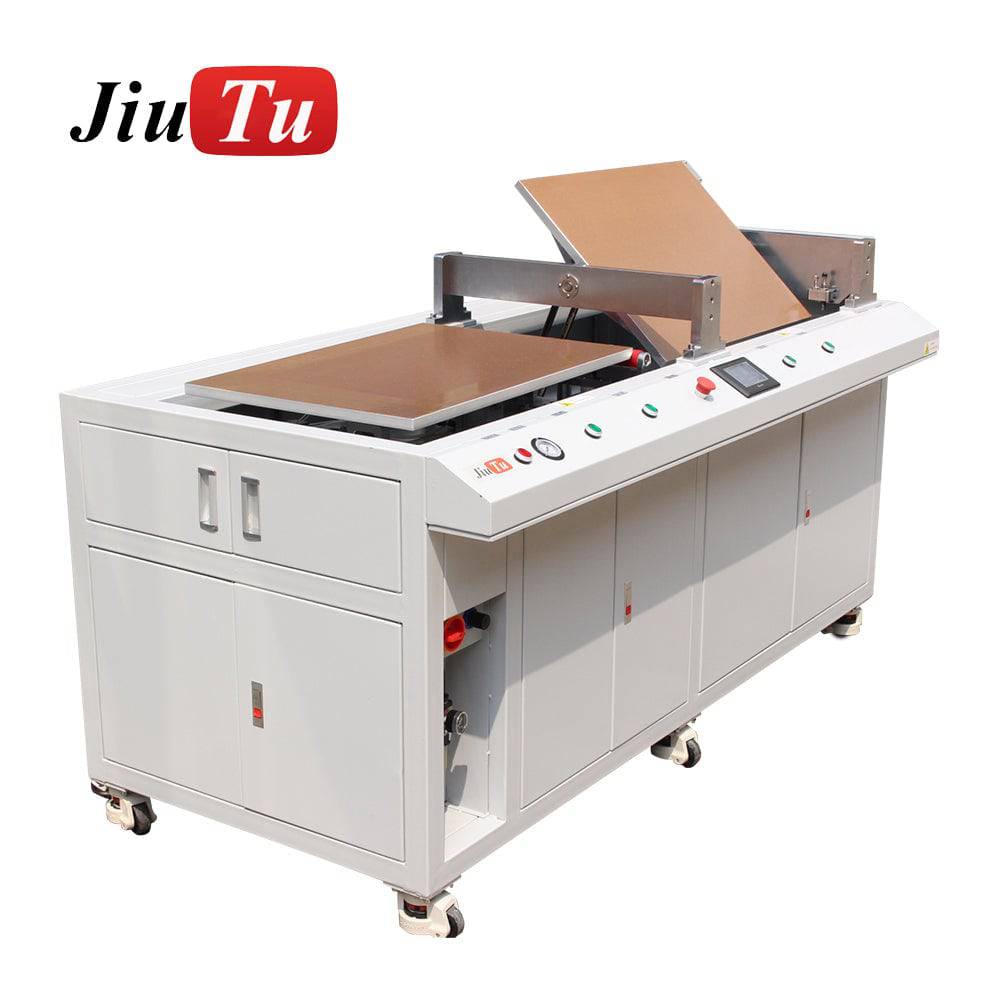

Film application: consistent transfer is half the battle
Film transfer creates many downstream problems when it goes unstable. A slight stretch can become a wrinkle under pressure. Likewise, a fast liner peel can cause edge tunnels that later grow into bubbles.
A controlled film laminating platform stabilizes that step. It supports flatter placement, calmer alignment, and less shear at first contact. As a result, the vacuum stage starts with a better stack instead of “fixing” a messy one.
Meanwhile, controlled transfer reduces skew, wrinkles, and the edge tunnel defects that often return later.

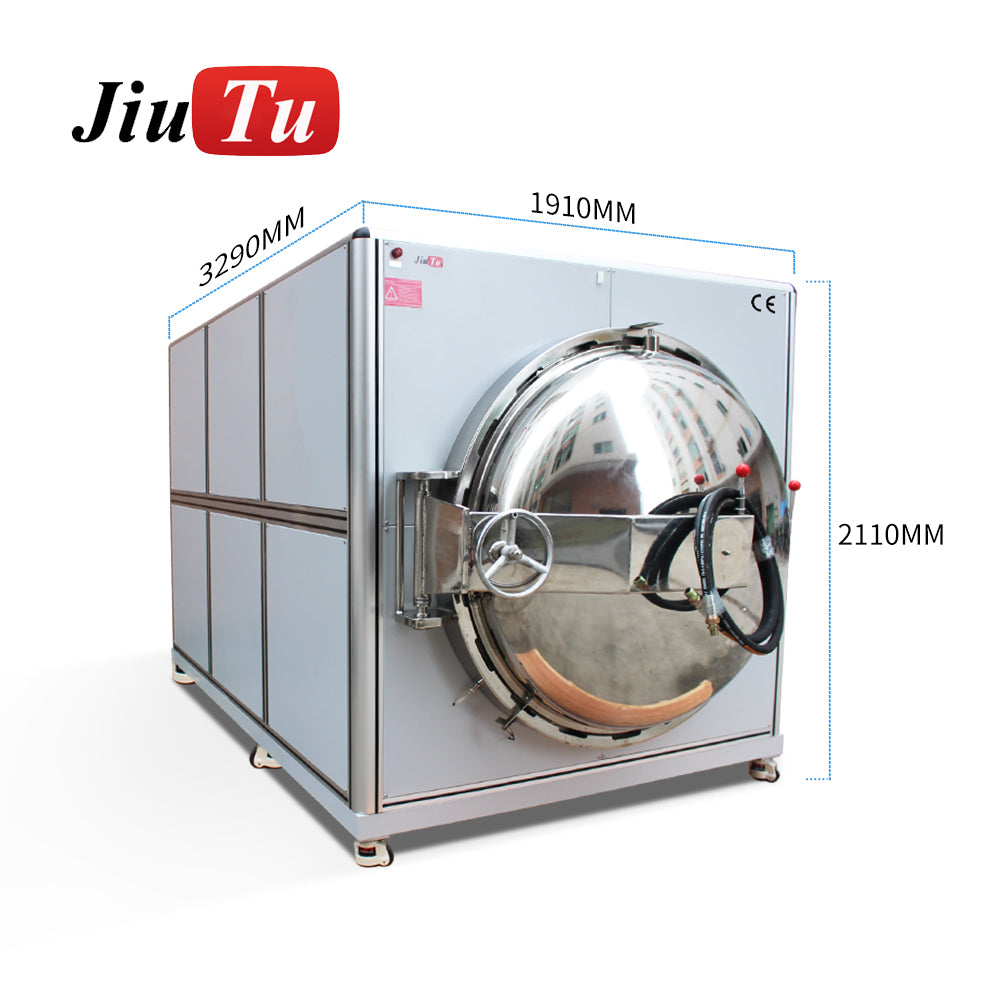

Debubbling: a safety net for micro-voids
Even good vacuum cycles can leave micro-voids behind, especially on textured surfaces or larger panels. In those cases, a debubble stage helps collapse tiny pockets under controlled heat and pressure. As a result, borderline bonds become stable without repeated peel work.
Debubbling does not replace cleanliness. If dust, oil, or scratches drive the defect, debubbling cannot “heal” the root cause. Still, debubbling can reduce the small, scattered bubbles that survive an otherwise good lamination cycle.
Additionally, a controlled debubble stage can stabilize micro-bubbles that appear during warm storage.

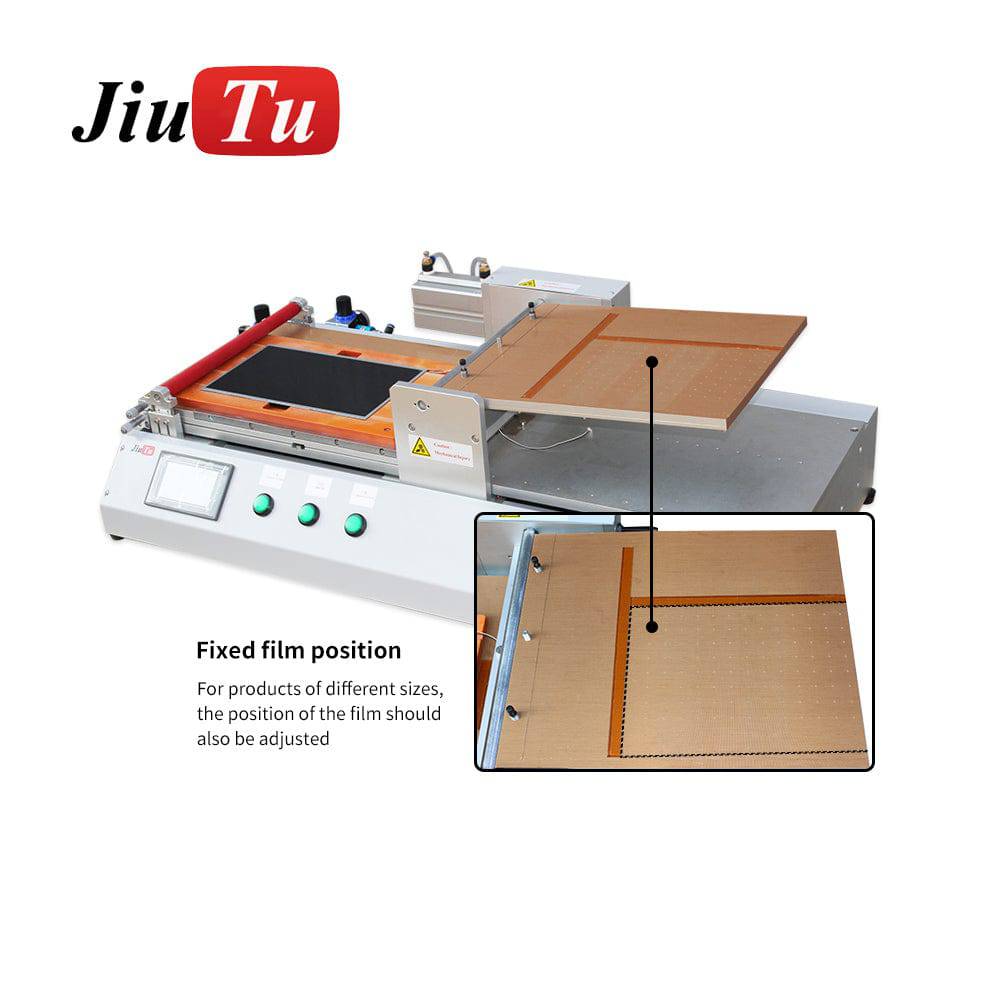

Polarizer and protective films: cosmetic control under bright light
Polarizer films reveal defects easily. Dust shows clearly, scratches show even more, and stretch lines can look like permanent streaks. Therefore, careful handling and consistent positioning matter as much as the lamination cycle itself.
A dedicated film platform improves placement stability. It reduces sliding during contact and makes alignment more repeatable. As a result, cosmetic outcomes remain consistent across batches, even when multiple sizes run on one line.
For example, steady positioning helps prevent streaks and edge misalignment that stand out on dark screens.
How bubbles form, and how rework quietly multiplies them
Bubbles often start before the press closes. A tiny particle, a fast peel, or an uneven touch can create the first air path. After that, rework tends to make the next attempt harder, not easier.
Rework adds risk because cleaning becomes more aggressive. Coatings can pick up new micro-scratches. In addition, adhesive residue can spread and change wetting behavior. Over time, the part becomes more sensitive to defects.
That is why “stop bubbles” usually means “stop the first trap.” The process should give air an exit path early, and it should reduce contamination before film touches the surface.
Cleanliness: it is not only about wiping
A wipe removes visible dust. However, wiping can also move contamination around if the cloth or solvent choice is unstable. In addition, static charge can pull dust back onto the surface right after cleaning.
Particles create micro-channels. Oils create no-wet islands. Both problems become worse when pressure spreads them. Consequently, contamination control works best when it includes the bench, airflow, gloves, storage covers, and staging time.
Even lighting plays a role. A strong, angled inspection light can catch problems before they become bonded defects. As a result, early screening reduces wasted cycles.
Material conditioning: temperature and humidity show up later
Adhesive films respond to storage conditions. Cold film can hold moisture. Warm film can flow too quickly. Therefore, consistent staging reduces the “random” defect spikes that appear after a weather change.
Humidity also affects outgassing. When a stack warms up, trapped moisture can release and form micro-bubbles. In short, stable staging can prevent late-appearing defects that escape initial inspection.
Even liners matter. Uneven peel speed can stretch film edges. Consequently, peel method becomes part of the quality recipe, not an afterthought.
Vacuum strategy: focus on the first seconds
Vacuum helps most when the stack still has open paths. If edges seal too early, vacuum cannot pull air out of a sealed tunnel. Therefore, staged evacuation and controlled touch become valuable tools.
Leaks create repeating defect zones. A worn gasket can create one “hot spot” where micro-bubbles appear every shift. As a result, routine seal checks often pay back quickly.
Vacuum alone cannot fix poor wetting. If a surface has oils or incompatible coatings, adhesive may not spread. In that case, the process needs surface control, not stronger vacuum.
Pressure ramps and support: control beats force
A fast pressure spike can trap air at edges. It can also stress thin glass. Therefore, controlled ramps often outperform high pressure settings, especially on delicate panels.
Support across the bed matters. If a panel floats in the center and touches at corners first, the bond line develops unevenly. Consequently, tooling flatness and backing plates become optical quality factors.
Connector cutouts and stiff zones also affect contact. A region that flexes differently can trap air or create thickness gradients. Over time, that gradient shows as haze or rings.
Edge behavior: the most common quiet failure point
Edges seal first, and edges see the most stress. For that reason, edges deserve their own controls: clean boundaries, stable alignment, and controlled overhang.
Wrinkles often start at edges. A tiny corner fold can expand under pressure. As a result, the final defect appears “in the middle,” even though it started at a corner.
Corners also amplify stress. When the bond line thins near a corner, stress concentrates there. Later, thermal cycling can lift that corner and create visible edge lines.
Pairing machines into a workflow that stays calm
A good workflow uses each block for a clear purpose. Film application creates a flat, aligned stack. Vacuum lamination creates clean contact. Debubbling stabilizes micro-voids. Film tools keep cosmetics stable on sensitive layers. Together, those blocks create predictability.
It also helps to think in “gates.” A gate is a check that blocks defects before they become bonded. For example, a bright inspection gate after cleaning can prevent dust from entering the lamination step.
A practical workflow map
1) Clean and inspect before any film contact
This step prevents pressing contamination into the adhesive. Moreover, early inspection saves time because defects get rejected before expensive cycles.
2) Apply film with controlled transfer
Stable transfer prevents wrinkles, stretch lines, and edge tunnels. As a result, the next steps work with a clean baseline.
3) Run vacuum lamination with stable ramps
Controlled touch and pressure ramps reduce trapped air paths. In addition, stable temperature keeps adhesive flow predictable.
4) Debubble when micro-voids remain common
Debubbling stabilizes borderline bonds. Consequently, the line avoids repeated peel loops that damage surfaces.
5) Finish with cosmetic-sensitive film steps as needed
Polarizer and protective film steps depend on the product. Still, steady positioning reduces the streaks that appear under bright light.
Utilities and environment: quiet drivers of repeatability
Compressed air quality matters because it affects pneumatic stability. Moist air can cause inconsistent pressure behavior. Therefore, filtration and drying help keep cycles repeatable.
Vacuum supply stability matters too. A vacuum pump that drifts under load changes evacuation speed. As a result, staged evacuation becomes less predictable.
Airflow and dust control also shape daily outcomes. A clean room is ideal, yet many lines run in practical environments. In that case, covered staging and static control can still reduce defect spikes.
Choosing the right configuration without overcomplicating it
Selection becomes easier when it follows the product mix. Panel size range, stack design, and throughput needs should lead the decision. After that, defect targets and workflow style refine the equipment choice.
Instead of chasing a perfect spec sheet, many teams benefit from a simple framework: define the biggest panel, define the top defects, then match each defect to a workflow block. That approach keeps decisions grounded.
Start with size and tooling space, not marketing size
Working area should include margins for fixtures. A “35-inch” rating might not include tooling clearance. Therefore, planning should include real fixture footprints.
Batching changes the requirement too. Multiple small panels need uniform pressure across a wider effective area. As a result, the bed and support system still matter, even for small parts.
Large panels need stiffness and flatness. Small deviations show up as haze patterns. Consequently, flatness becomes a selection priority at scale.
Decide how alignment will stay repeatable
Some lines rely on precision fixtures. That method can stay fast and robust. Still, fixtures must reference stable datums rather than flexible bezels.
Other lines use camera assistance. This approach supports tight margins and mixed models. However, camera systems can increase setup time, especially during frequent changeovers.
Motion design also matters. Flip platforms can reduce shear during transfer. As a result, film edges stay flatter and wrinkles drop.
Balance automation with changeover speed
Automation helps when the product mix remains stable. Stored recipes and consistent motion can reduce drift between shifts. In addition, automation reduces timing variation that can affect wetting.
High-mix environments often need fast changeover. In those cases, simpler setups with strong fixtures can outperform heavy automation. Over time, speed and stability can matter more than feature count.
A middle path often works well: stable mechanics with clear process gates. That approach keeps outcomes predictable without slowing the line.
Choose based on defect targets, not machine names
Different defects point to different upgrades. Edge tunnels point to transfer and edge control. Micro-bubbles often point to vacuum staging and debubbling. Haze often points to flatness and thickness stability.
Defect mapping can guide decisions. When defects repeat in the same location, a mechanical or sealing issue often exists. In contrast, random scatter defects often indicate contamination and handling.
Cracks and corner chips indicate stress problems. In that case, ramp control and support tooling deserve attention first. Stronger pressure rarely solves a stress issue.
Compatibility with materials and coatings
Adhesive films behave differently across coatings. Some coatings wet quickly. Others need careful staging to avoid no-wet spots. Therefore, real material trials matter more than generic assumptions.
Polarizer films need scratch-safe handling. Even small marks become visible under backlight. Consequently, tool surfaces, benches, and staging practices matter for cosmetics.
Mixed stacks may include touch modules, cover glass, and protective layers. In that case, fixture flexibility becomes a long-term advantage. It supports future models without a full redesign.
A simple selection checklist that stays practical
-
First, list the largest panel size and typical daily mix.
-
Next, rank the top three defect types by cost and frequency.
-
Then, map each defect to a workflow block that can prevent it.
-
Finally, choose the simplest configuration that stabilizes those blocks.
Quality checks and maintenance habits that protect yield
Consistency relies on small routines. A worn gasket, a dirty fixture edge, or a drifting temperature sensor can quietly push the process out of its window. Therefore, regular checks protect yield more than occasional “big” fixes.
Inspection should look for patterns, not only pass/fail. If bubbles always appear near the same corner, a mechanical or sealing problem likely exists. As a result, pattern logging shortens troubleshooting time.
Cleaning routines also deserve standardization. Solvents, wipes, and glove handling should remain consistent. Otherwise, the process can drift without obvious changes in settings.
Routine checks that catch common problems early
-
Gasket inspection for wear lines and compression set.
-
Vacuum leak checks around seals and hoses.
-
Fixture seating checks to prevent tilt and rocking.
-
Platen flatness verification at scheduled intervals.
-
Temperature stability checks at the working surface, not only the controller.
Meanwhile, a simple defect map helps. Mark bubble clusters by location and time. Over a few days, a pattern usually appears. That pattern often points directly to the root cause.
FAQ: common questions that come up in optical bonding work
What usually causes “sparkle” micro-bubbles under a flashlight?
Often, micro-bubbles trace back to dust tracks, micro-scratches, or surface texture. In addition, moisture outgassing can add tiny bubbles after warm staging. As a result, surface control and conditioning reduce sparkle defects more reliably than extra pressure.
Why do bubbles show up near edges more than the center?
Edges seal early and trap thin air corridors. Moreover, film overhang or corner folds can create a tunnel that spreads inward. Consequently, edge alignment and controlled transfer reduce edge-heavy defects.
What creates Newton rings after lamination?
Newton rings often indicate thickness variation or micro-gaps. For example, uneven support can thin the adhesive in one zone. As a result, improving flatness and support often reduces rings more than changing pressure.
Why can a bond look clean at first and then develop bubbles later?
Late bubbles often come from stress release, moisture outgassing, or slow air migration through an edge tunnel. In addition, temperature swings can amplify micro-void growth. Therefore, stable staging and edge control reduce “late surprises.”
When does a debubble stage help the most?
Debubbling helps when tiny bubbles remain after a good vacuum contact. It also helps when large panels show scattered micro-voids. Still, it cannot fix wrinkles, scratches, or heavy contamination.
What is the most common upstream cause of repeated rework loops?
In many lines, inconsistent cleanliness and handling start the loop. A small residue spot can turn into a no-wet island after pressing. Consequently, standardizing cleaning and staging often reduces rework faster than retuning settings.
How does panel size change the process window?
Larger panels trap more air volume and show thermal gradients more easily. Moreover, larger glass flexes more during handling. As a result, flatness, support, and temperature stability become more important as size grows.
Why do wrinkles appear even when alignment looks correct?
Wrinkles often come from stretch during liner peel or from shear during transfer. In addition, uneven contact can pull the film as the stack closes. Therefore, controlled transfer motion and calm ramps reduce wrinkles.
Do fixtures really affect optical quality?
Fixtures affect support and pressure distribution. If a fixture allows tilt, adhesive thickness changes across the panel. Consequently, better support often improves both haze and bubble outcomes.
What indicates a vacuum leak rather than a film issue?
Leaks often create repeat defects in the same region over many cycles. In contrast, film issues often appear as edge-related patterns linked to transfer behavior. Therefore, repeatability across time can distinguish the two causes.
How can defect mapping speed up troubleshooting?
Defect mapping highlights patterns across shifts and batches. For example, a recurring corner cluster suggests tooling or sealing. As a result, mapping turns “random defects” into actionable targets.
What makes polarizer lamination fail cosmetically?
Dust, scratches, and stretch lines show clearly under backlight. Moreover, sliding during placement can leave streaks that look permanent. Therefore, stable positioning and clean handling reduce cosmetic rejects.
What is a practical way to pick between compact and large-format setups?
Compact setups fit high-mix small panels and fast changeovers. Large-format setups support wide panels with stronger uniformity. Consequently, the best choice follows the product mix and defect targets.
Summary and next actions
Clean optical bonding comes from a calm workflow: controlled transfer, stable vacuum contact, and consistent support. Over time, those fundamentals reduce both bubbles and haze, while also protecting delicate glass. Even in mixed production, a predictable process window makes defect patterns easier to diagnose and fix.
Three actionable next steps
-
First, standardize cleaning, staging, and bright-light inspection gates across shifts.
-
Next, audit fixtures, backing plates, and edge handling to prevent tunnels and tilt.
-
Finally, match debubbling capacity to defect types, not to assumptions about pressure.
To keep the workflow scalable, the safest approach is to build around stable equipment blocks and clear process gates. For a single reference point that ties those blocks together, Laminator OCA can serve as the anchor for a cleaner, more repeatable optical bonding line.
