A large display panel can look fine on the workbench at 9:30, then show one edge bubble after resting for 20 minutes. Sometimes the problem is not even a bubble. It may be faint haze along the black border, one dust point under a dark-screen test, a small alignment shift near a camera window, a Newton ring, weak touch response, or glare that becomes obvious after installation. That is why Large-Scale Vacuum Lamination Equipment should not be chosen by machine size alone. The real question is whether the equipment, adhesive, fixture, cleaning habit, vacuum process, bubble removal step, and inspection method can work together without creating repeated rework.
What problems does Large-Scale Vacuum Lamination Equipment solve?
The first problem is trapped air. On small phone screens, one small bubble can sometimes be reworked quickly. On a 27-inch industrial monitor or a wide kiosk display, the same defect costs more time because the panel is heavier, the glass is harder to lift, and the inspection area is much larger. Therefore, the process has to reduce air before the pressure step, not only press harder after the defect appears.
For large display bonding, Large-Scale Vacuum Lamination Equipment helps create a more controlled moment when cover glass, touch panel, LCD module, OLED module, OCA film, or SCA adhesive meet each other. Meanwhile, vacuum support gives trapped air a path to leave before full pressure is applied. This matters when the display is wide, heavy, framed, curved, or sensitive to pressure marks.
However, the machine does not hide a weak process. If OCA film is peeled too early, if the cover glass carries static dust, or if the fixture allows the panel to move by even 0.3 mm, the result can still fail. In fact, a better machine often makes process mistakes easier to see. The same defect appears in the same place, and that pattern points toward the real cause.
The best value is repeatability. A stable setup creates the same loading path, same vacuum stage, same pressure hold, same release timing, and same inspection routine. After five or six sample panels, the pattern becomes clearer. Edge haze may come from uneven support. Random dots may come from cleaning. Shift near one side may come from fixture reference. This is how a workshop moves from guessing to controlled bonding.
Why bubbles, haze, dust or alignment shift appear
Bubbles often start before the chamber closes. For example, adhesive film may be exposed while the panel is still being adjusted. That short delay feels harmless, but it gives dust and static enough time to create one visible point. After lamination, the defect may look like a machine problem. In reality, it was created during handling.
Edge haze usually has a different source. It may come from uneven glass flatness, a raised frame, an adhesive thickness mismatch, or a support plate that does not hold the panel evenly. Meanwhile, applying pressure too quickly can push adhesive toward the wrong direction. The center may look clean, but side light reveals haze along the border.
Dust points are even more direct. A cleanroom helps, but it does not fix rough handling. One glove may touch film backing and then touch a cover glass edge. One air gun may blow particles back across the bonding surface. One uncovered tray may sit beside a busy bench for 40 seconds. Those small habits often decide whether a black-screen inspection passes.
Alignment shift happens when the panel is treated like a smaller screen. Large glass lands differently. One side may touch first, and a long edge may flex slightly during loading. Also, a curved vehicle screen or narrow-border panel gives less room for error. Therefore, a fixture should guide the panel before the vacuum stage begins, not correct the position after contact has already started.
Newton rings, glare, and touch failure need careful separation. Newton rings often point to an unstable optical gap. Glare may involve cover glass coating, adhesive clarity, and display brightness. Touch failure may come from connector stress, uneven pressure, adhesive overflow, or wrong stack design. In other words, the visible defect is only the symptom. The panel structure explains the cause.
How to judge panel structure before buying
The first step is not asking for the largest machine. The first step is writing down the actual stack. CG plus OCA is different from TP plus LCM. A rigid LCD module is different from a thin OLED module. ACF bonding for flexible circuits is different from full optical lamination. These differences affect fixture design, pressure, heating, vacuum timing, and post-lamination inspection.
Panel size also needs a practical measurement. Diagonal size is not enough. A 43-inch kiosk display, a long vehicle screen, a square industrial display, and a wide advertising terminal may all have different loading directions. In addition, cover glass thickness changes how pressure spreads. A 2 mm glass and a 6 mm glass can behave very differently near the edge.
Panel judgment checklist
- Record real panel length, width, thickness, active area, black border width, and edge tolerance.
- Confirm the structure: CG+OCA, TP+LCM, CG+LCM, OLED module, SCA film, OCR glue, or ACF process.
- Separate the defect type: bubble, edge haze, dust point, Newton ring, glare, alignment shift, or touch failure.
- Check material behavior: OCA thickness, adhesive storage, peel timing, static control, and surface cleaning method.
- Define daily quantity: sample testing, small batch work, mixed-model repair, or repeated production.
- Set an inspection standard under front light, side light, black screen, white screen, and touch test where needed.
A good defect photo saves time. A corner bubble near the same side may point to fixture balance. A line of haze near the frame may point to adhesive wetting. Random dots may point to dust control. A shifted active area may point to weak reference marks. Therefore, machine selection should start from panel evidence, not a general request for “a large laminator.”
Budget should also be judged as a full process cost. The machine is only one part. Fixtures, clean benches, lighting, gloves, wipes, air supply, vacuum support, bubble removal, and sample loss all affect the final expense. A lower machine price can look attractive in a quotation, but repeated rework can quietly become more expensive.
Common mistakes that lead to wrong machine selection
The first mistake is choosing only by working area. A platform may physically hold the panel, yet the fixture may not support it evenly. Also, a cable tail, raised border, curved glass edge, or thick frame may reduce the real usable area. So the panel must be checked as a complete object, not as a flat rectangle on paper.
The second mistake is treating pressure as the answer to every bonding defect. Stronger pressure can help in some cases, but it can also create pressure marks, adhesive distortion, edge stress, or touch issues. In many large display jobs, better support does more than higher pressure. The glass needs to land correctly before force is added.
The third mistake is ignoring post-lamination behavior. A panel may look clean when the chamber opens, then small bubbles appear after 15 to 30 minutes. That does not always mean the lamination step failed. It may mean trapped air still needs bubble removal, or the adhesive needs a better temperature and pressure sequence after bonding.
The fourth mistake is trusting the machine name too much. “OCA laminating machine,” “vacuum bonding machine,” “optical bonding machine,” and “lamination equipment” can overlap in casual descriptions. However, the correct equipment route depends on the stack, adhesive, defect target, and output plan. A product name is useful, but the panel decides the process.
The fifth mistake is skipping sample planning. A rushed sample may give a false sense of progress. A better sample run records panel structure, adhesive batch, vacuum time, pressure, temperature, hold time, rest time, and defect position. After that, the next adjustment becomes much easier to judge.
When to choose JiutuStore Large-Scale Vacuum Lamination Equipment
JiutuStore is a practical place to compare optical bonding, TP+LCM bonding, large screen lamination, and bubble removal equipment when the project involves display repair, industrial screens, kiosk panels, vehicle screens, arcade displays, or monitor assembly. Still, the better route is not to pick the biggest model first. The better route is to match the machine with the panel structure and defect pattern.

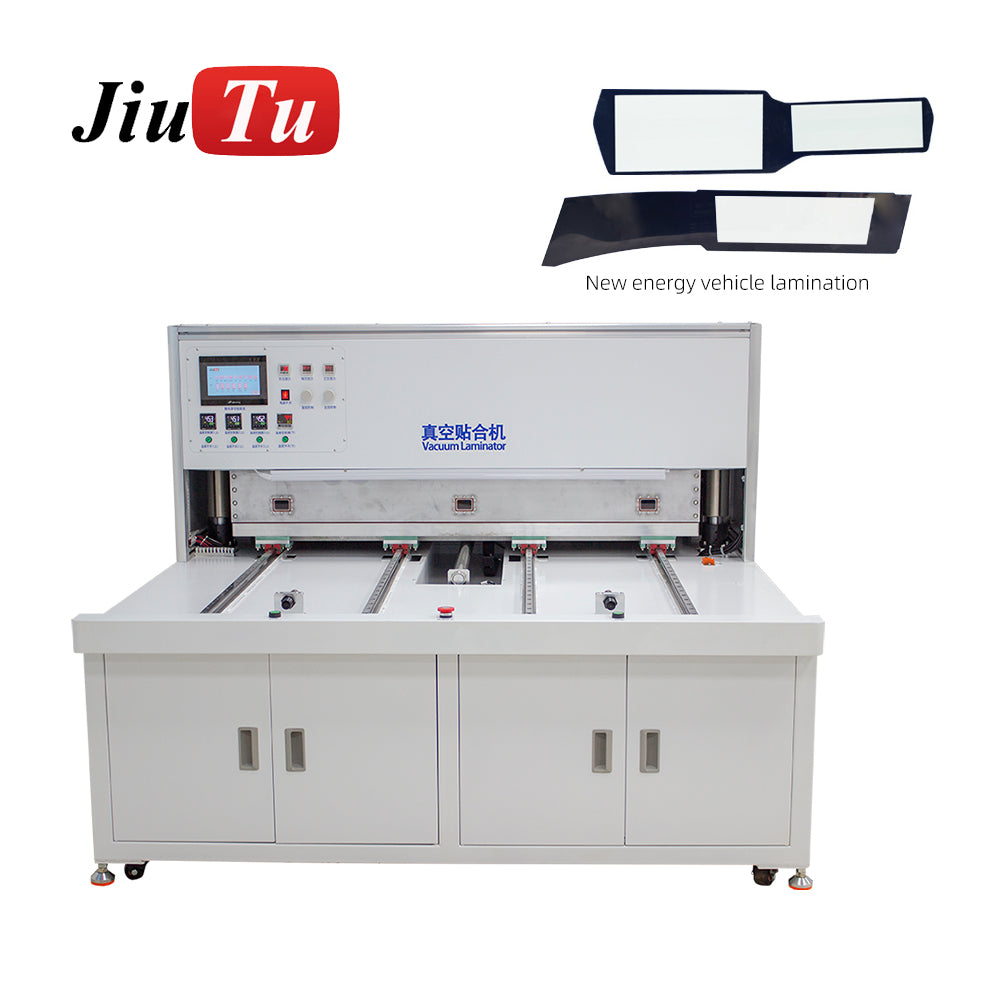

For TP and LCM work, the TP+LCM Vacuum Bonding Machine is the main product to review. It supports touch panel and LCD module bonding with OCA adhesive under vacuum pressure. This direction is useful when the goal is to reduce the air gap, improve visual clarity, support touch response, and create a tighter display stack. Meanwhile, the result still depends on cleaning, fixture support, and inspection discipline.
For wider panels, a larger platform becomes important. The panel should not be squeezed into a machine that leaves no safe loading space. The operator should be able to place the glass without twisting the panel, touching the active area, or lifting one side too late. In large display work, the space around the machine is part of the process.

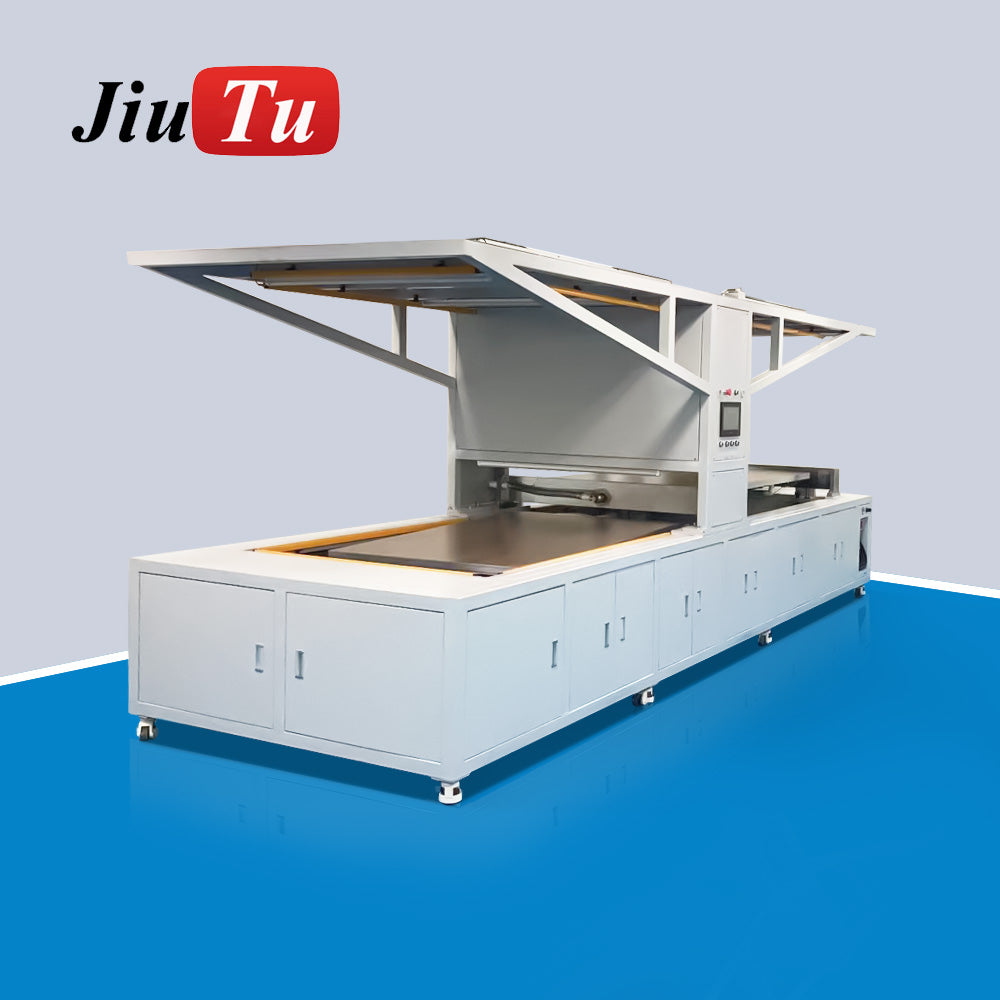

The large-size laminating machine direction makes sense when the work involves arcade screens, wide cover glass, vehicle display panels, advertising displays, or other large-format assemblies. It gives more room for supporting the panel during loading and lamination. However, it should still be selected by real panel size, adhesive route, and fixture needs, not only by the largest possible machine body.
Large panels also need a realistic floor plan. The cleaning area, loading table, laminating machine, bubble removal equipment, and inspection station should be arranged so the panel travels a short distance. If cleaned glass must cross a busy bench, dust risk rises. If the inspection lamp is too far away, a weak panel may be moved again before the defect is found.
For this reason, Large-Scale Vacuum Lamination Equipment should be treated as part of a complete bonding system. Cleaning, alignment, fixture support, vacuum lamination, bubble removal, side-light inspection, black-screen inspection, and defect recording all need to support the same final result.
Best-fit application scenarios

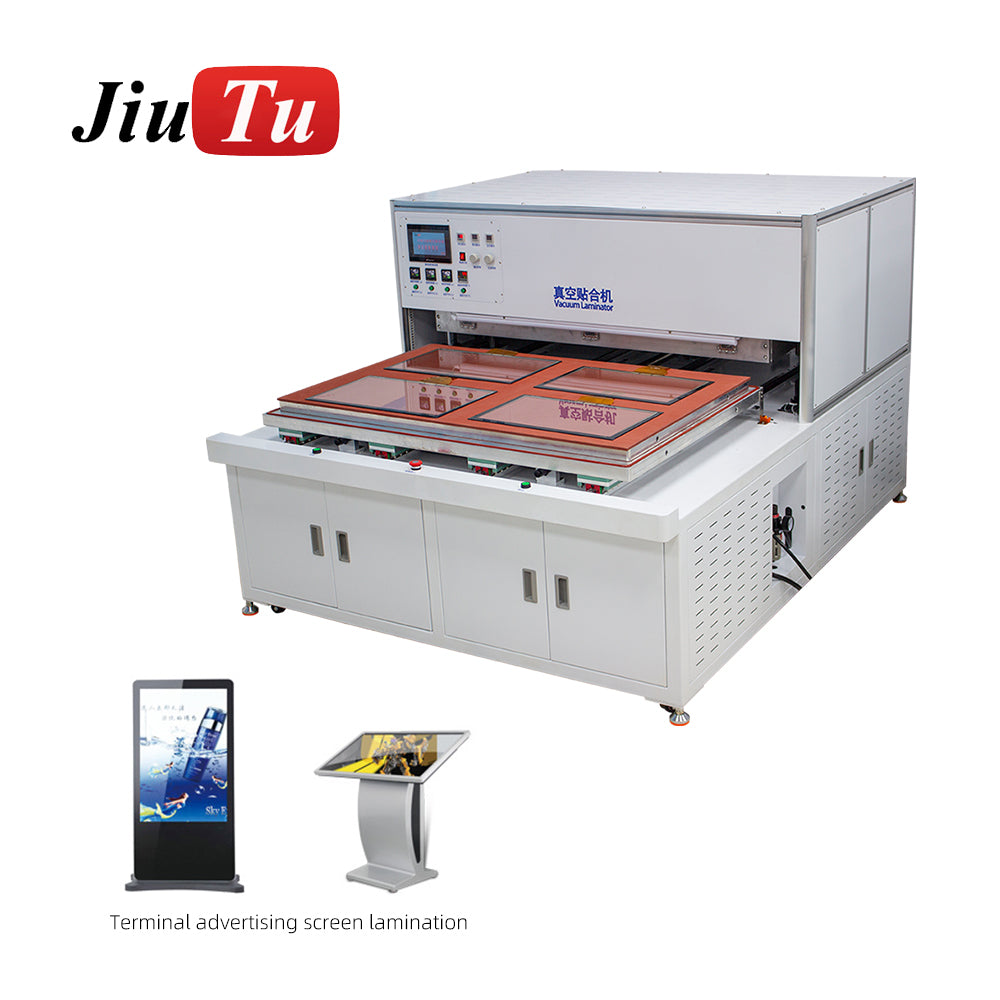

Kiosk display bonding needs clean edges and strong visibility under bright indoor light. A 43-inch kiosk display bonder setup should not only fit the panel size. It should also control loading direction, adhesive flow, glare, and side-angle inspection. Otherwise, the screen may look fine on the bench but show edge haze after installation.
Vehicle displays need extra attention because they are often long, narrow, curved, or built with irregular cover glass. A fixture should protect the connector area and hold the long edge without twisting. Meanwhile, the process should avoid manual correction after the panel already touches the adhesive. One small shift can be very visible on a narrow border.
Industrial monitors and medical display assemblies need stable viewing quality. The panel may be used for long hours, viewed from different angles, or cleaned often. Therefore, bubbles, haze, glare, and weak touch response should be checked during sample work. Waiting until batch production starts makes every defect more expensive.
Prototype labs and repeated production lines need different thinking. A lab may test several panel sizes in one month, so flexibility matters. A repeated production line needs a fixed workflow that can run again and again. The machine choice should follow that operating rhythm instead of copying another project blindly.
Workflow, inspection and inquiry checklist
A strong lamination workflow should feel calm and repeatable. The panel is cleaned close to the bonding moment. The adhesive film is peeled only when the stack is ready. The fixture holds the panel without bending it. The vacuum cycle follows a recorded setting. After that, inspection uses the same light and same rest time for every sample.
Before lamination, the panel surface, cover glass, fixture, and support table should be checked under proper light. Also, adhesive film should stay covered until the stack is ready. A short delay after peeling can create dust risk, especially in dry air or near a busy bench.
During sample testing, only one factor should change at a time. For example, changing vacuum time, pressure, temperature, and hold time together makes the next result hard to read. A better method is to mark the sample, adjust one factor, inspect under the same light, and compare the defect position.
Practical workflow checklist
- Confirm panel size, glass thickness, LCD/OLED type, adhesive material, and edge tolerance.
- Clean the panel, cover glass, fixture, and support plate before placement.
- Check static, dust, cable direction, edge chips, raised frame, and connector position.
- Align the stack with clear reference points before the vacuum cycle starts.
- Run vacuum, pressure, temperature, and hold time according to a recorded test plan.
- Inspect under front light, side light, black screen, white screen, and touch test where needed.
- Record defect position, machine settings, material batch, sample time, and rest-time result.
Inspection should not stop at one front view. Edge bubbles often appear under side light. Dust points become easier to see on a dark screen. Haze can become clearer after the panel rests. A 20-minute rest before final judgment can prevent a false pass, especially when the panel uses OCA or SCA material.
Inquiry information should be specific. Send panel size, cover glass thickness, LCD/OLED type, OCA/OCR/ACF material, defect photos, daily quantity, expected yield, and target application. With those details, the equipment direction becomes clearer, and the next discussion can focus on machine fit instead of basic guessing.
When bubble removal should be part of the setup
Some panels look clean right after lamination, then small bubbles appear after the adhesive settles. This does not always mean the laminating step is wrong. In many OCA or SCA jobs, post-lamination bubble removal is part of the normal finishing route. The better plan is to include this step before scaling production, not after repeated failed samples.
The OCA Bubble Remover Machine supports post-lamination bubble removal when residual air remains after bonding. It is especially useful when large panels, thick adhesive, uneven frames, or curved glass make air harder to release during the first lamination stage.
A practical setup may use one machine for lamination and another step for bubble removal. This is not unnecessary complexity. It is process matching. When large display panels carry higher material cost, a planned bubble removal route is often safer than hoping every panel leaves the laminator perfectly clean.
Extended reading: build a stronger optical bonding content path
This topic should not stand alone. Large vacuum lamination connects naturally with optical bonding basics, sheet-to-sheet support, large-format panel handling, cleanroom habits, CCD alignment, and bubble removal. Adding three related readings keeps the next click inside the same topic cluster instead of leaving the article as a dead end.
FAQ
What information is needed before selecting Large-Scale Vacuum Lamination Equipment?
The most useful details are panel size, cover glass thickness, LCD/OLED type, adhesive material, defect photos, daily quantity, and expected yield. A simple stack drawing also helps. These details make equipment matching more accurate than a request based only on screen size.
Can one machine solve bubbles, haze, dust and alignment shift?
One machine can improve the process, but it cannot solve every defect alone. Bubbles may need better vacuum timing and bubble removal. Haze may need better adhesive flow and panel support. Dust needs cleaning control. Alignment shift usually needs a better fixture.
Is OCA or OCR better for large display bonding?
The better material depends on panel flatness, gap thickness, optical target, and process control. OCA film is often easier to control for many flat display jobs. OCR or LOCA may fit some gap-filling cases, but dispensing, curing, and overflow control become more important.
When is bubble removal needed after lamination?
Bubble removal is useful when residual air remains after lamination or when bubbles appear after the panel rests. This can happen with larger panels, thicker adhesive layers, curved glass, or uneven edge frames. It should be planned before stable production starts.
Is a larger platform always better?
No. A larger platform helps when the panel range requires it, but it also needs more floor space and safer handling. A smaller, better-matched machine can be more stable when the panel size range is fixed and the fixture is well designed.
Why does a panel pass first inspection but fail later?
Some defects appear after cooling, resting, or movement. Edge haze may show after adhesive settles. Small bubbles may expand after pressure release. Touch issues may appear after cable stress. That is why repeated inspection under the same light is important.
Send the panel details before choosing the machine
Large-Scale Vacuum Lamination Equipment works best when the real panel condition is clear before model selection. Send panel size, cover glass thickness, LCD/OLED type, OCA/OCR/ACF material, defect photos, daily quantity, expected yield, and target application. These details help match the bonding machine, fixture, bubble removal step, and inspection method with fewer wrong turns.
The best result usually comes from a matched workflow, not from one impressive parameter. When the stack, material, fixture, vacuum process, bubble removal plan, and inspection routine are planned together, large display bonding becomes much more predictable.
Compare Optical Bonding Machine OptionsFinal notes and 3 action steps
A strong bonding result starts before the vacuum cycle. The panel must sit evenly, the adhesive must match the stack, the fixture must control movement, and inspection must reveal real defects. When these points are clear, equipment selection becomes a practical decision instead of a guess.
- Prepare panel drawings, stack photos, material details, and defect photos before equipment matching.
- Change only one process factor during sample testing, then record the result clearly.
- Plan lamination, fixture support, bubble removal, and inspection together before comparing machine price.
