Large-Format OCA Bubble Remover Machines & Defoaming Autoclaves
When Panel Size Changes Everything
A bubble is a bubble — but a bubble in a 6-inch phone screen and a bubble in a 32-inch industrial display are not the same commercial problem.
On a small panel, a failed lamination costs you a screen and twenty minutes. On a large-format display, it can cost a panel worth several hundred dollars, a customer delivery date, and the confidence of a client who ordered a hundred units. As bonding area grows, so does every variable working against you: more surface for air to hide under, heavier glass that resists even support, longer edges where wet-out can fail, and more thermal mass that changes how the adhesive behaves during cooling.
This is why large-format defoaming is a different engineering problem, not simply a bigger version of the same machine. Our large-chamber bubble remover machines are built for operations where the panels are big, the stakes are higher, and "run it again and hope" is not an acceptable process.
What a Large-Format Defoaming Autoclave Does
Optical bonding does not finish when the panel leaves the laminator. The adhesive continues to settle. Air that was invisible at unload can surface minutes later. Edge haze often only reveals itself under side light, after the panel has cooled.
A defoaming autoclave provides the controlled environment where that settling happens predictably instead of randomly. Under regulated pressure, temperature, and holding time, residual air within the bonded stack is compressed and dissolved, so the panel that passes inspection stays passed.
The value is not brute force. It is repeatability — the same pressure path, the same thermal profile, the same hold time, the same cooling discipline, applied to every panel in every batch. That is the difference between a process you can quote a yield rate on and one you cannot.
Built for Large Panels and Real Production Conditions

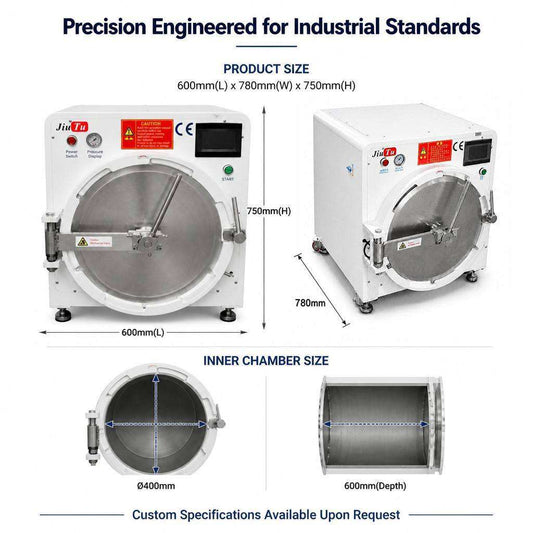

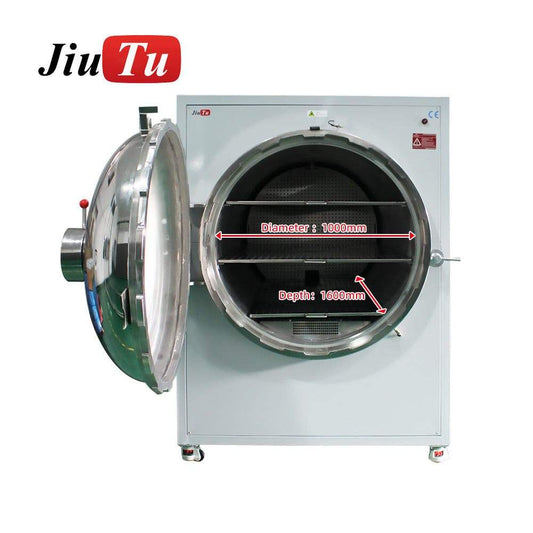

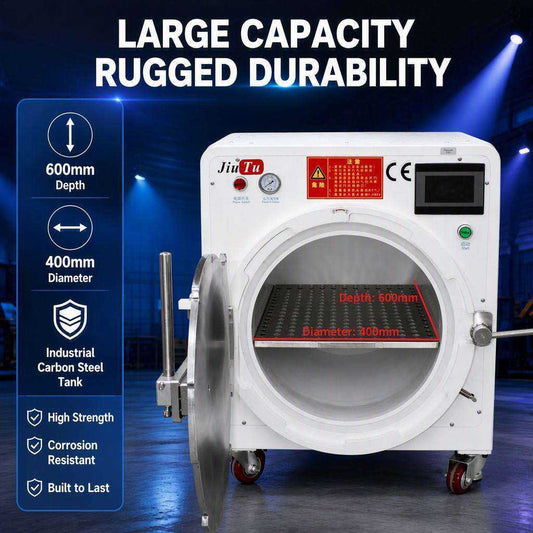

Generous chamber volume with usable clearance. Chamber dimensions on a spec sheet are not the same as space you can actually load. We account for tray thickness, fixture height, frame profiles, and cable routing when we confirm a size against your panel — because a chamber that technically fits but cannot be loaded safely is not a fit.
Even pressure distribution across the full bonding area. Large panels fail at the edges and corners first. Uniform pressure across the whole surface, with proper support beneath the borders, is what prevents the long edge lines and corner marks that plague oversized bonding work.
Controlled thermal profile for heavier glass. Thicker, larger glass carries more thermal mass and responds differently to heat than a phone screen. Controlled ramp and cooling behavior protects the adhesive, the polarizer, and the panel structure itself.
Recordable parameters for quality systems. When you supply displays to automotive, medical, industrial, or transport customers, "it looked fine" is not a quality record. Digital parameter control lets you document pressure, temperature, hold time, and cycle history per batch.
Loading and access designed for heavy work. Large panels are heavy and awkward. Loading method, tray support, door operation, and safe operator access matter as much as the pressure specification — and they are what operators actually live with every day.
Applications We Build For
Industrial & HMI Displays — Control panels, machine interfaces, and factory-floor monitors that run for years under demanding conditions.
Automotive Displays — Center consoles, instrument clusters, and long-format or curved panels where edge tolerance and optical uniformity are critical.
Digital Signage & Kiosks — Self-service terminals, advertising displays, and interactive panels where a visible bubble is seen by thousands of people daily.
Medical & Instrumentation Displays — Applications where optical clarity is a functional requirement rather than an aesthetic preference.
Transport & Outdoor Displays — Bus, rail, marine, and outdoor screens where optical bonding provides structural strength and sunlight readability.
Display Module Manufacturing — OCA, SCA, and optical bonding production lines requiring a documented defoaming stage with repeatable parameters.
Large Panel Refurbishing — Notebook, monitor, tablet, and commercial display refurbishing operations working at volume.
Choosing the Right Chamber Size
The most expensive mistake in this category is buying the wrong size — either paying for capacity that sits idle, or discovering after delivery that your largest regular panel does not load safely.
Chamber selection should be driven by your largest regular panel plus its fixture, not by your average panel and not by the raw glass dimension. We ask for the complete working assembly because that is what actually goes into the chamber.
Before we recommend a model, we work through:
-
Largest regular panel — full dimensions including frame, not just diagonal size
-
Fixture and tray requirements — the real loading assembly with all supports
-
Throughput target — batch size and cycle rhythm during peak periods
-
Adhesive and stack structure — OCA, SCA, OCR, cover glass, and panel construction
-
Site utilities — voltage, compressed air capacity, floor loading, doorway route
-
Growth plans — the panel sizes you expect to handle in two years
We will tell you if you do not need our largest machine. If your work fits a smaller chamber, that is what we will recommend. An oversized autoclave costs more to buy, more to run, and delivers nothing extra for panels that never needed the space.
What a Bubble Remover Cannot Do
We would rather set accurate expectations before purchase than manage disappointment afterward.
A defoaming autoclave addresses residual air remaining after a fundamentally sound lamination. It cannot:
- Remove dust or particles already sealed beneath the adhesive
- Correct misaligned glass or a shifted bonding layer
- Repair damaged, contaminated, or improperly stored OCA film
- Compensate for a fixture that does not support the panel correctly
- Undo stress or haze caused by excessive heat or pressure upstream
If your defects are sharp dots that never change shape, visible alignment shifts, or haze patches, the root cause sits earlier in your process — in cleaning discipline, static control, adhesive handling, fixture design, or lamination parameters. Buying a bubble remover will not solve those, and we will say so.
Send us photos of your actual defects under both front light and side light. We will tell you honestly whether this equipment category addresses your problem, or whether your investment belongs somewhere else in the workflow.
Complete Bonding Workflow Support
Bubble removal is one stage in a connected process. A defoaming autoclave performs best when the steps around it are sound.
We can advise on the full chain: vacuum OCA laminating equipment, fixture and tray design for your specific panel geometry, compressor and air supply matching, cleanroom and static control practices, and inspection protocol. If you are building a bonding line from scratch, we will help you plan it as one system rather than a collection of separate purchases.
Start With Your Panel, Not Our Catalog
The fastest route to the right machine is a short conversation about your actual work.
Send us:
- Full dimensions and thickness of your largest regular panel
- Display type — LCD, OLED, TFT, touch module, or cover glass assembly
- Adhesive type — OCA, SCA, OCR, or other
- Photos of current bubble defects under front light and side light
- Daily and peak throughput targets
- Country, voltage, and available compressed air capacity
- Installation space, doorway access, and floor loading limits
We will confirm which chamber size fits, flag any site constraints worth addressing before delivery, and provide a written configuration list.
