CCD Camera Vision Alignment in Screen Lamination: How It Reduces Offset and Rework
CCD camera vision alignment reduces avoidable screen offset by measuring selected borders, Mark points, holes, and active-area references before final bonding. The camera can make placement more repeatable, but it cannot replace a stable fixture, consistent material dimensions, clean handling, or a clear acceptance standard.
A practical setup begins with one question: which visible feature best represents the finished display requirement? From there, the process must connect the camera image, datum structure, correction movement, first-piece inspection, and batch stop rule. When that chain is clear, optical alignment becomes a useful control method rather than another setting that hides mechanical drift.
What CCD Camera Vision Alignment Actually Detects
A vision system does not judge a screen as a complete product. Instead, it searches defined image regions for features that can be measured repeatedly. The software may calculate an edge, center point, corner, circle, line intersection, or rotational relationship. That result then becomes the basis for positional correction.
The most useful feature is not always the most visible one. A strong black border may be easy to detect, yet the real requirement may concern an active display window or sensor opening. Likewise, a clean Mark point may look ideal on bare glass but become weak after a liner, adhesive layer, or reflective film enters the optical path.
Printed Borders and Black-Matrix Edges
Printed borders often provide a clear line or corner. The recipe may use one long edge, two perpendicular edges, or selected sections that remain stable across normal samples.
However, ink spread, partial transparency, rough printing, glare, and lot variation can move the detected contour. Recipe development should include several representative parts rather than one unusually clean sample.
Mark Points and Fiducials
A dot, cross, circle, or square can provide a defined center. Because its geometry is intentional, a Mark point often supports clearer recognition than an irregular natural edge.
Even so, the mark must stay visible during the real process condition. Protective film, adhesive, surface treatment, and reflection should be present during sample testing.
Holes, Notches, and Corners
A circular hole can provide a center, while two separated holes can help define position and angle. An asymmetric notch can also expose reversed loading before contact.
Mechanical features may contain chamfers, burrs, molded variation, or changing shadows. The recipe should identify the most repeatable boundary instead of every visible contour.
Active Areas and Optical Windows
Some assemblies allow the active display edge or an optical window to act as a reference. This can connect the camera result more directly with the visible or functional requirement.
Low contrast, internal reflections, and several overlapping transparent edges can make recognition harder. The technical test should confirm which layer the camera is expected to follow.
One reference may control X and Y position but leave rotation uncertain. For that reason, many stable recipes use two separated references. A wider distance between those points usually makes angular change easier to identify. More points are not automatically better, though. A third feature that moves independently from the functional area can introduce conflict instead of improving control.
Build the Datum, Calibration, and Tolerance Before the Recipe
A datum is the reference from which position is measured. In screen lamination, the datum plan should connect four elements: the visible camera feature, the fixture location, the hidden or visible functional area, and the final inspection method. When one link is unclear, a repeatable camera result may still produce an unacceptable assembly.
Start With the Finished Relationship
The drawing should state what must align with what. A cover-glass border may need to remain even around the active display. Another structure may prioritize a camera opening, touch-film edge, sensor window, connector clearance, or frame feature. The primary datum should protect the most important requirement, while secondary features receive their own limits.
Use a Clear Datum Hierarchy
The primary datum establishes the main reference. A secondary datum often controls angle or another axis. A tertiary reference may confirm orientation or local clearance. This hierarchy matters when a printed feature and a mechanical opening do not move together. The process needs a defined priority rather than an informal average.
Separate Part Datums From Fixture Datums
Part datums come from borders, holes, marks, glass edges, or display areas. Fixture datums come from stops, pins, nests, vacuum zones, support surfaces, and clamps. The camera may compensate for a moved stop, but that correction can hide a change in support or pressure distribution. Mechanical drift should remain a mechanical maintenance issue.
Standardize the Coordinate Direction
The alignment drawing should show the viewing side, origin, positive X and Y directions, loading orientation, and rotation convention. Without this definition, a right shift from the display side may become a left shift in a machine-side report. Clear coordinates also make offset photographs and batch records easier to compare.
A camera may see a printed border while the acceptance limit concerns a hidden LCD edge. The drawing must connect those features through a controlled dimensional stack. Optical correction cannot remove variation already built into glass cutting, border printing, film conversion, frame molding, or incoming module dimensions.
Keep Calibration Separate From Product Setup
Calibration teaches the equipment how image movement relates to physical motion. Product setup defines search areas, feature rules, targets, and acceptance conditions. A camera move, lens service, mechanical impact, or motion-system change may require calibration verification. Repeatedly changing the product target should not mask that problem.
Separate Nominal Position, Detection Limit, and Product Tolerance
Nominal position is the intended target. Product tolerance is the permitted finished deviation. A detection limit answers another question: can the camera locate the chosen feature reliably? A wide border may be easy to find while the finished visible gap still requires much tighter control. Recognition success does not prove final product acceptance.
Each approved recipe should record the product code, drawing revision, fixture, sample basis, recognition region, target, tolerance source, and validation result. This history helps separate a sudden recipe-related shift from gradual material or fixture drift.
Read the Offset Pattern Before Changing the Target
Manual alignment errors do not all look the same. Translation, rotation, local distortion, post-contact movement, and reversed loading create different defect maps. Recording the pattern before changing a recipe protects useful evidence and reduces random adjustment.
This pattern points toward X-Y translation, a wrong target origin, a moved stop, or a consistent loading bias. Check the coordinate direction, fixture location, recipe origin, and measurement method before adding compensation.
This usually indicates rotation or skew. Review reference spacing, angular correction, panel seating, cable interference, clamp order, and debris under one corner.
Rotation is possible, but size variation or material distortion may also be involved. Compare several locations and measure the incoming parts instead of treating the defect as simple translation.
The part moved after recognition. Inspect tack, fixture retention, liner release, table motion, vacuum change, initial contact, pressure engagement, and any unsupported transfer.
Local distortion or an incorrect datum relationship is more likely. Check the dimensional stack, film stretch, frame shape, support height, and local feature position.
A repeated directional error across one product code often points toward a recipe, drawing, or dedicated fixture issue. Random variation across identical samples suggests another route. In that case, compare feature contrast, focus, reflection, fixture cleanliness, part flatness, loading height, and material lots.
Orientation errors need a separate control. An asymmetric Mark point, notch, cable position, or fixture stop can help prevent mirrored or reversed loading. Optical recognition can support this check, but a mechanical poka-yoke remains valuable because it prevents the wrong part orientation from entering the correction stage.
First-Piece Confirmation and Batch Stop Rules
The first piece connects the approved recipe with the actual bonded product. It should confirm the stack, recognition image, pre-bond position, final alignment, and any function affected by placement. A green recognition result alone is not enough.
For a useful first-piece record, save more than the final pass result. Keep the recognition image or screenshot, the measured correction value where available, the pre-bond reference check, and the final bonded measurement using the same viewing direction and coordinate convention.
This creates a simple before-and-after chain. If the image result is stable but the bonded result moves, the investigation can focus on retention, transfer, first contact, pressure engagement, or material relaxation instead of changing the vision target without evidence.
- Confirm sample identity. Record the product code, drawing revision, material lot, fixture, recipe, layer order, liner condition, and loading orientation.
- Review the recognition image. Confirm that the search area contains the intended border, mark, hole, or opening. The detected point should not sit on glare, dust, or a neighboring layer.
- Repeat the loading check. Where practical, unload and reload the same sample. Large movement between repeated images indicates unstable seating or weak recognition.
- Inspect the pre-bond position. When the approved machine sequence allows it, verify corner gaps, openings, and rotation before irreversible contact.
- Measure the bonded result. Check the finished X-Y position, angle, visible border, local openings, and hidden relationships defined on the drawing.
- Complete separate defect checks. Alignment approval should not be combined with bubble, contamination, scratch, haze, adhesive, or pressure-mark inspection.
Use Scheduled and Event-Based Sampling
A normal batch may follow a defined sampling interval. Additional checks should follow meaningful changes, such as recipe reload, fixture cleaning, material splice, lot change, camera adjustment, abnormal recognition, repeated large correction, or difficult panel seating. Time alone does not capture every new risk.
Record Direction, Not Only Pass or Fail
A panel can pass while moving steadily toward one tolerance edge. Recording deviation direction and size reveals gradual drift earlier than a simple pass mark. Repeated movement in one direction often points toward fixture wear, target movement, or dimensional change. Random spread suggests unstable recognition, loading, contamination, or sample variation.
Define the Stop Condition Before Production
A clear stop rule prevents uncontrolled compensation. Repeated out-of-limit alignment, sudden directional change, unstable feature detection, damaged tooling, or movement after image capture should trigger a hold. The next action may include isolating output, checking the last accepted sample, inspecting the fixture, verifying calibration status, reviewing the recipe revision, and running a controlled confirmation sample.
Restart should follow evidence. A reset without an explained cause does not prove that the process has returned to control.
Which Rework Can Be Reduced—and Which Problems Remain
Optical control is most useful when the defect begins with inconsistent visual judgment or repeated manual placement. It can standardize how selected references are measured and can support repeatable X-Y or angular correction when the equipment configuration allows that movement.
Problems the Vision Layer Can Reduce
- Repeated manual X-Y placement bias
- Rotational error visible across long borders
- Variation caused by different visual judgment
- Wrong orientation when a unique feature is available
- Undocumented manual offset during product changeover
Problems That Need Other Controls
- Warped glass or changing panel shape
- Film stretch, shrinkage, curl, or liner pull
- Dust, particles, scratches, and surface contamination
- Uneven support, platen condition, or pressure distribution
- Adhesive bubbles, haze, weak wet-out, or edge lifting
A camera measures position before or during a defined stage. It cannot guarantee that the part stays still after the image is accepted. Tack, clamps, vacuum changes, liner release, motion, and first contact can all move the layer. Comparing pre-bond evidence with the bonded result is the fastest way to identify this boundary.
The same limit applies to material distortion. A rigid correction can move or rotate a layer. It cannot stretch one corner while shrinking another. When the center passes but several local features fail in different directions, incoming dimensions, shape, support, and dimensional stack need review.
Cleanliness remains a separate quality system. A particle may interfere with recognition when it sits inside the search region, but many particles do not change the camera result at all. Protected handling, fixture cleaning, controlled peel time, surface inspection, and environmental control still determine whether the bonded interface stays clean.
How Panel Size Changes CCD Alignment Strategy
Large-format work matters here only where panel size changes the alignment problem. A wider panel amplifies small angular error, increases the distance between useful references, and makes local height variation more important to focus and recognition. The goal is not simply to choose a wider platform; it is to decide whether one rigid X-Y-θ correction still represents the finished panel.
For assemblies that need a larger working envelope, the 500×750mm CCD laminating machine is one equipment direction to review. The alignment decision should still be based on actual reference spacing, stack height, support condition, cable or frame interference, and the final tolerance map rather than panel diagonal alone.
Use Reference Spacing to Expose Angular Error
Two references placed close together may describe local position well but provide weak evidence of a small rotational error across a long panel. When the finished requirement concerns both left and right borders, two sufficiently separated references usually make angular drift easier to see. The spacing should follow the functional geometry, not simply the easiest pair of marks for the camera to detect.
This does not mean the widest possible pair is always correct. If one reference sits on a printed feature that moves independently from the active display or frame, the wider spacing can produce a precise correction to the wrong relationship. Reference selection and reference spacing must be decided together.
Check Whether Sag Changes Recognition
Wide glass and thin modules may sag between supports. A feature that moves vertically relative to the camera can change focus, apparent edge quality, reflection, and sometimes measured scale. If recognition varies by location, compare local height and support condition before treating the problem as a software threshold issue.
Support also affects what happens after recognition. A panel can look correct while supported, then move or relax when the fixture state changes. For that reason, large-panel trials should compare camera evidence with the bonded result at the center, corners, openings, and any edge that carries a separate tolerance.
Distinguish Global Offset From Local Shape Change
A rigid correction can translate and rotate a layer, but it cannot remove local shape error. If the center and two references align while one corner remains outside the limit, the cause may be panel distortion, frame variation, uneven support, film stretch, or a dimensional stack that changes from one side to the other.
Map several finished locations before increasing correction authority. When all points move together, a global X-Y-θ adjustment may be appropriate. When different locations move in different directions, the next step is material, fixture, support, or incoming-part investigation—not a larger software offset.
Prepare a CCD Alignment-Specific Technical Package
A useful configuration review needs evidence of the alignment problem, not a generic machine RFQ. Panel size, quantity, and material name still matter, but they do not show whether the camera can see the correct feature, whether that feature represents the finished requirement, or whether the offset occurs before or after bonding.
The strongest RFQ package lets the supplier reconstruct the same coordinate system and defect pattern that the production team sees. The following information is more valuable than a long feature list copied from a machine specification.
1. Reference-to-Requirement Drawing
Show the visible feature the camera is expected to detect and the finished feature that actually carries the tolerance. Mark the viewing side, origin, positive X and Y directions, rotation convention, primary datum, secondary datum, and every critical gap or opening. If the visible border is only an indirect reference for a hidden LCD edge or sensor opening, include the dimensional relationship between them.
2. Recognition Images Under Real Process Conditions
Provide close images of the border, Mark point, hole, notch, corner, or optical window with the actual liner, adhesive, film, reflection, surface treatment, and protective layers present. Include several normal samples and at least one difficult sample if contrast or reflection varies. A clean bare-glass photograph can hide the exact condition that makes production recognition unstable.
3. Pre-Bond and Post-Bond Offset Evidence
Use the same viewing direction and measurement locations for both stages. Mark whether the error is equal across the panel, rotational, concentrated on one edge, local to one opening, or different from corner to corner. If the machine image passes but the bonded part shifts, say so explicitly. That difference changes the investigation from recognition accuracy to retention, transfer, first contact, pressure engagement, or material relaxation.
4. Loaded Stack and Fixture Interface
Provide length, width, layer thicknesses, total stack height, frame steps, cable positions, fixture borders, support zones, clamps, vacuum locations, and any surface that cannot be contacted. These dimensions should explain how the part sits during recognition and what can move between image capture and bonding. For larger panels, note any visible sag or local height difference.
5. Tolerance, Inspection Method, and Drift History
State the nominal target, finished acceptance tolerance, measurement method, instrument or visual limit sample, and the locations that are actually inspected. If production data exists, include several sequential results rather than one pass and one fail. Directional drift toward one tolerance edge tells a different story from random spread around the nominal position.
6. Representative Variation Set
Send or describe normal parts from more than one material lot, known difficult samples, acceptable assemblies, and failed assemblies with the real production liners and surfaces. Where practical, include repeated unload-and-reload measurements on the same sample. This separates fixture seating and recognition repeatability from normal part-to-part dimensional variation.
A request such as “we need ±0.1 mm” is incomplete if the drawing does not show what is measured, from which side, at which locations, and after which process stage. Camera resolution, detection repeatability, motion correction, fixture repeatability, part variation, and final bonded tolerance are different quantities. They should be confirmed separately for the selected product and sample stack.
Daily quantity and product mix still belong in the commercial review because they affect changeover and automation needs, but they should come after the alignment evidence above. The technical decision is whether the reference, fixture, correction path, and final acceptance method form one controllable chain.
Unconfirmed values should remain open questions. Alignment capability, camera details, supported thickness, cycle behavior, interfaces, utilities, and material compatibility should come from the selected configuration and representative sample testing rather than an assumed industry number.
Choose the Equipment Direction After the Alignment Problem Is Defined
The equipment choice should come after the datum and defect review, not before it. Two projects can use panels of similar size yet need different alignment control because one relies on a high-contrast printed border while the other must relate a weak optical window to a hidden functional edge.

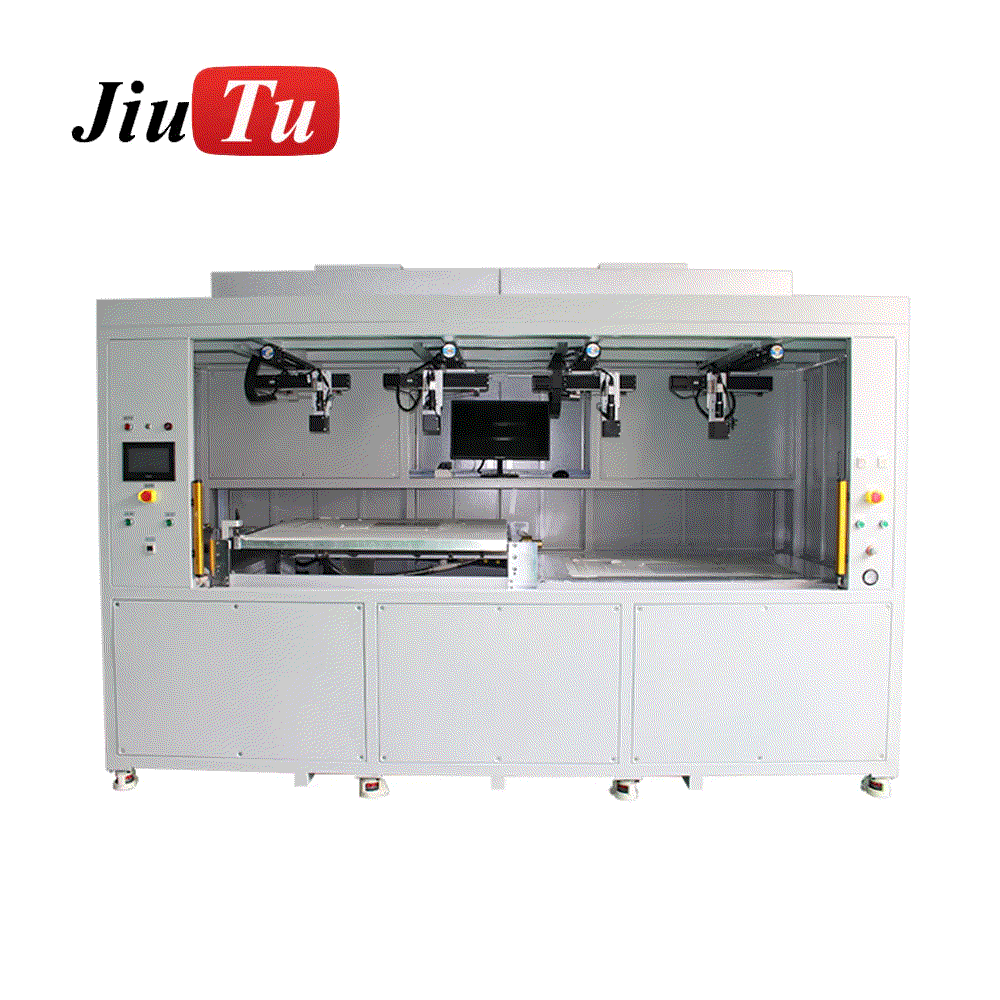

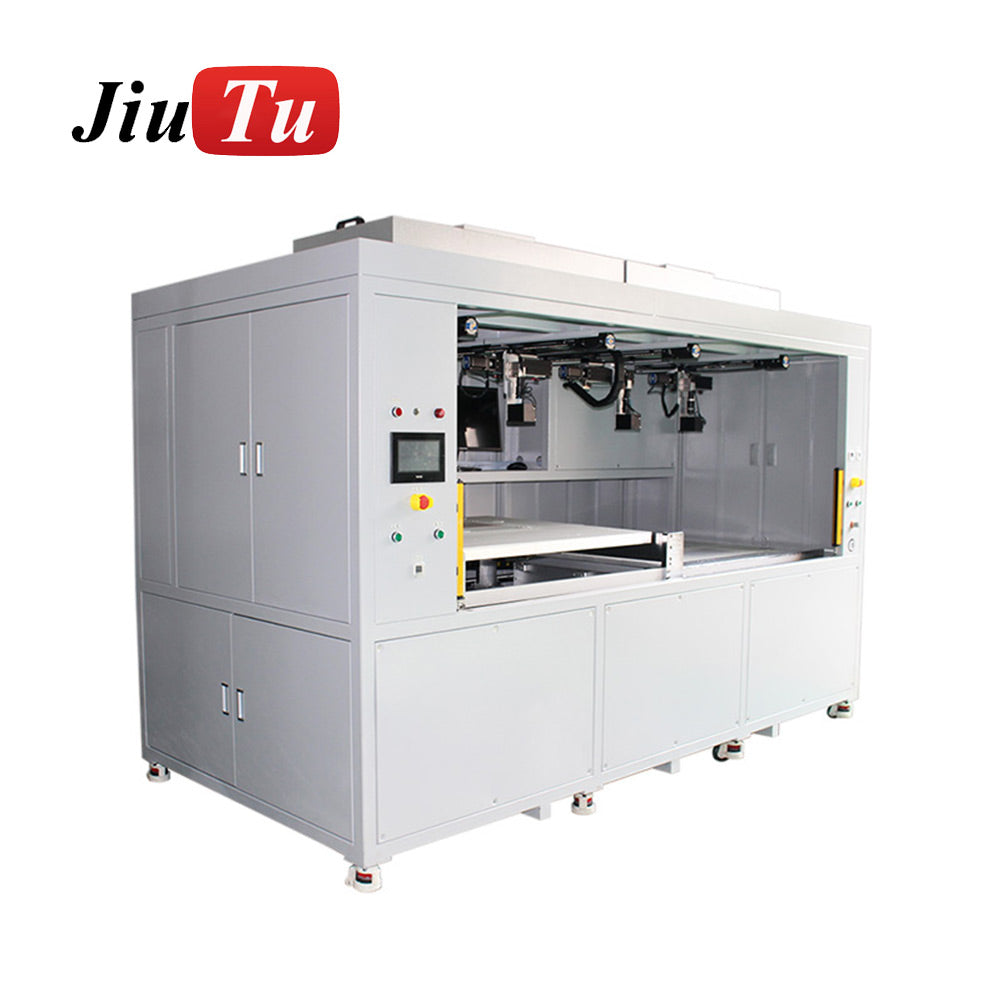

CCD Optical Laminating Equipment
Start with the general CCD optical laminating equipment direction when the main requirement is camera-guided recognition and placement for suitable display film and glass structures within the required working area. The technical review should confirm which features are detected, how X-Y-θ correction is applied, how the fixture retains the stack after recognition, and how the final bonded result will be measured.
Review CCD optical laminating equipment when the alignment task is already defined and you are ready to compare the required reference, stack, fixture, and work area with the available configuration.
500×750mm CCD Laminating Machine
Review the larger-format direction when the panel, frame, fixture, cables, or support structure need more working envelope and when wider reference spacing or panel sag may change the alignment strategy. A larger work area does not automatically solve a large-panel alignment problem; sample support, local height, final tolerance locations, and global-versus-local distortion still need to be checked.
For either direction, ask for a technical decision based on the same evidence used in production: reference images, datum drawing, pre/post-bond offset map, stack and fixture information, tolerance method, and representative samples. That is more reliable than choosing from product photos or a nominal panel size alone.
Frequently Asked Questions
Can CCD alignment work without a printed Mark point?
Yes, when another stable feature can serve as the datum. A glass edge, corner, hole, notch, border intersection, or optical opening may work if it remains visible under the real liner, adhesive, film, and reflection condition. The feature must also have a controlled dimensional relationship with the area that is finally inspected.
What should be checked when recognition passes but the bonded result shifts?
Treat it first as movement after recognition rather than immediately changing the target. Compare fixture seating, tack, clamp engagement, liner release, transfer motion, vacuum change, first contact, pressure engagement, and material relaxation. Saving both the accepted image and the finished measurement makes this boundary much easier to prove.
Can CCD correction compensate for part-size variation?
Only when the variation behaves like a rigid positional or angular change that the configured motion can correct. A camera can locate a shifted or rotated reference, but it cannot stretch one edge, shrink another, flatten warped glass, or remove local distortion. If different corners fail in different directions, measure the incoming dimensions and support condition before increasing software compensation.
When can a stable fixture be enough without CCD alignment?
A fixture-only approach may be sufficient when incoming part dimensions are tightly controlled, the mechanical datums directly represent the finished requirement, loading is repeatable, the allowable tolerance is wider than normal fixture variation, and product changeover is limited. CCD becomes more valuable when visual or functional references vary from the fixture datum, multiple products need recipe-based correction, or manual placement judgment is creating repeat positional rework.
Turn the Alignment Requirement Into a Testable Project
A stable process begins with a visible feature that represents the finished requirement. The fixture must present and retain every layer consistently. Calibration and recipe control must remain separate. Finally, first-piece and batch records must prove that the bonded result stays within the approved limit.
For equipment evaluation, prepare panel and glass dimensions, the complete material stack, Mark or border drawings, current offset photographs, allowable tolerance, daily quantity, fixture information, and representative samples. These details allow recognition, support, work area, and validation needs to be reviewed together.
- Map every visible reference to a real functional or visual requirement.
- Compare the accepted pre-bond position with the bonded result before changing the target.
- Stop production when drift no longer has an explained mechanical, material, or optical cause.
When these controls work together, CCD camera vision alignment can reduce avoidable offset and repeated positional rework without hiding fixture wear, material variation, or cleanliness problems.
