JiuTu Machine

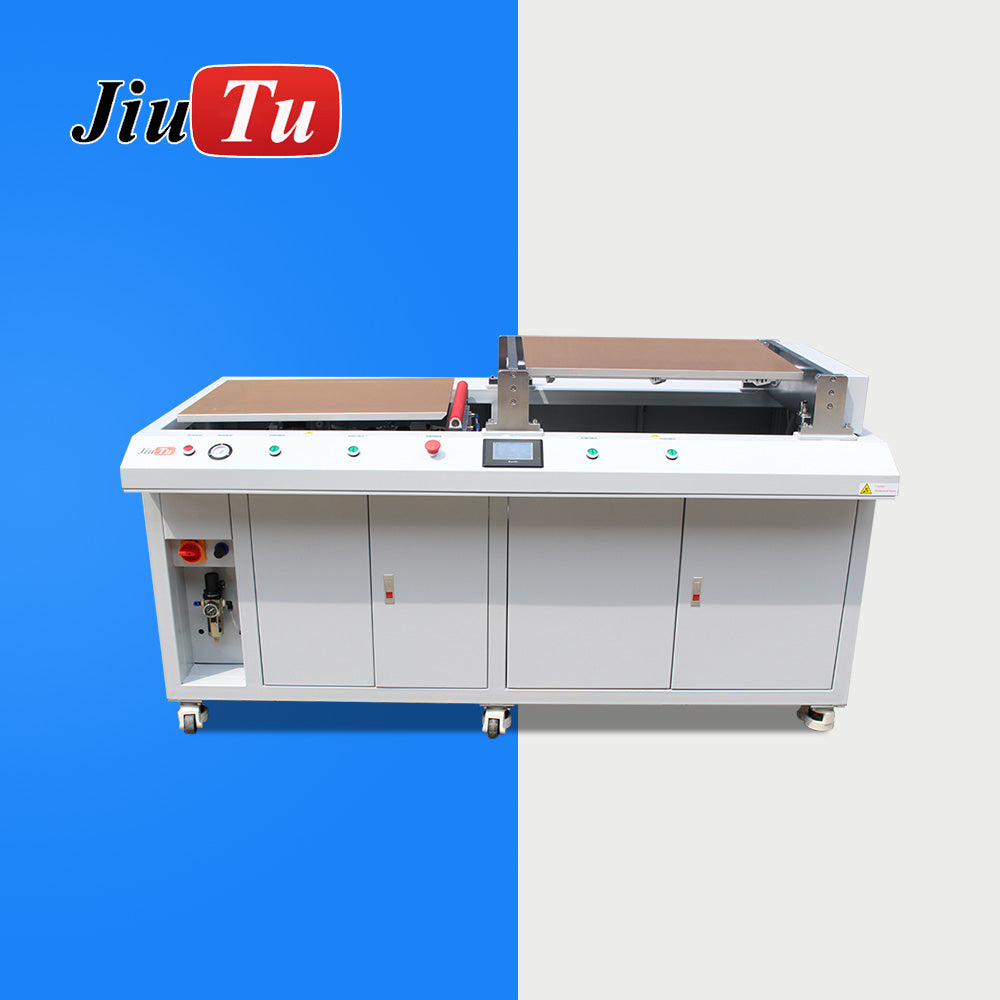

COF Bondemaskine

COF Bondemaskine

$10,499.00 USD
$10,999.00 USD $10,499.00 USD
Udsalg Udsolgt
Levering beregnes ved betaling.

OCA LCD skærmreparation Automatisk OCA polarisatorfilm-applikationsmaskine til telefonrenovering laminering af OCA-lim polarisatorklæbemiddel

1. Maskinintroduktion

1.1 G+F klapfilm-lamineringsmaskine er en touchscreen og oca-film-laminering. Når oca-filmen og justeringen af glas er fuldført, trykkes på startknappen, klapbordet vender om, og motoren driver platformen fremad til laminering.

1.2 Dette udstyr er egnet til lamineringsprocessen af glaspanel og film med en størrelse på 500*700 mm

1.3 Filmlaminering for 1 stk. køretiden er 20-30 sekunder, kan færdiggøre ca. 1200 stykker på 10 timer

1.4 Maskinstørrelse:

Længde: 1960 mm Bredde: 980 mm Højde: 1060 mm Bruttovægt: Ca. 600 kg Egnet luftkilde: 4-6 kg/cm2 Effekt: 220V/1KW /50HZ

1.5 Hoveddele af maskinen:

  1. Ramme del: plademetal, aluminiumslegering
  2. Betjeningsdel: menneske-maskine-interface (PLC-touchscreen)
  3. Kontroldel: menneske-maskine-interface PLC
  4. Pneumatisk del: cylinder, magnetventil, blæser
  5. Filmlamineringsdel: rulle. klap platform
  6. Klapdel: Servomotor, reduktionsgear

Se komplette oplysninger

Frequently Asked Questions

What is the main function of the COF Bonding Machine?
The COF Bonding Machine is designed for automatic laminating of OCA polarizer film onto LCD screens, making it ideal for phone refurbishment and screen assembly.
What are the specifications and size of the COF Bonding Machine?
The machine measures 1960mm in length, 980mm in width, and 1060mm in height, weighing about 600kg, and operates on 220V/1KW power supply with an air source of 4-6 Kg/cm².
How efficient is the COF Bonding Machine in producing LCD screens?
It can laminate one piece in approximately 20 to 30 seconds, allowing for up to 1200 pieces to be processed in a 10-hour shift.
What parts and components are included in the COF Bonding Machine?
The machine includes a frame made of sheet metal and aluminum alloy, a man-machine interface (PLC touch screen), pneumatic parts like cylinders and valves, a film laminating roller, and a servo motor with a speed reducer for flipping.
How easy is it to operate the COF Bonding Machine?
The machine features a user-friendly touch screen interface that simplifies the alignment and lamination process, making it suitable for operators with minimal training.
