Bubble Removal Machine

Factory Direct Sale SCA COF OCA LED Large Screen Refurbishment Air Bubble Remover1.1 Equipment introduction and purpose1.1.1 : This equipment is a segmented high-pressure defoaming machine (bubble remover machine).--air bubble removal... Read more

Ausverkauft

paypalvisamasteramazon paymentsamerican expressapple paybitcoindankort

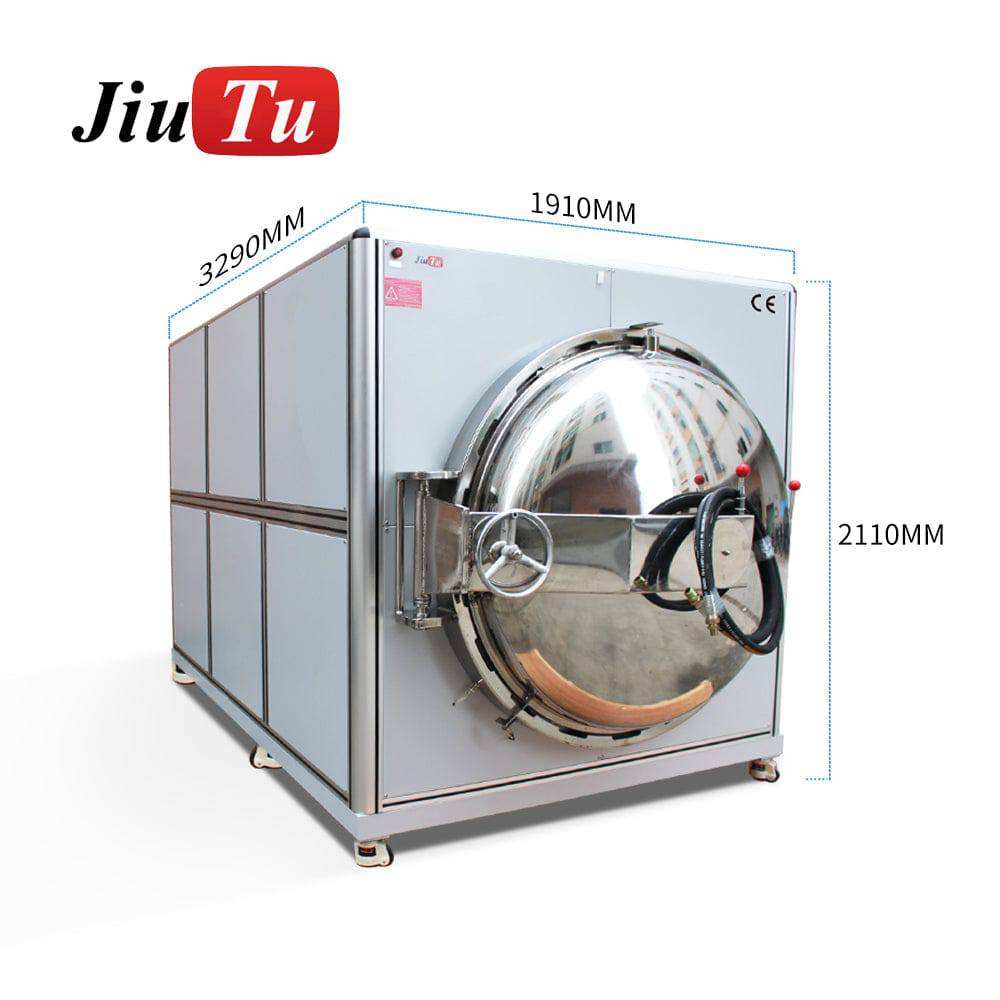

Factory Direct Sale SCA COF OCA LED Large Screen Refurbishment Air Bubble Remover

1.1 Equipment introduction and purpose
1.1.1 : This equipment is a segmented high-pressure defoaming machine (bubble remover machine).--air bubble removal machine
It’s widely used for electronics and optoelectronics industry, Removing air bubbles and vacuum bubbles--air bubble removal machine
after vacuum lamination with optical glue SCA and OCA glue. Effectively improve product yield.--air bubble removal machine

1.1.2 : Segmented high-pressure , both temperature and pressure can be adjusted by different segmented based on the actual product, max temperature is 80 degree , max pressure is 0.8Mpa--air bubble removal machine

1.2 Equipment technical parameters
1.2.1 machine size :
length 1650mm width 1410mm Height 1910mm
1.2.2 Inner chamber size : Diameter 1000mm Depth 1300mm
1.2.3 Gross weight about 1000KG
1.2.3 Safety pressure :0.9mpa
1.2.4 Volatge AC 380V


1.3 Equipment Installation
1.3.1 Power supply, to ensure the power supply demand AC380V 9000W.
1.3.2 Air supply to ensure the air pressure supply 0.8mpa.
1.3.3 Machine installation, 12 casters adjust the horizontal state, and the casters are locked and fixed.--air bubble removal machine

1.4 Equipment maintenance
1.4.1 Circuit maintenance: check whether the circuit is loose or abnormal every 15 working days, Appropriate reinforcement if there is any abnormality--air bubble removal machine

1.4.2 Air circuit maintenance; every 15 working days, check the air circuit for air leakage from the air pipe joints.
If there is any abnormality, repair and reinforce or replace it in time

1.4.3 Fan maintenance; manual debugging every 15 working days to check whether the fan is running abnormally, and replace it in time if there is any abnormality--air bubble removal machine

1.4.4 Add lubricating oil; manually open the door cover of the defoaming machine every 15 working days and add lubricating oil to the movable place
air bubble removal machine

Feature 1
For Electronics and Optoelectronics industry air bubble removal
Feature 2
segmented high-pressure
Function 1
AutoClave (Removes bubbles) for industrial TFT screen air bubble removal
Function 2
OCF SCA COF Defoaming Remover
Application 1
High temperature max to 80 degree
Application 2
customized industrial TFT screen project
Voltage
380V
Power
8000w
QC
Fully tested before shipping
air bubble removal machine
