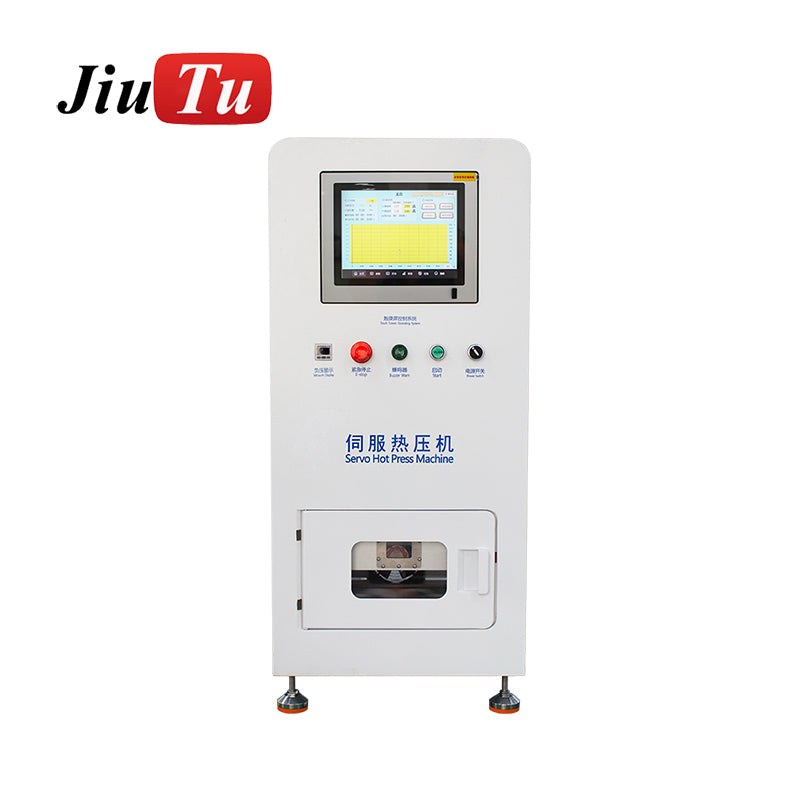

The High Temperature Bonding machine is the JiuTu Machine 9TU-M040B, a servo-driven vacuum hot press for precision, high-temperature and high-pressure bonding in research and manufacturing.

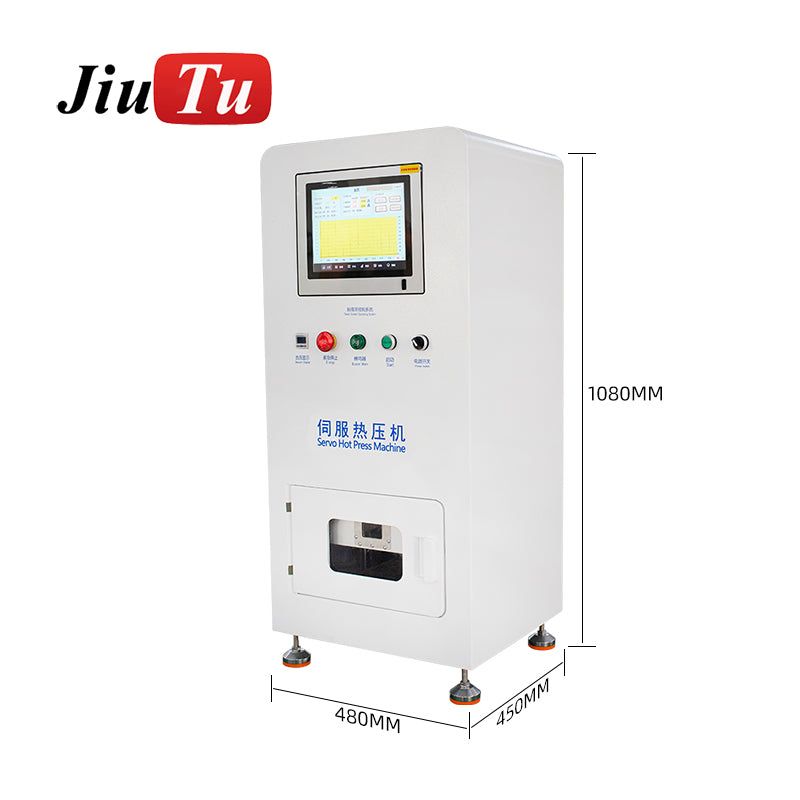

Construction and specifications

• Platform: 200 × 200 mm laminating platform.
• Temperature: Adjustable from room temperature to 200°C, with independently controlled upper and lower heating plates.
• Heating: Electric, four-stage segmented heating; segments are customizable. Temperature uniformity is ±2°C, tested at 100°C.
• Press control: Servo electric cylinder with closed-loop force and position control; pressing force up to 10 kN, displacement accuracy ±0.02 mm and pressure accuracy ±5‰.
• Speed: Adjustable pressing speed of 0.01–30 mm/s and probing speed of 0.01–20 mm/s.
• Vacuum: Built-in system rated from −98 kPa to −100 kPa, with selectable vacuum or non-vacuum pressing. No external gas source is required.
• Controls and records: 10-inch touchscreen HMI stores up to 2,000 process recipes. Force, position, speed, temperature and dwell time are numerically settable; historical displacement, pressure and temperature data can be exported to Excel.
• Electrical: AC 220 V, 50 Hz; approximately 3,750 W.

Use cases and compatible materials

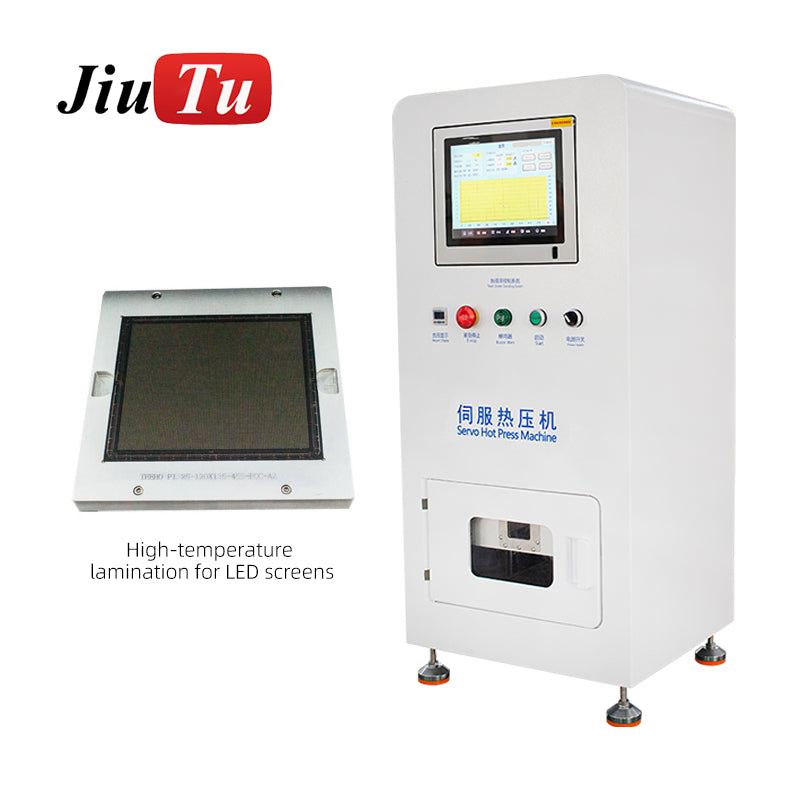

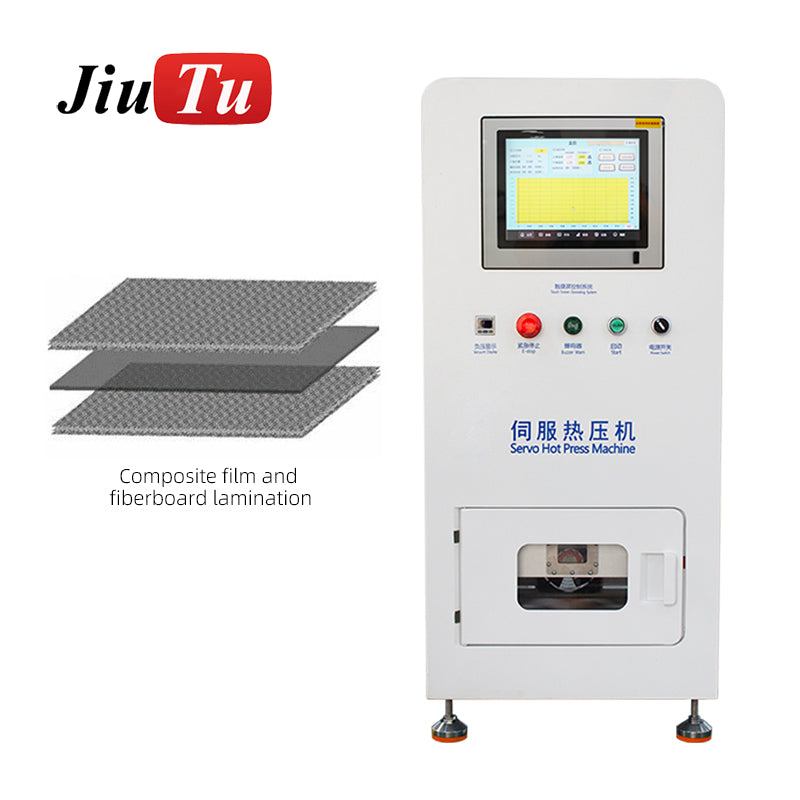

This High Temperature Bonding hot press is intended for SCA/OCA adhesive bonding and pressing LCD and TP/LCM assemblies, as well as parts made from COP, COC, PMMA, PC, other plastics, glass or metal. The listed applicable materials also include PHA, aerogel, composite film and fiber board.

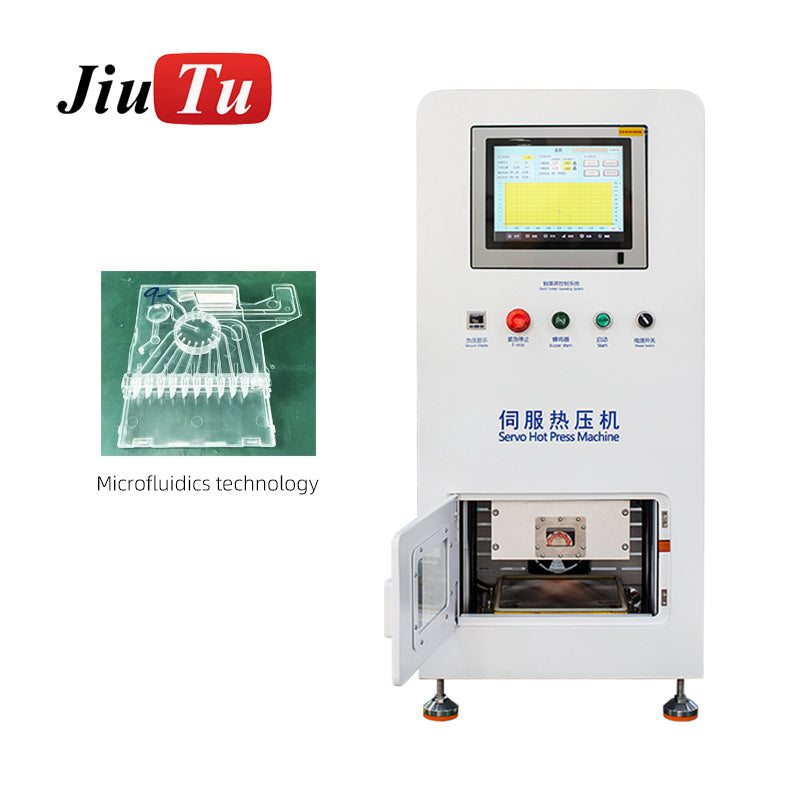

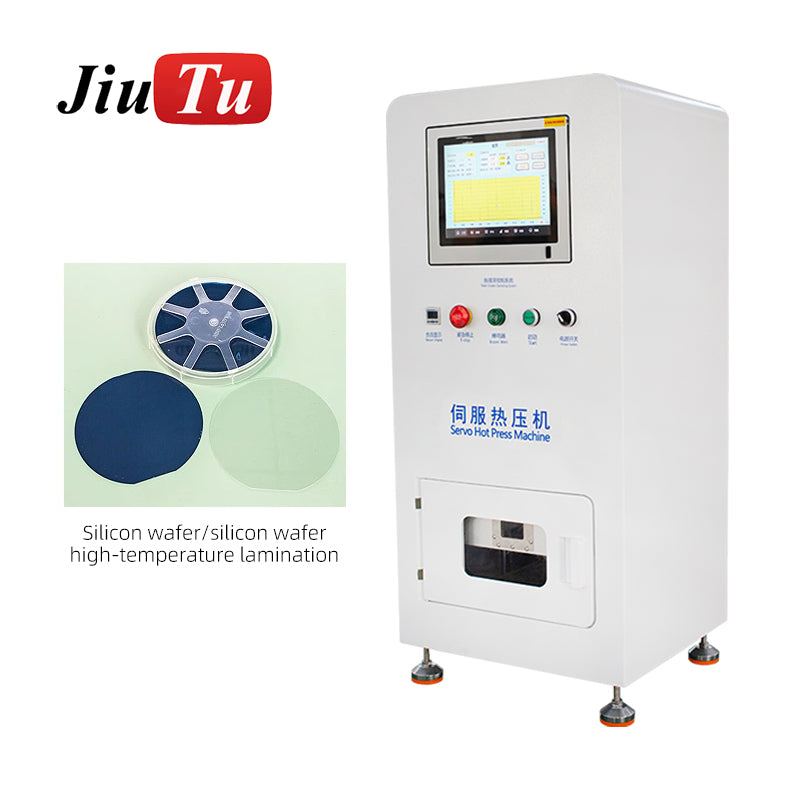

Use cases specified for the machine include new-energy components, aviation parts, chips and PCBs, electronic connectors, microfluidics, and new-material development. It is suited to university research, laboratory R&D and factory mass production where temperature, force and position are set as process parameters.

Included, certification and care

The product description identifies the machine but does not specify additional box contents or cleaning instructions. It states that the machine is CE certified and includes a 1-year warranty. Connect to AC 220 V, 50 Hz power; no external gas source is required for the built-in vacuum system.

The 9TU-M040B Servo Vacuum Hot Press Machine is a high-temperature,high-pressure, high-precision press-fitting system with a 200x200mm laminating platform, built for products requiring exact temperature and force control.

Servo electric cylinder drive: precise closed-loop control of press force and position throughout the entire pressing process. Pressing force up to 10KN, displacement accuracy ±0.02mm, pressure accuracy ±5 per mille.

Temperature system: room temperature to 200°C, upper and lower heating plates independently controlled, 4-stage heating (segments customizable),temperature uniformity ±2°C with PID algorithm for high production yield.

Built-in vacuum system (-98kPa to -100kPa) with selectable vacuum or non-vacuum pressing mode — the machine needs power connection only, no external gas source required.

10-inch touchscreen HMI stores up to 2,000 process recipes. Pressing force, position, speed, temperature, and dwell time are all numerically settable. Historical displacement, pressure and temperature data can be exported to Excel for quality traceability.

Applicable to SCA/OCA bonding, LCD, TP/LCM, polymers (COP, COC, PMMA, PC),plastic/glass/metal parts, aerogels, new energy components, aviation parts, chips/PCB, electronic connectors, microfluidics and new material development. Suitable for university research, laboratory R&D and factory mass production.

Power: AC 220V 50Hz, approx. 3750W. CE certified. 1-year warranty.
