bubble remover machine for mobile

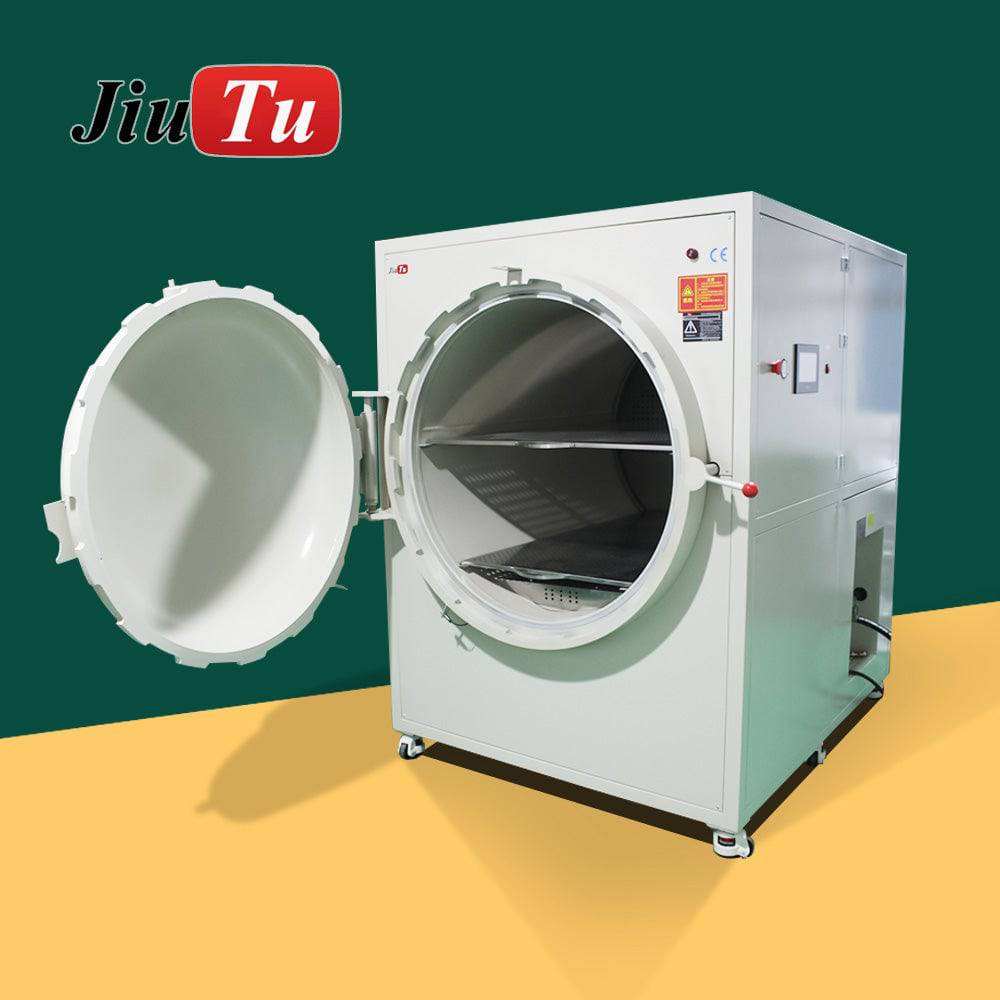

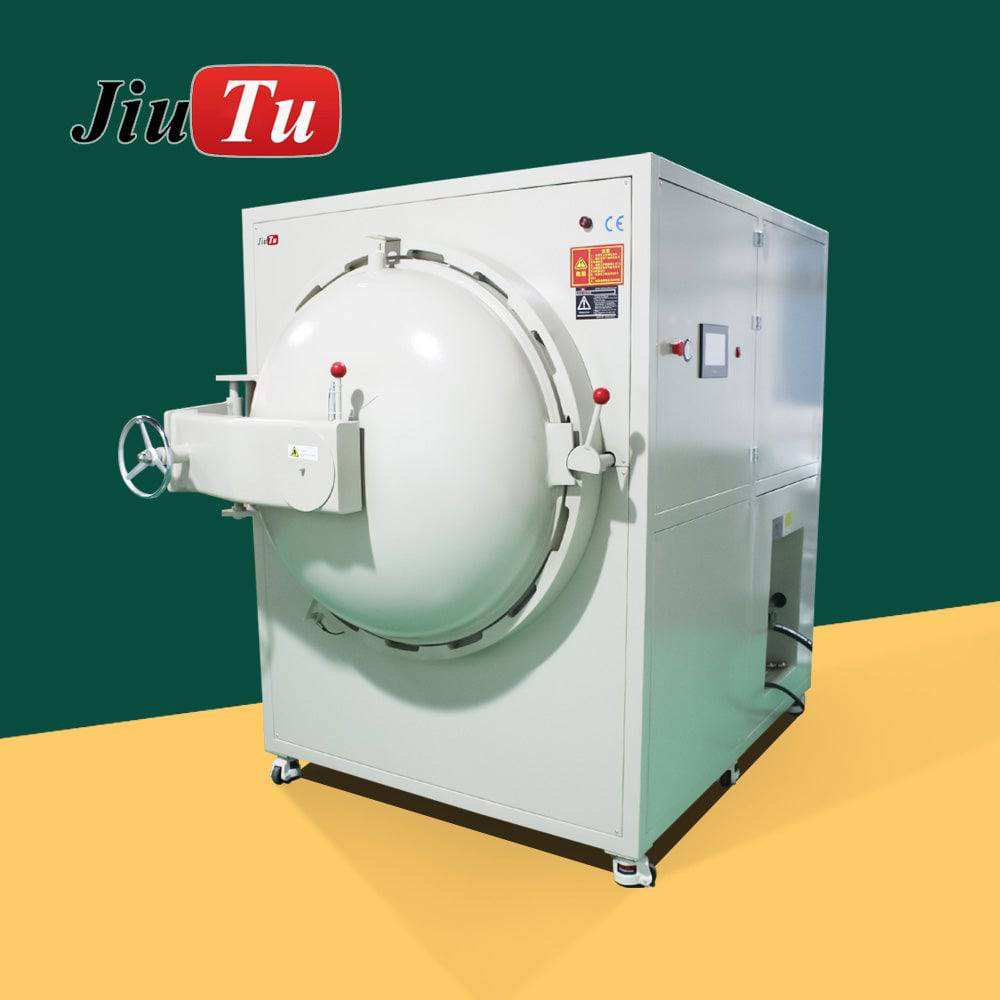

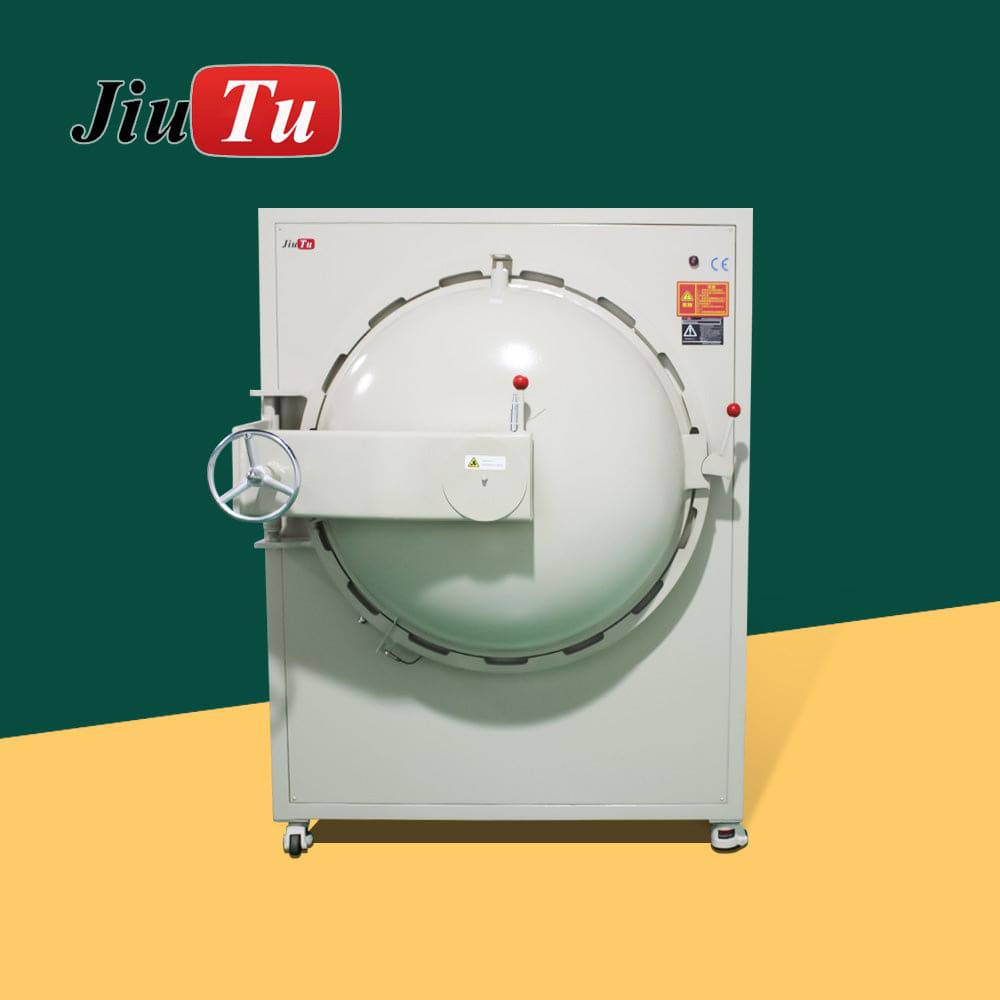

Factory Direct Sale SCA COF OCA LED Large Screen Refurbishment Air Bubble Remover

1.1 Equipment introduction and purpose
1.1.1 : This equipment is a segmented high-pressure defoaming machine (bubble remover machine).--bubble remover machine for mobile
It’s widely used for electronics and optoelectronics industry, Removing air bubbles and vacuum bubbles
after vacuum lamination with optical glue SCA and OCA glue. Effectively improve product yield.--bubble remover machine for mobile

1.1.2 : Segmented high-pressure , both temperature and pressure can be adjusted by different segmented based on the actual product, max temperature is 80 degree , max pressure is 0.8Mpa--bubble remover machine for mobile

1.2 Equipment technical parameters
1.2.1 machine size :
length 1650mm width 1410mm Height 1910mm

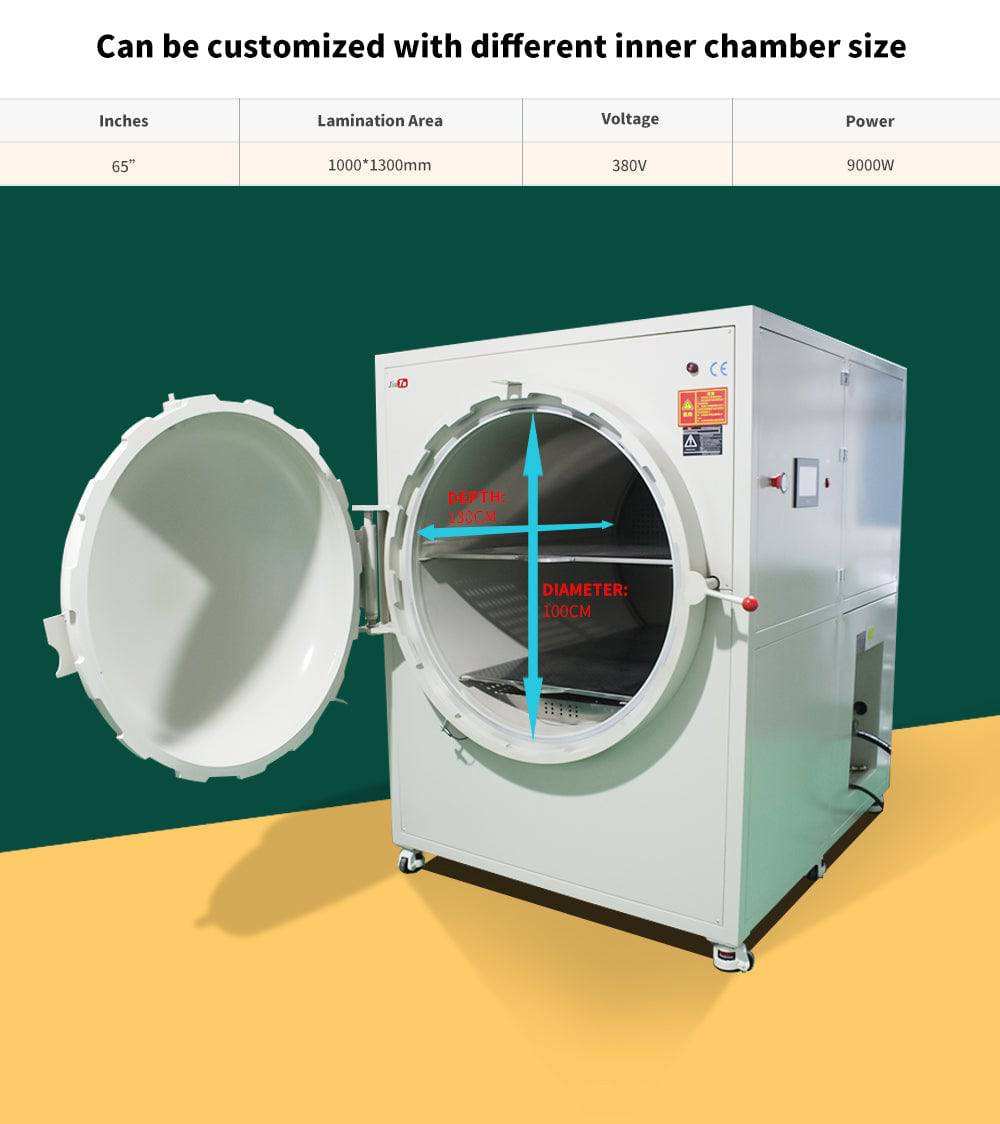

1.2.2 Inner chamber size : Diameter 1000mm Depth 1300mm
1.2.3 Gross weight about 1000KG
1.2.3 Safety pressure :0.9mpa
1.2.4 Volatge AC 380V


1.3 Equipment Installation
1.3.1 Power supply, to ensure the power supply demand AC380V 9000W.
1.3.2 Air supply to ensure the air pressure supply 0.8mpa.--bubble remover machine for mobile
1.3.3 Machine installation, 12 casters adjust the horizontal state, and the casters are locked and fixed.--bubble remover machine for mobile

1.4 Equipment maintenance
1.4.1 Circuit maintenance: check whether the circuit is loose or abnormal every 15 working days, Appropriate reinforcement if there is any abnormality--bubble remover machine for mobile

1.4.2 Air circuit maintenance; every 15 working days, check the air circuit for air leakage from the air pipe joints.
If there is any abnormality, repair and reinforce or replace it in time

1.4.3 Fan maintenance; manual debugging every 15 working days to check whether the fan is running abnormally, and
replace it in time if there is any abnormality

1.4.4 Add lubricating oil; manually open the door cover of the defoaming machine every 15 working days and add
lubricating oil to the movable place
Specification
Feature 1
For big TV , keyboard Device Screen
Feature 2
ok with edge lcd screen
Function 1
AutoClave (Removes bubbles) for big screen
Function 2
OCF SCA COF Defoaming Remover
Application 1
Bubble Remover For Big Screen
Application 2
Electrical Tool Set, Computer Tool Kit
Voltage
380V
Power
9000w
QC
Fully tested before shipping
