vacuum machine with bubble remover

vacuum machine with bubble remover Main Features : 1 This equipment is high pressure heating ITO+CG, FILM+CG, CTP+LCD module defoaming machine.--vacuum machine with bubble remover 2.This equipment is suitable for the... Read more

Out of stock

paypalvisamasteramazon paymentsamerican expressapple paybitcoindankort

vacuum machine with bubble remover

Main Features :
1 This equipment is high pressure heating ITO+CG, FILM+CG, CTP+LCD module defoaming machine.--vacuum machine with bubble remover

2.This equipment is suitable for the process of defoaming it after hard-hard bonding (CG bonding) or assembly (CTP+LCD) process.--vacuum machine with bubble remover

3. This equipment is for simultaneous temperature rise and boost.

1.1 Equipment introduction and purpose

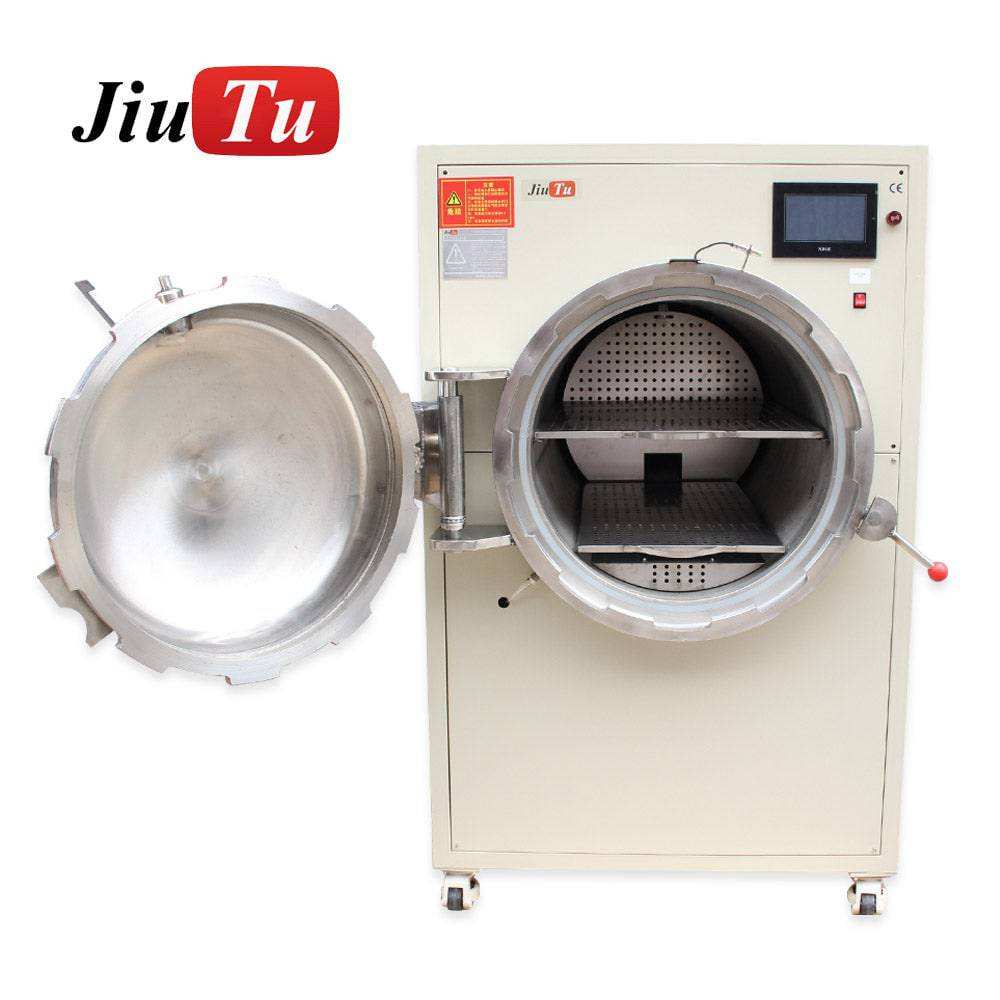

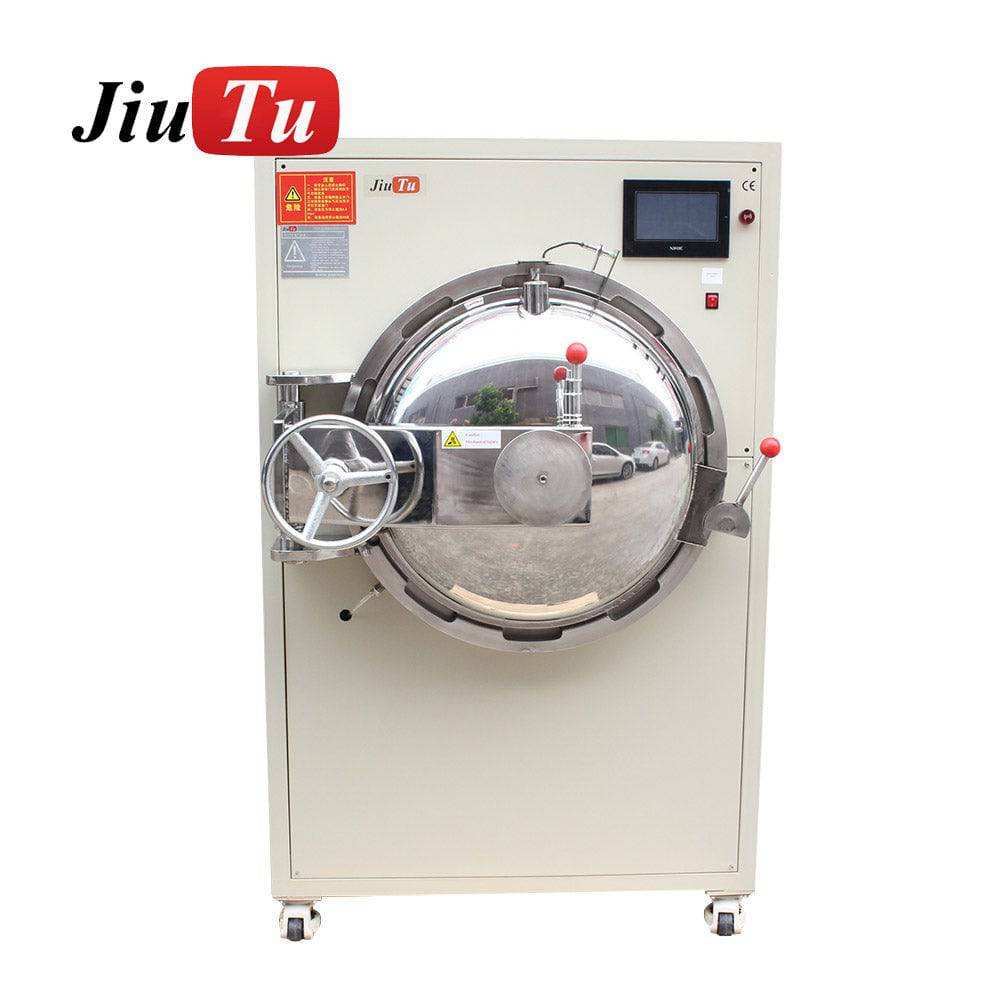

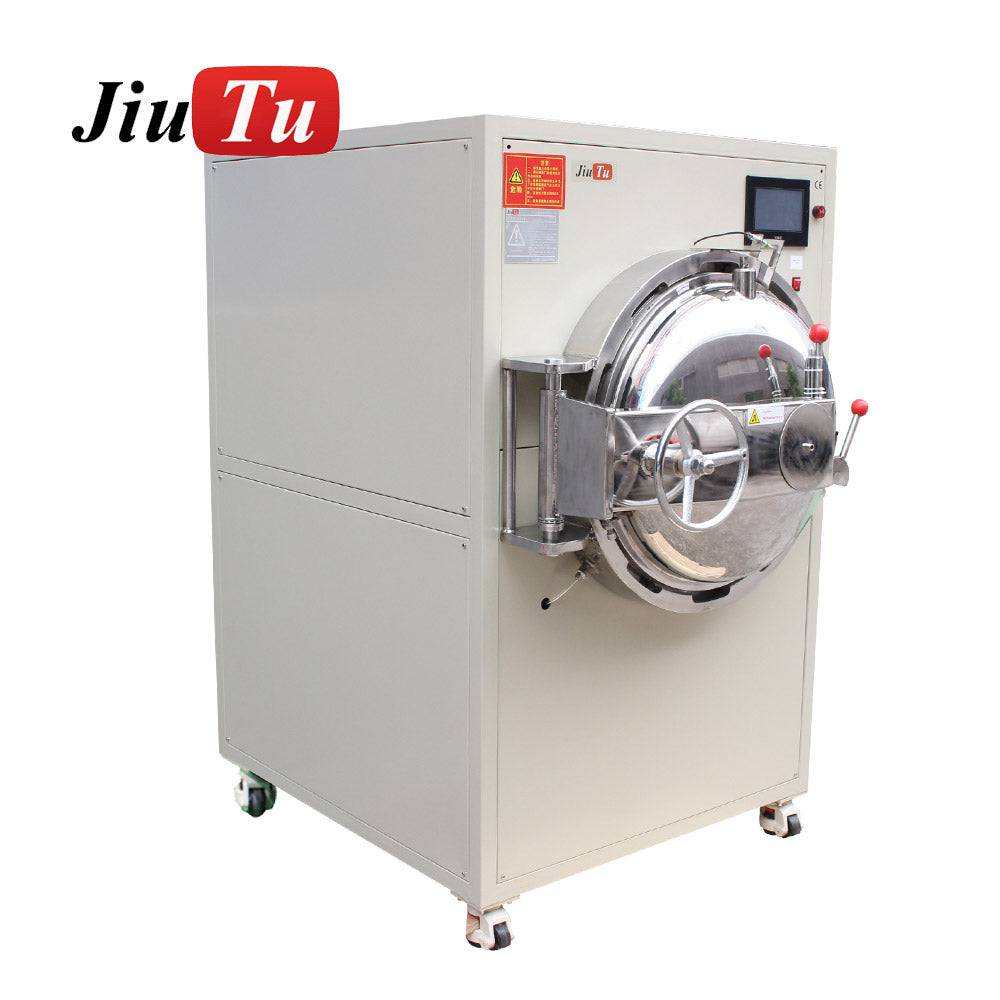

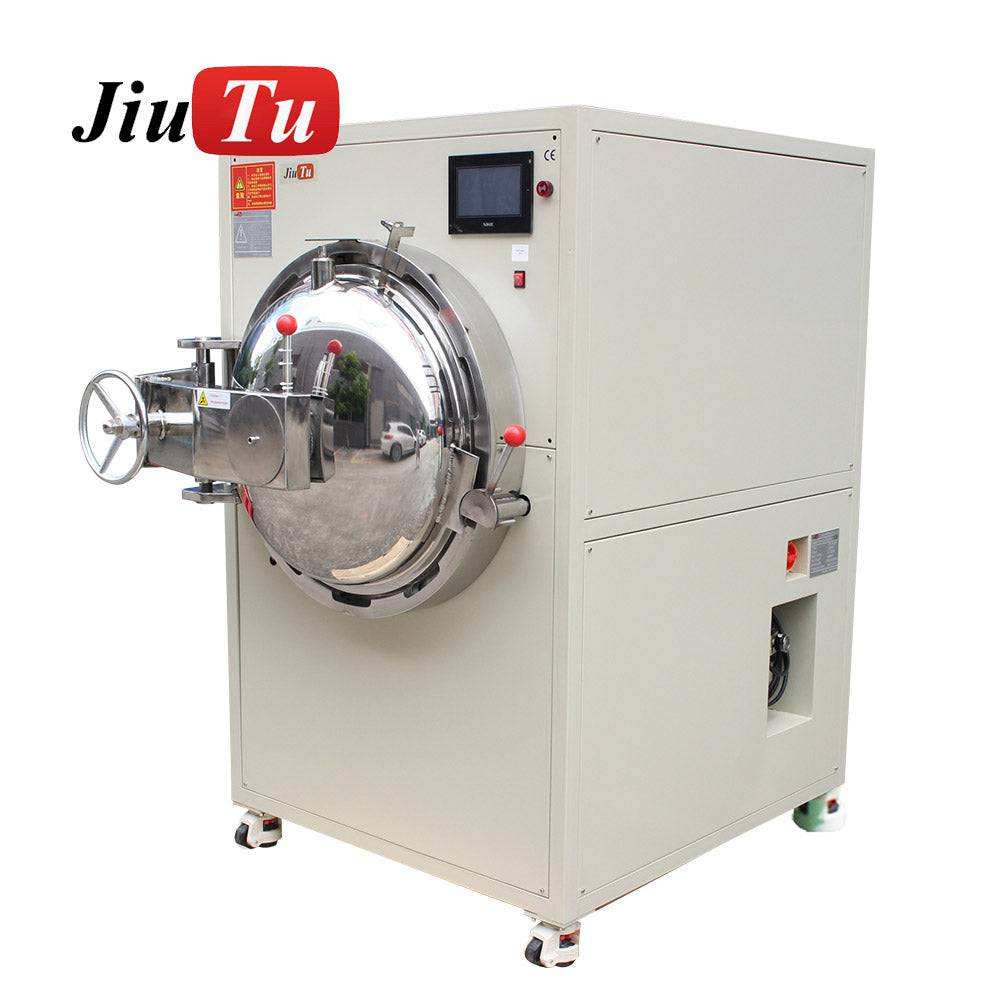

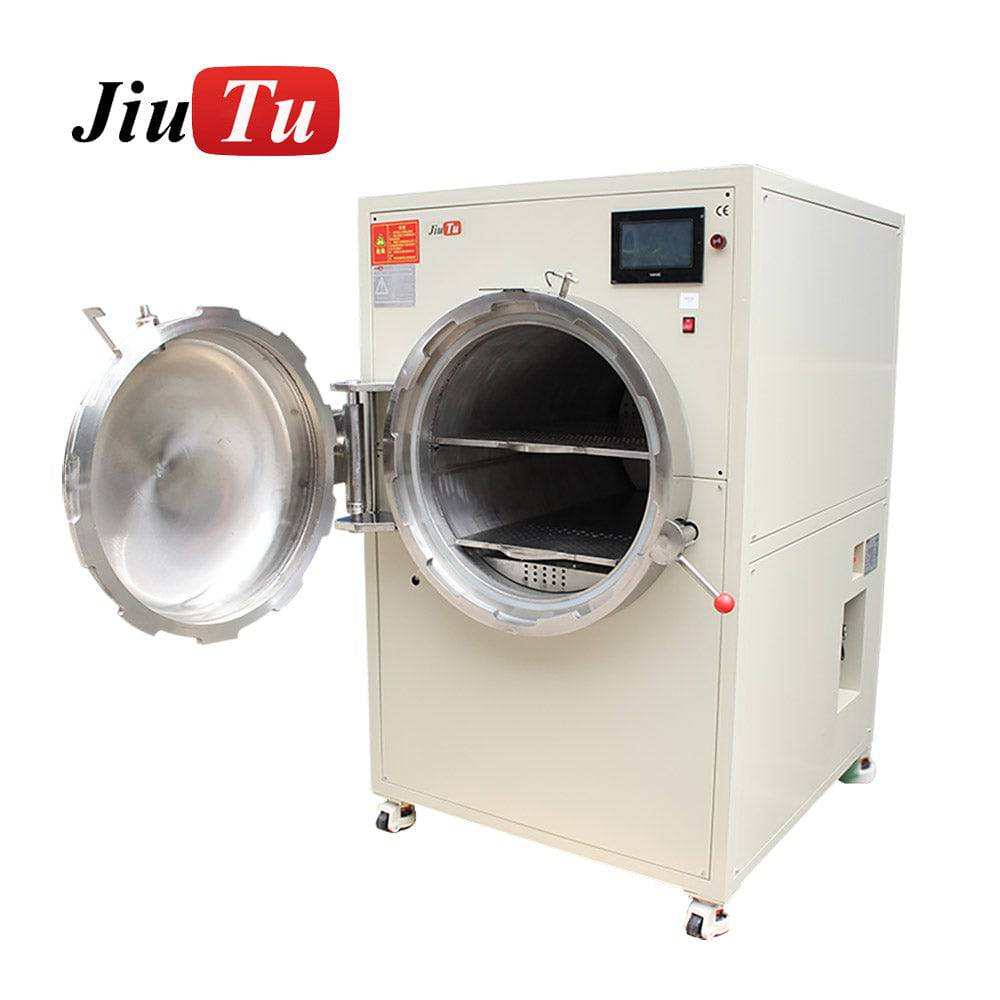

1.1.1 : This equipment is a segmented high-pressure defoaming machine (bubble remover machine).--vacuum machine with bubble remover
It’s widely used for electronics and optoelectronics industry, Removing air bubbles and vacuum bubbles
after vacuum lamination with optical glue SCA and OCA glue. Effectively improve product yield.--vacuum machine with bubble remover

1.1.2 : Segmented high-pressure , both temperature and pressure can be adjusted by different segmented based on the actual product, max temperature is 80 degree , max pressure is 0.8Mpa--vacuum machine with bubble remover

1.2 Equipment technical parameters
1.2.1 machine size :
length 1580mm width 1030mm Height 1700mm
1.2.2 Inner chamber size : Diameter 600mm Depth 900mm
1.2.3 Gross weight about 500KG
1.2.3 Safety pressure :0.8mpa
1.2.4 Volatge AC 220V

1.3 Equipment Installation
1.3.1 Power supply, to ensure the power supply demand AC220V 2000W.
1.3.2 Air supply to ensure the air pressure supply 0.8mpa.--vacuum machine with bubble remover
1.3.3 Machine installation, 12 casters adjust the horizontal state, and the casters are locked and fixed.

1.4 Equipment maintenance
1.4.1 Circuit maintenance: check whether the circuit is loose or abnormal every 15 working days, Appropriate reinforcement if there is any abnormality

1.4.2 Air circuit maintenance; every 15 working days, check the air circuit for air leakage from the air pipe joints.
If there is any abnormality, repair and reinforce or replace it in time

1.4.3 Fan maintenance; manual debugging every 15 working days to check whether the fan is running abnormally, and replace it in time if there is any abnormality--vacuum machine with bubble remover

1.4.4 Add lubricating oil; manually open the door cover of the defoaming machine every 15 working days and add lubricating oil to the movable place--vacuum machine with bubble remover

P/N

9TU-M057/M058

Model

 Custom Large Autoclave Bubble Remover Machine

Function

Remove Rest Bubbles after Lamination for LCD Screen Refurbishing ,ok for big lcd screens

Application

inner chamber 500*800mm

Air Compressor

Needed (Can share the same air compressor with OCA Vacuum Laminator )

Vacuum Pump

No Need

Voltage

380V /5000W

Feature 1

New Design Door , More Safety and Convenient Without Screw Lock

Feature 2

Fit for all big lcd screen , including aircraft playing screen ,keyboard industrial device etc

Time

15--25 Mins , can adjust by yourself

Warranty

1 year

Packing

Customized Box for Shipping

After-service

Professional technical support will be provided until you can do with perfect results

Fast Delivery

Ship within 2 working days after payment is done

Weight

550kg

Autoclave Size

500*800mm


vacuum machine with bubble remover
