JiuTu Technology Co.,Ltd

Film Laminating Equipment

Film Laminating Equipment

$16,500.00 USD
$17,999.00 USD $16,500.00 USD
In offerta Esaurito
Spese di spedizione calcolate al check-out.
Film Laminating Equipment

25/35/55/65/85 inch LCD/SCA/OCF/COF/OCA Laminating Machine Hot Melt Adhesive Glue Lamination Machine .
Can Customized based on customer’s requirements
Machine introduction :

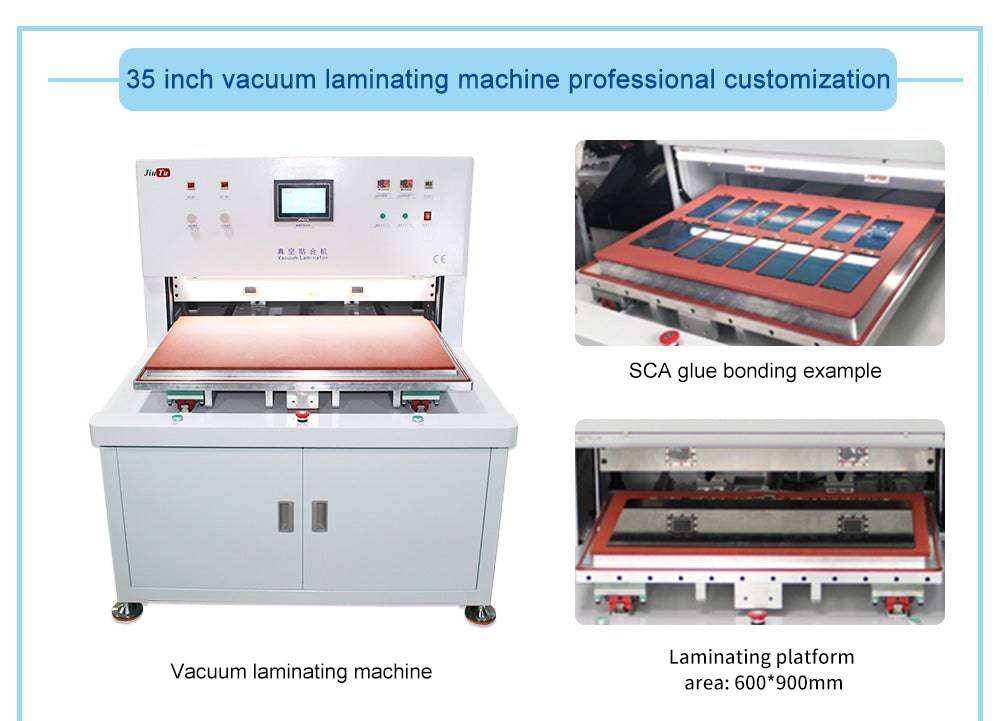

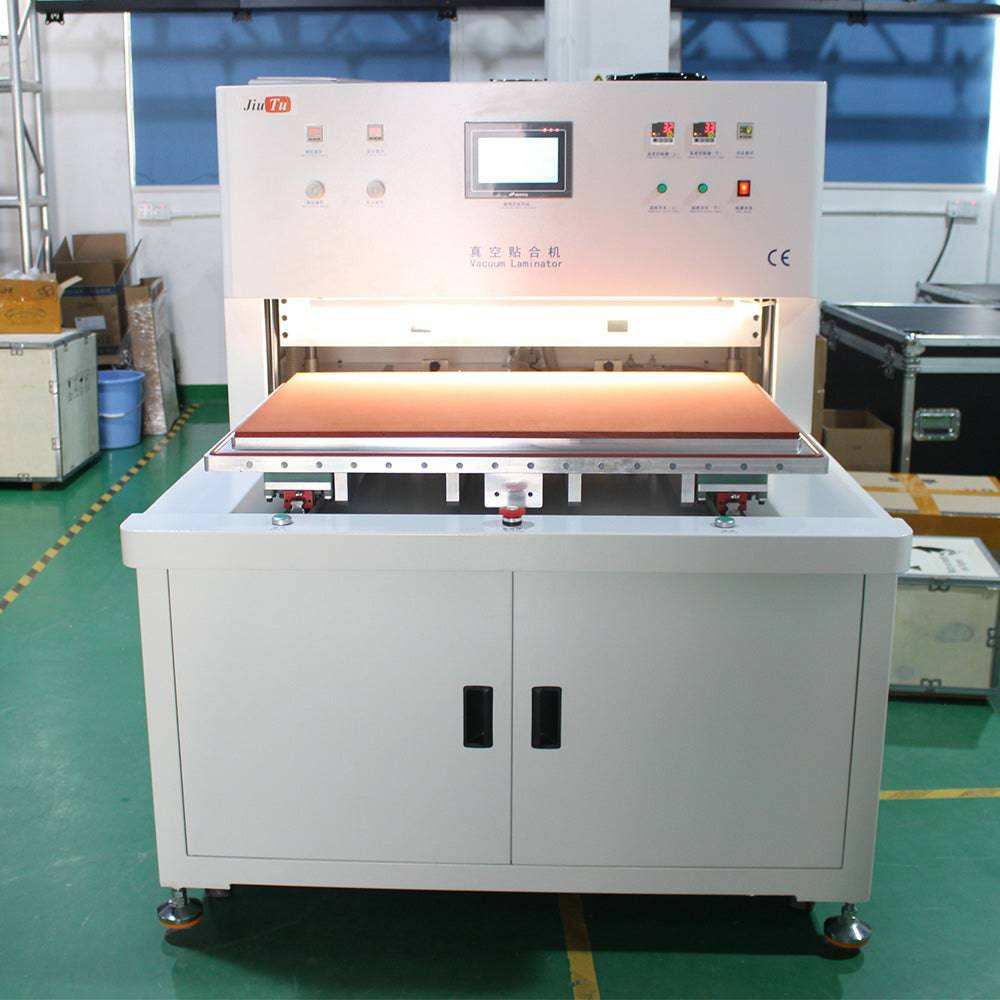

This Big vacuum laminator machine 9TU-M063 which works for all lcd screen under 35 inches .It doing vacuum lamination for front glass with lcd screen as well as touch digitizer with lcd display .--Film Laminating Equipment

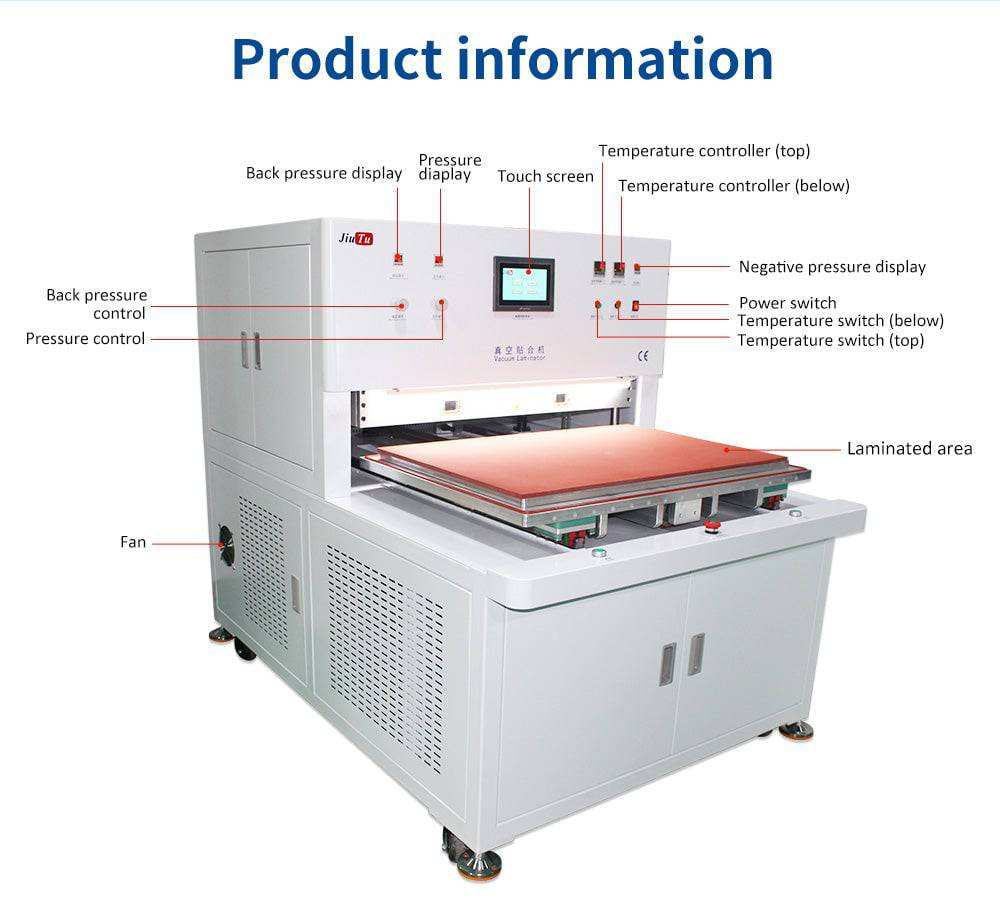

The working theory is , putting lcd screen and front panel glass into the vacuum sealed area , then using the pressure from Cylinder to press the top vacuum plate down on both glass and lcd screen. Thus it will be laminated completely . This device using PLC control system , the settings can be adjusted by the touch screen , which makes all settings more easier to understand .Once you set the settings , you can default it to auto run . Convenient operation ,stable working--Film Laminating Equipment

Main Features :
1. OCA vacuum laminator fit for LCD Screen up to 35 inches , lamination area size 600*900mm--Film Laminating Equipment
2. Customized mold will be necessary based on the actual product--Film Laminating Equipment
3. Work fast needs 25-40 seconds for each time.
4. Fully automatic , easy operation--Film Laminating Equipment

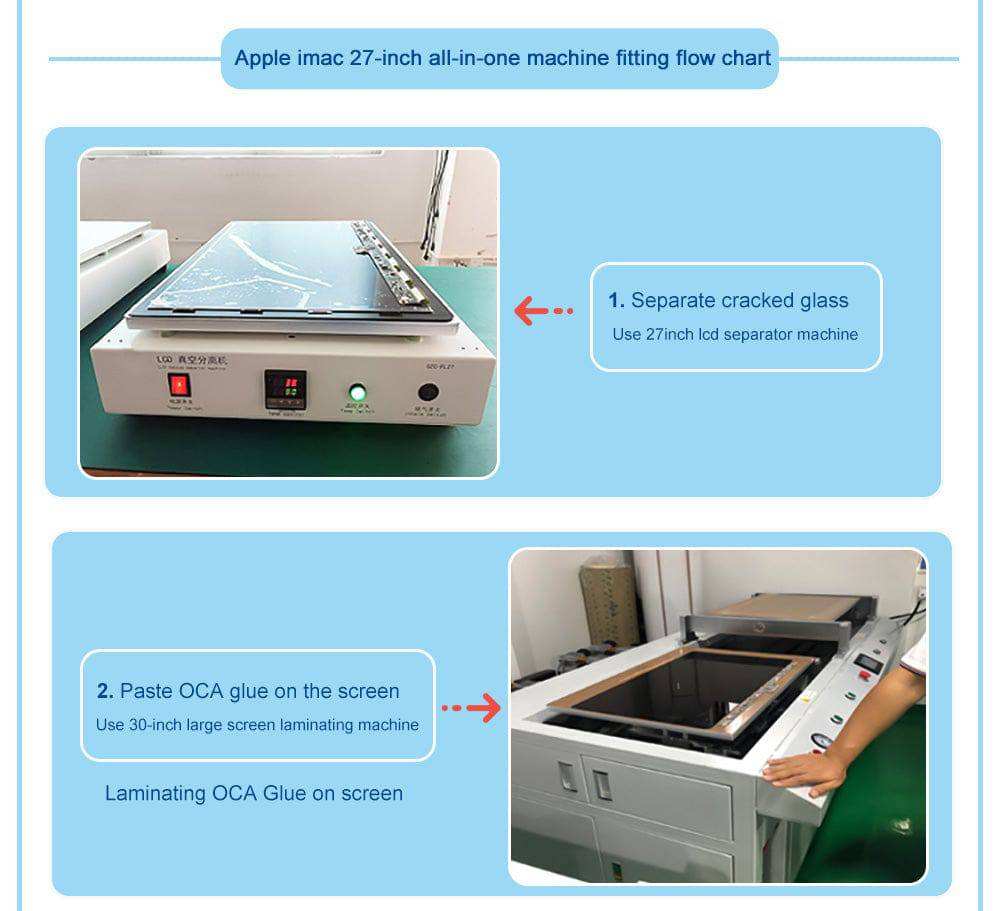

5. Work for LCD Screen Lamination for iMac TV Screen , computer screen , Car DVD Screen , Aircraft screen lamination customized ,ok with edge models too. Every time you can put more lcd screens on the plate--Film Laminating Equipment


Specification :
1. Using up and down heating, the temperature can be set up to 100 degrees.--Film Laminating Equipment
2. The working platform can adjust the balance function.
3. The maximum pressure can reach 1.2 tons.
4. The action of the equipment is driven by a cylinder

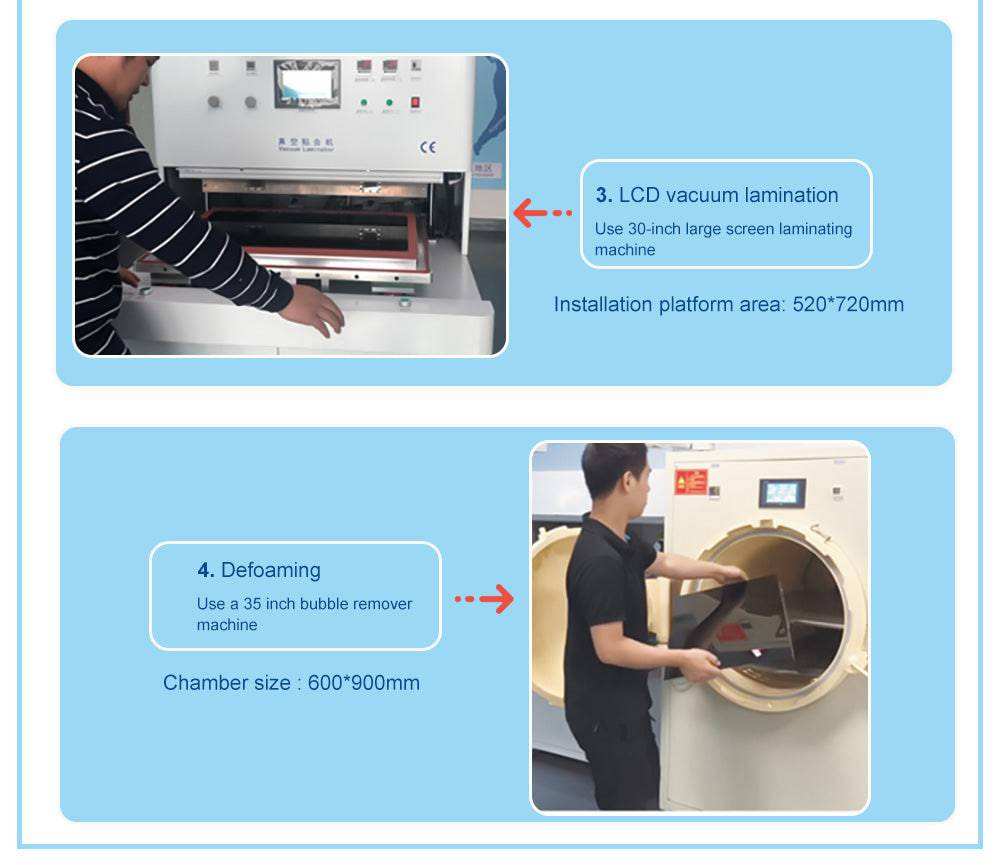

Working principle :According to the product feature , you can do vacuum extraction first then start vacuum lamination , or if temperature is needed , you can wait both the top and bottom plate to heat up and reach the set temperature ,later you do vacuum extraction and vacuum lamination--Film Laminating Equipment

Working area :
1, Mobile phone laminating
2, SCA glue hot pressing lamination,
3, Car navigation lamination--Film Laminating Equipment
4, Laboratory research and development equipment

Film Laminating Equipment


P/N
9TU-M063
Model
35inch Automatic OCA Vacuum Laminator
Function
Laminate New Glass With LCD Screen by Vacuum
Application
Fit for All LCD Screen Under 35inches , ok for TV Screen ,Computer, Car DVD Screen , Aircraft Screen Etc
Air Compressor
Needed ( External Air Compressor Needed )
Vacuum Pump
Built-in
Voltage
380V/5000W
Feature 1
Easy setup ,Fully Automatic , works great all big lcd screen lamination
Feature 2
Vacuum Lamination which protect LCD Screen well , no damage , pressure can be adjusted based on your screen thickness
Time
Very fast ,Only need 25--40 seconds each time
Warranty
2 years
Packing
Customized Box for Shipping
After-service
Professional technical support will be provided until you can do with perfect results
Delivery
Customized , delivery time depends on production , can negotiate before you place order
Machine Size
L78cm*W112cm*H137cm
Vacuum Plate Size
55*38cm ,ok for 25 inches
Net Weight
256Kg



Visualizza dettagli completi

Frequently Asked Questions

What types of screens can the film laminating equipment handle?
Our film laminating equipment is designed to laminate LCD screens up to 35 inches, including TV screens, computer screens, car DVD screens, and aircraft screens, making it highly versatile for various applications.
How does the vacuum lamination process work with this machine?
The machine uses a vacuum sealed environment to press the front glass onto the LCD screen. The built-in vacuum pump and external air compressor work together to ensure a secure, damage-free lamination, with adjustable pressure for different screen thicknesses.
What are the main features of this film laminating equipment?
The equipment offers fast lamination times of 25-40 seconds, fully automatic operation, adjustable working pressure up to 1.2 tons, and ease of use with a PLC control system and touchscreen interface, suitable for various LCD screen lamination tasks.
What are the technical specifications of this laminator?
The laminator features up and down heating with a temperature setting up to 100°C, an adjustable work platform, a vacuum plate size of 55*38cm (ideal for 25-inch screens), and a machine size of L78cm*W112cm*H137cm with a net weight of 256kg.
Is the film laminating equipment suitable for research and development purposes?
Yes, this laminating machine is suitable for laboratory research and development, as well as production environments, thanks to its precise temperature control, adjustable pressure, and customizable mold options to meet specific project needs.
