JiuTu Machine
High Temperature Hot Press
High Temperature Hot Press
Impossibile caricare la disponibilità di ritiro
|
Brand Model
|
9TU-M040B
|
|

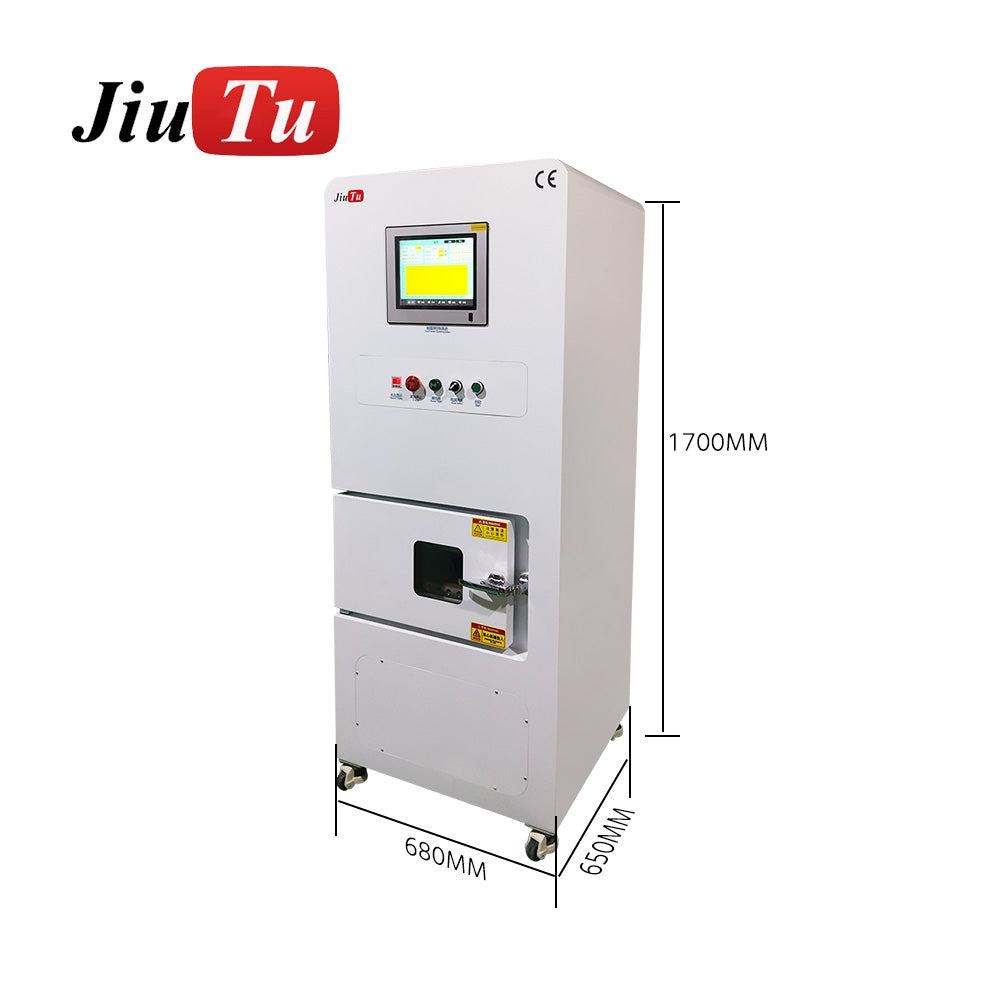

Equipment Size
|
69*69*171cm
|
|
Power supply specification
|
AC220V 50HZ
|
|
Heating method
|
Upper and lower constant temperature heating
|
|

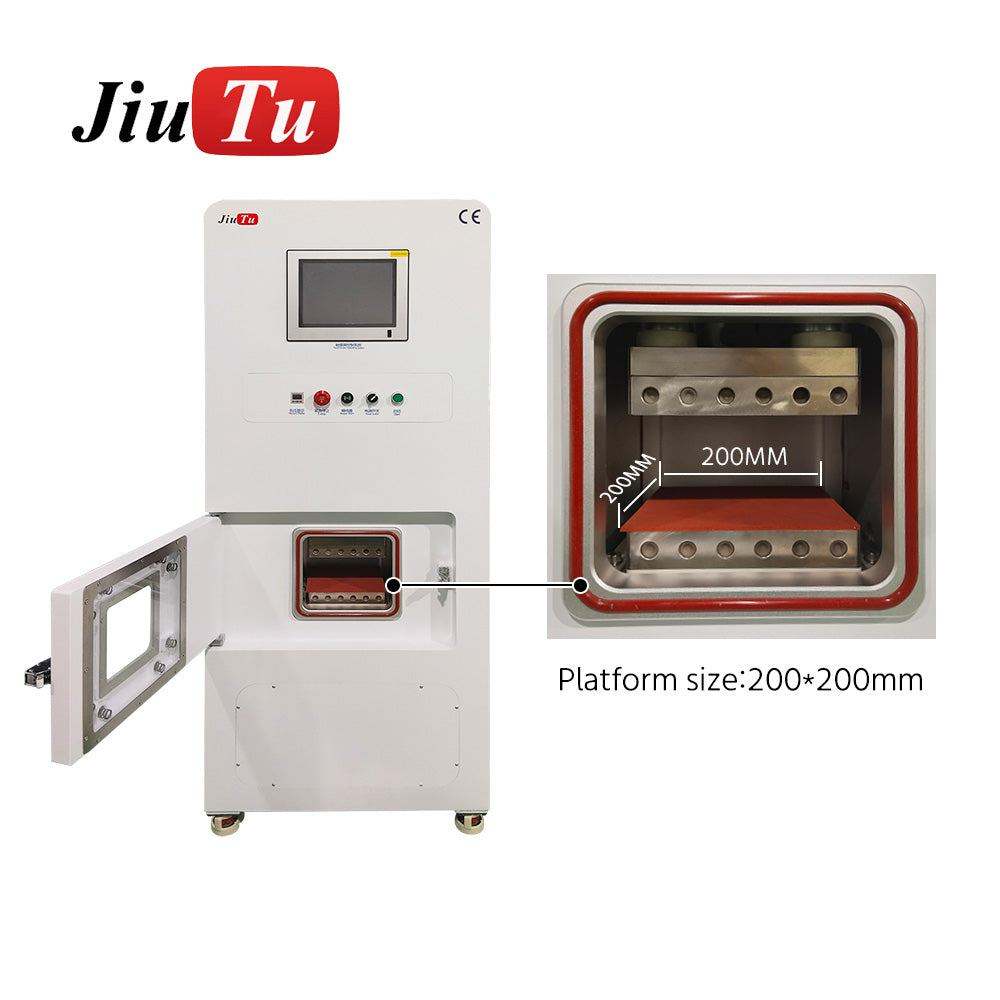

Platform size
|
200MM*200MM(can be customized)
|
|
Lamination height
|
(Stroke height) 100 mm(customizable)
|
|
Repeatability
|
0.02 mm
|
|
Laminating speed
|
0.1 -20(mm/sec can be set)
|
|
Buffer speed
|
0.1 -20 (m/s settable)
|
|
Vacuum mode
|
Vacuum mode /no vacuum mode
|
|
Hot pressing process
|
Multi-level control oftemperature/pressure/position
|
Servo high temperature vacuum hot press: It is a press machine that uses a servo electric cylinder as a driving force source and transmits temperature through electrical heat conduction. Its working principle is to use the best advantages of the servo motor to change from precise torque control to precise speed control-precise position control-precise thrust control, plus the careful logical control of PLC and touch screen, and finally the roller screw is used as the execution carrier to apply pressure to the work object, so as to achieve the purpose of precision, sensitivity, intelligence and flexibility in production. Product use (for products that require high temperature, high pressure and high precision pressing, suitable for equipment needs such as university research institutes, laboratory research and development, and large-scale factory batch production)

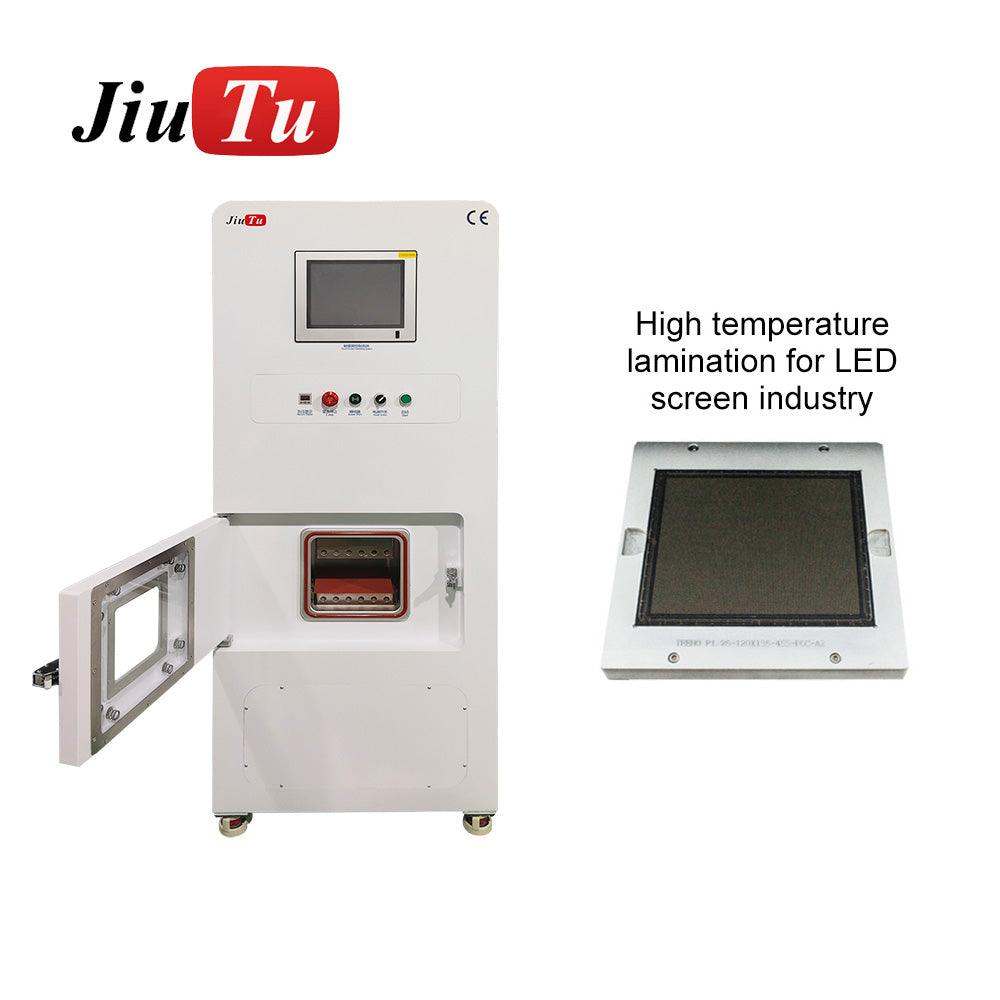

(1) Suitable for high temperature hot pressing of related products in the new material industry, and for SCA/0CA glue process product bonding. It is suitable for hot pressing and bonding of liquid crystal, TP/LCM and polymer materials COP, COC, PMMA, PC, etc.;

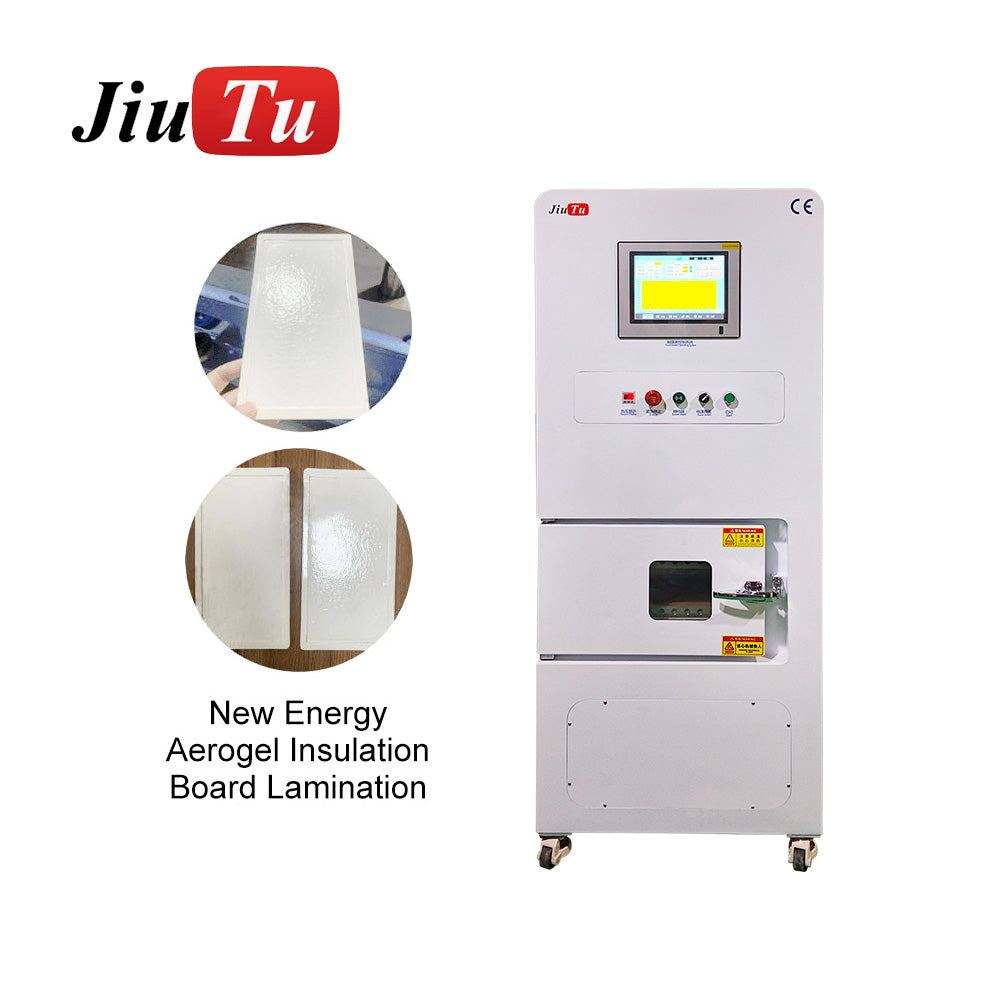

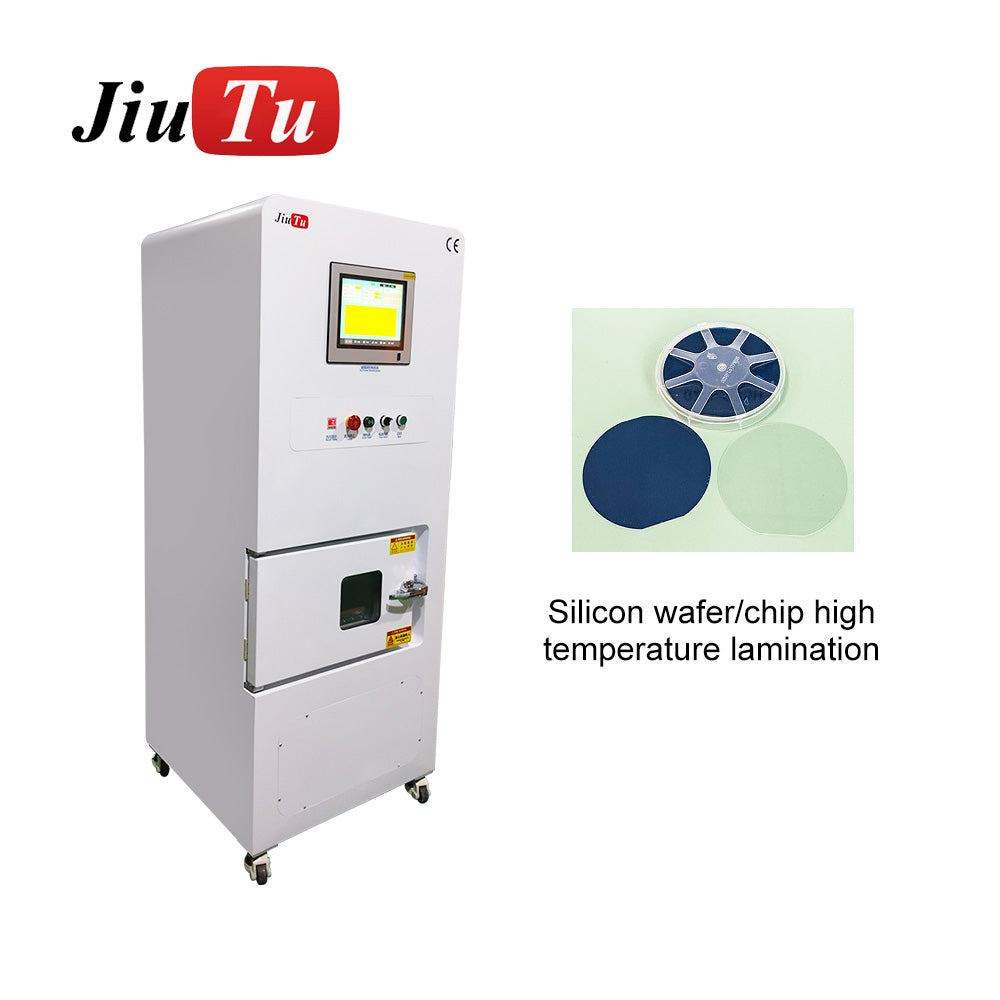

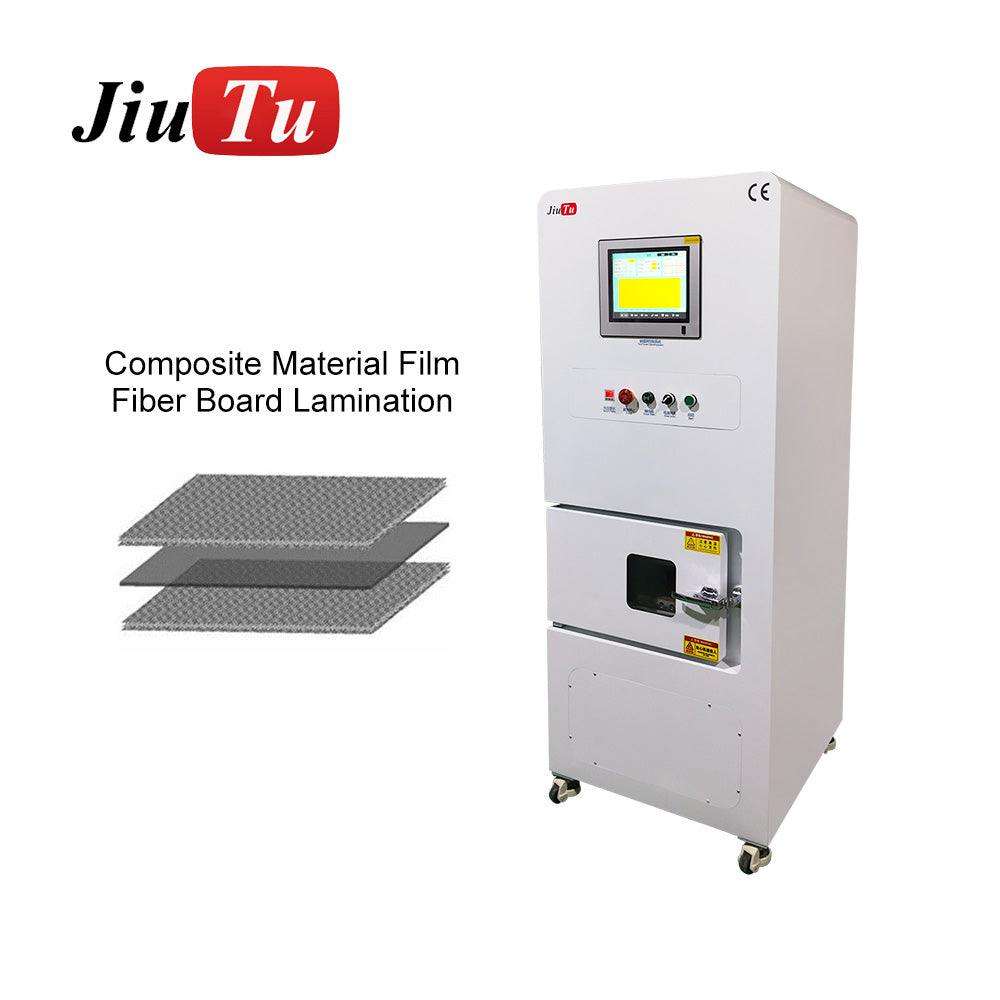

(2) Suitable for precision pressing of plastic/glass/metal parts and special materials, new energy industry parts, aviation parts, chips/circuit boards, electronic plug-in parts, etc.; high temperature hot pressing of aerogel PET materials, high temperature hot pressing of composite film fiberboard;
