Auto Focus Digital Microscope

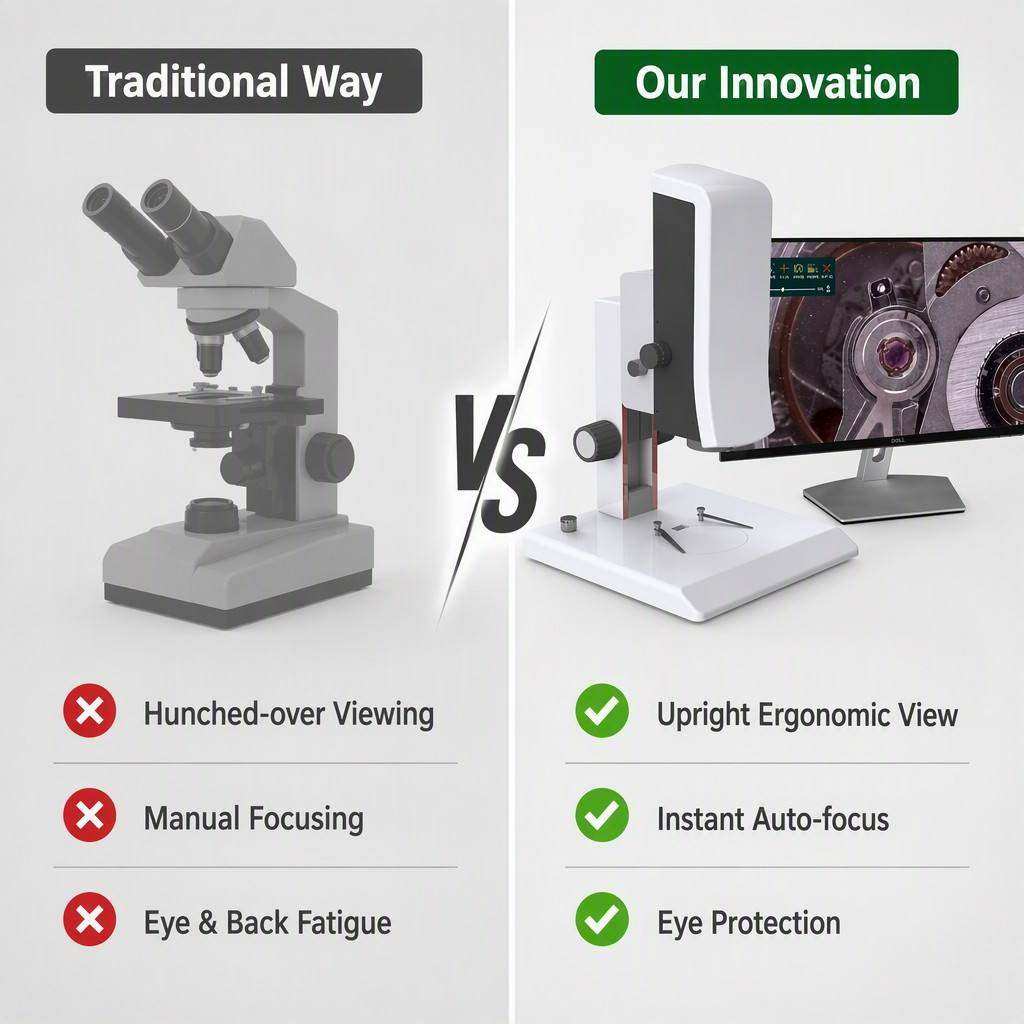

1. Eyepiece Free Real Time Auto Focus Design

Our independently developed automatic focusing technology keeps every observed area sharp without any manual adjustment which removes the eye strain caused by traditional eyepiece microscopes. Operators simply move the sample into the focusing frame and the clear image appears instantly on the connected monitor.

2. Faster Inspection Throughput With HDR Image Enhancement

The unique HDR mode with edge enhancement reveals solder joint cracks component markings and surface defects that ordinary imaging often misses. Combined with a 2 megapixel sensor capturing 60 frames per second this video microscope keeps moving samples smooth and blur free during continuous quality control work.

3. Precise Optical And Camera Specifications

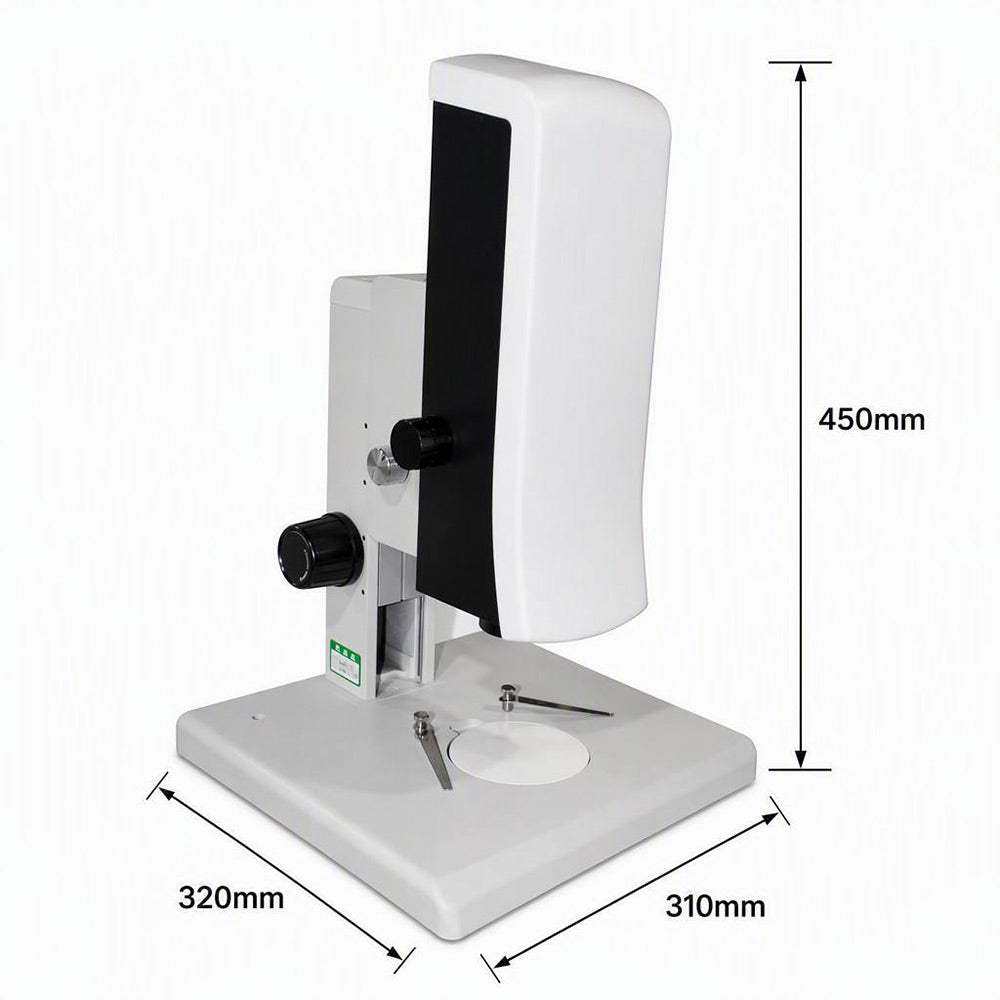

The system delivers 32.9X to 211.6X magnification through a 0.7X to 4.5X continuous zoom lens with resolution down to 3 micrometers and a generous 95mm working distance. A 1/2.8 inch CMOS sensor supports both automatic and manual exposure while the compact 320 by 308.5 by 417.5mm body fits any inspection workstation.

4. Built For Electronics Watchmaking And Precision Manufacturing

Engineers use this industrial microscope for PCB inspection SMD soldering chip level mobile phone repair watch assembly jewelry examination and incoming material verification. The generous working distance leaves ample room for tweezers soldering irons and rework tools during hands on operation.

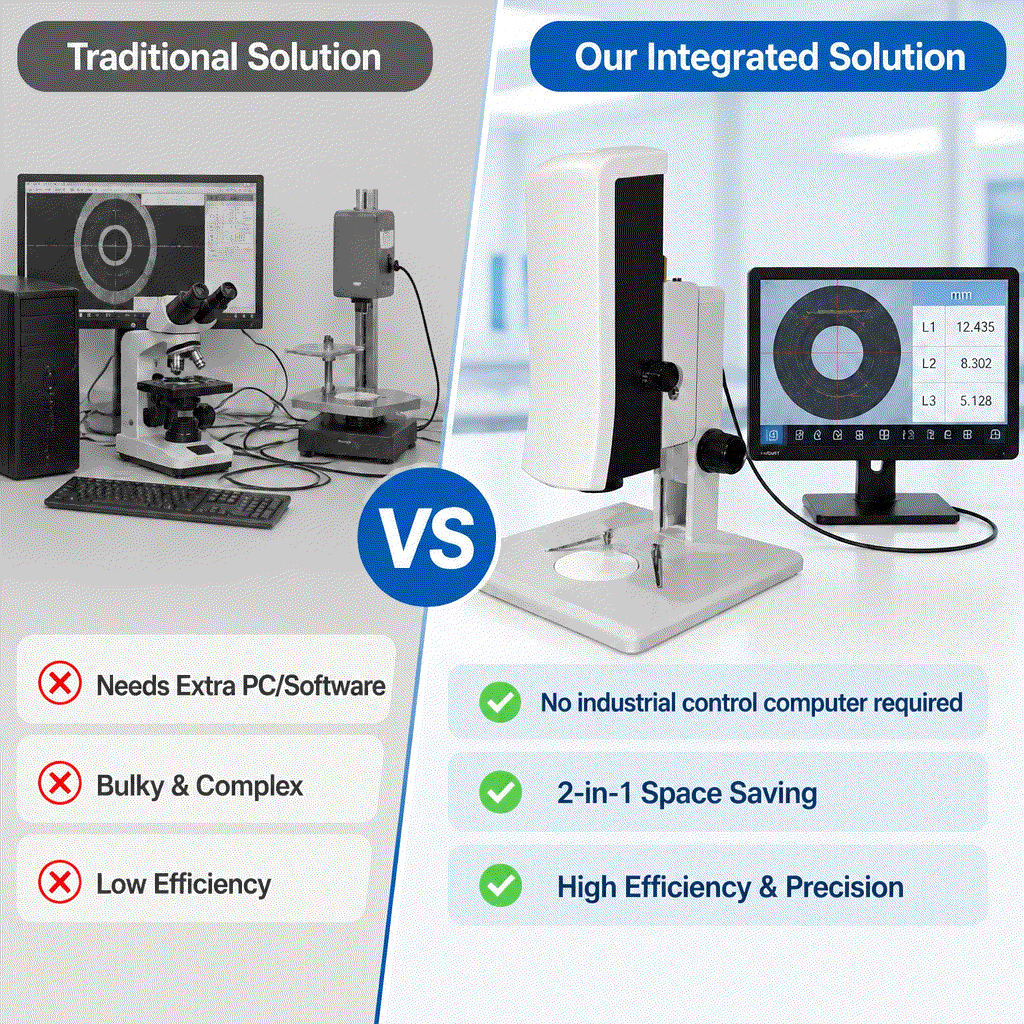

5. Plug And Play Operation With Flexible Storage Options

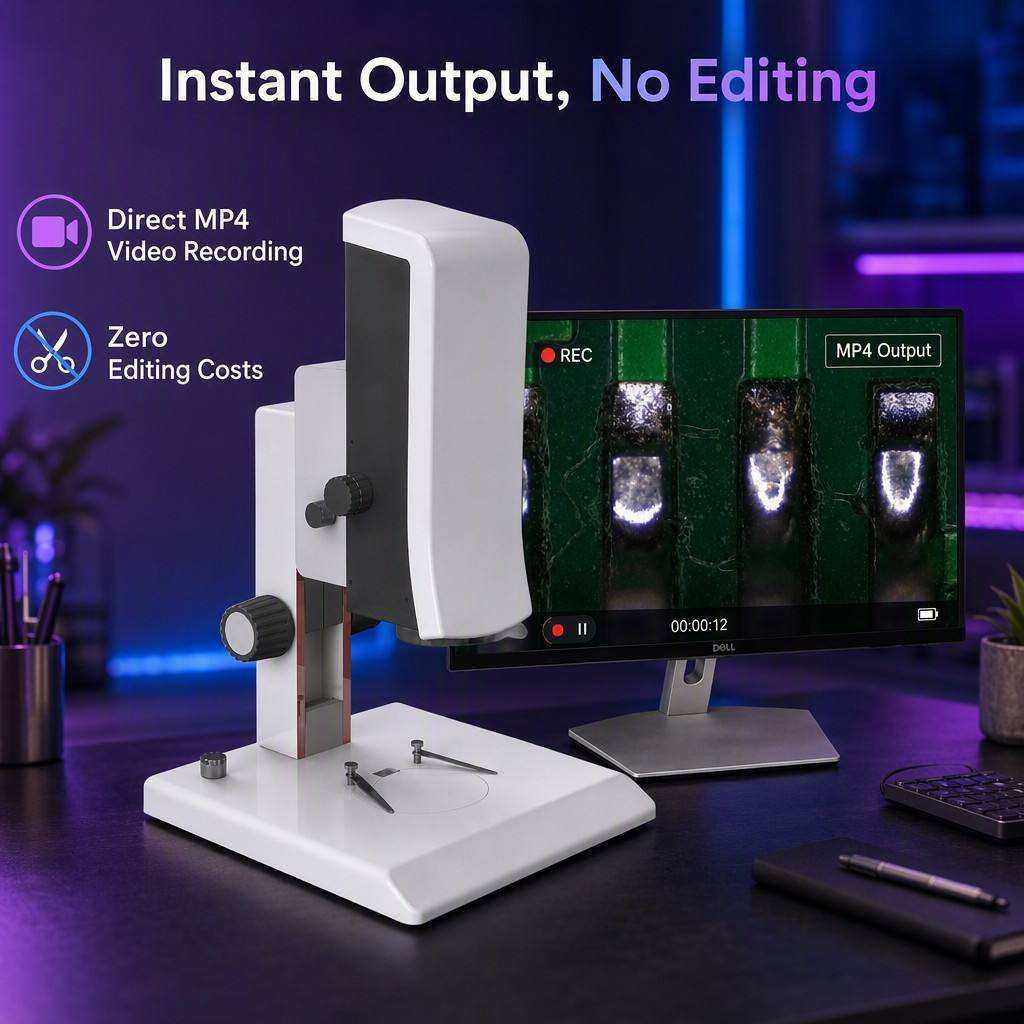

No software installation or computer connection is required because the HDMI output drives any standard monitor directly. Insert a USB flash drive to save still images and video clips for inspection records and traceability while the ring surface light offers multiple illumination modes matched to different sample characteristics.
