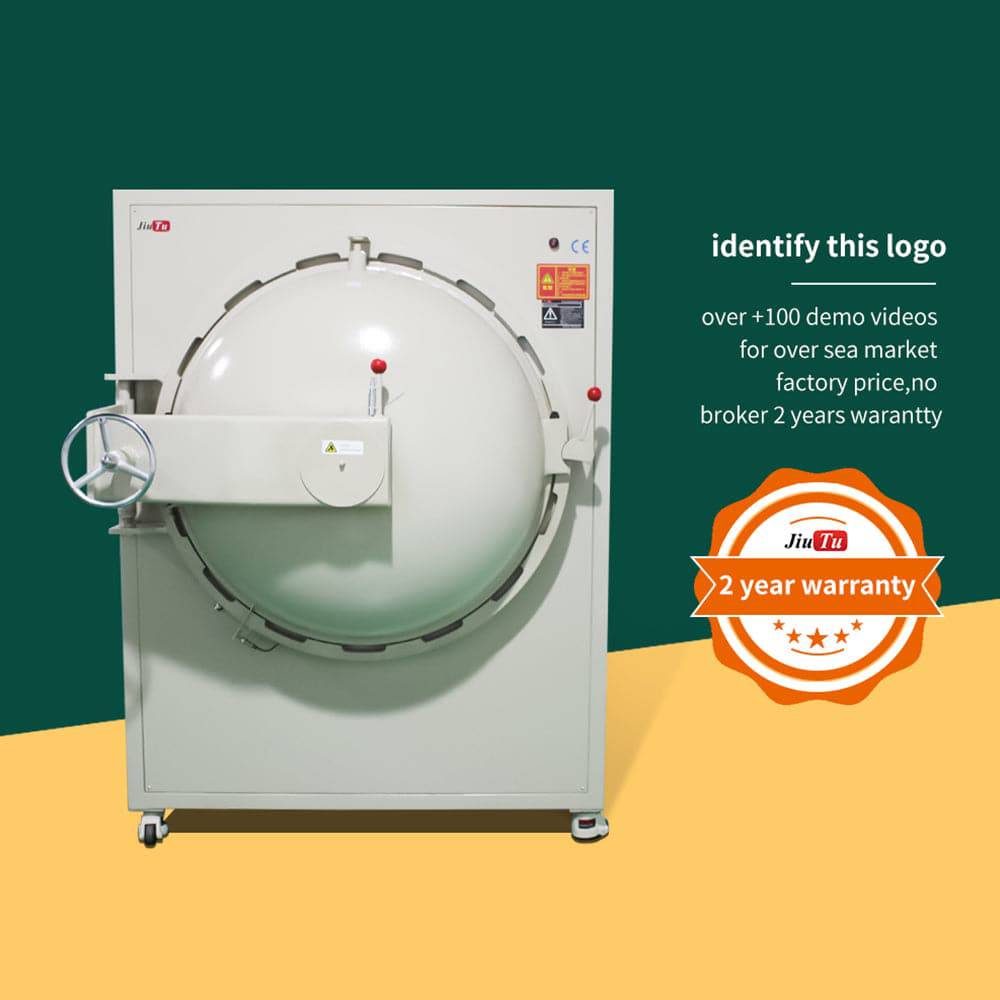

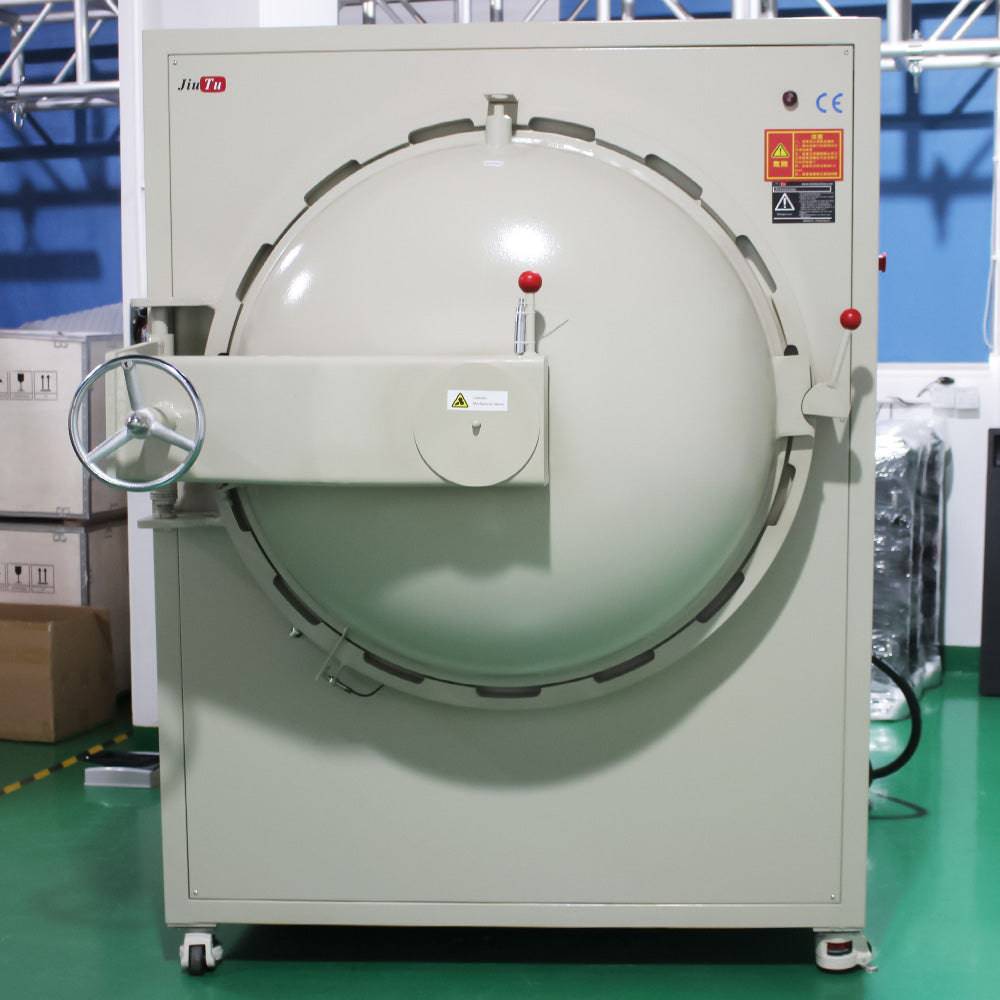

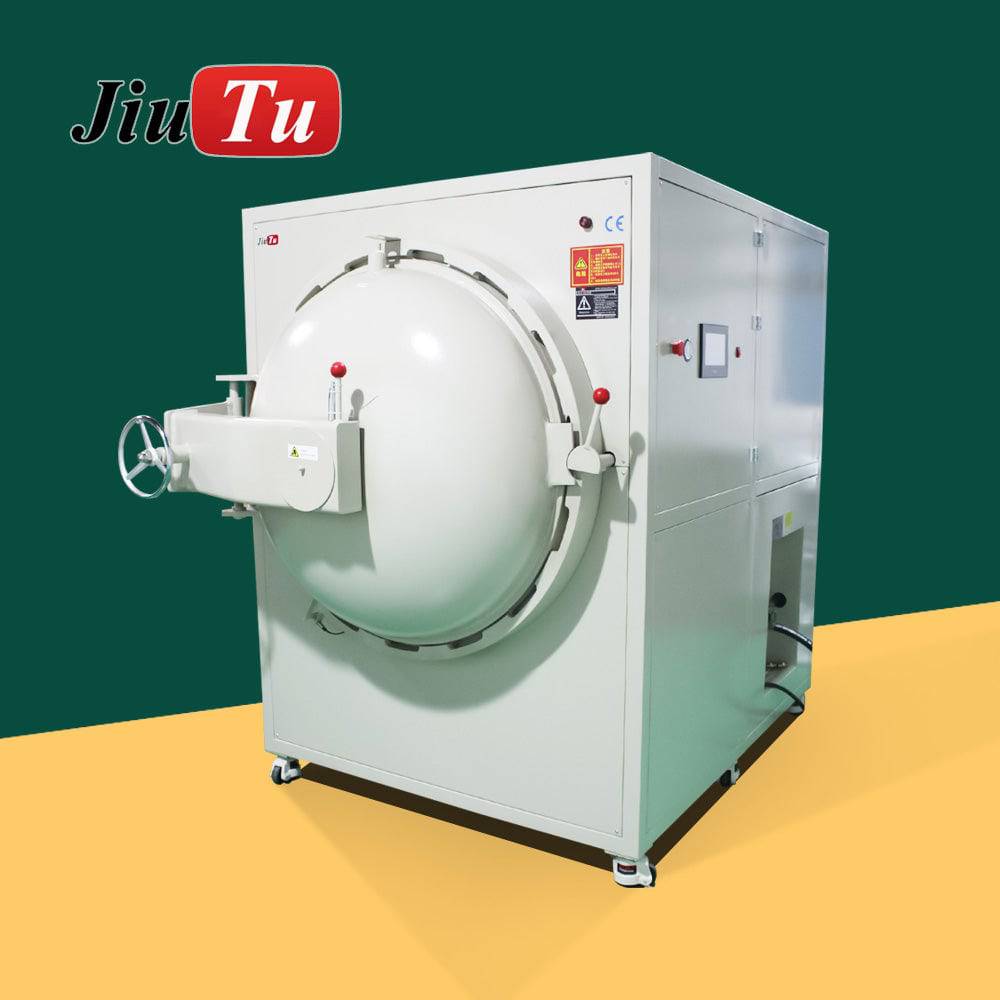

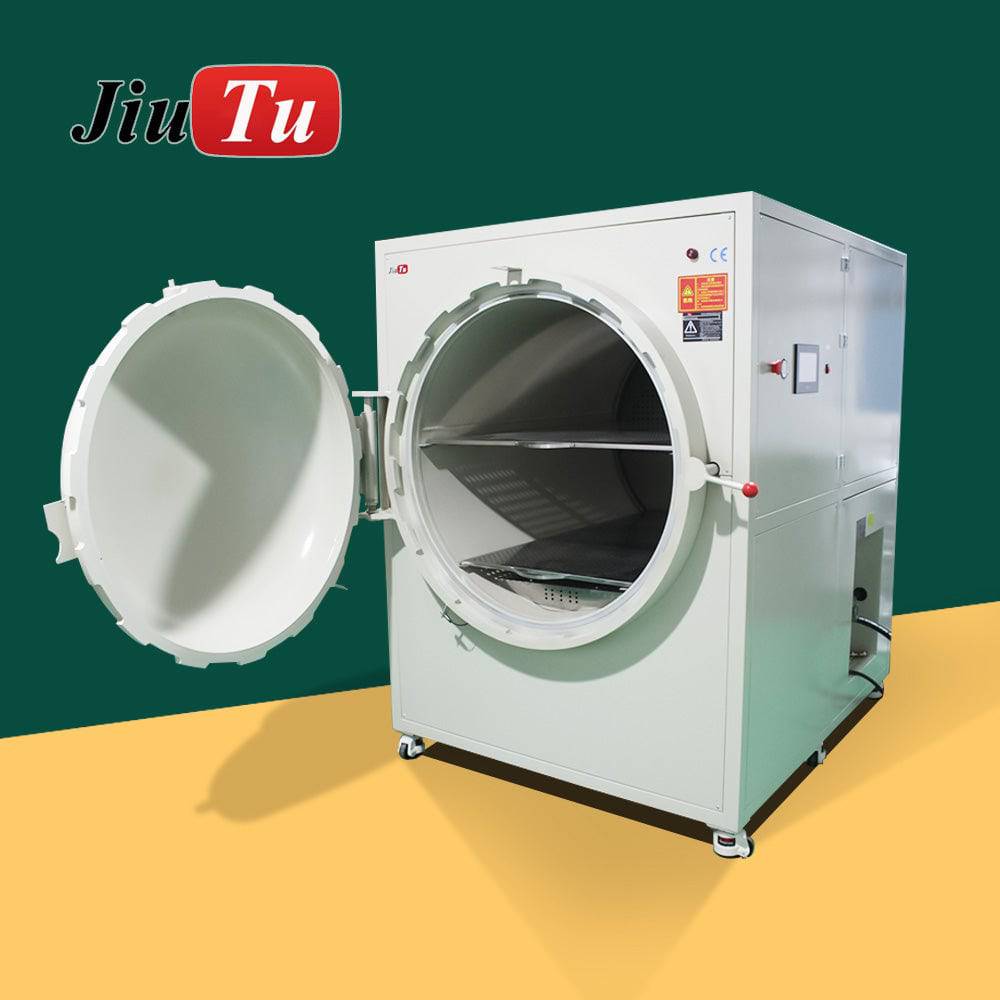

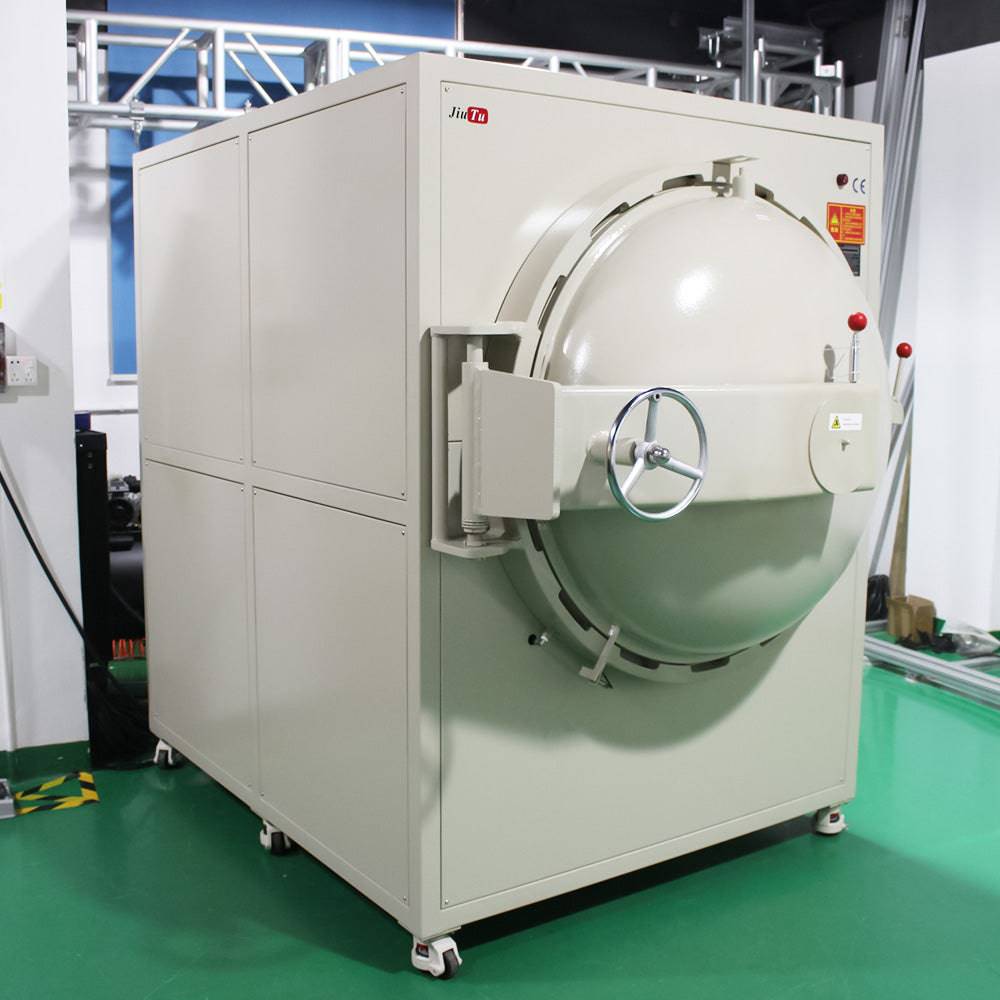

Bubble Remover Machine OCA — Large Screen Autoclave (1000×1300mm)
Jiutu OCA bubble remover machine removes air bubbles from OCA/SCA-laminated screens using segmented high-pressure autoclave technology. Inner chamber: 1000mm diameter × 1300mm depth. Max temperature 80°C, max pressure 0.8 MPa. AC 380V / 9000W. Suitable for mobile phones, big TV screens, and edge LCD screens.
| Machine Size | 1650×1410×1910 mm |

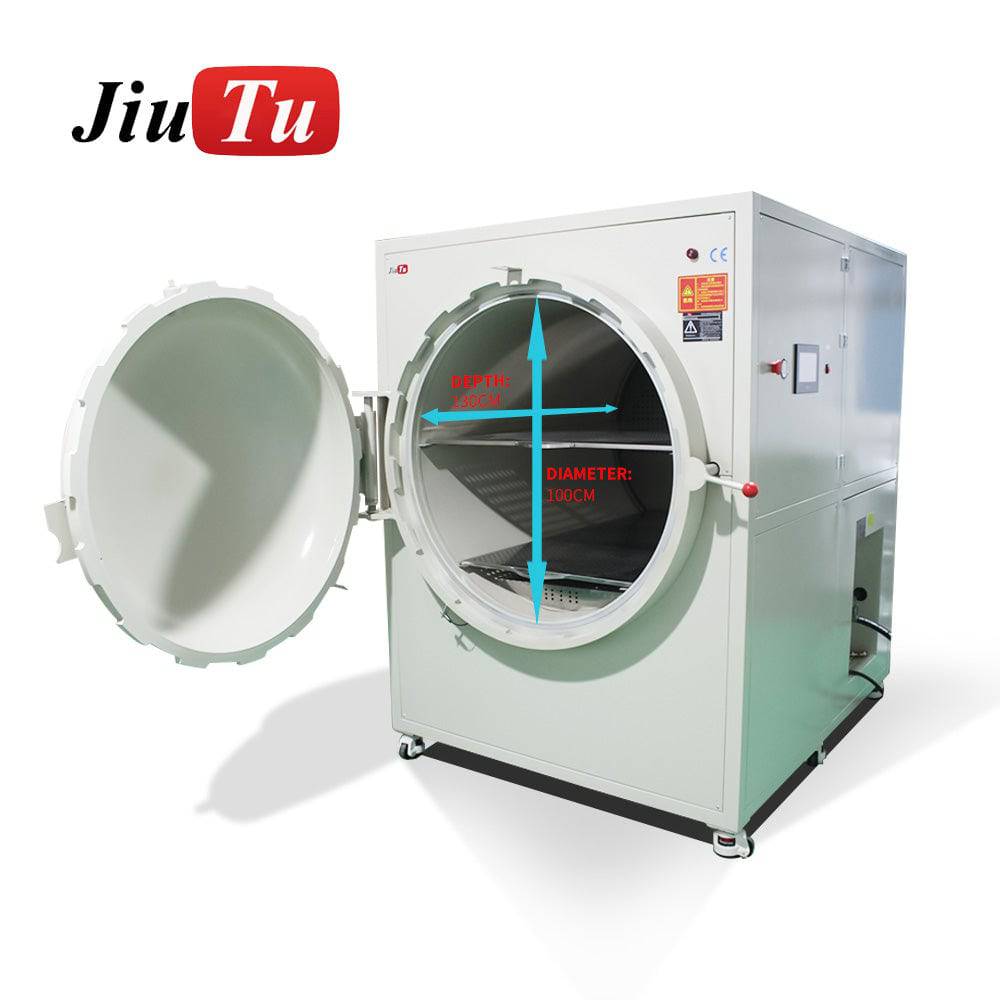

| Inner Chamber | Diameter 1000mm × Depth 1300mm |
| Gross Weight | ~1000 kg |
| Safety Pressure | 0.9 MPa |
| Voltage | AC 380V |
| Power | 9000W |
Frequently Asked Questions
Q1: What types of optical adhesive does this OCA bubble remover machine support?
A: The Jiutu OCA bubble remover machine supports defoaming for OCA (Optically Clear Adhesive), SCA (Super Clear Adhesive), OCF (Optically Clear Film), and COF (Chip on Film) lamination processes. It is widely used in the electronics and optoelectronics industry to remove air bubbles and vacuum bubbles after vacuum lamination, effectively improving product yield for both mobile phone screens and large display panels.
Q2: How does the segmented high-pressure feature improve bubble removal results?
A: The segmented high-pressure feature allows operators to program different pressure and temperature values for different stages of the autoclave cycle. For example, a lower pressure ramp-up phase prevents sudden pressure shock to the laminated screen, followed by a high-pressure hold phase to dissolve the bubbles, and then a controlled pressure release phase. This segmented approach optimizes bubble removal for different adhesive types and screen sizes while minimizing the risk of delamination.
