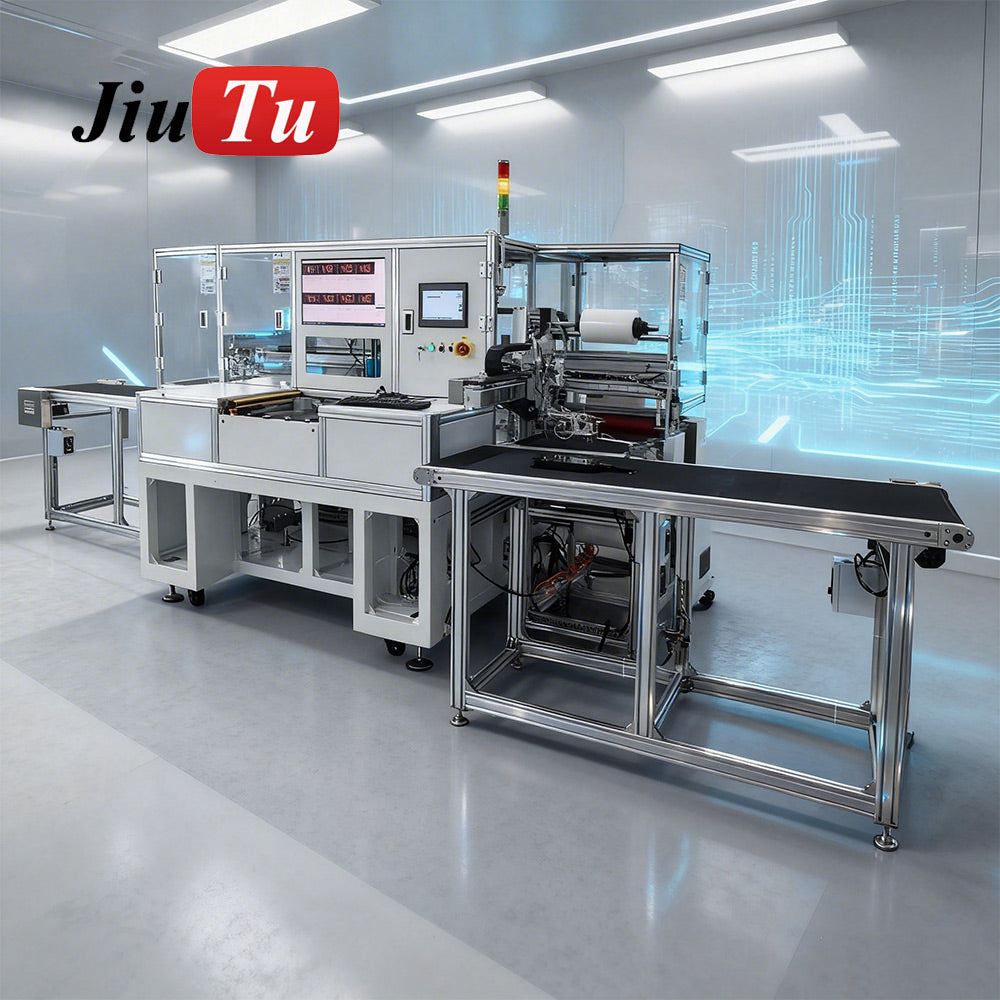

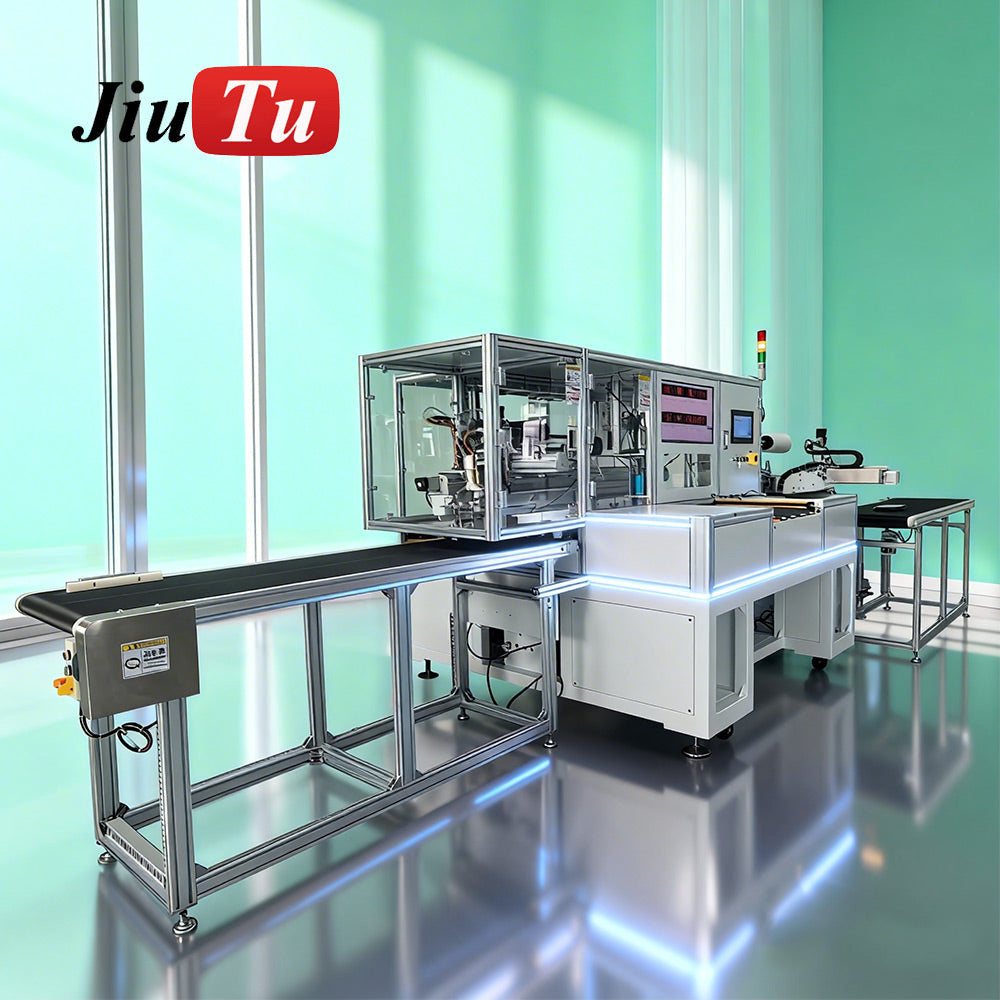

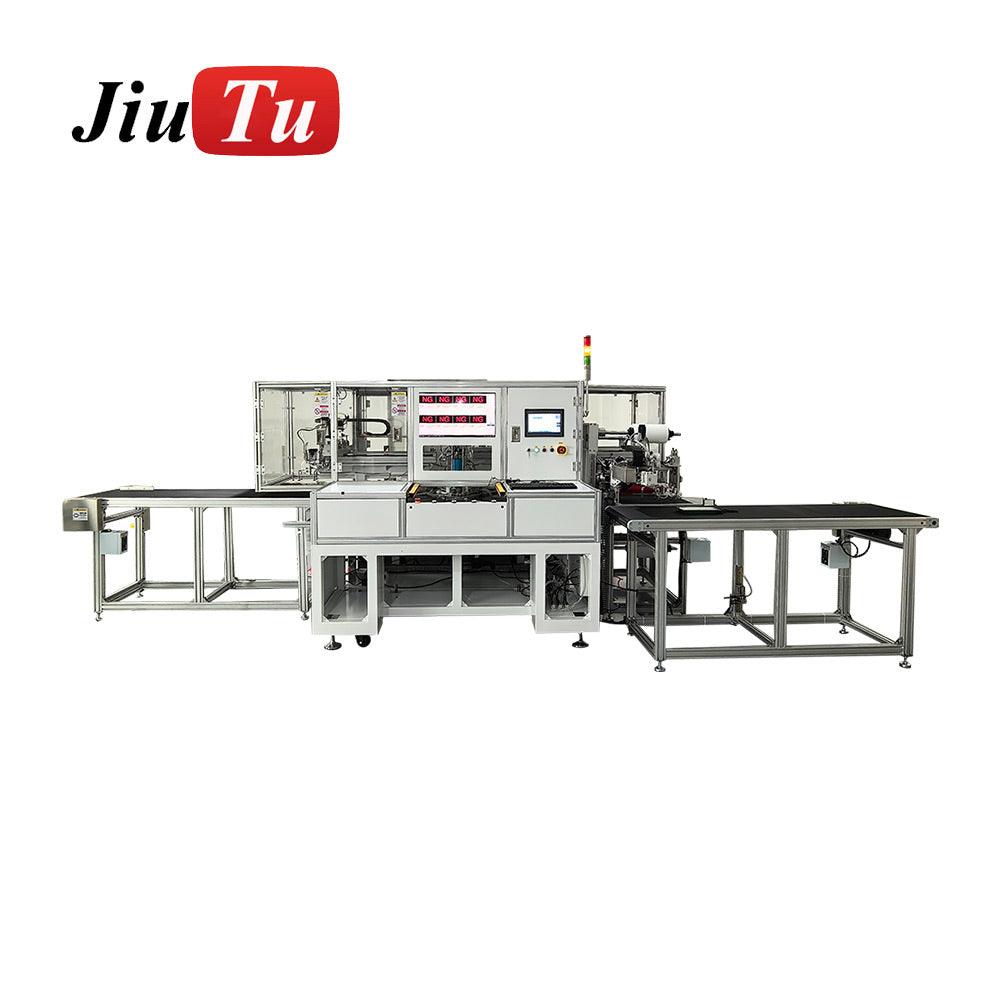

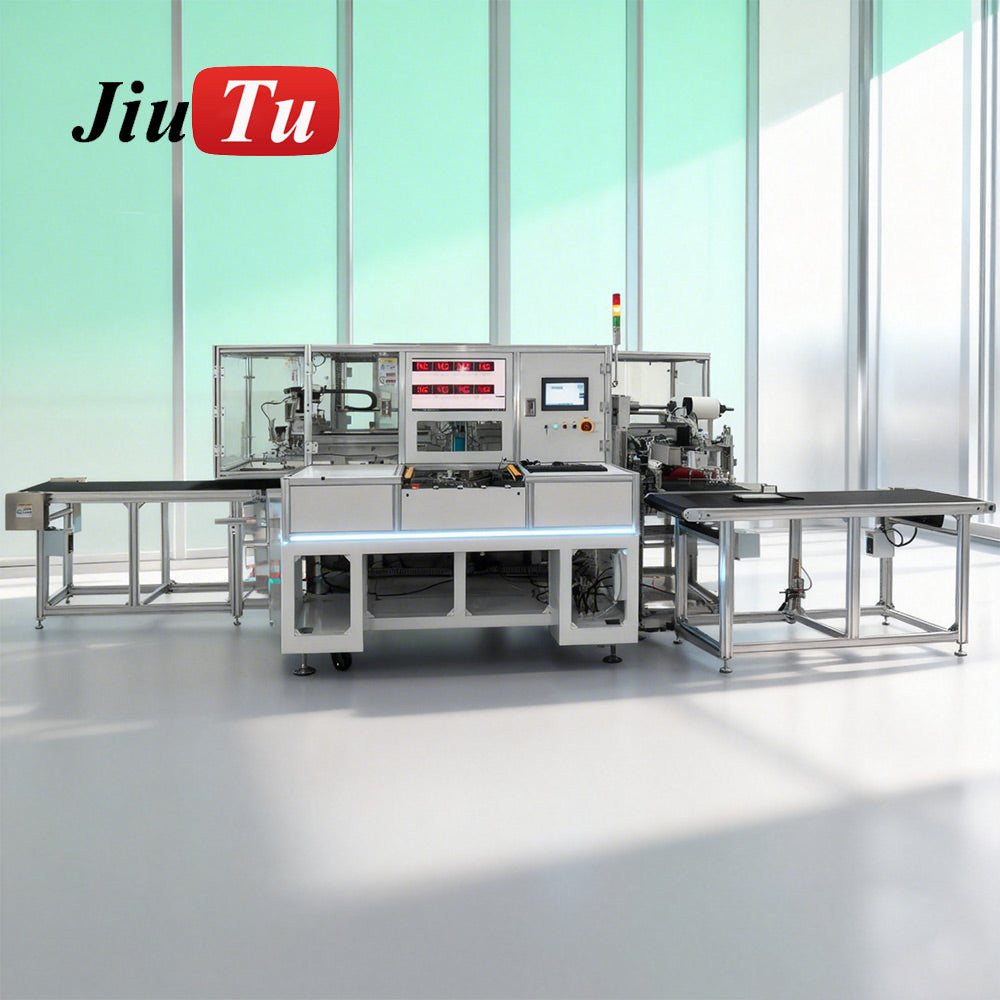

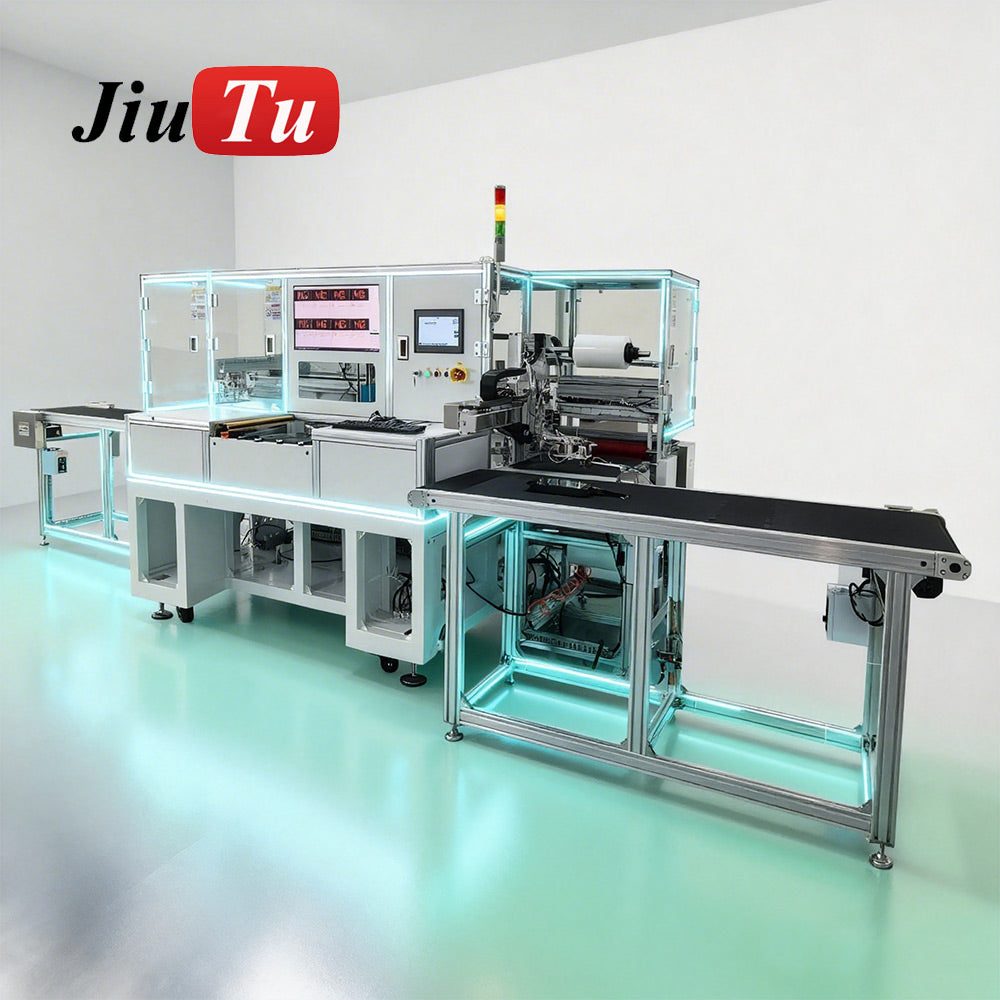

Product Overview: The HSE-TPFM-A001 TP Testing + Lamination Machine
The HSE-TPFM-A001 is an industrial-grade automated screen lamination line that specializes in the bonding of OCA and SCA adhesives onto various substrate types. Whether you are working with LCDs or the latest OLED panels, this machine provides the versatility needed for a diverse product mix.
Key Capabilities:
Dual-Purpose Design:Integrates comprehensive electrical testing with precision film lamination.
Material Versatility:Optimized for both OCA and SCA adhesive types, including specialized automotive-grade films.
Multi-Screen Support:Compatible with LCD lamination machine requirements as well as OLED screen lamination workflows for high-end mobile devices and tablets.
Automation Level:Fully PLC-controlled with options for semi-automatic and manual operation modes to suit different production scales and R&D requirements.
With a footprint designed for modern cleanrooms (4000mm x 2300mm x 2500mm), the HSE-TPFM-A001 fits seamlessly into existing production environments while providing a massive boost in throughput.
What are the main advantages of OCA over LOCA (Liquid Optically Clear Adhesive)?
OCA is a dry film, which makes it much easier to control in terms of thickness and distribution compared to liquid LOCA. It eliminates the risk of liquid leakage into the backlight or other sensitive components, which is a common failure point in LOCA processes. Automated machines like the HSE-TPFM-A001 leverage OCA films to achieve high precision and cleanroom compatibility without the mess of liquid resins.
Why is lamination critical for display quality?
Lamination removes the air gap between the touch panel and the display, which significantly reduces internal light reflection. This results in higher brightness, better color saturation, and improved sunlight readability. By using a high-precision system like the HSE-TPFM-A001, which maintains a ±100μm accuracy, manufacturers can ensure the visual integrity of the screen is preserved during the bonding process.
How can air bubbles be prevented during the OCA lamination process?
Air bubbles are typically prevented by performing the lamination in a vacuum environment or using precise pressure rollers to squeeze out air. The HSE-TPFM-A001 utilizes a PLC-controlled automated line that manages the pressure and speed of lamination to minimize initial bubble formation. For any residual micro-bubbles, a secondary autoclave process is often used after the machine completes its cycle.
What is the role of the release film in OCA lamination?
The release film protects the OCA layer from dust and contamination before it is applied to the substrate. During the lamination process, the film is peeled away, often automatically. The HSE-TPFM-A001 features an integrated auto-cutting and peeling system that manages these films efficiently, ensuring only the clean adhesive is bonded to the screen.
