Glue Laminating Machine

  Glue Laminating Machine Machine introduction : This Big vacuum laminator machine 9TU-M063 which works for all lcd screen under 35 inches .It doing vacuum lamination for front glass with lcd... Read more

Out of stock

paypalvisamasteramazon paymentsamerican expressapple paybitcoindankort



Glue Laminating Machine
Machine introduction :

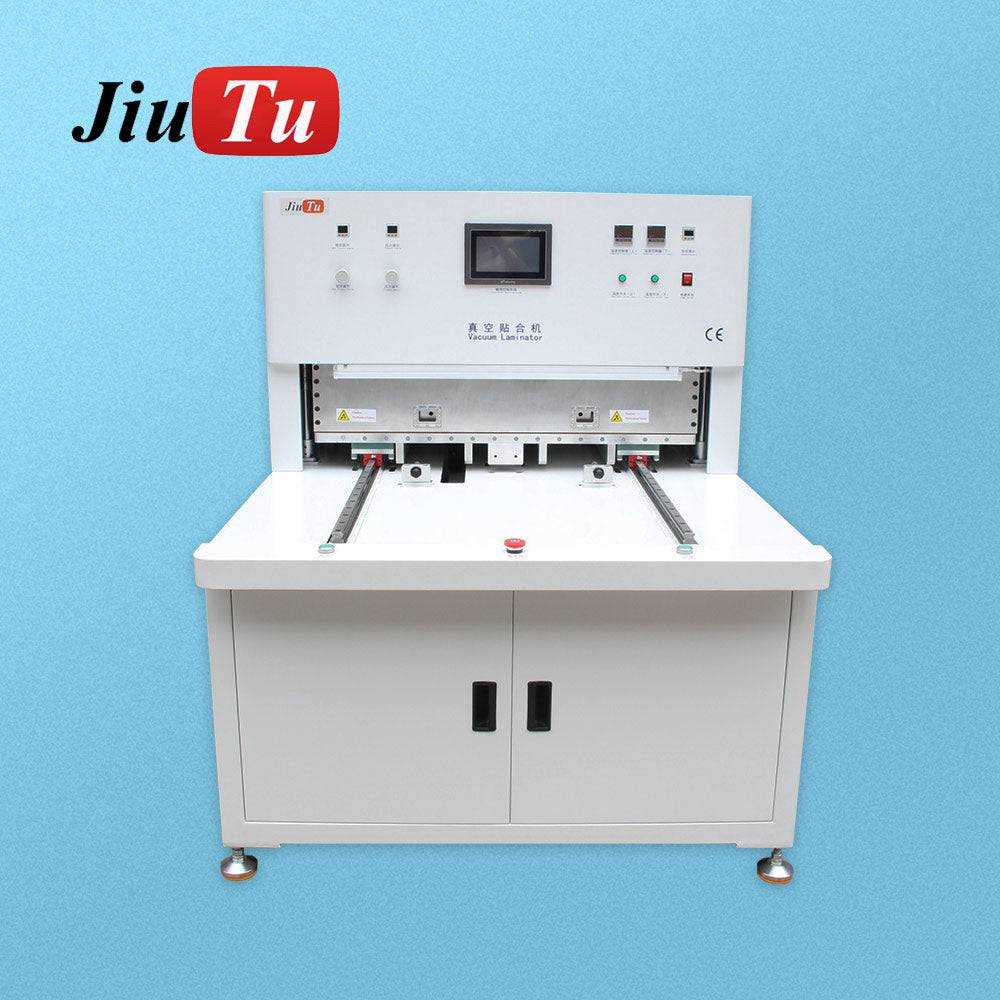

This Big vacuum laminator machine 9TU-M063 which works for all lcd screen under 35 inches .It doing vacuum lamination for front glass with lcd screen as well as touch digitizer with lcd display .--Glue Laminating Machine

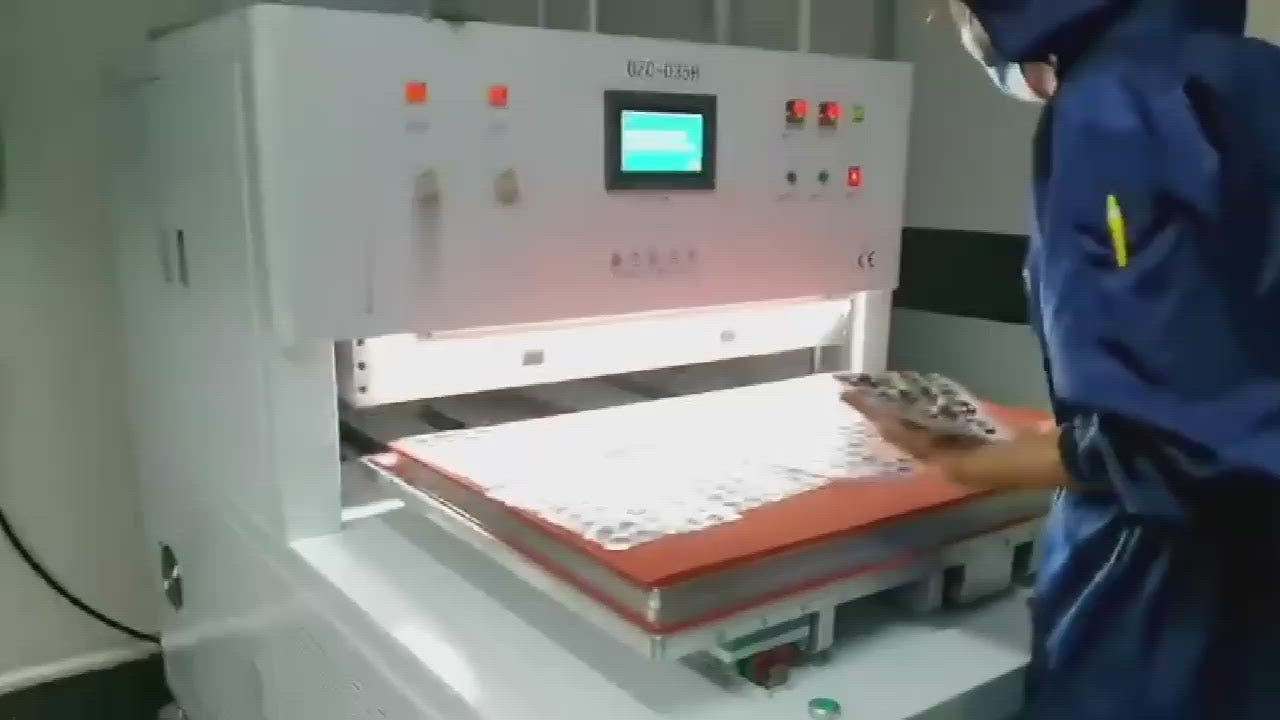

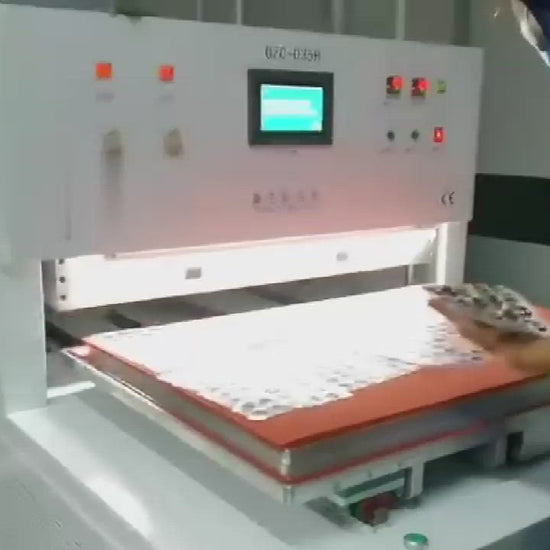

The working theory is , putting lcd screen and front panel glass into the vacuum sealed area , then using the pressure from Cylinder to press the top vacuum plate down on both glass and lcd screen. Thus it will be laminated completely . This device using PLC control system , the settings can be adjusted by the touch screen , which makes all settings more easier to understand .Once you set the settings , you can default it to auto run . Convenient operation ,stable working--Glue Laminating Machine

Main Features :

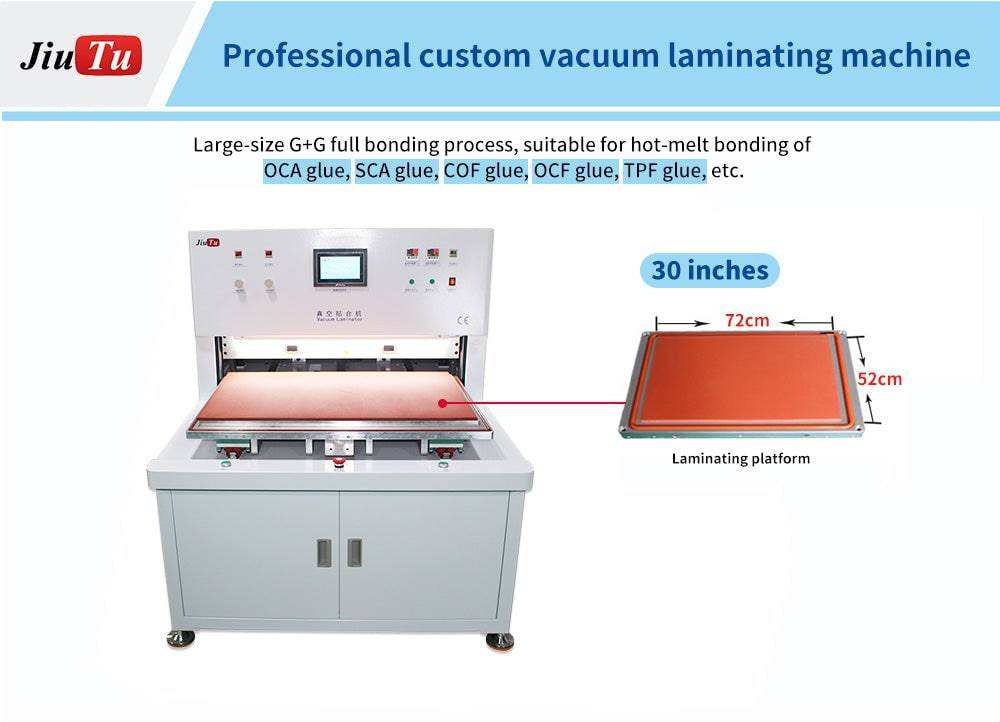

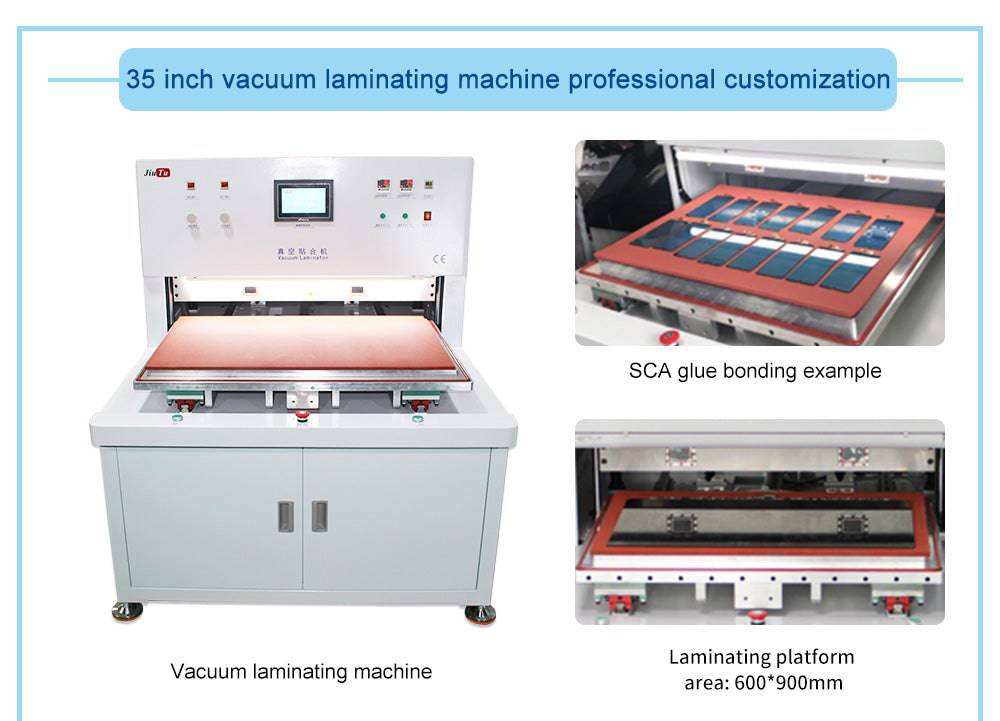

1. OCA vacuum laminator fit for LCD Screen up to 35 inches , lamination area size 600*900mm--Glue Laminating Machine
2. Customized mold will be necessary based on the actual product
3. Work fast needs 25-40 seconds for each time.--Glue Laminating Machine
4. Fully automatic , easy operation--Glue Laminating Machine
5. Work for LCD Screen Lamination for iMac TV Screen , computer screen , Car DVD Screen , Aircraft screen lamination customized ,ok with edge models too. Every time you can put more lcd screens on the plate--Glue Laminating Machine

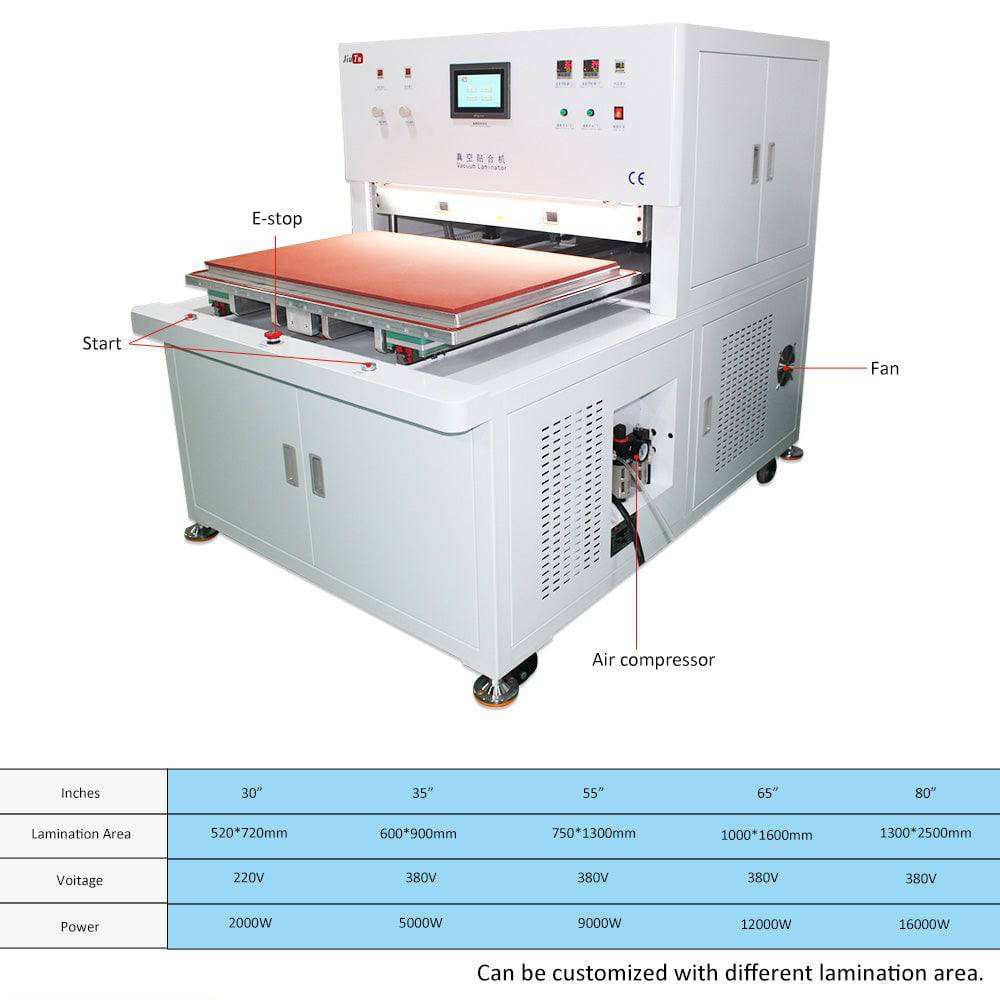

Specification :
1. Using up and down heating, the temperature can be set up to 100 degrees.--Glue Laminating Machine
2. The working platform can adjust the balance function.
3. The maximum pressure can reach 1.2 tons.
4. The action of the equipment is driven by a cylinder

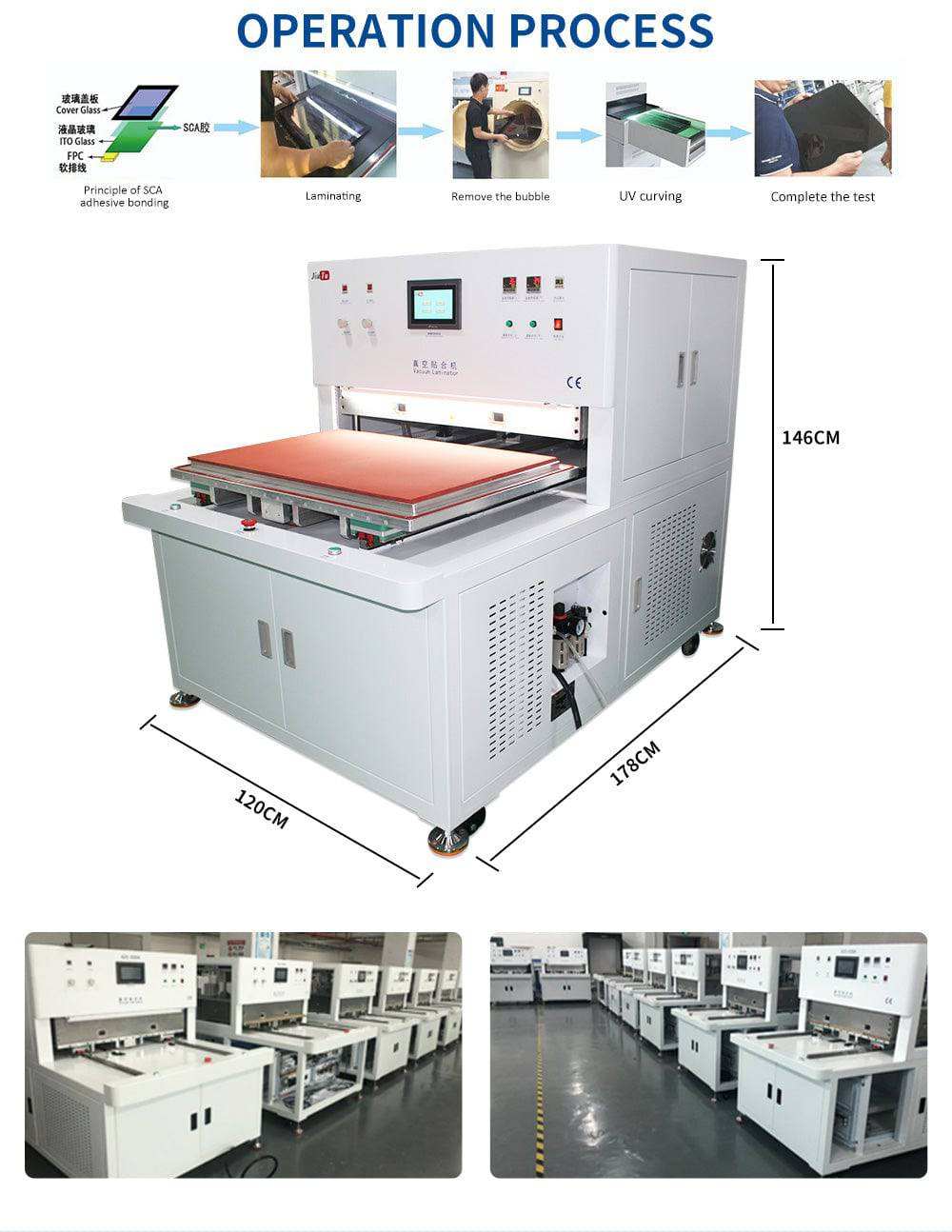

Working principle :According to the product feature , you can do vacuum extraction first then start vacuum lamination , or if temperature is needed , you can wait both the top and bottom plate to heat up and reach the set temperature ,later you do vacuum extraction and vacuum lamination--Glue Laminating Machine

Working area :
1, Mobile phone laminating
2, SCA glue hot pressing lamination,
3, Car navigation lamination
4, Laboratory research and development equipment--Glue Laminating Machine

Glue Laminating Machine
P/N
9TU-M037
Model
25 inch Automatic OCA Vacuum Laminator
Function
Laminate New Glass With LCD Screen by Vacuum
Application
Fit for All LCD Screen Under 25 inches , ok for TV Screen ,Computer, Car DVD Screen , Aircraft Screen Etc
Air Compressor
Needed ( External Air Compressor Needed )
Vacuum Pump
Built-in
Voltage
220V /2500W
Feature 1
Easy setup ,Fully Automatic , works great all big lcd screen lamination
Feature 2
Vacuum Lamination which protect LCD Screen well , no damage , pressure can be adjusted based on your screen thickness
Time
Very fast ,Only need 25--40 seconds each time
Warranty
2years
Packing
Customized Box for Shipping
After-service
Professional technical support will be provided until you can do with perfect results
Delivery
Customized , delivery time depends on production , can negotiate before you place order
Machine Size
L78cm*W112cm*H137cm
Vacuum Plate Size
55*38cm ,ok for 25 inches
Net Weight
256Kg
