OCA Optical Bonding Machine
Industrial Digital Screen Repair Machine 65 inches SCA OCF TPF Vacuum OCA LCD Laminating Machine
Automatic OCA SCA Vacuum Lamination Machine
35/55/65/85 inch LCD/SCA/OCF/COF/OCA Laminating Machine Hot Melt Adhesive Glue Lamination Machine . Can Customized based on customer’s requirements
Machine introduction :

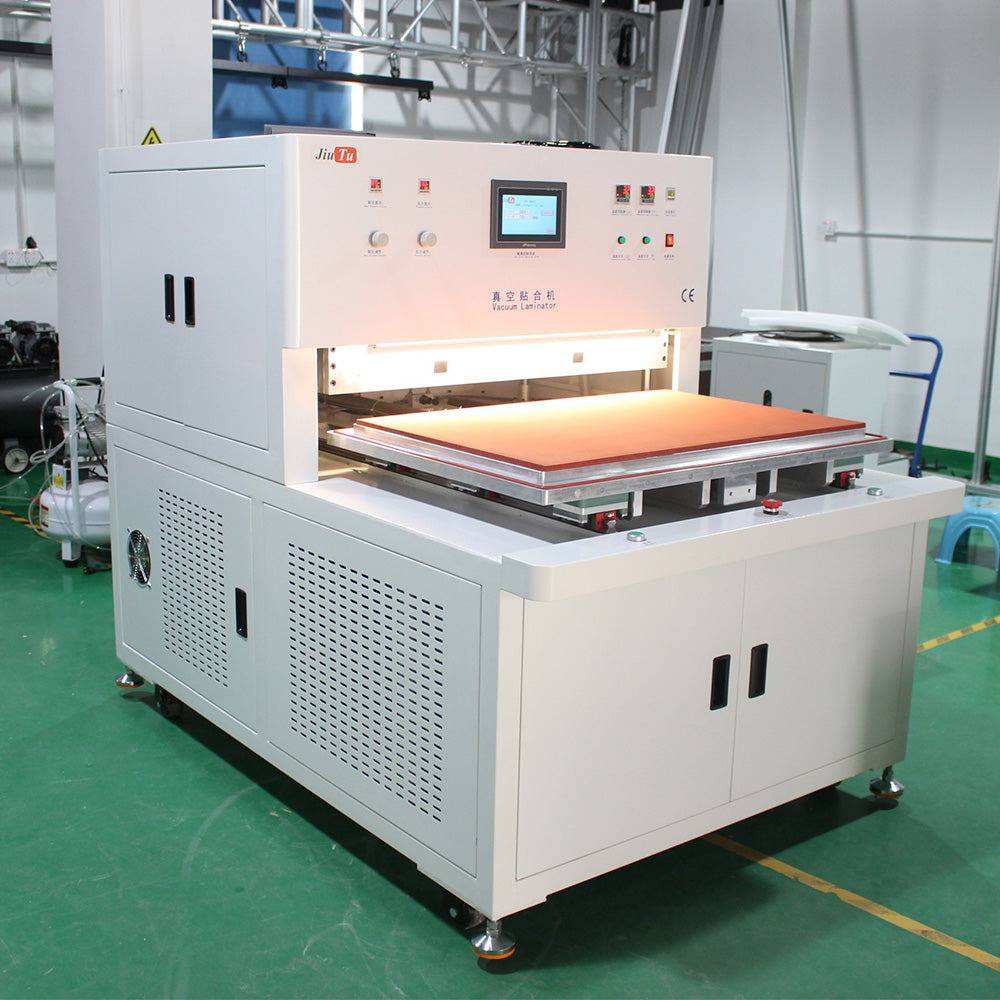

This Big vacuum laminator machine 9TU-M063 which works for all lcd screen under 35 inches .It doing vacuum lamination for front glass with lcd screen as well as touch digitizer with lcd display .--Adhesive Laminating Machine

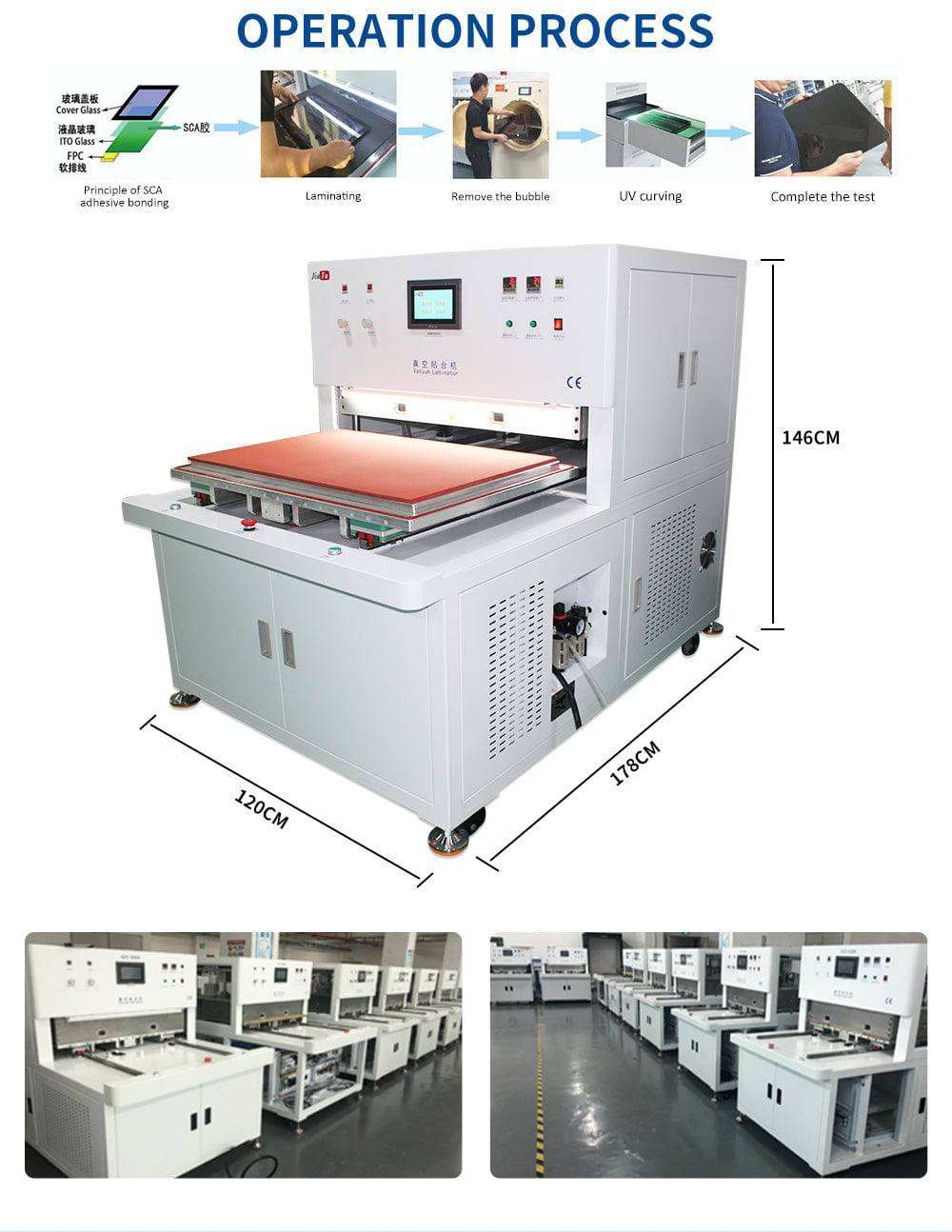

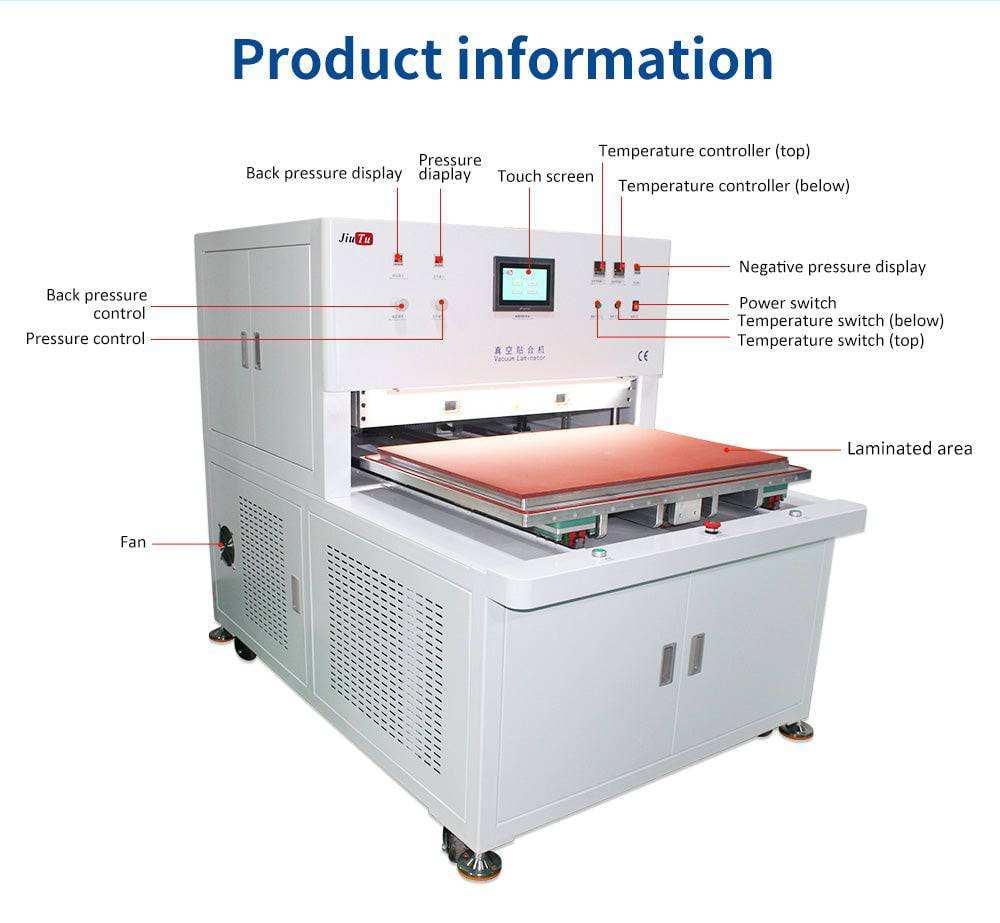

The working theory is , putting lcd screen and front panel glass into the vacuum sealed area , then using the pressure from Cylinder to press the top vacuum plate down on both glass and lcd screen. Thus it will be laminated completely . This device using PLC control system , the settings can be adjusted by the touch screen , which makes all settings more easier to understand .Once you set the settings , you can default it to auto run . Convenient operation ,stable working--Adhesive Laminating Machine
Main Features :

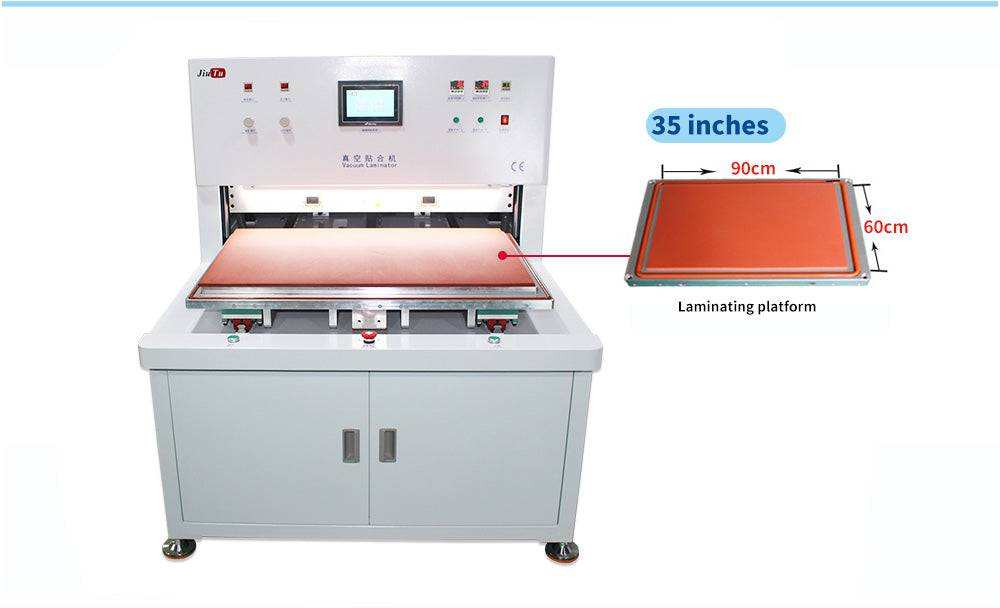

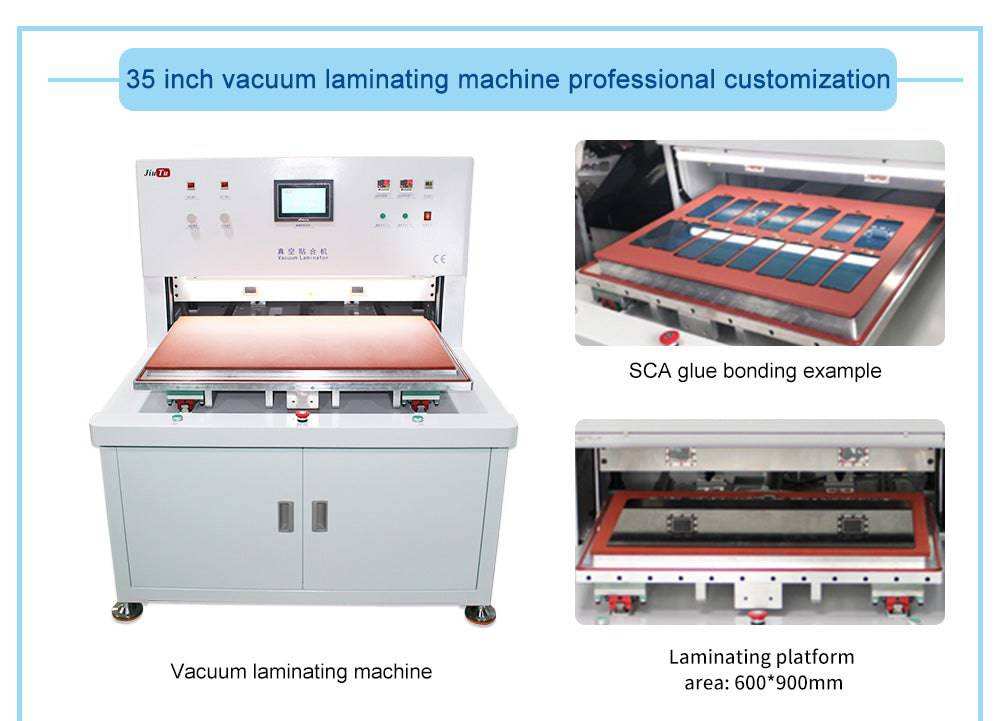

1. OCA vacuum laminator fit for LCD Screen up to 35 inches , lamination area size 600*900mm
2. Customized mold will be necessary based on the actual product--Adhesive Laminating Machine
3. Work fast needs 25-40 seconds for each time.--Adhesive Laminating Machine
4. Fully automatic , easy operation
5. Work for LCD Screen Lamination for iMac TV Screen , computer screen , Car DVD Screen , Aircraft screen lamination customized ,ok with edge models too. Every time you can put more lcd screens on the plate--Adhesive Laminating Machine
2. Customized mold will be necessary based on the actual product--Adhesive Laminating Machine
3. Work fast needs 25-40 seconds for each time.--Adhesive Laminating Machine
4. Fully automatic , easy operation
5. Work for LCD Screen Lamination for iMac TV Screen , computer screen , Car DVD Screen , Aircraft screen lamination customized ,ok with edge models too. Every time you can put more lcd screens on the plate--Adhesive Laminating Machine
Specification :
1. Using up and down heating, the temperature can be set up to 100 degrees.--Adhesive Laminating Machine
2. The working platform can adjust the balance function.--Adhesive Laminating Machine
3. The maximum pressure can reach 1.2 tons.
4. The action of the equipment is driven by a cylinder
2. The working platform can adjust the balance function.--Adhesive Laminating Machine
3. The maximum pressure can reach 1.2 tons.
4. The action of the equipment is driven by a cylinder
Working principle :According to the product feature , you can do vacuum extraction first then start vacuum lamination , or if temperature is needed , you can wait both the top and bottom plate to heat up and reach the set temperature ,later you do vacuum extraction and vacuum lamination
Working area :
1, Mobile phone laminating
2, SCA glue hot pressing lamination,
3, Car navigation lamination
4, Laboratory research and development equipment
2, SCA glue hot pressing lamination,
3, Car navigation lamination
4, Laboratory research and development equipment
Adhesive Laminating Machine
|
P/N
|
9TU-M041
|
|||
|
Model
|
65inch Big Vacuum Laminator Machine
|
|||
|
Brand
|
Jiutu
|
|||
|
Lamination Size
|
Under 65 inches
|
|||
|
Function
|
Laminate New Glass With LCD Screen by Vacuum
|
|||
|
Application
|
Fit for All LCD Screen Under 65 inch
|
|||
|
Voltage
|
380V
|
|||
|
Working Temperature
|
Normal temp till -100 ℃ all works
|
|||
|
Working Rated Power
|
25KW
|
|||
|
Working Time:
|
Only need 25--40 seconds
|
|||
|
Warrantty
|
2 Years
|
|||
|
Working Pressure
|
0.4-0.8Mpa
|
|||
|
Size
|
2050*2358*1870mm
|
|||
|
Net Weight
|
3500kg
|
|||
