Optical Bonding Display Machine — Vacuum Hot Press Bonding

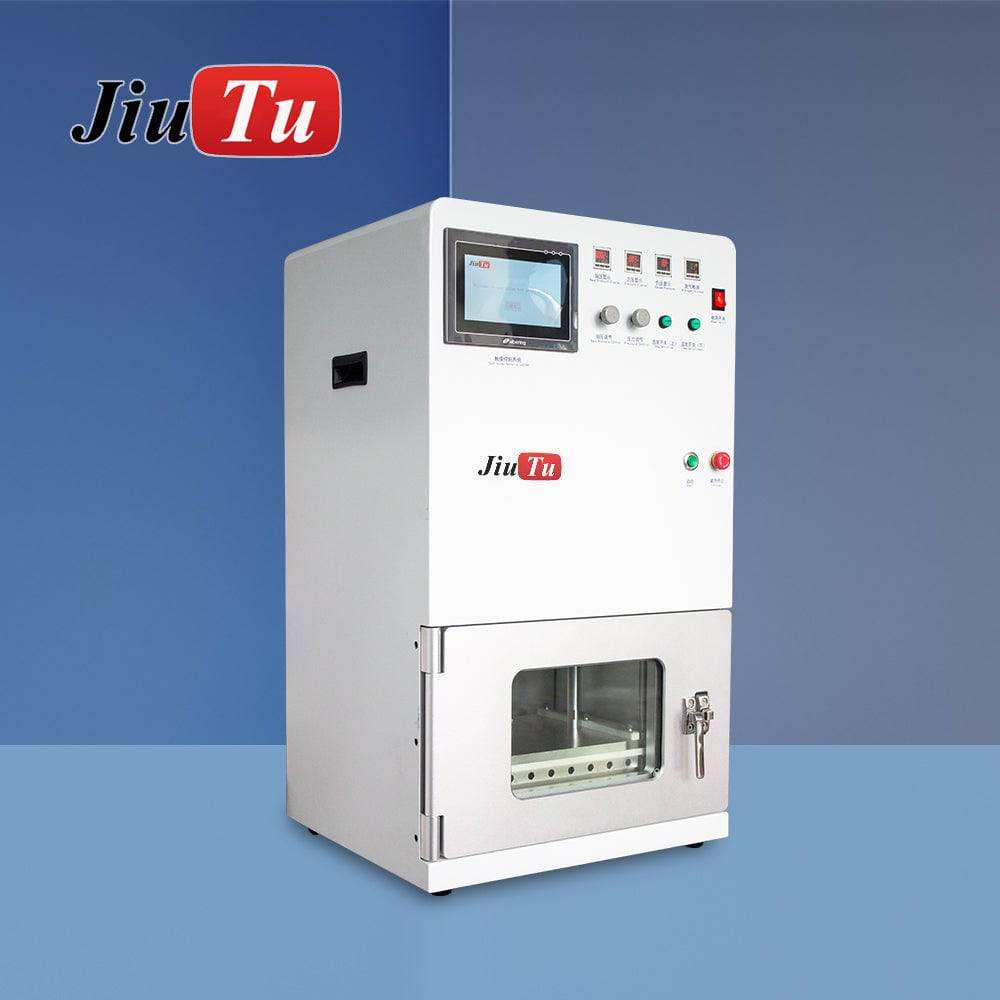

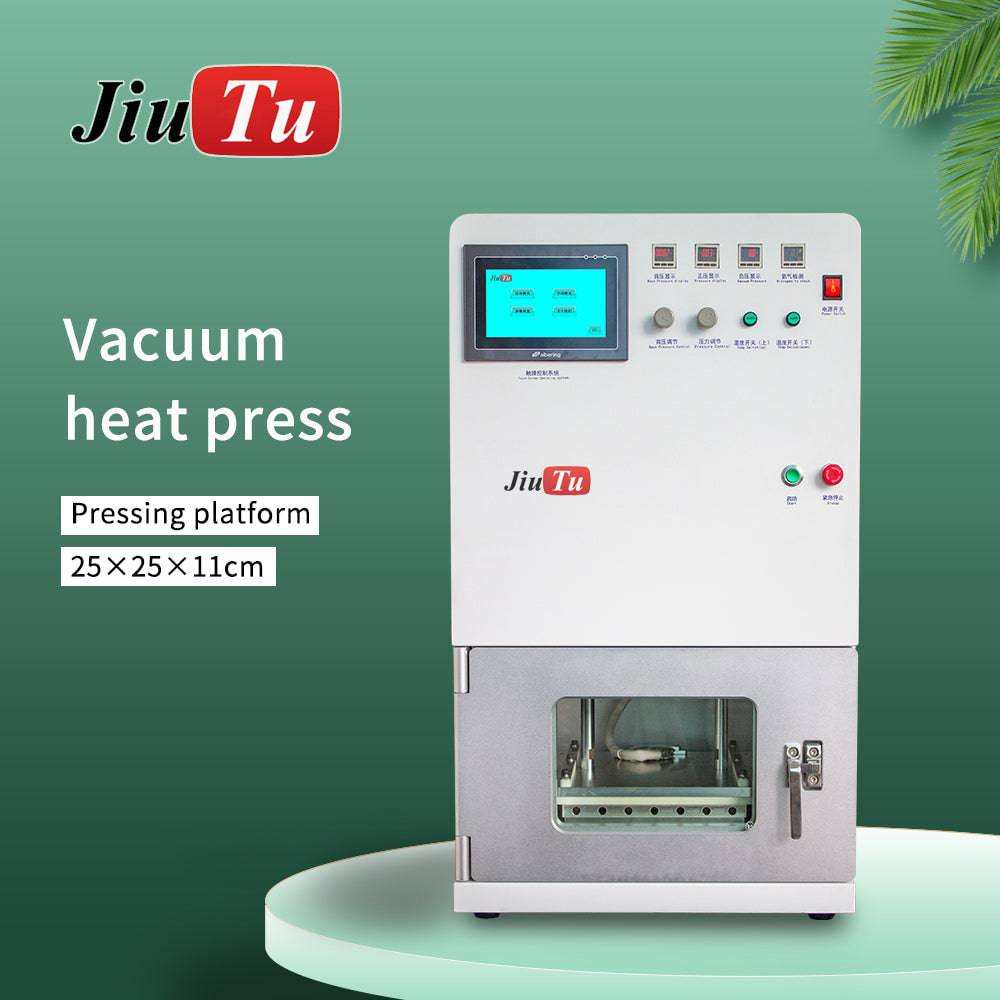

Jiutu 9TU-M048A optical bonding display machine uses vacuum thermocompression technology to bond display panels with optical clarity. Bonds rigid plastic chips (PMMA, PC, PP, COP, COC, BOPET, etc.) under vacuum. Maximum temperature 200°C, maximum pressure 10KN.
Function: Optical bonding of display panels using vacuum hot press technology. Eliminates air gaps between display and cover glass for improved brightness, contrast, and readability.
Applications: Optical bonding for mobile phone displays, industrial screens, automotive panels, and microfluidic device manufacturing.
| P/N | 9TU-M048A |

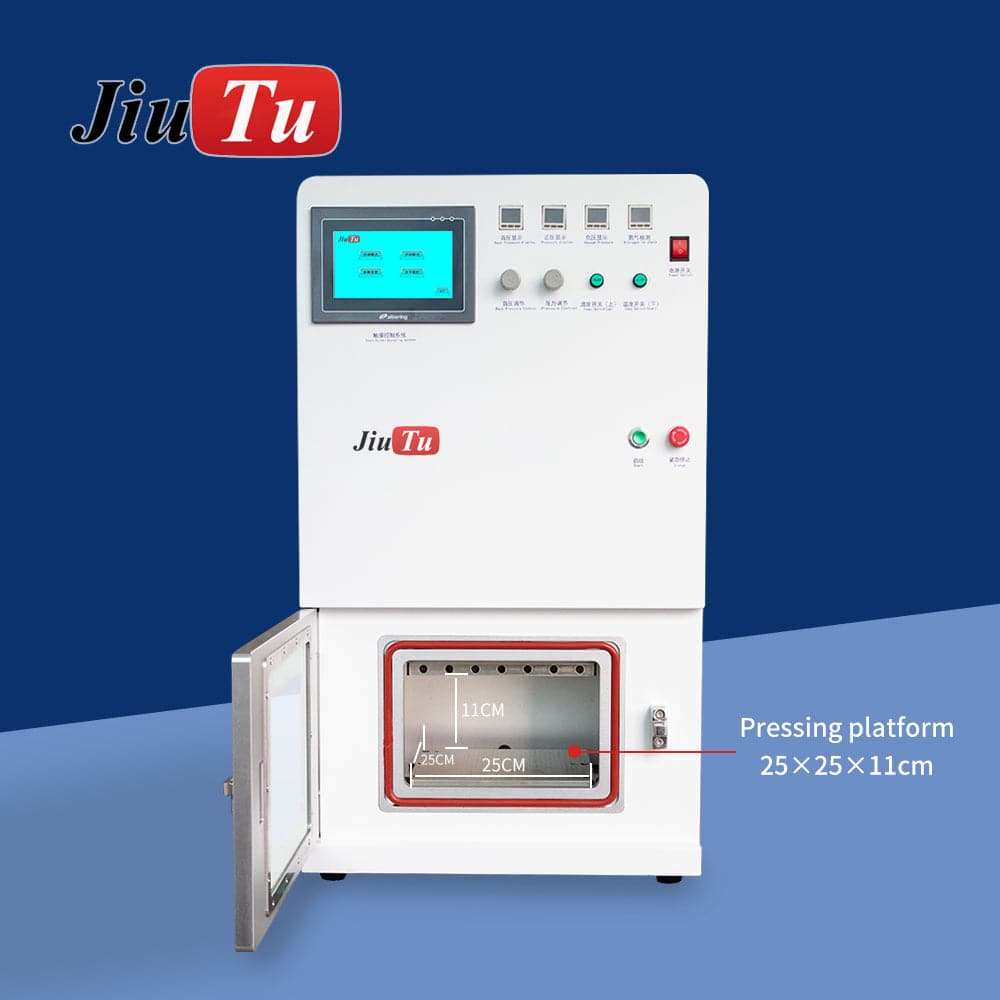

| Lamination Size | 250×250 mm |
| Working Temperature | 10°C to 60°C |
| Working Humidity | 40%–95% RH |
| Rated Power | 3800W |
| Machine Size | 50×50×93 cm |
| Net Weight | 160 kg |
| Working Pressure | 0.4–0.8 MPa |
| Voltage | 220V 50Hz |
Frequently Asked Questions
Q1: What is optical bonding and what are the benefits for display screens?
A: Optical bonding is the process of laminating a cover glass or protective layer directly onto a display panel using optically clear adhesive under vacuum pressure. The Jiutu optical bonding display machine eliminates the air gap between layers, which reduces reflections, improves contrast and brightness, enhances readability in sunlight, and increases the structural strength of the display assembly.
Q2: What is the maximum panel size this optical bonding display machine can process?
A: The Jiutu 9TU-M048A optical bonding display machine has a lamination area of 250×250mm. It is suitable for mobile phone displays, small industrial screens, and automotive panel bonding within this size range. For larger panel sizes, please contact Jiutu for customized bonding machine solutions.
