JiuTu Machine

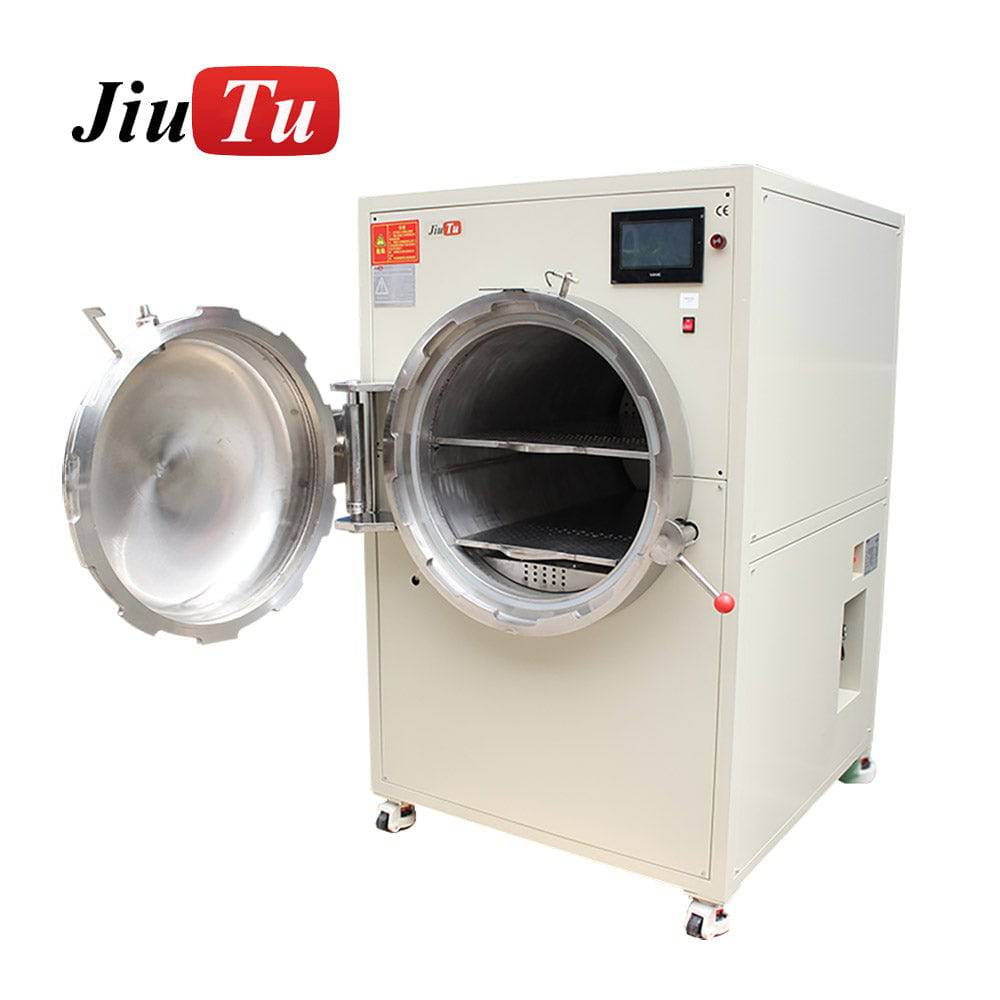

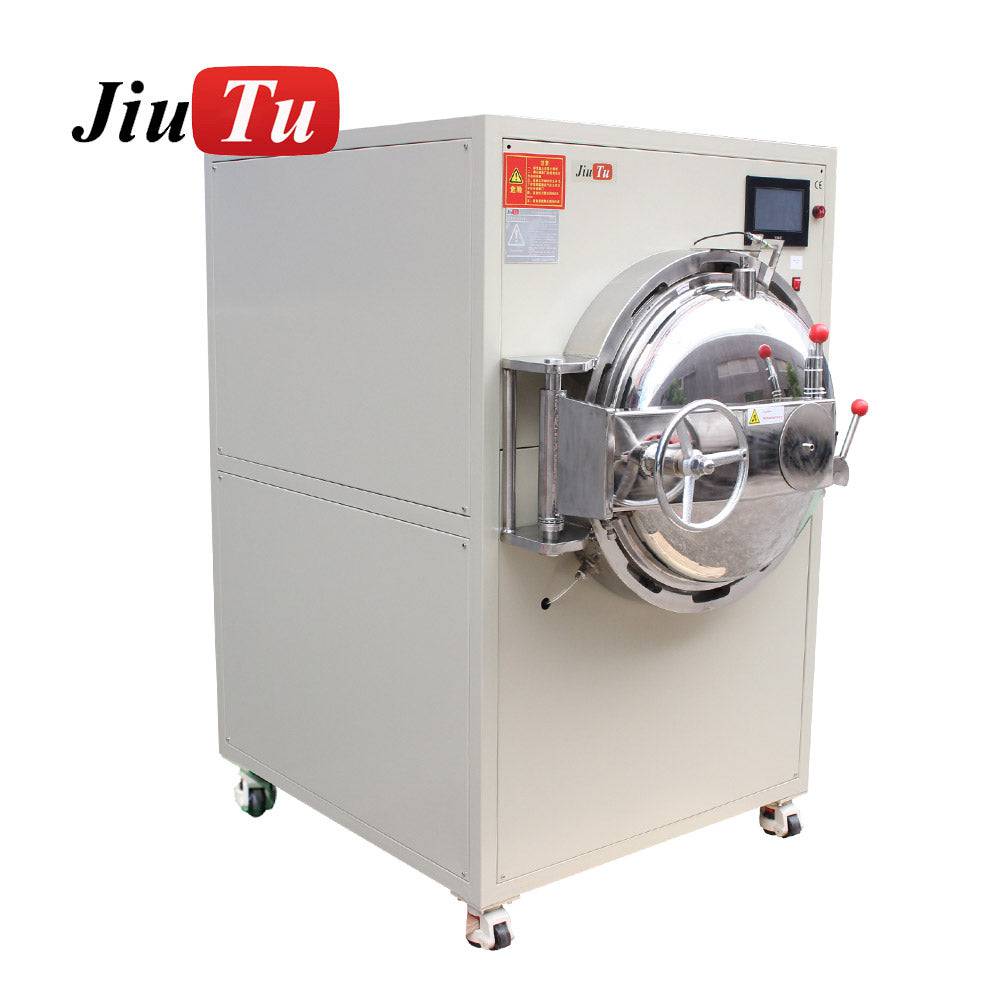

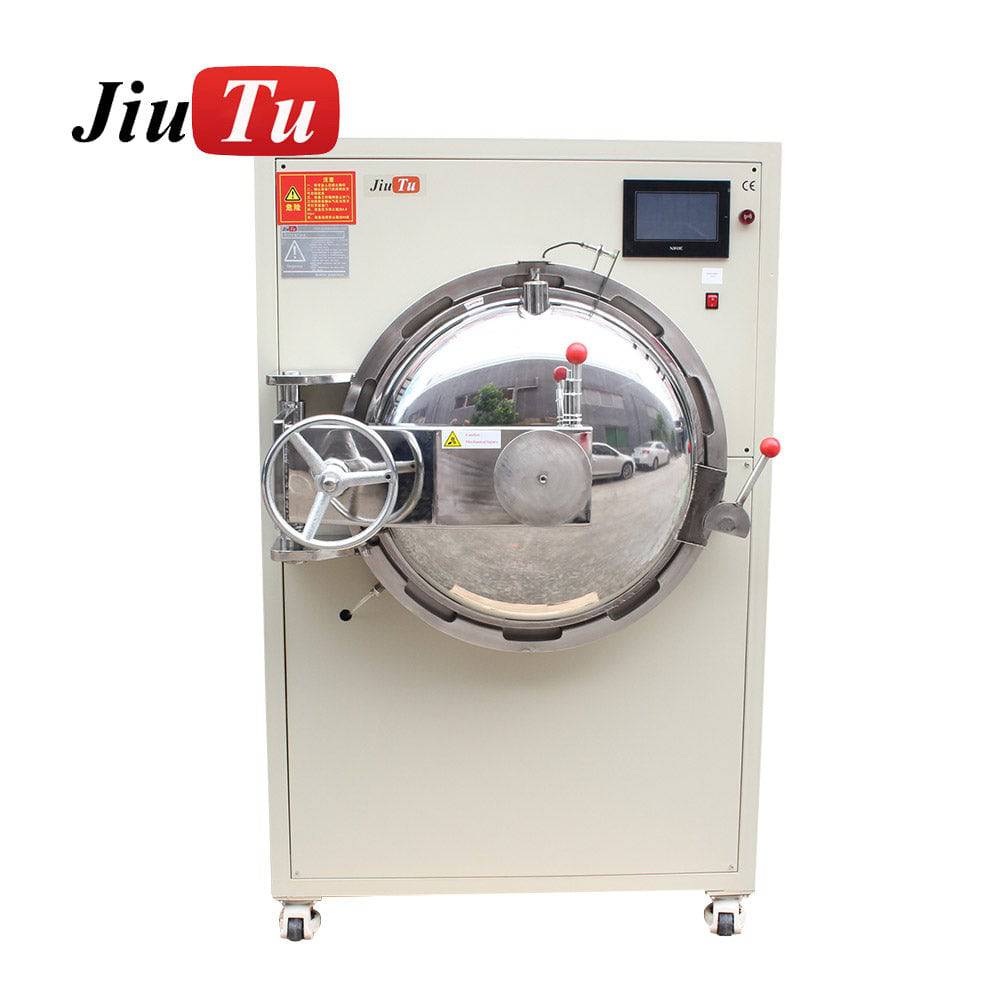

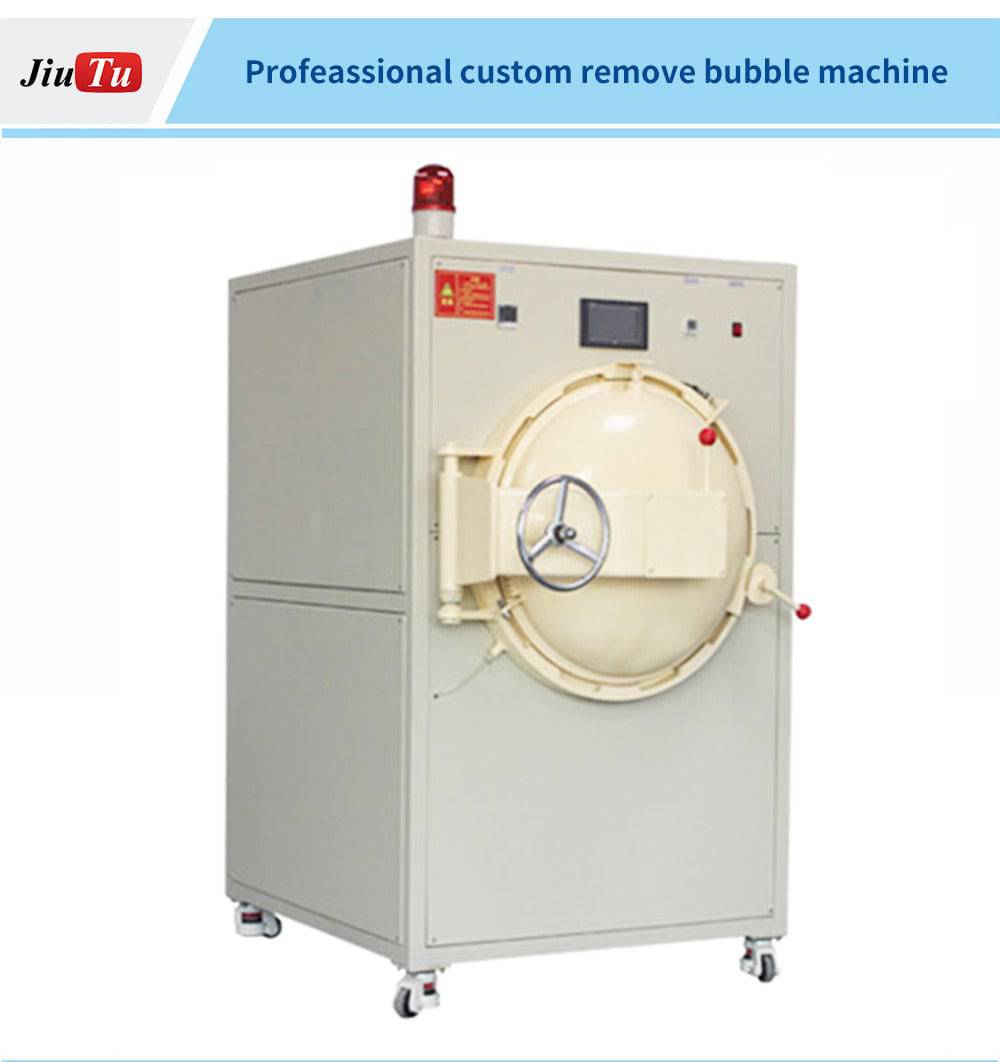

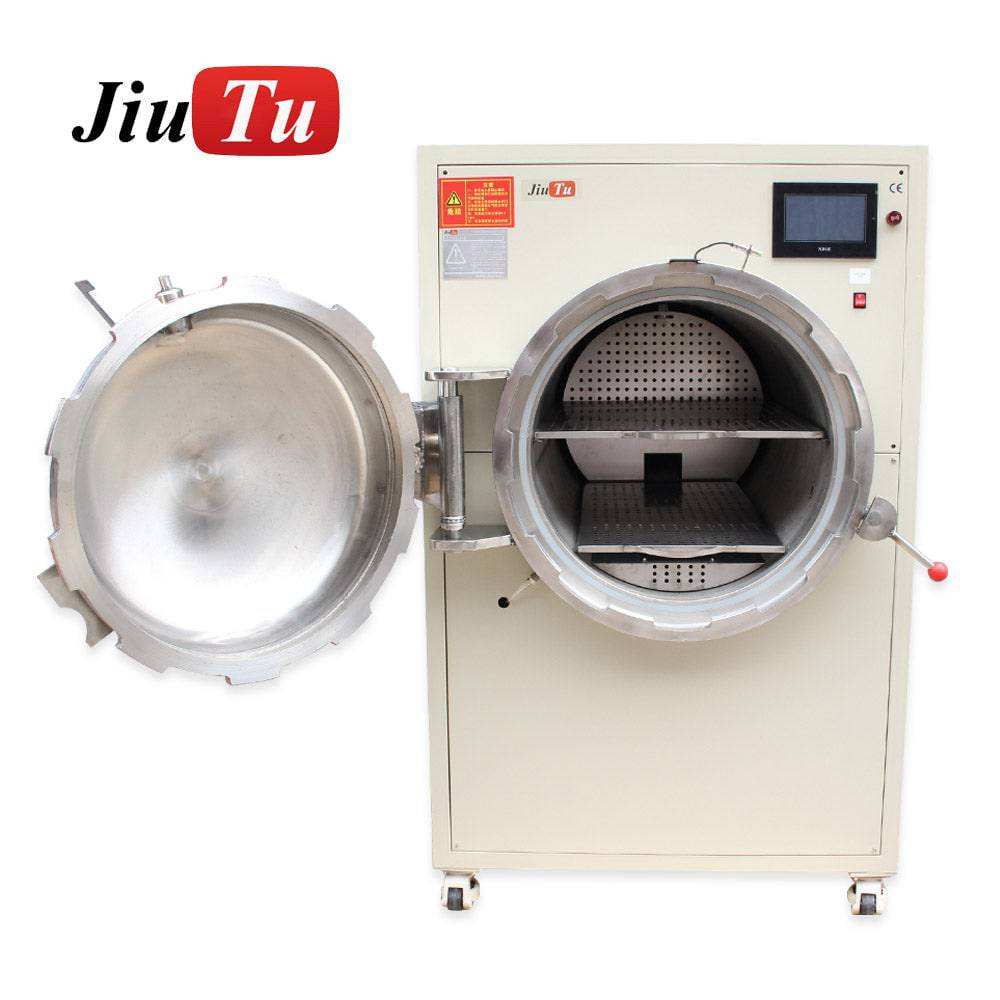

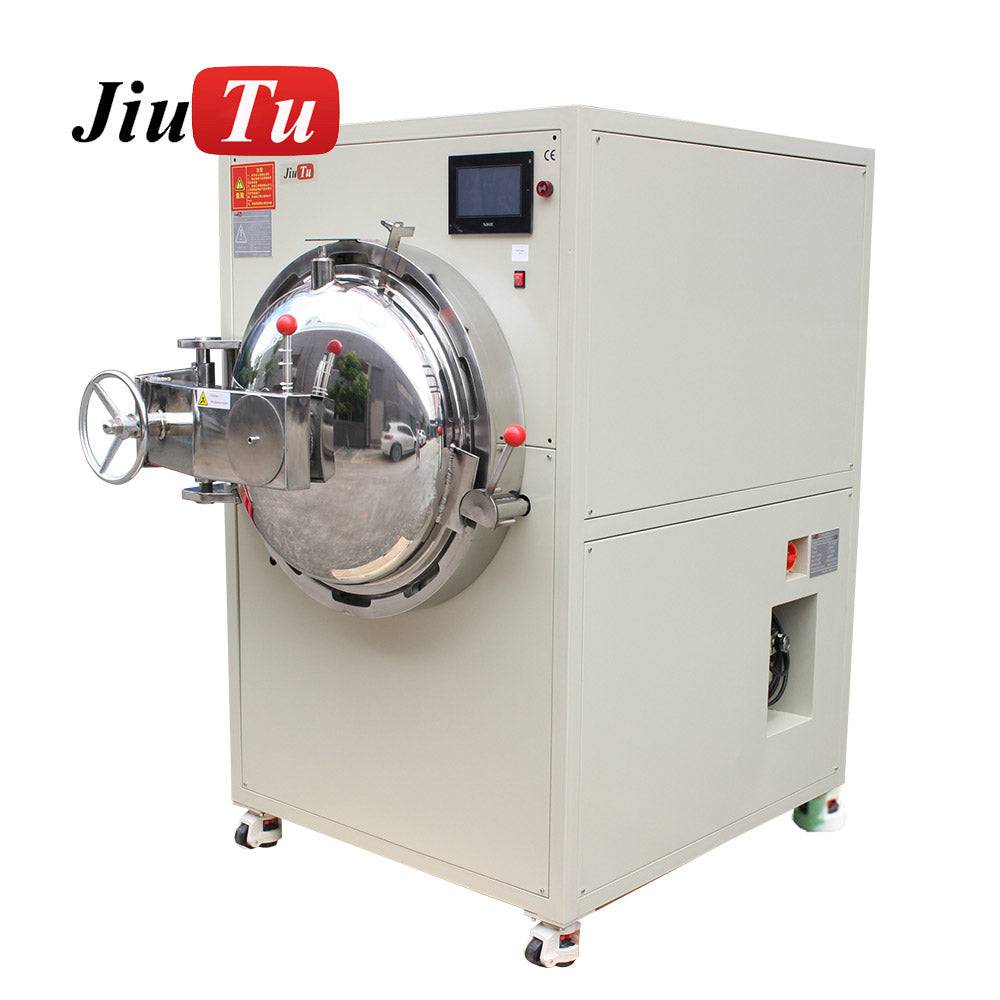

vacuum bubble remover

vacuum bubble remover

$8,800.00 USD
$9,800.00 USD $8,800.00 USD
Sale Sold out
Shipping calculated at checkout.

vacuum bubble remover

Main Features :

1 This equipment is high pressure heating ITO+CG, FILM+CG, CTP+LCD module defoaming machine.--vacuum bubble remover

2.This equipment is suitable for the process of defoaming it after hard-hard bonding (CG bonding) or assembly (CTP+LCD) process.--vacuum bubble remover

3. This equipment is for simultaneous temperature rise and boost.--vacuum bubble remover
1.1 Equipment introduction and purpose
1.1.1 : This equipment is a segmented high-pressure defoaming machine (bubble remover machine).--vacuum bubble remover
It’s widely used for electronics and optoelectronics industry, Removing air bubbles and vacuum bubbles--vacuum bubble remover
after vacuum lamination with optical glue SCA and OCA glue. Effectively improve product yield.--vacuum bubble remover

1.1.2 : Segmented high-pressure , both temperature and pressure can be adjusted by different segmented based on the actual product, max temperature is 80 degree , max pressure is 0.8Mpa--vacuum bubble remover

1.2 Equipment technical parameters
1.2.1 machine size :
length 1580mm width 1030mm Height 1700mm
1.2.2 Inner chamber size : Diameter 600mm Depth 900mm
1.2.3 Gross weight about 500KG
1.2.3 Safety pressure :0.8mpa
1.2.4 Volatge AC 220V

1.3 Equipment Installation
1.3.1 Power supply, to ensure the power supply demand AC220V 2000W.
1.3.2 Air supply to ensure the air pressure supply 0.8mpa.
1.3.3 Machine installation, 12 casters adjust the horizontal state, and the casters are locked and fixed.

1.4 Equipment maintenance
1.4.1 Circuit maintenance: check whether the circuit is loose or abnormal every 15 working days, Appropriate reinforcement if there is any abnormality

1.4.2 Air circuit maintenance; every 15 working days, check the air circuit for air leakage from the air pipe joints.
If there is any abnormality, repair and reinforce or replace it in time

1.4.3 Fan maintenance; manual debugging every 15 working days to check whether the fan is running abnormally, and
replace it in time if there is any abnormality

1.4.4 Add lubricating oil; manually open the door cover of the defoaming machine every 15 working days and add
lubricating oil to the movable place
P/N
9TU-M061
Model
56 inch Big Autoclave LCD Bubble Remover Machine
Function
Remove Rest Bubbles after Lamination for LCD Screen Refurbishing ,ok for big lcd screens
Application
Fit for All Smart Phone LCD Screen Under 37 inch , including martphone, iPad, Notebook, computer, ok for TV ,LED ,Advertise screen
, Bus Screen, Airplane screen, Car DVD Screen, industrial device screen repair
Air Compressor
Needed (Can share the same air compressor with OCA Vacuum Laminator )
Vacuum Pump
No Need
Voltage
220V /500W
Feature 1
New Design Door , More Safety and Convenient Without Screw Lock
Feature 2
Save time ,ok to put more then 100pcs LCD Screens together
Time
15--25 Mins , can adjust by yourself
Warranty
2 years
Packing
Customized Box for Shipping
After-service
Professional technical support will be provided until you can do with perfect results
Fast Delivery
Ship within 2 working days after payment is done
GW
850 KG
Autoclave Size
80 x 120 cm

vacuum bubble remover



View full details

Frequently Asked Questions

What is a vacuum bubble remover and how does it work?
A vacuum bubble remover is equipment designed to remove air and vacuum bubbles from laminated or assembled products, such as LCD screens or optical modules, by applying high pressure and heat to ensure bubble-free results.
What are the main features of this vacuum bubble remover?
This vacuum bubble remover features segmented high-pressure heating, adjustable temperature up to 80°C, maximum pressure of 0.8 Mpa, and is suitable for defoaming after bonding or assembly processes to improve product quality.
Is this vacuum bubble remover suitable for all LCD screens?
It is suitable for LCD screens larger than 37 inches and for a variety of electronic displays, including smartphones, tablets, laptops, and larger screens like TVs and advertising displays, especially for removing bubbles after lamination.
What are the technical specifications and size of the vacuum bubble remover?
The machine measures approximately 1580mm in length, 1030mm in width, and 1700mm in height, with an inner chamber diameter of 600mm and depth of 900mm. It weighs around 500kg and operates at 220V.
How should I maintain and operate the vacuum bubble remover for optimal performance?
Regular maintenance includes checking electrical circuits and air leaks every 15 working days, inspecting fan operation, and lubricating movable parts. Proper installation and correct use of adjustable temperature and pressure settings help ensure the device functions effectively.
