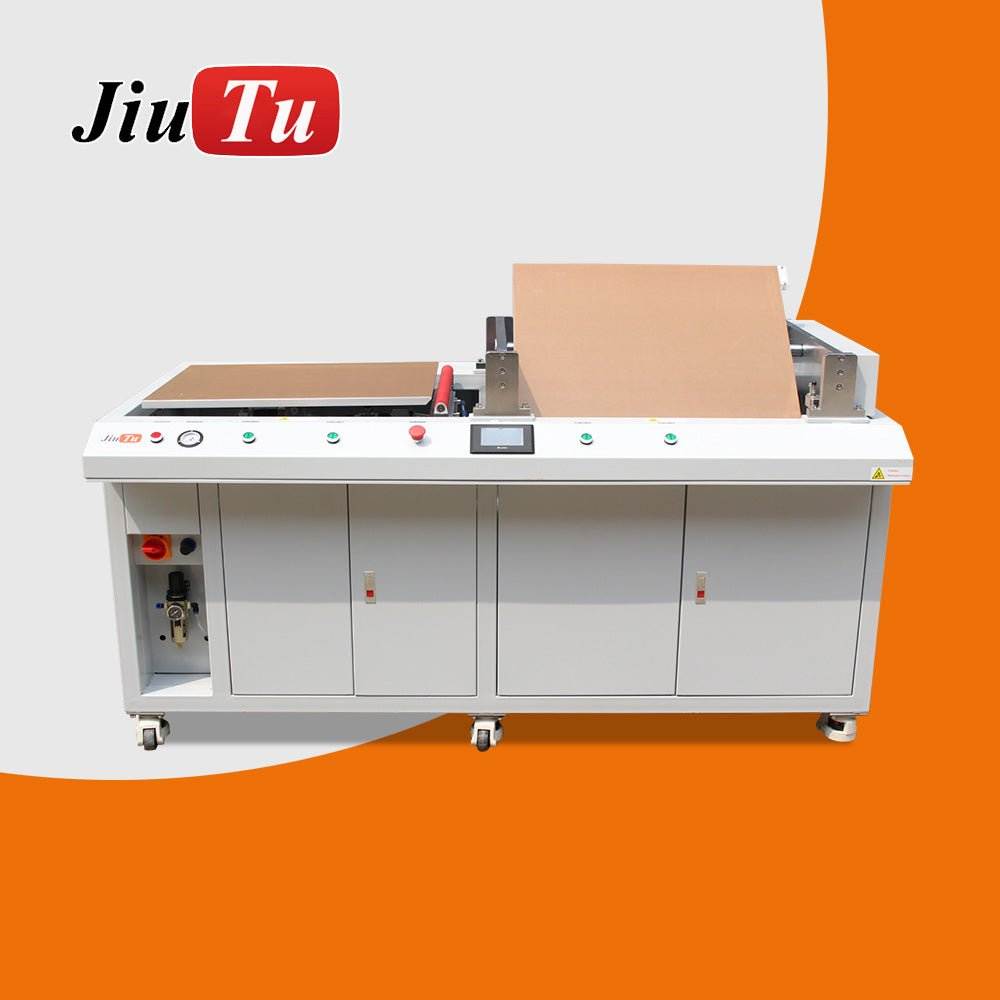

• Automatic ACF bonding machine for OCA film laminating and LCD repair
  • Factory customized soft to hard central control screen laminating machine
  • 600x900mm automatic OCA laminating machine for automotive industrial screens
  • ACF Bonding Machine for OCA film laminating and LCD screen repair with touch screen control and flip table mechanism
  • ACF Bonding Machine for OCA LCD screen repair and laminating phone polarizer film
  • ACF Bonding Machine for OCA LCD screen repair with touch screen control and film laminating function
  • Fully automatic OCA laminating machine for automotive and industrial LCD screens
  • ACF bonding machine for OCA LCD screen repair with touch screen control and film laminating platform
  • OCA Film Laminator
1 9

JiuTu Machine

ACF Bonding Machine

ACF Bonding Machine

$11,999.00 USD
$12,999.00 USD $11,999.00 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

OCA LCD Screen Repair Automatic OCA Polarizer Film Applicator Machine For Phone Refurbish Laminating OCA Glue Polarizer Adhesive

1.Machine introduction

1.1G+F flap film laminating machine is touch screen and oca film laminating . When the oca film and glass alignment adjust is completed, press the start button, the flip table will turn over, and the motor will drive the platform forward for lamination.

1.2 This equipment is suitable for the lamination process of glass panel and film with size 600*900mm

1.3 Film laminating for 1pcs, the running time is 20 --30 seconds, can finish about 1200 pieces in 10 hours

1.4 Machine Size ：

Length: 2360mm Width：1130mm Height：1060mm Gross Weight：About 650KG Suitable Air source：4-6Kg/cm2 Power：220V/1KW /50HZ

1.5 Main parts of the machine :

  1. Frame part: sheet metal, aluminum alloy
  2. Operation part: man-machine interface (PLC touch screen)
  3. Control part: man-machine interface PLC
  4. Pneumatic part: cylinder, solenoid valve, blower Fan
  5. Film laminating part : roller . flap platform
  6. Flip part : Servo motor, speed reducer

Просмотреть всю информацию

Frequently Asked Questions

What types of screens can the ACF Bonding Machine handle during the OCA film lamination process?
The ACF Bonding Machine is suitable for laminating glass panels and films with a size of 600*900mm, making it ideal for LCD screen repair and refurbishing.
How long does it take to complete a single lamination cycle with the ACF Bonding Machine?
Each lamination process typically takes about 20 to 30 seconds, enabling the machine to finish approximately 1200 pieces in 10 hours.
What equipment specifications should I consider before operating the ACF Bonding Machine?
You should ensure you have an air source of 4-6 Kg/cm², a power supply of 220V/1KW/50Hz, and enough space to accommodate the machine's dimensions of 2360mm by 1130mm by 1060mm.
What are the main components of the ACF Bonding Machine?
The main parts include a sheet metal and aluminum alloy frame, a PLC touch screen interface, a pneumatic system with cylinders and solenoid valves, and film laminating components like rollers and a flip platform with servo motors.
How does the ACF Bonding Machine ensure precise film alignment and lamination quality?
The machine features an adjustable OCA film and glass alignment system, a touch screen interface for easy operation, and controlled lamination via motors and pneumatic components to ensure consistent and accurate results.
