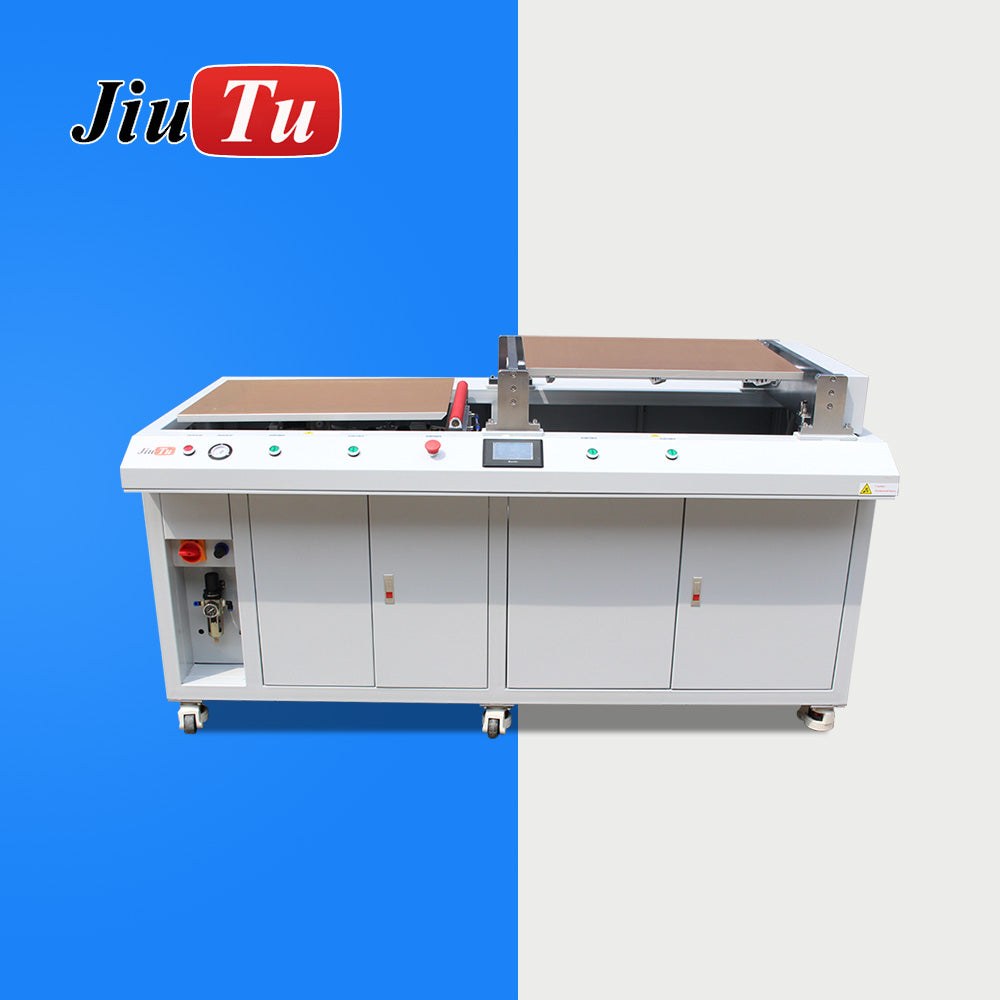

• COF bonding machine with touch screen and automatic OCA laminating for LCD repair
  • JIUTU 500x700mm automatic OCA PVC laminating machine with vacuum pump
  • OCA Laminator machine for LCD screen repair with touch screen and automatic film application
  • OCA Laminator machine for automatic LCD screen repair and polarizer film lamination
  • OCA Laminator machine for LCD screen repair with touch screen control and automatic film laminating system
  • Automatic OCA laminator machine for phone LCD screen repair and polarizer film application
  • Jiutu automatic OCA PVC PET film laminator machine for 500um and 1000um films
  • OCA Film Laminator
1 8

JiuTu Machine

COF Bonding Machine

COF Bonding Machine

$10,499.00 USD
$10,999.00 USD $10,499.00 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

OCA LCD Screen Repair Automatic OCA Polarizer Film Applicator Machine For Phone Refurbish Laminating OCA Glue Polarizer Adhesive

1.Machine introduction

1.1G+F flap film laminating machine is touch screen and oca film laminating . When the oca film and glass alignment adjust is completed, press the start button, the flip table will turn over, and the motor will drive the platform forward for lamination.

1.2 This equipment is suitable for the lamination process of glass panel and film with size 500*700mm

1.3 Film laminating for 1pcs, the running time is 20 --30 seconds, can finish about 1200 pieces in 10 hours

1.4 Machine Size ：

Length: 1960mm Width：980mm Height：1060mm Gross Weight：About 600KG Suitable Air source：4-6Kg/cm2 Power：220V/1KW /50HZ

1.5 Main parts of the machine :

  1. Frame part: sheet metal, aluminum alloy
  2. Operation part: man-machine interface (PLC touch screen)
  3. Control part: man-machine interface PLC
  4. Pneumatic part: cylinder, solenoid valve, blower Fan
  5. Film laminating part : roller . flap platform
  6. Flip part : Servo motor, speed reducer

Просмотреть всю информацию

Frequently Asked Questions

What is the main function of the COF Bonding Machine?
The COF Bonding Machine is designed for automatic laminating of OCA polarizer film onto LCD screens, making it ideal for phone refurbishment and screen assembly.
What are the specifications and size of the COF Bonding Machine?
The machine measures 1960mm in length, 980mm in width, and 1060mm in height, weighing about 600kg, and operates on 220V/1KW power supply with an air source of 4-6 Kg/cm².
How efficient is the COF Bonding Machine in producing LCD screens?
It can laminate one piece in approximately 20 to 30 seconds, allowing for up to 1200 pieces to be processed in a 10-hour shift.
What parts and components are included in the COF Bonding Machine?
The machine includes a frame made of sheet metal and aluminum alloy, a man-machine interface (PLC touch screen), pneumatic parts like cylinders and valves, a film laminating roller, and a servo motor with a speed reducer for flipping.
How easy is it to operate the COF Bonding Machine?
The machine features a user-friendly touch screen interface that simplifies the alignment and lamination process, making it suitable for operators with minimal training.
