JiuTu Machine

Glass Bonding Machine

Glass Bonding Machine

$28,000.00 USD
$28,000.00 USD $28,000.00 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

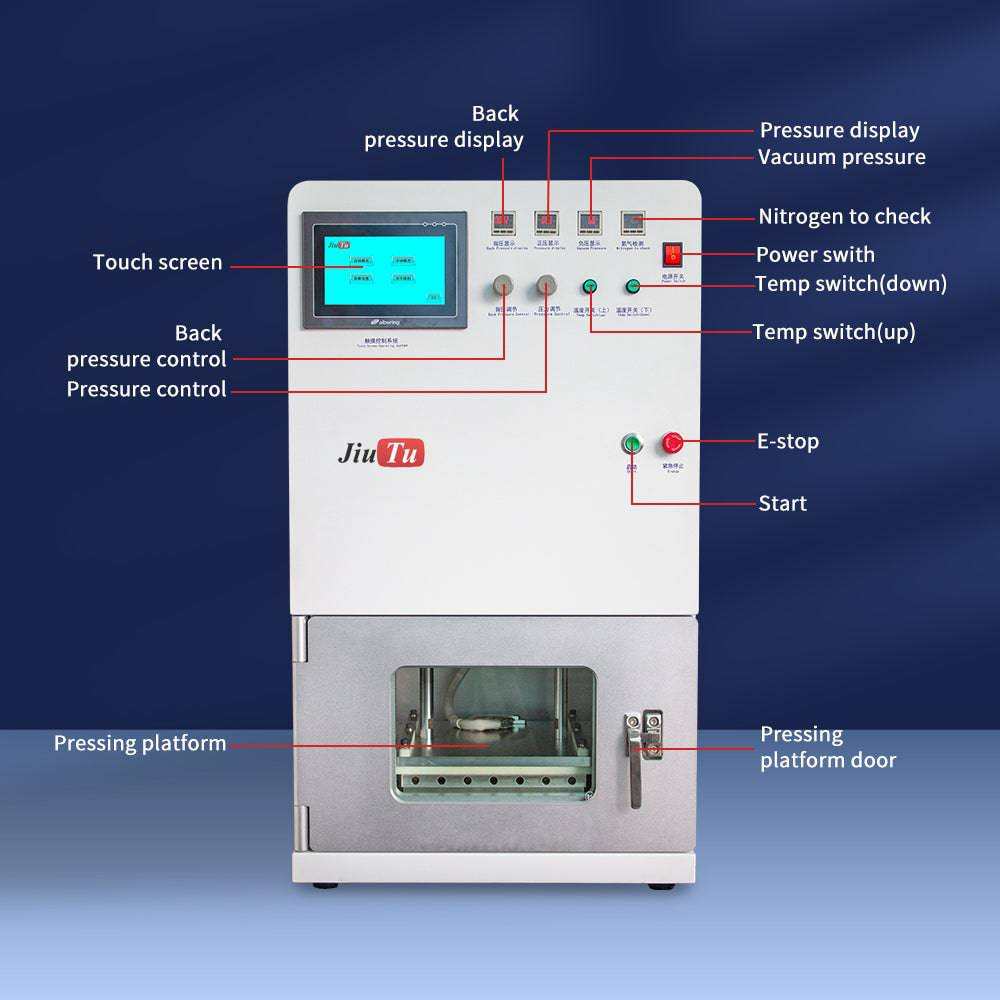

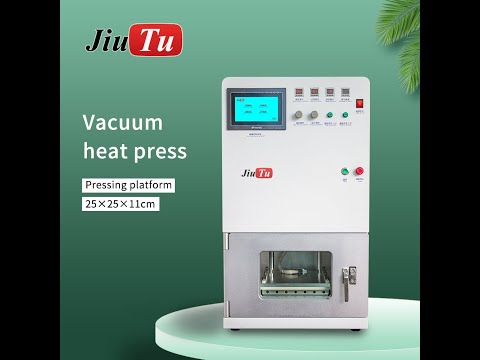

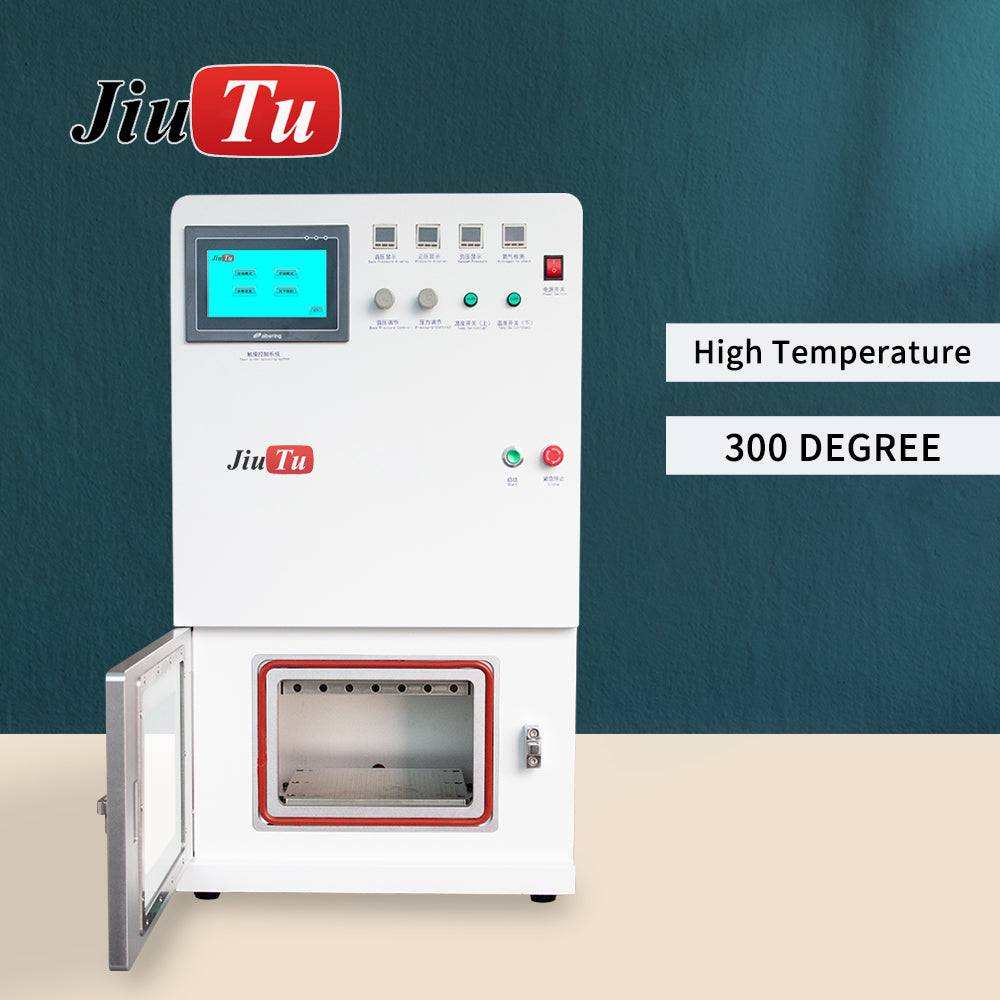

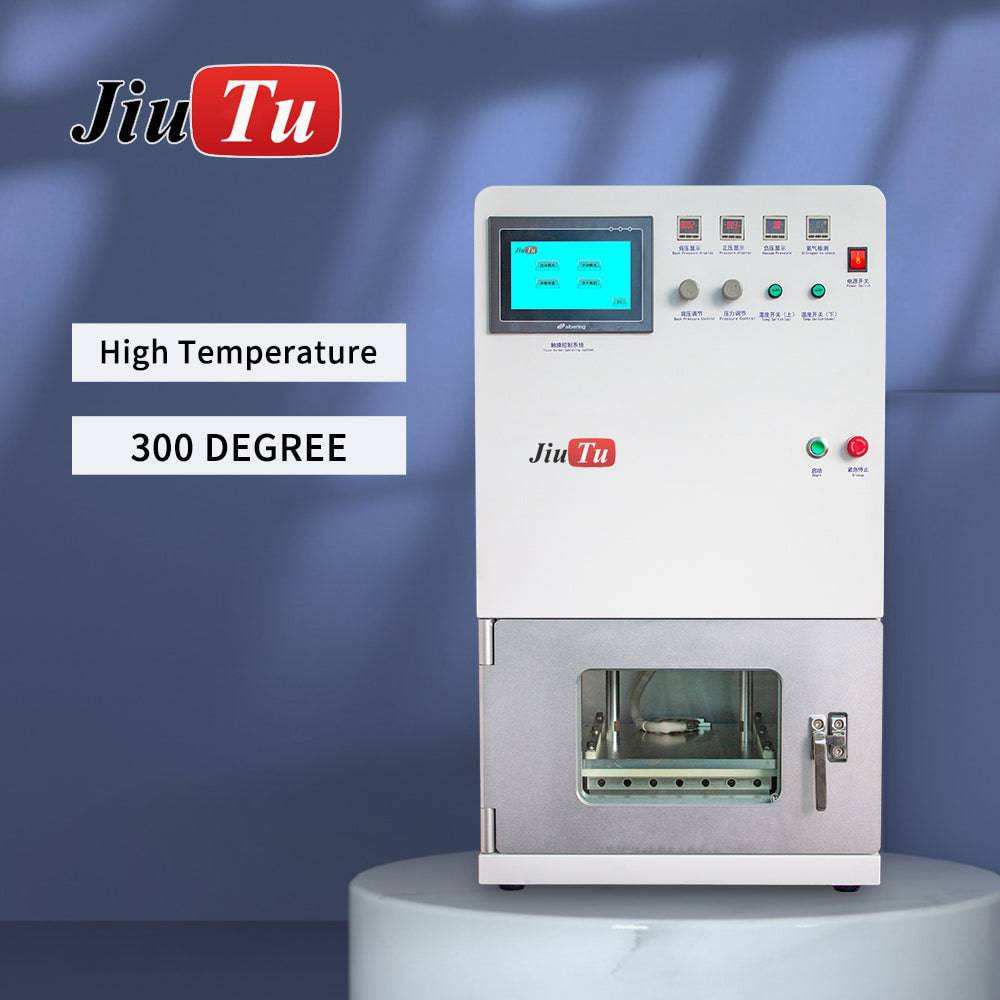

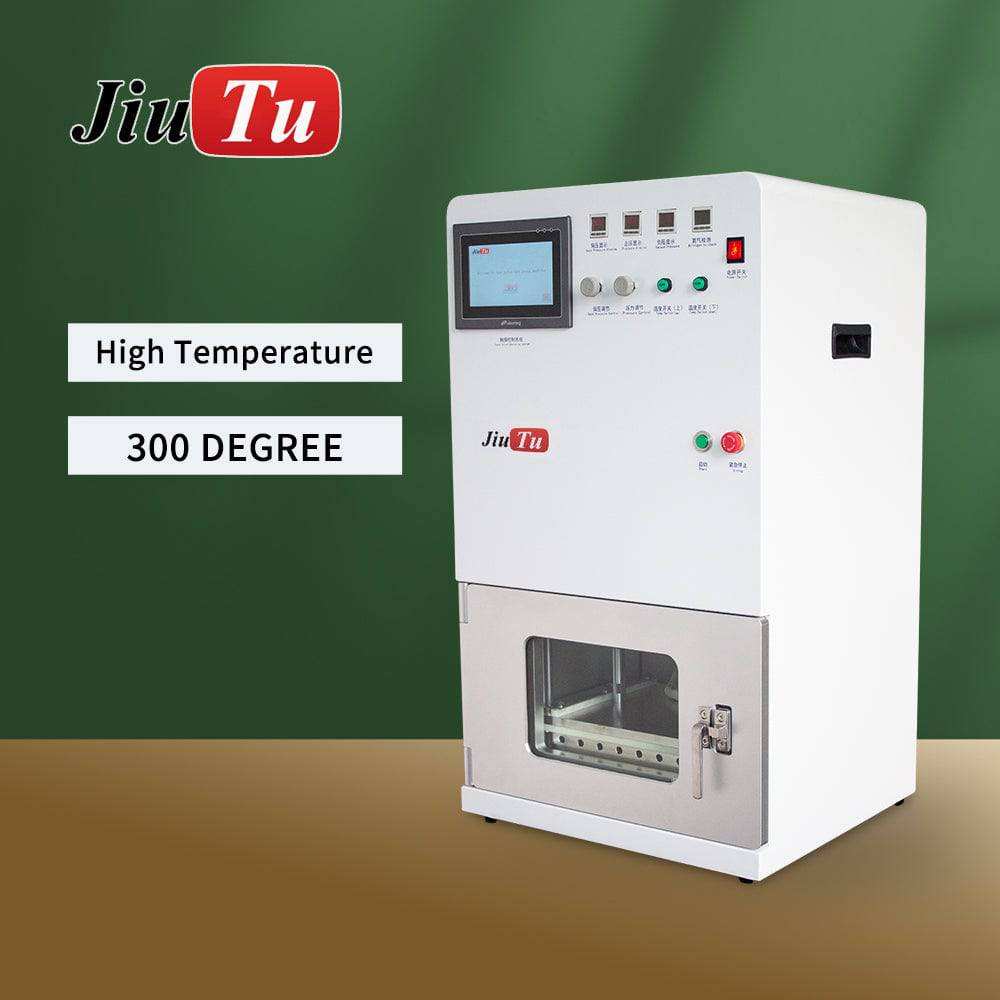

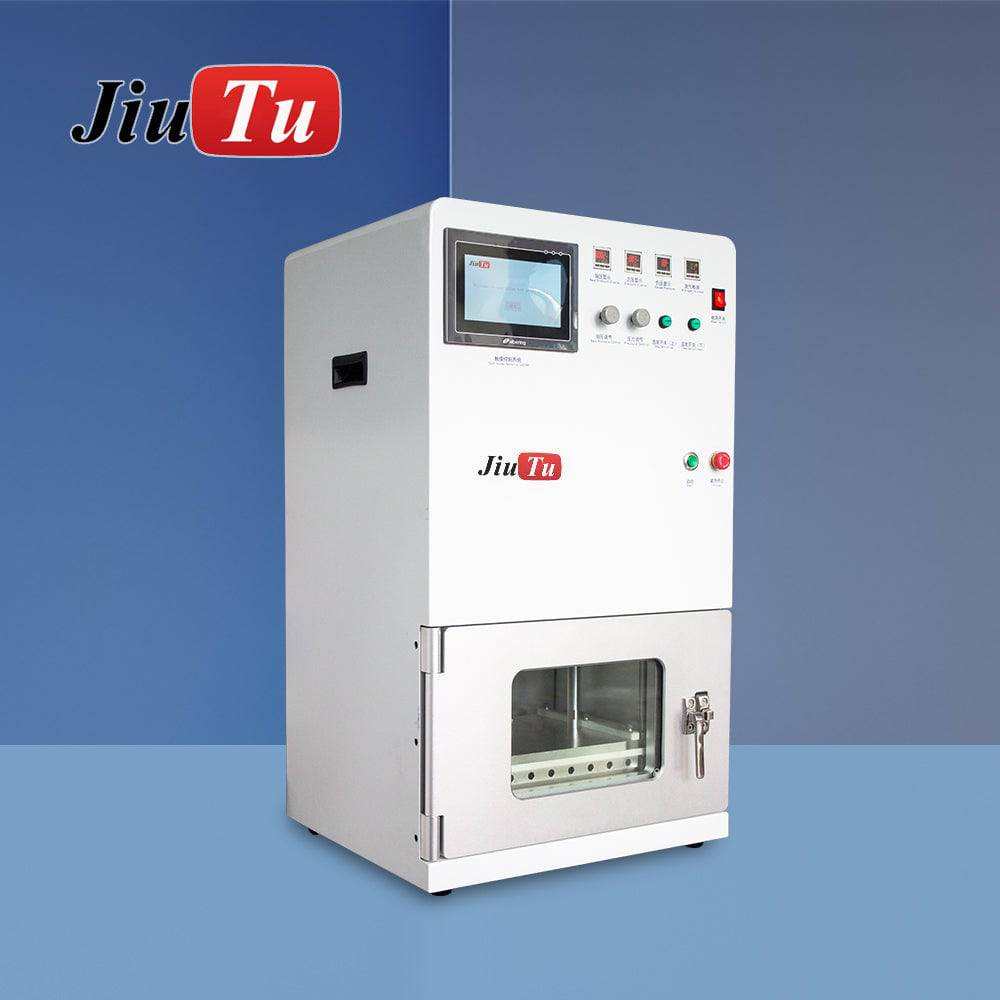

Glass Bonding Machine — Vacuum Thermocompression Bonder

Jiutu 9TU-M048A Glass Bonding Machine uses vacuum thermocompression technology to bond glass panels and rigid plastic chips. Maximum temperature 200°C, maximum pressure 10KN. Suitable for PMMA, PC, PP, COP, COC, BOPET, and more.

Function: Vacuum hot press glass bonding for display panels, microfluidic devices, and thermoplastic chip bonding. Flexdym polymer molding in as little as 2 minutes.

Applications: Glass-to-glass bonding, glass-to-plastic bonding, PMMA/PC/PP/COP/COC/BOPET chip bonding, microfluidic device manufacturing, display panel assembly.

P/N 9TU-M048A
Lamination Size 250×250 mm
Working Temperature 10°C to 60°C
Rated Power 3800W
Machine Size 50×50×93 cm
Net Weight 160 kg
Working Pressure 0.4–0.8 MPa
Voltage 220V 50Hz

Frequently Asked Questions

Q1: What types of glass bonding applications is this Glass Bonding Machine suitable for?

A: The Jiutu Glass Bonding Machine is suitable for optical glass bonding (display cover glass to LCD panel), glass-to-plastic bonding, and rigid chip bonding (PMMA, PC, PP, COP, COC, BOPET). It is widely used in mobile phone screen refurbishment, industrial display manufacturing, and microfluidic device assembly where bubble-free, high-strength bonds are required.

Q2: Does the Glass Bonding Machine require any special adhesive or OCA film?

A: The Glass Bonding Machine uses vacuum thermocompression bonding, which can work with OCA (Optically Clear Adhesive) film, SCA (Super Clear Adhesive), or other thermoplastic bonding materials depending on the application. The machine’s precise temperature (up to 200°C) and pressure (0.4–0.8 MPa) control ensures optimal adhesive activation and void-free bonding results.

Просмотреть всю информацию

Frequently Asked Questions

What are the main advantages of using a vacuum thermocompression method in a Glass Bonding Machine?
The vacuum thermocompression method provides bubble-free, high-strength bonds with excellent clarity, making it ideal for display panels and microfluidic devices. It ensures uniform bonding pressure and temperature, resulting in reliable and consistent results.
Can this Glass Bonding Machine handle different sizes and types of glass or plastics?
Yes, the Jiutu 9TU-M048A Glass Bonding Machine supports a lamination size of 250×250 mm and is compatible with various materials including glass, PMMA, PC, PP, COP, COC, and BOPET, making it versatile for different bonding applications.
What are the ideal operating conditions for the Glass Bonding Machine to achieve optimal bonds?
For optimal bonding, operate the machine within the temperature range of 10°C to 60°C and at a pressure between 0.4–0.8 MPa. Maintaining these settings ensures effective activation of adhesives and high-quality, void-free bonds.
Is the Glass Bonding Machine suitable for mass production or industrial use?
Yes, with a power rating of 3800W and a stable working pressure, the machine is designed for industrial applications, including large-scale display panel assembly, mobile device manufacturing, and microfluidic device production.
What maintenance or care is required to keep the Glass Bonding Machine in optimal condition?
Regular cleaning of the vacuum chamber and pressure system, ensuring proper calibration of temperature and pressure controls, and inspecting electrical components will help maintain the machine’s performance and extend its lifespan.
