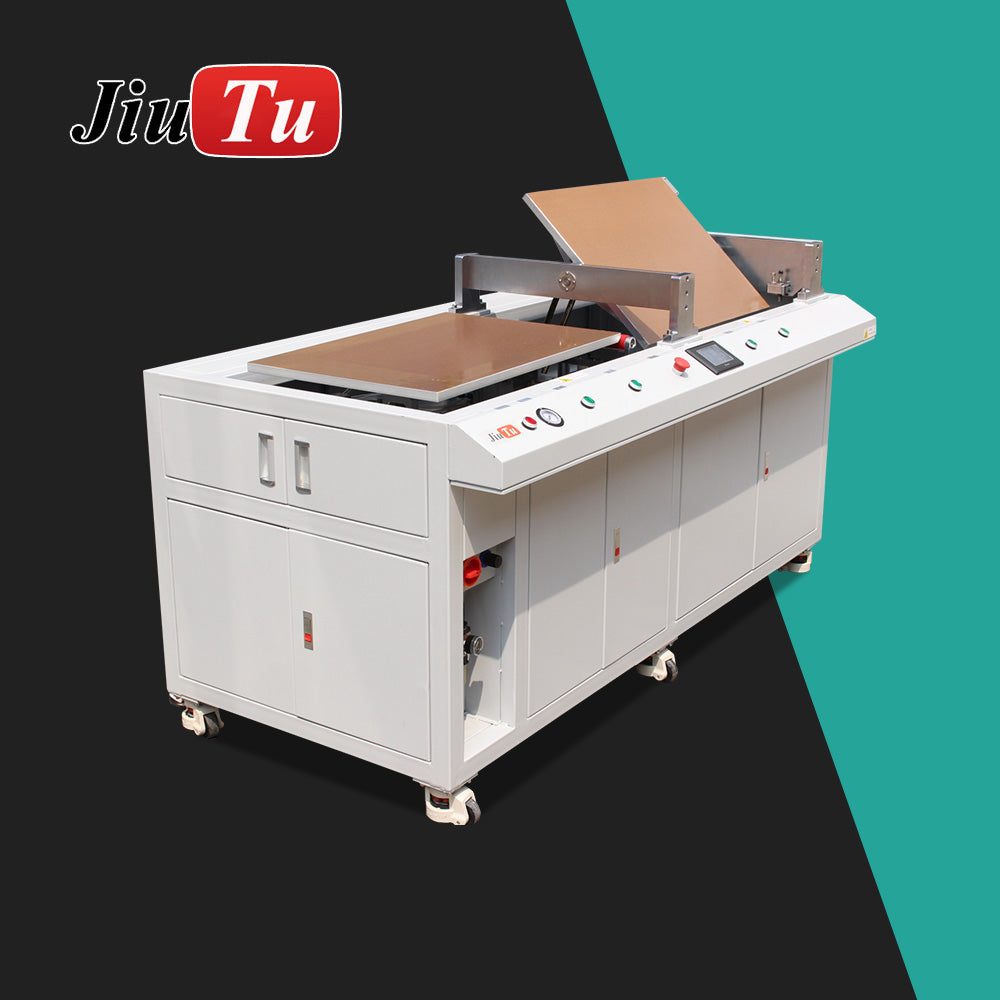

• OCA laminator machine for automatic phone screen repair with touch screen control and film laminating function
  • JIUTU 500x700mm automatic OCA PVC laminating machine with vacuum pump
  • OCA Laminator machine for LCD screen repair with touch screen and automatic film application
  • OCA Laminator machine for automatic LCD screen repair and polarizer film lamination
  • OCA Laminator machine for LCD screen repair with touch screen control and automatic film laminating system
  • Automatic OCA laminator machine for phone LCD screen repair and polarizer film application
  • Jiutu automatic OCA PVC PET film laminator machine for 500um and 1000um films
  • OCA Film Laminator
1 8

JiuTu Machine

Laminator OCA

Laminator OCA

$10,499.00 USD
$10,999.00 USD $10,499.00 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

OCA LCD Screen Repair Automatic OCA Polarizer Film Applicator Machine For Phone Refurbish Laminating OCA Glue Polarizer Adhesive

1.Machine introduction

1.1G+F flap film laminating machine is touch screen and oca film laminating . When the oca film and glass alignment adjust is completed, press the start button, the flip table will turn over, and the motor will drive the platform forward for lamination.

1.2 This equipment is suitable for the lamination process of glass panel and film with size 500*700mm

1.3 Film laminating for 1pcs, the running time is 20 --30 seconds, can finish about 1200 pieces in 10 hours

1.4 Machine Size ：

Length: 1960mm Width：980mm Height：1060mm Gross Weight：About 600KG Suitable Air source：4-6Kg/cm2 Power：220V/1KW /50HZ

1.5 Main parts of the machine :

  1. Frame part: sheet metal, aluminum alloy
  2. Operation part: man-machine interface (PLC touch screen)
  3. Control part: man-machine interface PLC
  4. Pneumatic part: cylinder, solenoid valve, blower Fan
  5. Film laminating part : roller . flap platform
  6. Flip part : Servo motor, speed reducer

Просмотреть всю информацию

Frequently Asked Questions

What is the main function of the OCA Laminator?
The OCA Laminator is designed for the lamination process of glass panels and films, specifically for phone screen refurbishing, using OCA polarizer film and adhesive to ensure proper adhesion and alignment.
What size screens can the OCA Laminator handle?
This machine is suitable for laminating glass panels and films up to 500*700mm in size, making it ideal for various phone screen repair projects.
How long does the lamination process take per piece?
The laminating process for one piece typically takes between 20 to 30 seconds, allowing for a high productivity of about 1200 pieces in 10 hours.
What are the technical specifications of the OCA Laminator?
The OCA Laminator measures 1960mm in length, 980mm in width, 1060mm in height, and weighs approximately 600kg. It operates on 220V/1KW power and requires an air source of 4-6Kg/cm2.
What are the main components of the OCA Laminator machine?
The main parts include a metal and aluminum alloy frame, a PLC touch screen interface, pneumatic cylinders and solenoid valves, roller and flap platform for lamination, and a servo motor with a speed reducer for flipping operations.
