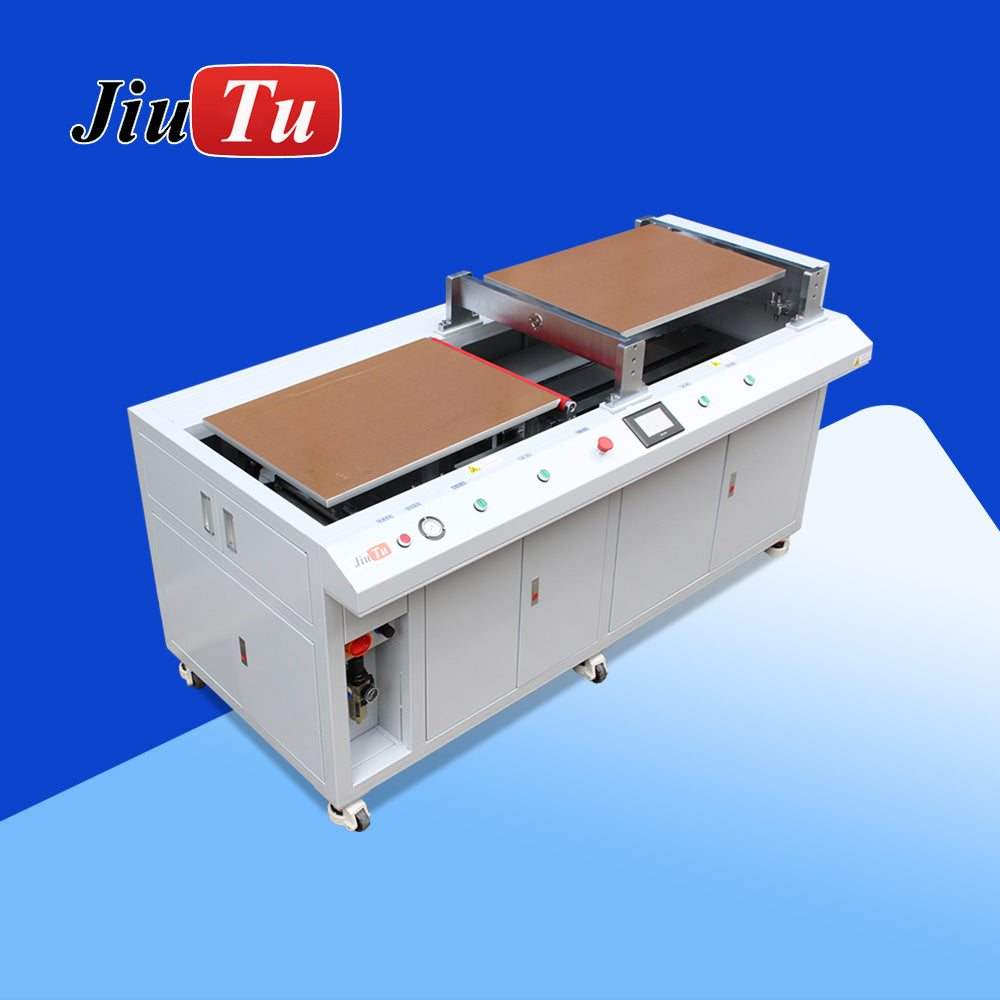

• automatic oca lcd bonding machine for phone screen repair
  • Factory customized soft to hard central control screen laminating machine
  • 600x900mm automatic OCA laminating machine for automotive industrial screens
  • ACF Bonding Machine for OCA film laminating and LCD screen repair with touch screen control and flip table mechanism
  • ACF Bonding Machine for OCA LCD screen repair and laminating phone polarizer film
  • ACF Bonding Machine for OCA LCD screen repair with touch screen control and film laminating function
  • Fully automatic OCA laminating machine for automotive and industrial LCD screens
  • ACF bonding machine for OCA LCD screen repair with touch screen control and film laminating platform
  • OCA Film Laminator
1 9

JiuTu Machine

LCD Bonding Machine

LCD Bonding Machine

$11,999.00 USD
$12,999.00 USD $11,999.00 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

OCA LCD Screen Repair Automatic OCA Polarizer Film Applicator Machine For Phone Refurbish Laminating OCA Glue Polarizer Adhesive

1.Machine introduction

1.1G+F flap film laminating machine is touch screen and oca film laminating . When the oca film and glass alignment adjust is completed, press the start button, the flip table will turn over, and the motor will drive the platform forward for lamination.

1.2 This equipment is suitable for the lamination process of glass panel and film with size 600*900mm

1.3 Film laminating for 1pcs, the running time is 20 --30 seconds, can finish about 1200 pieces in 10 hours

1.4 Machine Size ：

Length: 2360mm Width：1130mm Height：1060mm Gross Weight：About 650KG Suitable Air source：4-6Kg/cm2 Power：220V/1KW /50HZ

1.5 Main parts of the machine :

  1. Frame part: sheet metal, aluminum alloy
  2. Operation part: man-machine interface (PLC touch screen)
  3. Control part: man-machine interface PLC
  4. Pneumatic part: cylinder, solenoid valve, blower Fan
  5. Film laminating part : roller . flap platform
  6. Flip part : Servo motor, speed reducer

Просмотреть всю информацию

Frequently Asked Questions

What is the main function of the LCD Bonding Machine?
The LCD Bonding Machine is designed for automatic laminating of OCA polarizer film onto LCD screens, ensuring precise alignment and efficient bonding for phone refurbishing.
Which screen sizes can the LCD Bonding Machine accommodate?
This machine is suitable for lamination processes involving glass panels and films up to the size of 600*900mm, making it ideal for various LCD screen sizes.
How many LCD screens can the LCD Bonding Machine process in a day?
The machine can laminate approximately 1200 pieces in 10 hours, with each lamination cycle taking about 20-30 seconds, enhancing production efficiency.
What are the key components of the LCD Bonding Machine?
Key parts include a sturdy frame made of sheet metal and aluminum alloy, a man-machine interface with PLC touch screen, pneumatic components like cylinders and solenoid valves, and film lamination and flip parts driven by servo motors.
What are the power and air source requirements for operating the LCD Bonding Machine?
The machine operates on 220V/1KW power and requires an air source of 4-6Kg/cm2 to function properly, ensuring smooth lamination and flipping processes.
