JiuTu Machine

LCD Laminating Machine

LCD Laminating Machine

$10,499.00 USD
$10,999.00 USD $10,499.00 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

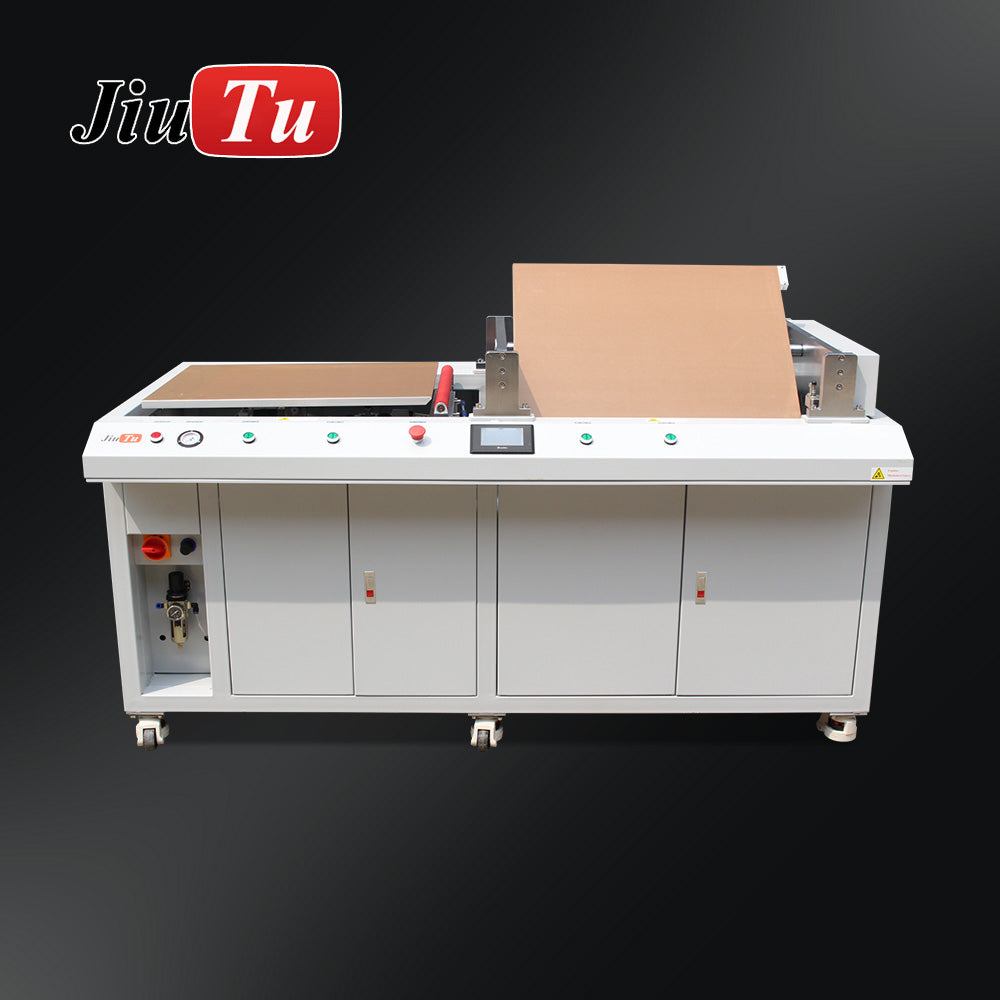

OCA LCD Screen Repair Automatic OCA Polarizer Film Applicator Machine For Phone Refurbish Laminating OCA Glue Polarizer Adhesive

1.Machine introduction

1.1G+F flap film laminating machine is touch screen and oca film laminating . When the oca film and glass alignment adjust is completed, press the start button, the flip table will turn over, and the motor will drive the platform forward for lamination.

1.2 This equipment is suitable for the lamination process of glass panel and film with size 500*700mm

1.3 Film laminating for 1pcs, the running time is 20 --30 seconds, can finish about 1200 pieces in 10 hours

1.4 Machine Size ：

Length: 1960mm Width：980mm Height：1060mm Gross Weight：About 600KG Suitable Air source：4-6Kg/cm2 Power：220V/1KW /50HZ

1.5 Main parts of the machine :

  1. Frame part: sheet metal, aluminum alloy
  2. Operation part: man-machine interface (PLC touch screen)
  3. Control part: man-machine interface PLC
  4. Pneumatic part: cylinder, solenoid valve, blower Fan
  5. Film laminating part : roller . flap platform
  6. Flip part : Servo motor, speed reducer

Просмотреть всю информацию

Frequently Asked Questions

What is the main function of the LCD Laminating Machine?
The LCD Laminating Machine is used for laminating OCA polarizer film onto LCD screens, which is essential for phone repair and refurbishment processes.
How large are the LCD panels that the laminating machine can handle?
This equipment is suitable for the lamination process of glass panels and films with a size of 500*700mm, making it ideal for standard LCD screens.
How many LCD screens can the machine laminate in a given time?
The machine can laminate approximately 1200 pieces in 10 hours, with each lamination taking about 20 to 30 seconds.
What are the technical specifications I should know before purchasing?
The LCD Laminating Machine measures 1960mm in length, 980mm in width, 1060mm in height, weighs about 600kg, and requires an air source of 4-6Kg/cm2 with a power supply of 220V/1KW at 50Hz.
What are the main components of the LCD Laminating Machine?
Key parts include the frame made of sheet metal and aluminum alloy, a PLC touch screen interface, pneumatic systems like cylinders and solenoid valves, and lamination components such as rollers and a flip platform with servo motors.
