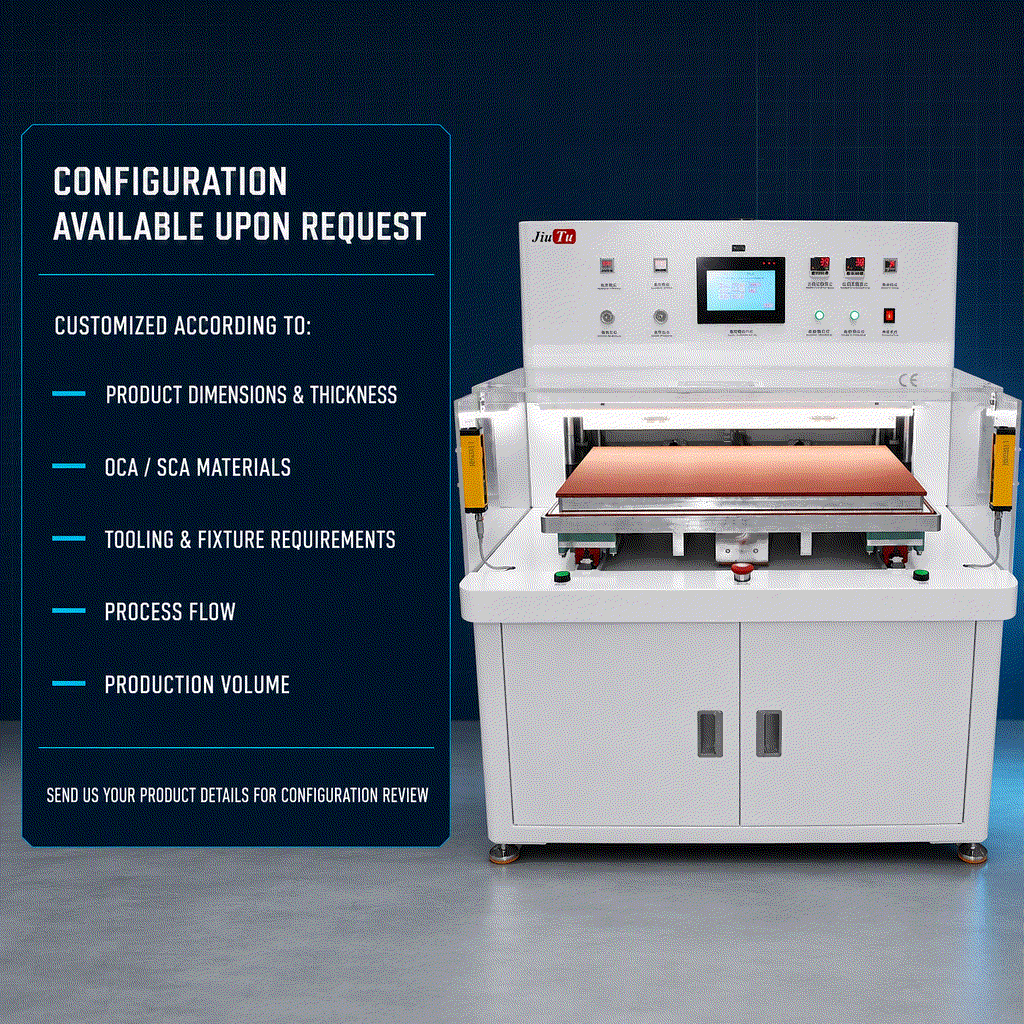

• Vacuum Laminating Machine in white with touchscreen and control buttons, featuring a brown laminating bed and safety handles
  • Vacuum Laminating Machine in white with integrated touchscreen, safety grating, protective dust cover, and emergency stop features

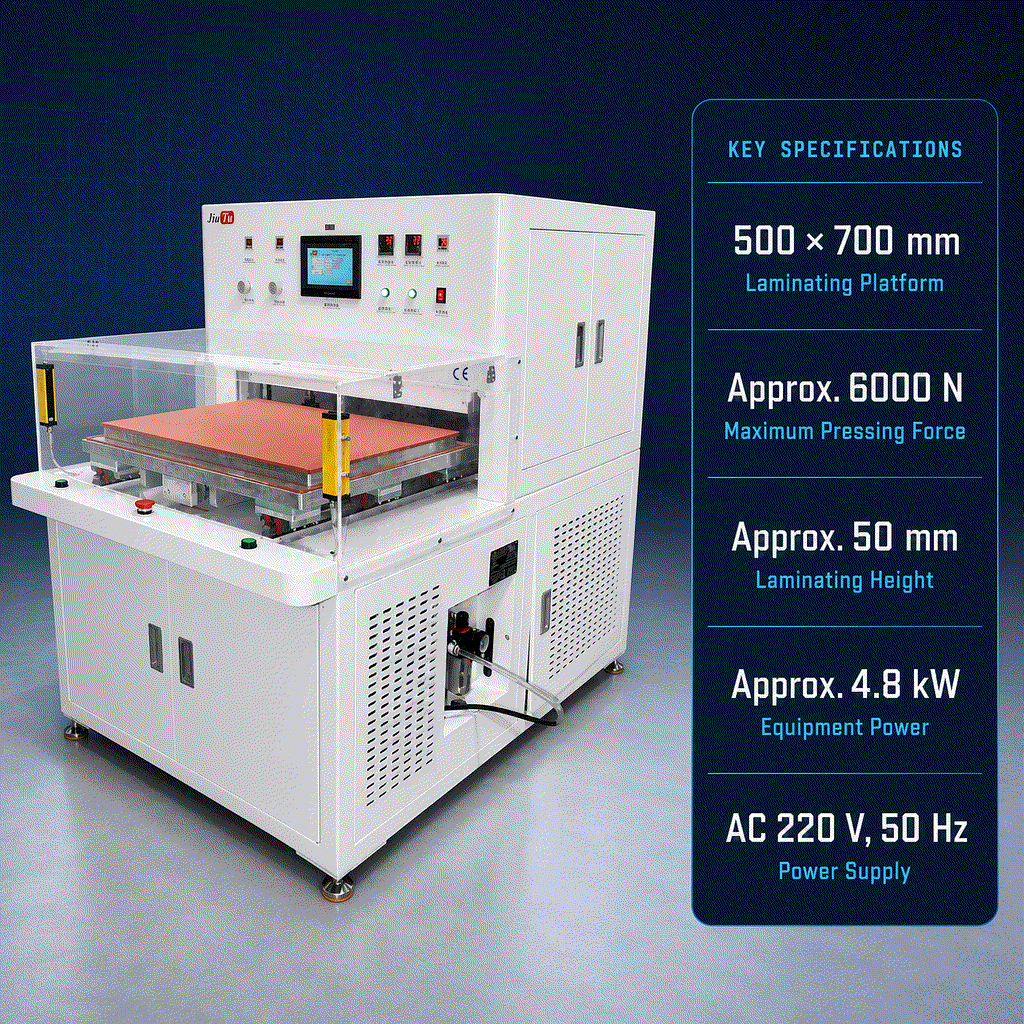

  • Vacuum Laminating Machine white industrial unit with touchscreen control, clear protective cover, and large flat laminating platform
  • Vacuum Laminating Machine in white with digital touchscreen, control buttons, and large flat working surface for lamination
  • Vacuum Laminating Machine with white metal body, touchscreen control panel, and large flat working platform for optical bonding
  • Vacuum Laminating Machine in white with a large 500x700 mm working platform, integrated touchscreen, and safety features
1 6

JiuTu Machine

SCA OCA Vacuum Laminating Machine 500x700mm with Dust Cover

SCA OCA Vacuum Laminating Machine 500x700mm with Dust Cover

$15,300.00 USD
$16,999.00 USD $15,300.00 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

Product Identity

The SCA OCA Vacuum Laminating Machine is a screen bonding and optical bonding machine with a 500 × 700 mm working platform and dust cover. It is designed for SCA (Super Clear Adhesive) and OCA (Optically Clear Adhesive) film lamination processes.

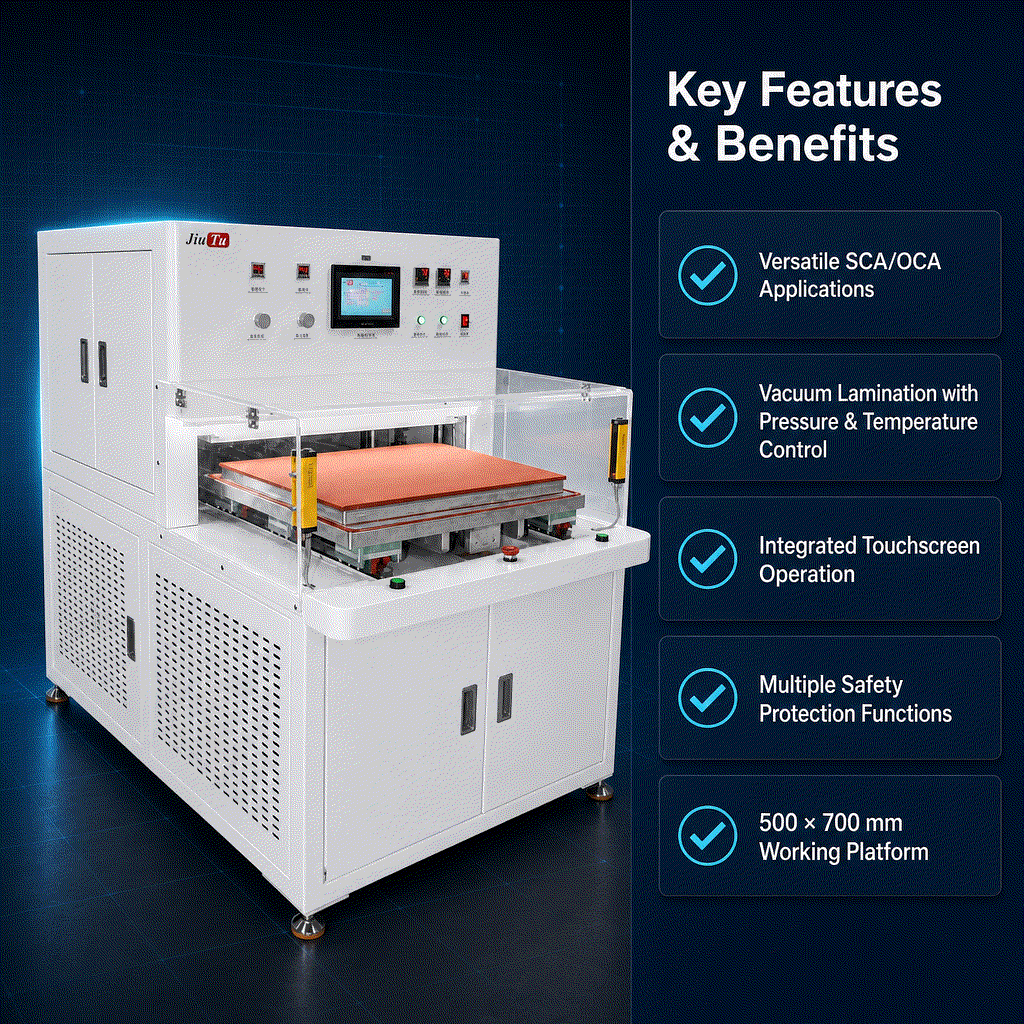

Features and Construction

  • 500 × 700 mm laminating platform for processing multiple workpieces per cycle.

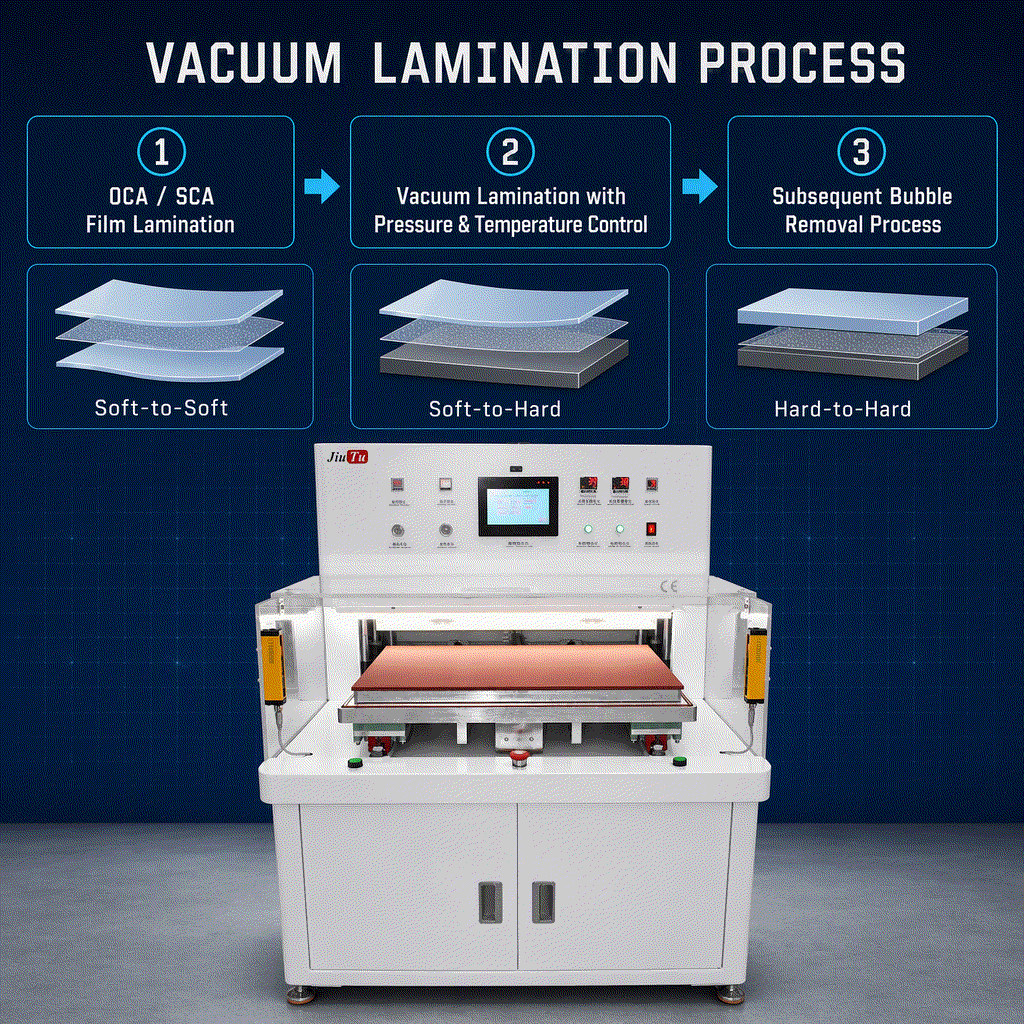

  • Vacuum lamination system with controlled vacuum, pressure, and temperature parameters.

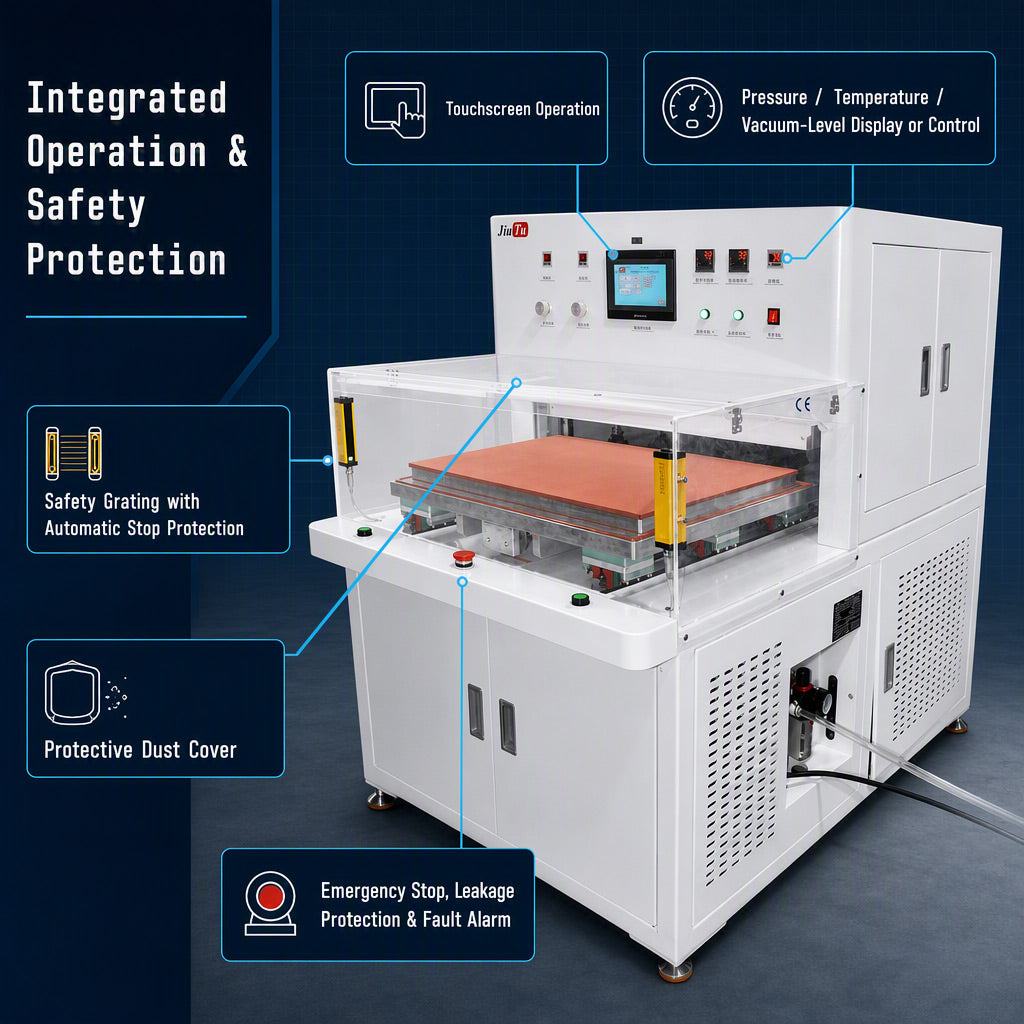

  • Integrated HMI touchscreen for parameter setting, production counting, and status monitoring.
  • Safety grating for operator protection during operation.
  • Emergency stop, leakage protection, and fault alarm functions.
  • Dust cover included for the laminating workspace.
  • CE certified.

Use Cases

This Vacuum Laminating Machine is intended for SCA/OCA adhesive-process lamination of display components. It is suitable for LCD, TP, LCM, and related display production or repair workflows requiring vacuum bonding with pressure and temperature control.

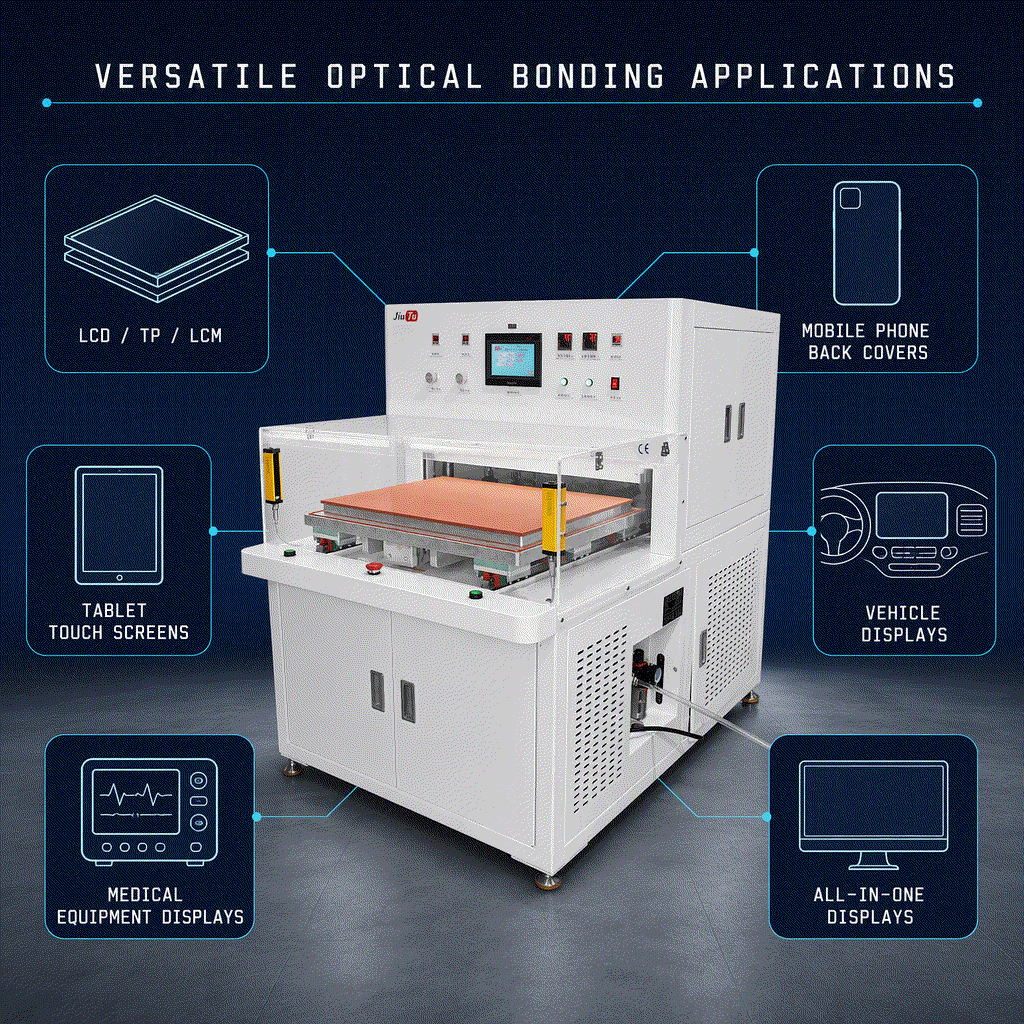

Compatible applications include flexible film and polarizer layers, segmented LCD panels, square and rectangular touch panels, round or circular display modules, multi-layer TP stacks, coffee machine and appliance displays, industrial HMI panels, vehicle navigation screens, and tablet or portable-device screens. It is suitable for display component manufacturers, screen bonding operations, appliance display production, vehicle display work, and portable-device display processing.

Included

The machine includes the 500 × 700 mm working platform, integrated touchscreen control, safety grating, and dust cover. No additional accessories or exclusions are specified.

Care and Support

No cleaning instructions or warranty information are specified. Follow the machine’s operating and safety procedures, including use of the emergency stop, leakage protection, and fault alarm functions.

vacuum laminating machine
OCA laminating machine
SCA laminating machine
optical bonding machine
screen laminating machine
LCD laminating machine
vacuum laminating machine Factory
Просмотреть всю информацию

Frequently Asked Questions

What types of adhesives can I use with this vacuum laminating machine?
This vacuum laminating machine supports both SCA (Super Clear Adhesive) and OCA (Optically Clear Adhesive) films, making it versatile for various lamination processes.
How does the machine ensure consistent bonding quality?
The machine features precisely controlled vacuum, pressure, and temperature settings that help achieve consistent optical bonding quality across different projects.
Can I operate the vacuum laminating machine easily?
Yes, it has an integrated touchscreen interface that allows for easy parameter setting, operation monitoring, and production counting, making it user-friendly.
What is the size of the working platform and how many items can I process at once?
The machine has a 500 × 700 mm working platform, which supports batch processing of multiple workpieces per cycle, increasing productivity.
What safety features are included with this vacuum laminating machine?
Safety is prioritized with features such as safety grating, emergency stop button, leakage protection, and fault alarms to safeguard operators and equipment during operation.
What types of adhesive films can I use with the vacuum laminating machine?
The vacuum laminating machine supports both SCA (Super Clear Adhesive) and OCA (Optically Clear Adhesive) film lamination processes, making it versatile for various display components.
How does the pressure and temperature control improve the lamination process?
Precisely controlled pressure and temperature ensure consistent optical bonding quality, resulting in clear, bubble-free lamination for your displays.
Is the machine suitable for processing multiple workpieces at once?
Yes, the large 500×700 mm working platform allows for batch processing of multiple items per cycle, increasing efficiency in production.
What safety features are included in the vacuum laminating machine?
The machine includes multiple safety protection functions such as safety grating, emergency stop, leakage protection, and fault alarm to ensure operator and equipment safety.
What display applications can this vacuum laminating machine be used for?
It is suitable for laminating LCDs, touch panels, vehicle navigation screens, industrial HMI panels, and various flexible films or multi-layer stacks used in display manufacturing.
