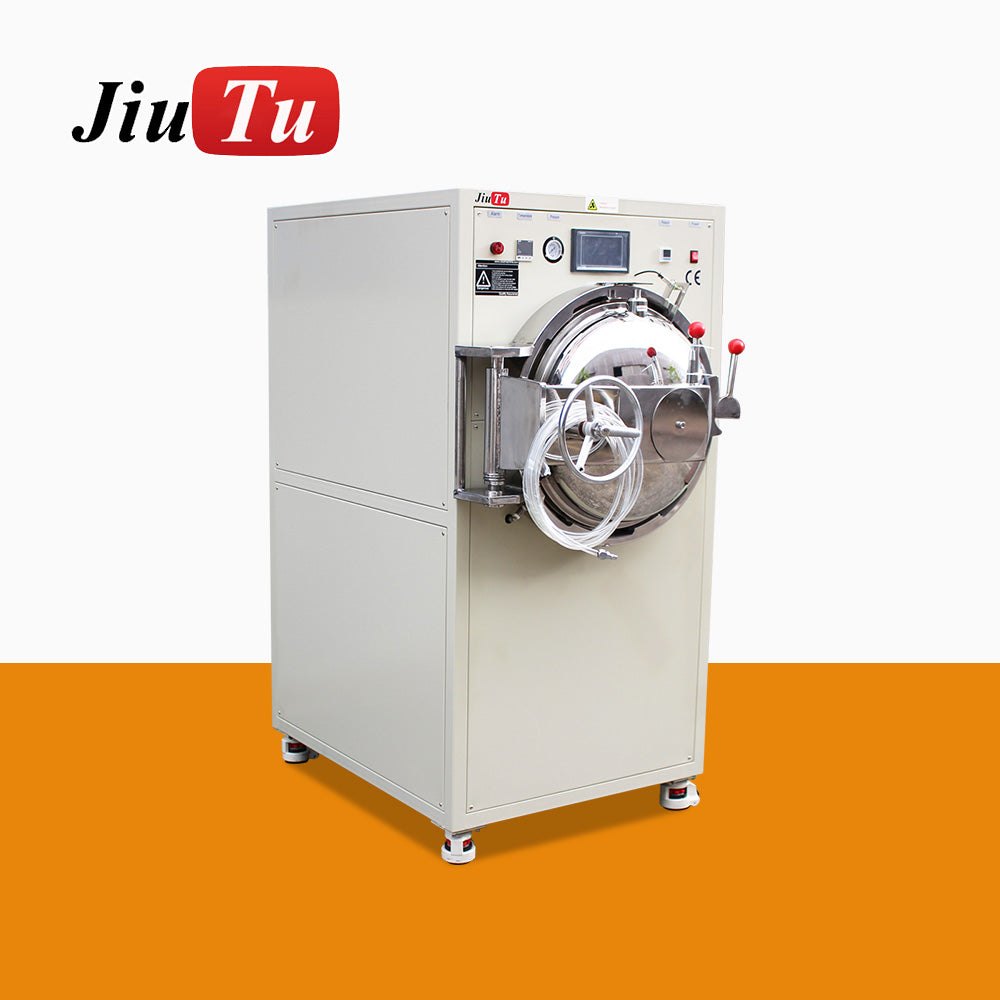

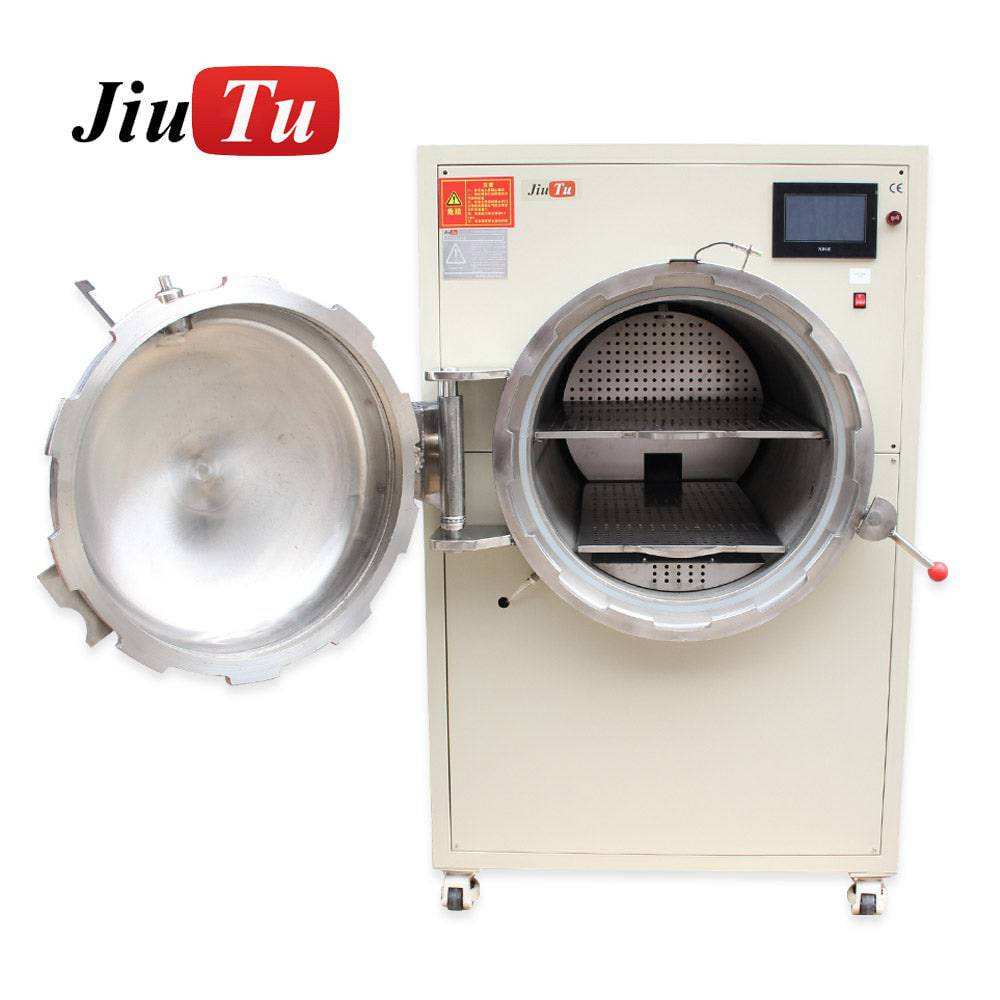

autoclave machine for sale

autoclave machine for sale Main Features : 1 This equipment is high pressure heating ITO+CG, FILM+CG, CTP+LCD module defoaming machine.--autoclave machine for sale 2.This equipment is suitable for the process of... Read more

Out of stock

paypalvisamasteramazon paymentsamerican expressapple paybitcoindankort
autoclave machine for sale

Main Features :
1 This equipment is high pressure heating ITO+CG, FILM+CG, CTP+LCD module defoaming machine.--autoclave machine for sale

2.This equipment is suitable for the process of defoaming it after hard-hard bonding (CG bonding) or assembly (CTP+LCD) process.--autoclave machine for sale

3. This equipment is for simultaneous temperature rise and boost.--autoclave machine for sale

1.1 Equipment introduction and purpose
1.1.1 : This equipment is a segmented high-pressure defoaming machine (bubble remover machine).--autoclave machine for sale
It’s widely used for electronics and optoelectronics industry, Removing air bubbles and vacuum bubbles--autoclave machine for sale
after vacuum lamination with optical glue SCA and OCA glue. Effectively improve product yield.--autoclave machine for sale

1.1.2 : Segmented high-pressure , both temperature and pressure can be adjusted by different segmented based on the actual product, max temperature is 80 degree , max pressure is 0.8Mpa--autoclave machine for sale

1.2 Equipment technical parameters
1.2.1 machine size :
length 1580mm width 1030mm Height 1700mm
1.2.2 Inner chamber size : Diameter 600mm Depth 900mm
1.2.3 Gross weight about 500KG
1.2.3 Safety pressure :0.8mpa
1.2.4 Volatge AC 220V

1.3 Equipment Installation
1.3.1 Power supply, to ensure the power supply demand AC220V 2000W.
1.3.2 Air supply to ensure the air pressure supply 0.8mpa.
1.3.3 Machine installation, 12 casters adjust the horizontal state, and the casters are locked and fixed.

1.4 Equipment maintenance
1.4.1 Circuit maintenance: check whether the circuit is loose or abnormal every 15 working days, Appropriate reinforcement if there is any abnormality

1.4.2 Air circuit maintenance; every 15 working days, check the air circuit for air leakage from the air pipe joints.
If there is any abnormality, repair and reinforce or replace it in time

1.4.3 Fan maintenance; manual debugging every 15 working days to check whether the fan is running abnormally, and
replace it in time if there is any abnormality

1.4.4 Add lubricating oil; manually open the door cover of the defoaming machine every 15 working days and add
lubricating oil to the movable place
autoclave machine for sale


P/N
9TU-M061
Model
56 inch Big Autoclave LCD Bubble Remover Machine
Function
Remove Rest Bubbles after Lamination for LCD Screen Refurbishing ,ok for big lcd screens
Application
Fit for All Smart Phone LCD Screen Under 37 inch , including martphone, iPad, Notebook, computer, ok for TV ,LED ,Advertise screen
, Bus Screen, Airplane screen, Car DVD Screen, industrial device screen repair
Air Compressor
Needed (Can share the same air compressor with OCA Vacuum Laminator )
Vacuum Pump
No Need
Voltage
220V /500W
Feature 1
New Design Door , More Safety and Convenient Without Screw Lock
Feature 2
Save time ,ok to put more then 100pcs LCD Screens together
Time
15--25 Mins , can adjust by yourself
Warranty
2 years
Packing
Customized Box for Shipping
After-service
Professional technical support will be provided until you can do with perfect results
Fast Delivery
Ship within 2 working days after payment is done
GW
850 KG
Autoclave Size
80 x 120 cm
