25/35/55/65/85 inch LCD/SCA/OCF/COF/OCA Laminating Machine Hot Melt Adhesive Glue Lamination Machine. Can be customized based on customer's requirements.
Machine Introduction:

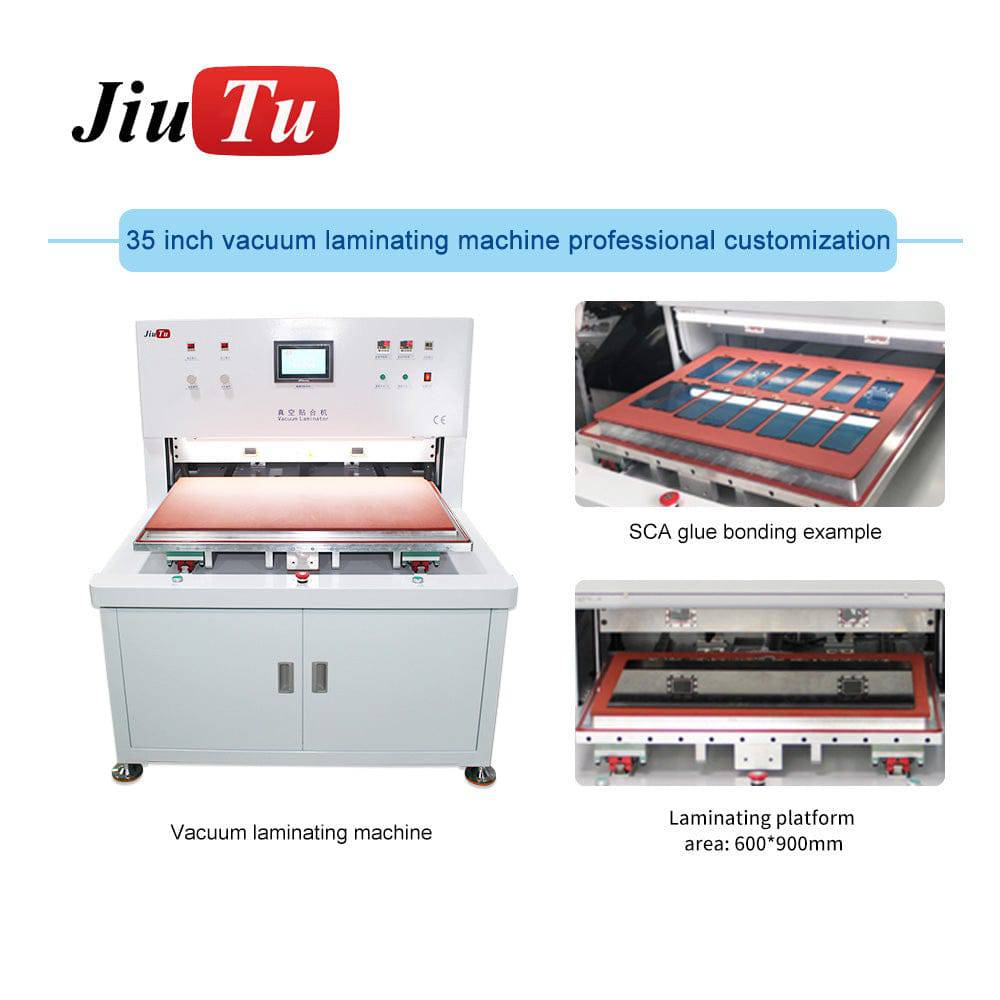

This Big vacuum laminator machine 9TU-M063 works for all LCD screens under 35 inches. It performs vacuum lamination for front glass with LCD screen as well as touch digitizer with LCD display. The device uses a PLC control system with touchscreen settings for easy operation. Once settings are configured, it can be set to auto run for convenient, stable working.
Main Features:
- OCA vacuum laminator fits for LCD Screen up to 35 inches, lamination area size 600×900 mm.
- Customized mold will be necessary based on the actual product.
- Works fast — only needs 25–40 seconds for each cycle.
- Fully automatic, easy operation.
- Works for LCD Screen Lamination for iMac, TV Screen, computer screen, Car DVD Screen, Aircraft screen lamination. Compatible with edge models too.
Specification:
- Using up and down heating, temperature can be set up to 100°C.
- The working platform can adjust the balance function.
- The maximum pressure can reach 1.2 tons.
- The action of the equipment is driven by a cylinder.
Working Principle: According to the product feature, you can do vacuum extraction first then start vacuum lamination, or if temperature is needed, you can wait for both the top and bottom plate to heat up and reach the set temperature, then do vacuum extraction and vacuum lamination.
Working Area:
- Mobile phone laminating
- SCA glue hot pressing lamination
- Car navigation lamination
- Laboratory research and development equipment
Frequently Asked Questions
Q1: What screen sizes does the OCA Laminator Machine support?
A: The Jiutu OCA Laminator Machine (P/N: 9TU-M063) supports LCD screens up to 35 inches with a lamination area of 600×900 mm. It is suitable for mobile phones, iMac screens, TV screens, computer monitors, car DVD screens, and aircraft screens. Larger models up to 85 inches are also available and can be customized based on customer requirements.
Q2: Does the OCA Laminator Machine require a mold?
A: Yes, a customized mold is necessary based on the actual product being laminated. The machine uses a PLC control system with touchscreen settings, making it easy to configure for different products. Once settings are saved, the machine can run automatically without repeated manual input.
Q3: How fast is the OCA Laminator Machine and what is the working cycle time?
A: The machine completes each lamination cycle in just 25–40 seconds. It is fully automatic with easy operation — suitable for high-volume production environments. The machine supports both cold press and heated lamination depending on the product requirements.
Q4: What are the power and pressure specifications?
A: The machine operates at 380V with a working rated power of 25KW. The maximum pressure reaches 1.2 tons (0.4–0.8 MPa). The working temperature range is from normal temperature down to -100°C. Machine dimensions are 2050×2358×1870 mm and net weight is 3500 kg.
Q5: What warranty and after-sales support does Jiutu provide?
A: The Jiutu OCA Laminator Machine comes with a 2-year warranty. Professional technical support is provided until you achieve perfect lamination results. Jiutu also offers customization services for different screen sizes and application requirements. Contact us for a factory-direct quote.
