A real repair bench almost never gets one clean, textbook bubble. More often, it gets a faint edge line that appears after the tray sits still, a cloudy patch in the middle that only shows after cooling, or a tiny hard point that refuses to change no matter how many times the chamber closes. That is why bubble LCD work is not really one problem. It is a reading problem first. Some defects should go to debubble immediately. Some should not. Getting that first decision right saves labour, reduces repeat handling, and makes the whole line feel calmer.
Quick answer
Usually debubble first
Soft edge silvering, mild centre haze after cooling, and delayed bubble-like marks that behave like trapped air.
Usually stop and inspect first
Hard bright dots, repeated corner geometry faults, and marks that stay sharp under every angle.
What matters most
Shape matters, but timing matters more. A warm panel can look fine and still fail five minutes later.
The biggest mistake on a busy bench is treating every visible defect as one category. It is not. Some marks are soft and delayed. Some are fixed and local. Some are really loading or support problems wearing the clothes of a bubble problem. So the first useful question is not “what setting should go up?” The first useful question is “does this panel need the chamber, or does it need the process checked before the chamber gets blamed?”
Clear position: the chamber should finish a basically sound bond. It should not be the automatic answer for contamination, repeated geometry trouble, or poor handling upstream. That one line keeps repair work cleaner, faster, and easier to diagnose.
Symptom map: what usually goes to debubble first
When the room is busy, a simple map is more useful than a long theory. The table below is built for the kinds of defects that actually slow a repair line down.
| Visible symptom | What it usually feels like | Debubble first? | Check this first |
|---|---|---|---|
| Soft edge silver line | Appears after the panel sits for a few minutes | Usually yes | Rest time, unload rhythm, edge support |
| Centre haze after cooling | Looks mild while warm, clearer after rest | Yes | Early inspection, cooling window, spacing |
| Single corner wedge | Looks local, sometimes random | Sometimes | Fixture contact, first-touch path, repeat location |
| Hard bright dot | Sharp and fixed no matter the angle | No | Cleaning, liner handling, surface inspection |
| Small scattered bubbles | Can behave like air or contamination | Depends | Do they soften or stay crisp after rest? |
| “Looked good at first” return defect | Passes warm, fails later on tray | Usually yes | Cooling delay, acceptance rule, cycle rhythm |
Soft edge silver line
This is one of the few defects that often deserves a calm debubble pass before anything dramatic happens. It usually looks pale, not hard. Under one lamp angle it shows clearly. Under another, it almost disappears. A lot of benches only notice it after the panel has been sitting quietly for a few minutes. That timing is the clue. Soft, delayed edge air often belongs to incomplete settling rather than contamination.
There is still one warning worth keeping close. If the same edge line keeps showing up on the same model or the same corner, the real issue may not be “more debubble.” It may be support margin or handling rhythm. Still, for one-off or soft delayed edge air, debubble first is often the right call.
Centre haze after cooling
Centre haze fools people because it rarely looks serious right away. The panel leaves the chamber looking nearly finished. Someone glances at it under ordinary light. Then the part cools, the background goes dark, and the middle starts looking cloudy. This is exactly the defect where patience matters more than drama. Often, the bond is close. It just has not fully settled yet.
That is why centre haze often belongs in debubble first, but only with discipline around cooling and inspection. The common mistake is not too little force. It is judging too early. A warm panel can flatter the result. Once that warmth fades, the real condition becomes obvious.
Corner wedge
Corner wedges sit in the grey zone. On one day, a corner wedge really is local trapped air. On another, the same shape is the first visible sign that support or laydown is wrong. The best clue is repetition. If it appears randomly, a debubble-first approach can be reasonable. If it keeps returning in the same place, the chamber is usually not the real conversation anymore.
Hard dot or bright point
This is where repair benches waste time. A hard dot looks small, so it feels cheap to rerun. In practice, it often points to contamination, prep trouble, or local damage. It stays sharp. It does not soften with angle or rest. That means inspection should come first. The chamber usually only adds handling and heat history.
Small scattered bubbles
These need a little more patience because the count does not tell the full story. A few tiny bubbles near a cut-out can still be trapped air. The same-looking group in a dusty zone can be contamination. The better question is simple: do they behave like air? If they soften after a proper cycle and real rest, they often do. If they stay crisp and fixed, they probably do not.
Judgment tricks that save time on the bench
Most useful judgment tricks are not dramatic. They are small, practical habits. They feel minor at 10 a.m. By late afternoon, they often decide whether the queue is still under control.
What stable benches do
They change the light angle, wait before final judgment, log repeat location, and treat the chamber like a finishing tool rather than a reflex.
What noisy benches do
They rerun quickly, judge panels while warm, and keep changing multiple things at once. That makes diagnosis slower, not faster.
Change the light angle before changing the settings
A screen can hide a lot under one comfortable viewing angle. Soft edge air often reveals itself when the surface catches light sideways. Hard contamination points usually keep their shape no matter how the light moves. That one habit stops a surprising number of wrong reruns.
Give the panel a quiet minute
A warm panel flatters itself. A quiet panel tells the truth. When a bench starts judging every screen the second it leaves the chamber, it starts confusing temporary calm with real stability. A short rest, then a second look, saves more time than it costs.
Watch repeat location, not just repeat shape
Two wedges can look similar while meaning different things. If the same defect keeps landing in the same corner, that matters more than the shape alone. Location is often the clue that turns a “maybe rerun” issue into a fixture or support issue.
Use a dark test screen when the result feels uncertain
Haze, edge silvering, and soft delayed defects often tell the truth more clearly against darker content. In ordinary room light, a borderline panel can look fine. On a dark background, it usually stops pretending.
- Check the mark under at least two light angles.
- Let the panel rest before calling it stable.
- Decide whether the defect feels soft or hard.
- Ask whether the same location failed recently on the same model family.
- Only then decide whether debubble is the right first move.
How to use the debubble step well
The easiest way to make a debubble machine feel ineffective is to ask it to solve every kind of defect. The second easiest way is to rush the sequence around it. So the useful question is not “what setting should be higher?” The useful question is “what kind of panel is entering the chamber, and what kind of judgment happens when it comes out?”
A calmer sequence usually works better. First, classify the defect. Second, send only the right defect family into debubble. Third, let the panel rest before final judgment. Fourth, avoid changing three things at once on the next run. That rhythm sounds plain. It is also what keeps repeat handling under control.
Do not over-handle soft edge air
Soft edge air often responds well when the workflow around it stays gentle. Too much rechecking, too much hurried handling, or too much panic after the first look makes the whole process noisier. A controlled pass and a real cooling pause usually help more.
Do not inspect centre haze too early
If one defect needs patience more than most, it is this one. The problem is often not lack of force. It is a pass decision made too quickly while the panel is still carrying warmth from the process.
Do not reward repeated corner trouble with extra reruns
Once a corner starts failing in a repeated way, the line needs to stop calling it random. Mature repair benches save labour here. They go back to support, fixture logic, or handling path instead of feeding the same geometry fault more cycles.
Be careful with “just a small dot” thinking
Small dots look cheap to chase. They rarely are. A fixed point usually does not become less fixed because the chamber door closes one more time. Inspection and cleaning review deserve the first move.
One more quiet truth matters here. Some “random” repeat bubbles are not random at all. They come from loading convenience. Parts go in too close. A wider panel gets placed awkwardly because the queue is building. Then the result gets blamed on parameters. That is why chamber fit and loading space matter more than people sometimes admit.
When machine fit becomes the real issue
A lot of shops live too long with equipment that is only half right for the job. The line still runs, so nobody wants to call it a mismatch. Operators adapt. Wider panels get loaded carefully, diagonally, or with extra habits that never get written down. It all feels manageable until repeat defects start clustering around one size range or one awkward part of the chamber.
That is when machine fit becomes the real conversation. Not because the old unit is bad. Simply because the daily work has moved somewhere else. A compact setup may still be excellent for phones and tablets. The same setup can start feeling strained once notebooks, bus displays, or industrial operator panels show up more often.
Three signs to watch: awkward loading starts feeling normal, mixed panel types need completely different handling moods, and repeat defects follow panel family rather than operator. When those three signs show up together, the machine is probably part of the story.
This matters for buying decisions too. A better equipment conversation does not start with “which machine looks more advanced?” It starts with “which repeat failure mode keeps showing up on the bench?” That is the question that links investment to actual yield improvement.
How to match machine type to work type
Selection gets easier when the work is described honestly. A compact phone-first bench does not need the same answer as an industrial display rework line. An edge-repair station does not need the same answer as a mixed queue full of broader bonded assemblies.
Compact debubble setup
Best when the room mainly handles phones and tablets, floor space is tight, and repeatable small-screen flow matters most.

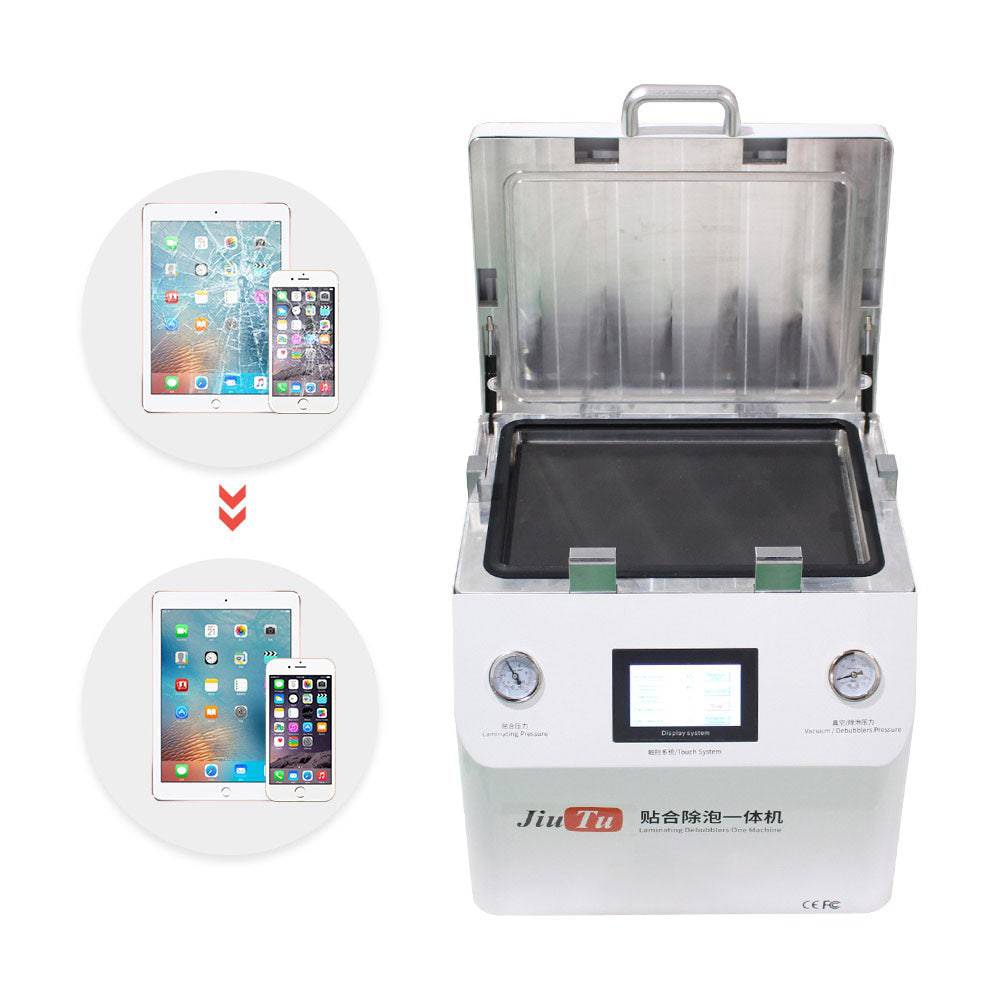

All-in-one edge-repair setup
Best when the station wants fewer handoffs and a tighter lamination-plus-debubble workflow.

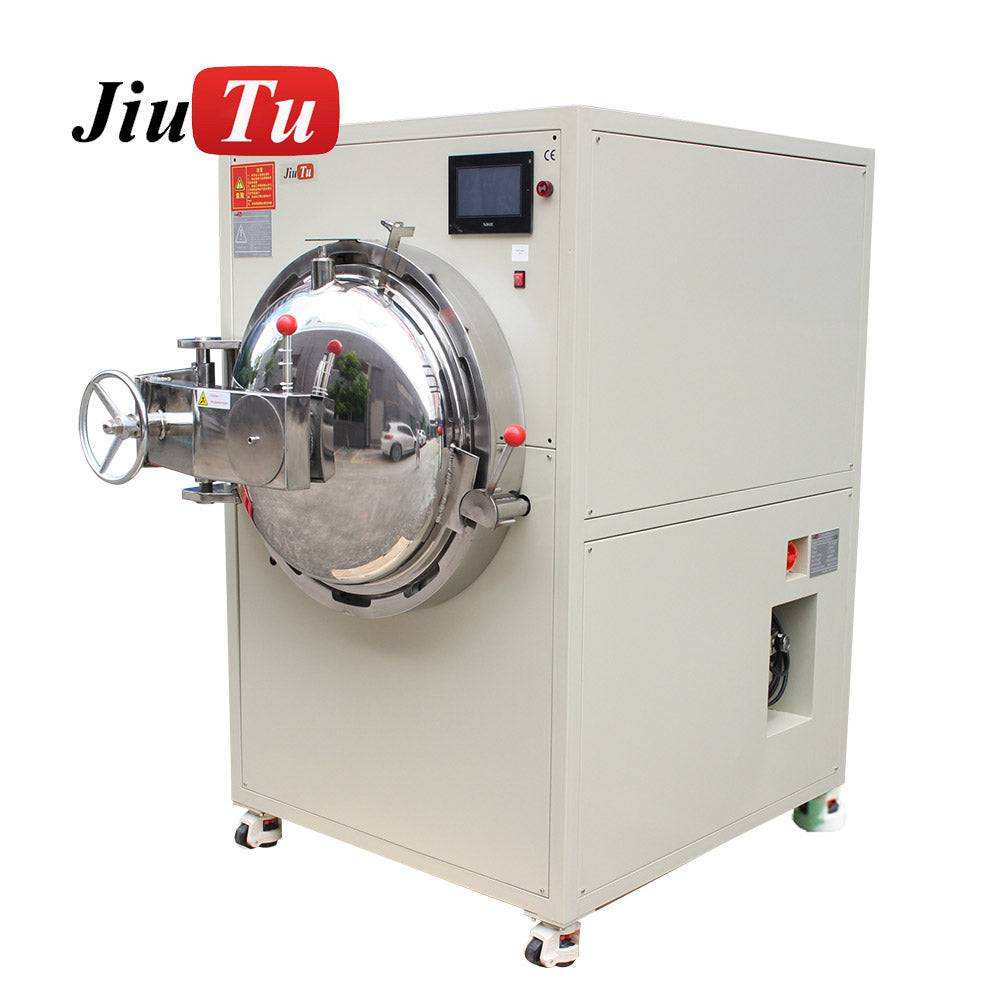

Larger autoclave setup
Best when broader screen types need more comfortable loading and more natural support inside the chamber.

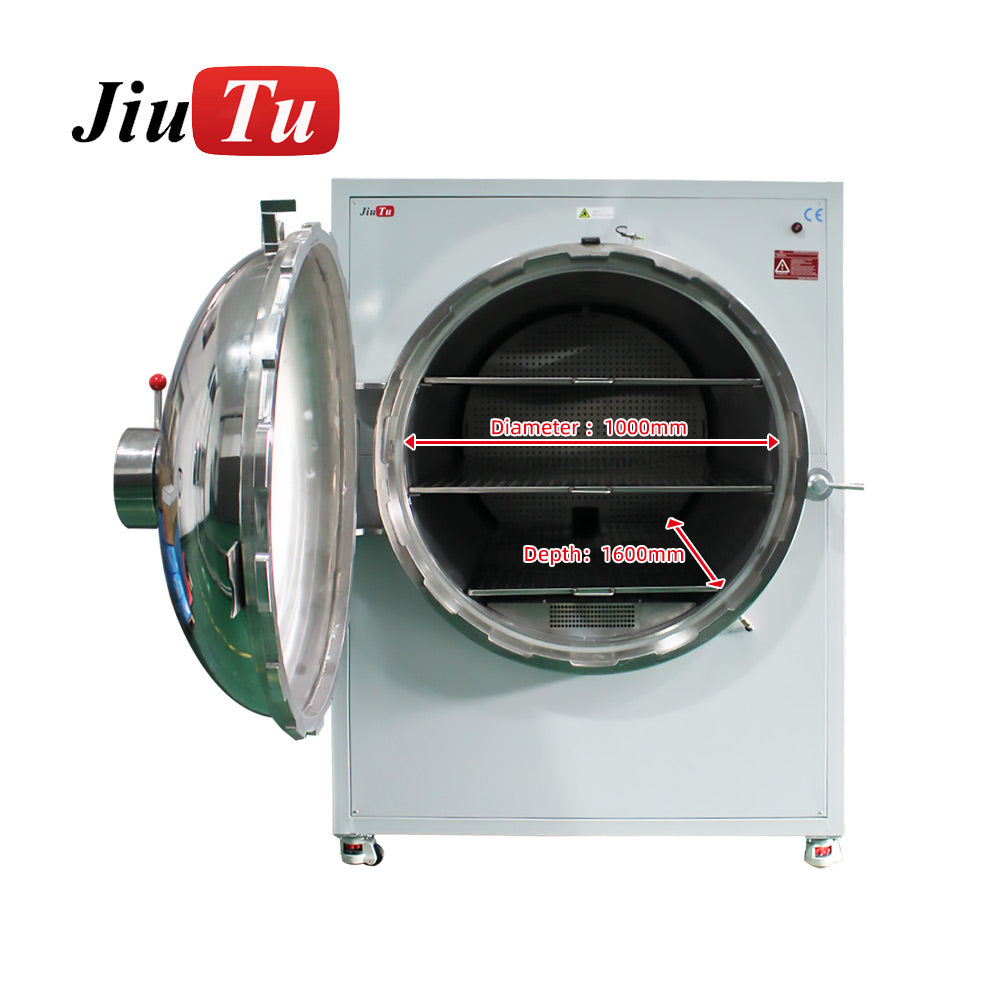

Industrial segmented setup
Best when operator panels, HMI screens, or larger assemblies need more chamber authority and more stable control.
If the bench is still mostly handsets, a compact bubble LCD repair machine route keeps the process simple. If the work is mostly edge repairs and fewer handoffs matter, the LCD repair machine route becomes easy to understand. Once the queue becomes physically broader, a larger OCA bubble remover machine starts to feel less like extra capacity and more like a process correction.
Industrial display work changes the tone of the whole process. The parts are broader. The tolerance for improvisation is lower. A setup that feels perfectly fine on phones can start feeling small, blunt, or overly manual once larger operator panels become regular work. That is where a more industrial-format solution earns its place.
FAQ
Which defect usually deserves debubble first?
Soft edge silvering, mild centre haze after cooling, and delayed bubble-like symptoms that behave like trapped air usually deserve debubble first. They tend to look softer, appear later, and respond to a more stable finishing step.
Why do some panels look good right after the chamber and fail later?
Because warmth can flatter the result. A panel that leaves the chamber still warm may hide haze or edge air for a short time. Once it cools and sits quietly, the real condition becomes easier to see.
Should every corner wedge go back into debubble?
No. A random corner wedge may be worth a controlled rerun. A wedge that keeps returning in the same place usually points toward support, fixture, or handling logic and deserves upstream checking first.
When does a larger bubble remover really help?
A larger machine helps when awkward loading, tight support margin, or a broader panel mix has become part of normal work. The benefit is not only capacity. It is calmer placement and less compromise around larger assemblies.
Is an all-in-one machine always the better choice?
Not always. It is a strong fit for tighter edge-repair work where fewer handoffs matter. Once the queue becomes more mixed or more industrial, a broader chamber or more segmented setup can become the better answer.
A practical closing view
The useful question in bubble LCD work is not whether the chamber can make a mark look better for a minute. The better question is whether the mark belongs to a bond that is basically sound and simply not settled yet. If the answer is yes, debubble first usually makes sense. If the answer is no, another cycle often delays the real diagnosis instead of improving it.
For machine matching, pricing, or a more suitable setup for phone refurbishment, edge repair, broader screen work, or industrial operator panels, Jiutu can be a clearer next step when the defect pattern is already understood.
