High Pressure Bubble Remover for OCA Lamination

At 9:10 in a repair room, one tiny bubble near the black edge can stop a whole OCA lamination batch. However, the real problem is rarely just “air inside the screen.” A High Pressure Bubble Remover works best after the defect has already been read correctly: center air, edge residual bubbles, dust dots, pressure marks, alignment shift, curved glass stress, or poor fixture support.

In other words, the pressure chamber is not a magic rescue box. It is the last controlled step in a better bonding workflow. The cleaner the lamination, the better the bubble removal result.

Bubble Types: Read the Defect Before Changing the Machine

In OCA lamination, a visible dot is not always a bubble. For example, a round silver spot under side light may be trapped air, while a black pin near the polarizer edge often comes from dust. Therefore, the first useful move is not changing pressure. It is looking at the defect under the right light.

At the bench, tilt the panel about 30 degrees under a strong white lamp. If the mark changes shape, shines like a small lens, or becomes smaller after a mild cycle, it may respond to OCA bubble removal. However, if the dot stays sharp and dark, the cause is probably contamination, adhesive damage, or a scratch.

This judgment matters because pressure cannot remove hard dust. It can compress and help dissolve trapped air, but it cannot make a dirty adhesive layer clean again. In a 20-piece batch, this one check can save a long afternoon of repeated cycles.

Small center bubbles after OCA lamination

Small center bubbles usually appear after the first lamination pass. They often sit in the middle of a phone display, tablet panel, POS screen, or small industrial LCD. Meanwhile, they may look harmless on a white image and become obvious on a black test image.

In many cases, the cause is air trapped between the OCA film and the glass or LCD surface. The lamination step has already joined the layers, but a small amount of air remains inside the adhesive. Therefore, pressure chamber defoaming becomes useful at this stage.

Still, a large center bubble should raise a warning. It may come from poor vacuum, fast film placement, uneven pressing, or a panel that was not sitting flat. A stronger cycle may reduce the bubble, but it should not hide weak lamination practice.

Edge bubbles near the black border

Edge bubbles are more frustrating because they often return after the panel cools. A screen can look clear at 2 p.m., then show a thin silver line near the edge at 4 p.m. Also, the defect may appear near the FPC side, curved glass corner, or black ink border.

The reason is usually weak wetting at the edge. Maybe the OCA film was cut too close. Maybe the mold did not support one corner. Or maybe the glass curve left a tiny height difference that the first pressing step did not solve.

Therefore, edge bubbles need a calmer judgment. Check the OCA cut, the fixture pressure line, and the glass shape before extending the debubble time. Otherwise, the same corner will fail again.

Dust points that look like bubbles

Dust points are easy to misread, especially on glossy cover glass. Under a lamp, a tiny particle can create a bright ring, so it may look like a bubble for a few seconds. However, the edge of that dot is usually too hard and too stable.

A useful check is simple. View the same defect under white, black, and gray test images. If the mark stays in one position and has a fixed dark center, the problem started before pressure treatment.

In that case, the line should review cleaning, film peeling, hand position, ion air, and the time the adhesive stays exposed. One careless peel at 11:30 can damage the next 10 screens.

Pressure marks and false haze

Pressure marks are different from bubbles. They may appear as faint shadows, cloudy patches, or repeated lines that match a tray, spacer, or fixture edge. Meanwhile, they often become easier to see on a gray image.

This is why the inspection image matters. A bright white screen hides many issues, while gray reveals haze, shadow, and weak wetting. Therefore, final QC should never depend on one white image only.

If the mark follows the fixture shape, stop increasing pressure. Instead, check the support pad, mold flatness, panel thickness, and whether the glass touched a hard edge during loading.

Pressure Chamber Logic of a High Pressure Bubble Remover

A High Pressure Bubble Remover works by surrounding the bonded assembly with controlled pressure. Unlike a flat press, the chamber applies pressure around the panel, so trapped air has less space to remain visible. In many OCA workflows, mild heat also helps the adhesive relax.

However, the pressure chamber is not the whole bonding process. It is usually the step after vacuum lamination, not a replacement for clean OCA handling or accurate alignment. That point sounds basic, but it decides whether the line becomes stable.

For example, if a touch panel shifts 0.4 mm during lamination, the chamber may remove bubbles but cannot move the panel back. So alignment problems need CCD alignment, a better positioning jig, or a tighter loading routine before the debubble step.

OCA Bubble Remover Machine for post-lamination defoaming View Product

When the chamber can solve the visible problem

The chamber is most useful when the first lamination is basically good. The layers are aligned, the OCA film is clean, and the remaining bubbles are small or moderate. In that situation, pressure and heat can finish the bond more evenly.

A practical test is to run three panels with the same defect pattern. After the cycle, inspect them after 10 minutes, then again after cooling. If the result stays clean, the process is close to stable.

If the same edge bubble returns every time, the chamber is only exposing another weakness. The mold, OCA size, glass curve, or edge support needs a second look.

When CCD alignment should come before debubble

CCD alignment becomes important when the black border is narrow or the active display area sits close to the glass edge. A 0.2 mm shift may not matter on one rough test panel, but it can look obvious on a finished touch display.

Also, alignment matters more on panels with icons, printed borders, camera holes, curved edges, or irregular glass shapes. In those jobs, debubble quality and visual position must be managed together.

Therefore, the right equipment plan often combines lamination, alignment, fixture, and pressure chamber steps. The bubble remover finishes the optical bond; it does not correct every earlier decision.

Time and Temperature: Small Adjustments, Clearer Results

Time and temperature are easy to turn into a parameter table, but the real question is simpler. What does the defect do after the panel cools? If the bubble disappears warm and returns cold, the cycle is not fully solving the cause.

Meanwhile, higher settings are not always safer. Too much heat can stress films or make some stacks more sensitive. Too much pressure can leave marks when the fixture is not prepared well.

A better habit is to change one thing at a time. Adjust time first, record the result, then adjust temperature only if the pattern makes sense. This keeps the process readable.

How to judge cycle time

Shorter cycles may work on small phone screens, especially when the lamination step is already strong. However, thicker OCA, larger panels, or stubborn edge bubbles often need more time inside the chamber.

The key is not chasing one perfect sample. Instead, run a small group with the same defect, then inspect after 10 minutes and after full cooling. That second inspection often tells the truth.

If bubbles shrink but return at the same border, longer time may only delay the problem. In that case, check OCA wetting, edge pressure, and the fixture line.

How to judge heat

Heat helps OCA flow and relax, so it can improve small gap filling near edges. However, every display stack reacts differently. A phone screen, car display, rugged panel, and monitor assembly should not share one blind habit.

A simple record sheet is enough. Write down panel size, OCA thickness, glass thickness, pressure, time, temperature, and the defect result. After three or four batches, patterns become visible.

For example, if haze appears only after raising temperature, the line should not keep pushing heat. It should review adhesive behavior, spacer material, and the cooling step.

Cover Glass Bonding: Why Edge Bubbles Need a Different Eye

Cover glass bonding creates a very specific kind of pressure problem. The glass may look flat on the table, but the black border, ink step, corner curve, and camera cutout can change how the adhesive wets the surface. As a result, bubbles often gather where the eye least wants to see them.

In smartphone and tablet refurbishment, the common pattern is a clean center with one weak edge. This does not always mean the pressure chamber failed. Often, the edge did not receive enough support during lamination, or the OCA film did not extend cleanly into the border area.

Therefore, cover glass bonding should be checked as a stack. The glass, OCA, touch layer, LCD module, fixture, and debubble cycle all affect the final result. A single setting cannot fix a stack that was built unevenly.

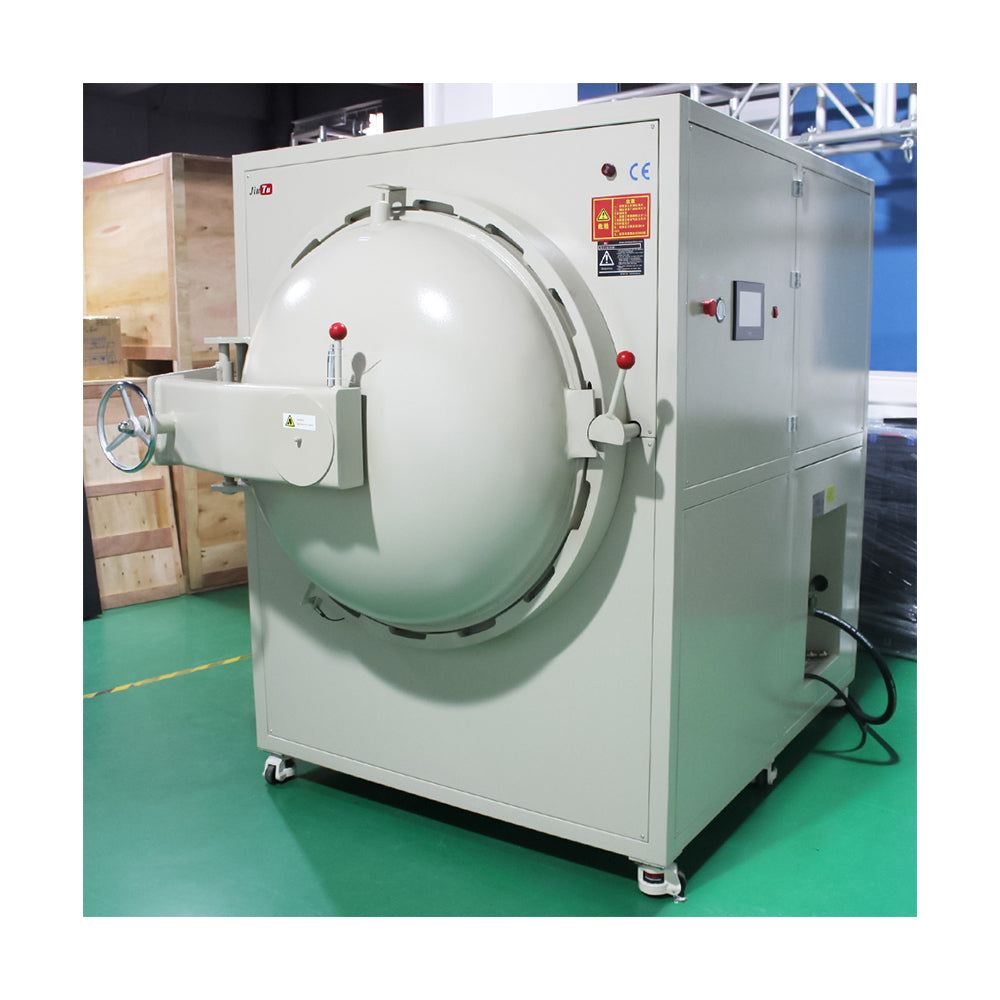

LCD Panel Cover Glass Bonding Bubble Remover View Product

How to judge whether the problem is edge wetting

Edge wetting problems usually return in the same location. For example, the left lower corner may show a thin bright line after cooling, even when the center is perfect. That pattern points toward the edge structure, not random trapped air.

A good inspection method is to mark the defect location on the protective film. Then compare three panels from the same batch. If the mark repeats near the same edge, check fixture support and OCA cutting before changing chamber settings.

Also, inspect the edge under gray image mode. Gray backgrounds show weak wetting and faint haze better than white. This is a small habit, but it catches many defects before packing.

How to judge whether the fixture is too hard

A hard fixture can create clean bubbles and ugly marks at the same time. It may press the center strongly, while one corner receives a sharp force from the support edge. The result is a strange mix of bubble removal and pressure shadow.

To check this, place a blank sample in the fixture and press lightly near each corner. If the glass rocks, the support is uneven. If one area touches a hard edge, add softer support or adjust the mold before running more panels.

In repair rooms, this check often feels too slow. However, it is faster than repeating a failed cycle five times and still seeing the same mark.

Large LCD Panels Need a Different Handling Mindset

A large LCD panel is not just a small screen with bigger measurements. The glass flexes more, the adhesive area is larger, and one small tilt during loading can create stress before the pressure cycle begins. Therefore, large panel debubble work needs slower handling and better support.

In a large-format job, chamber size is only one part of the question. The tray, fixture thickness, door clearance, air supply, and safe working space around the machine all matter. A tight fit may slow the line every single cycle.

For advertising displays, monitor panels, industrial screens, and vehicle displays, the practical goal is not only removing bubbles. The goal is moving a fragile assembly through the whole process without adding stress, dust, or edge damage.

Large Sized LCD Laminating Bubble Removal View Product

How to judge working area

Measure more than the display size. Add fixture height, tray clearance, hand space, and the angle needed to load the panel safely. A 600 mm wide panel may need much more than 600 mm of comfortable chamber space.

Also, think six months ahead. If the line may move from phone panels to tablets, then to monitors or automotive displays, a chamber chosen only for today can become a bottleneck quickly.

This is not overbuying. It is process planning. A machine that saves 30 seconds per loading step can matter when the line repeats that action 80 times a day.

How to judge large-panel support

Fixture support is easy to overlook because it does not look exciting. Still, it decides many edge defects. A slight gap near one corner can create the same bubble pattern every afternoon.

A quick paper test helps. Place the panel in the fixture, then slide a thin paper strip near each edge. If one side moves freely while another side grips tightly, pressure transfer is not balanced.

Curved glass needs even more care. A flat support may press the middle well but leave curved sides weak, so edge bubbles may appear even after a normal chamber cycle.

Batch Workflow: Put Debubble in the Right Place

A stable line treats debubble as one step in a larger process. Cleaning, OCA placement, vacuum lamination, pressure chamber defoaming, cooling, and QC inspection should follow the same order every time.

Meanwhile, busy rooms create small mistakes. One panel waits on a dusty cart, one adhesive sheet is peeled too early, and one operator loads a screen before the fixture is checked. Those moments become visible later.

Therefore, the workflow should be boring in a good way. Same bench, same lamp, same tray, same inspection step. Boring routines create cleaner screens.

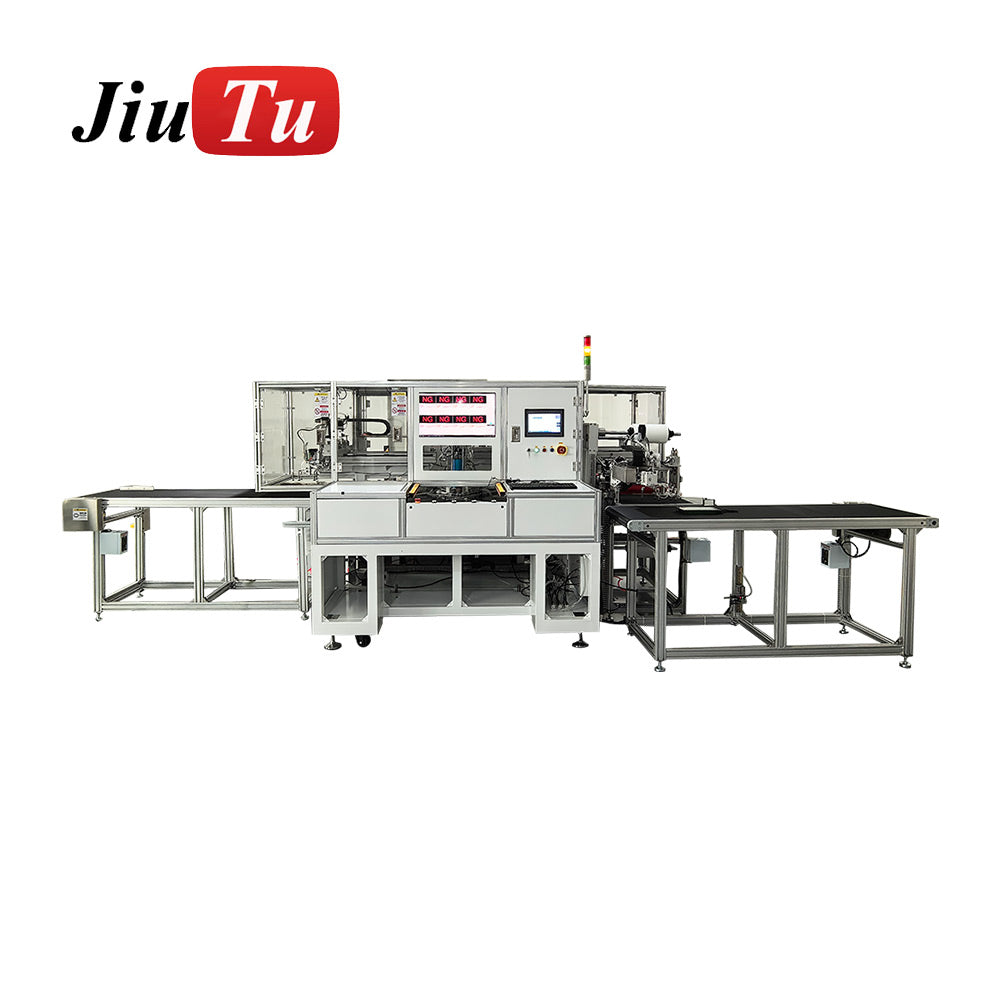

Automated Screen Lamination Line for batch OCA workflow View Product

Cleaning before lamination

Cleaning decides more than most teams want to admit. A single lint fiber near the black border can waste the next debubble cycle. Also, finger pressure near the edge can leave an oil pattern that looks like poor adhesive flow.

Use one direction for wiping, then inspect under side light. Do not keep changing the angle, distance, and cloth type every batch. If the method changes each time, the cause becomes harder to find.

In real work, the bottom right corner often tells a story. If dust keeps appearing there, check the peeling direction, hand position, and airflow from that side of the bench.

Vacuum lamination before pressure chamber

Vacuum lamination sets the foundation. If the OCA film lands with wrinkles, offset, or trapped air at the first step, the pressure chamber has to fight a problem that should not be there.

A TP+LCM assembly needs steady positioning, clean surface contact, and enough support under the panel. Otherwise, the final display may be clear in the center but weak near the edges.

The best debubble result usually starts before the debubble machine. That sounds less dramatic, but it is the honest answer on most OCA lines.

Cooling and QC after the chamber

After pressure treatment, the panel should rest before final judgment. A warm assembly may look perfect for a few minutes. However, a weak edge can show itself after the adhesive cools and stress settles.

Use three test screens: white, black, and gray. White catches dust and obvious spots. Black shows silver bubbles. Gray reveals haze, pressure marks, and uneven wetting.

Also, record the result by batch. If the same defect appears on every fourth panel, the issue may connect to loading rhythm, fixture contamination, or a repeated handling step.

Adhesive and Fixture: The Quiet Parts That Decide the Result

OCA film choice affects bubble behavior more than it first appears. A thin adhesive may work well on flat glass, while a thicker layer can help fill small gaps in some display stacks. However, thicker film can also hold more trapped air if pressing is weak.

Therefore, adhesive should be treated as a process material, not just a sheet. Storage, cutting, peeling, dust exposure, and film thickness all change the final result.

OCR or liquid optical adhesive behaves differently. It brings flow, overflow, curing, and edge control into the discussion. In mixed workshops, label OCA and OCR sample trays clearly, especially during evening shifts.

How to judge OCA thickness

OCA thickness should follow the real stack. Flat cover glass, slight curve, thick touch panel, and uneven LCD frame can require different behavior from the adhesive. A film that works on one phone model may not suit a rugged industrial panel.

In a test, compare two pieces with the same panel and different OCA thickness. Keep the lamination and pressure chamber cycle the same. If one sample shows edge return after cooling, the adhesive may not be matching the gap.

Also, watch for cutting quality. A rough OCA edge can trap air or create edge lift. A clean cut often looks boring, but it makes the later debubble step easier.

How to judge fixture fit

A fixture should support the panel without pressing fragile points. Around FPC exits, speaker openings, camera holes, and curved corners, support must be careful. A hard edge in the wrong place can create a pressure mark.

Therefore, fixture checking should happen before batch production. Place a blank sample, check contact around the border, and inspect whether the panel rocks when touched lightly at each corner.

If the fixture is wrong, the bubble remover will be blamed unfairly. In reality, the machine may be finishing exactly what the fixture allows.

Common Mistakes That Make OCA Bubble Removal Harder

Many rework problems come from small habits rather than one big failure. A panel waits too long before lamination. A fixture is wiped only at the beginning of the day. A defect photo is taken under weak light, so the real pattern stays hidden.

The good news is that most of these problems can be made visible. Once the line separates dust, trapped air, edge wetting, alignment shift, and pressure marks, the process becomes much easier to control.

Mistake 1: treating every defect as trapped air

This mistake wastes the most time. A dust point goes through one cycle, then another, then another. Meanwhile, the dot stays exactly the same because it was never air.

Instead, inspect under side light before loading the chamber. If the mark has a hard center and does not change with angle, stop and review cleaning. This saves pressure chamber time for real bubbles.

Mistake 2: increasing pressure before checking the support

When an edge bubble returns in the same position, more pressure may sound tempting. However, the better move is checking the fixture. The panel may not receive stable support at that edge.

Use a quick fixture check before changing settings. Look at corner contact, glass curve, spacer height, and whether the panel sits flat. If the support is wrong, stronger pressure can create new marks.

Mistake 3: mixing too many defect types in one test

A mixed batch gives confusing answers. If five screens have dust, five have center air, and three have pressure marks, one cycle cannot explain the result clearly.

Instead, group panels by defect type. Run the same cycle on three similar pieces. The result will show whether the setting works or whether the cause is somewhere else.

Mistake 4: inspecting only when the panel is warm

Warm inspection feels efficient, but it can lie. The adhesive may look smooth while it is still relaxed. After cooling, edge stress and weak wetting become visible again.

Add a cooling pause. Even 10 to 15 minutes can show whether the bond is stable. This small delay is better than packing a panel that returns with a visible edge line.

Mistake 5: choosing by machine name only

A machine name does not explain the whole process. A small repair bench, a tablet refurbishment room, and a large industrial display line may all need bubble removal, but they do not need the same setup.

Therefore, selection should start from panel size, adhesive type, glass shape, defect pattern, daily quantity, and fixture condition. The machine should fit the process, not the other way around.

Practical Checklist Before Choosing the Setup

Before choosing a High Pressure Bubble Remover, collect a few details from the real workbench. This does not need a long report. A short list and three clear defect photos are often enough for a serious discussion.

Also, avoid choosing only by the largest number on a product page. Chamber size, working clearance, fixture thickness, panel type, and batch rhythm all affect the result in daily use.

How to Match the Machine to the Work Scenario

A phone repair bench usually cares about speed, repeatability, and small-screen output. A module plant may care more about process records, fixture changes, and stable results over a full shift. Meanwhile, a large display workshop may care most about safe loading and panel support.

That is why the same equipment category can lead to different choices. The correct setup depends on the defect pattern, display size, OCA or OCR choice, and how the panels move from one station to the next.

For process planning, JiutuStore display repair and bonding equipment can be reviewed by workflow stage: lamination first, bubble removal next, then cooling and QC. This way, the equipment plan follows the real production path.

Phone and tablet repair rooms

For phone and tablet work, the main pressure comes from repeated small batches. The screen size is smaller, but the handling frequency is high. A small mistake can repeat 50 times before lunch.

Therefore, the setup should make loading fast and inspection consistent. Keep sample trays clean, separate defect types, and avoid placing fresh OCA panels near dusty tools or old adhesive scraps.

In this scene, the bubble remover should support stable post-lamination output. The main focus is not dramatic power; it is repeatable defoaming without adding new marks.

Display module plants

Module plants usually need clearer records. A process engineer may compare defect photos from Monday and Thursday, then ask why edge bubbles moved from one corner to another. That question needs data, not guesses.

Therefore, record cycle time, temperature, pressure, panel size, adhesive type, and fixture version. When the defect changes, the line can trace what changed before it.

The High Pressure Bubble Remover becomes part of a repeatable process here. It is not just a repair tool; it is a controlled station between bonding and inspection.

Large display and industrial screen work

Large displays need slower handling and stronger fixture thinking. A big panel may look simple when it lies flat, but one corner can flex during loading. That flex can create edge stress before pressure treatment even starts.

Also, large panels often use thicker support trays or custom molds. The chamber should fit the whole working assembly, not only the glass size. Clearance matters more than it looks on paper.

For these jobs, ask Jiutu to match the High Pressure Bubble Remover with panel size, glass thickness, adhesive type, daily quantity, fixture photos, and defect photos. The answer will be more useful than a generic model choice.

A Natural Selection Path Without Guesswork

The best selection path starts with the defect, not the machine name. Identify whether the visible issue is trapped air, edge return, dust, haze, pressure shadow, or alignment shift. Then connect that issue to the exact process step.

If the defect is trapped air after clean lamination, pressure chamber defoaming makes sense. If the defect is dust, return to cleaning. If the defect is shift, review alignment. If the defect follows a corner, check the mold.

This approach is less flashy, but it reduces waste. It also makes equipment communication easier because the discussion is based on photos, panel details, and process facts.

What to prepare before asking for a setup

Prepare one sample description with exact panel size, cover glass thickness, adhesive type, defect location, and expected daily quantity. Add three photos: full front view, side-light view, and close-up edge view.

Also, include the current workflow if there is one. For example, note whether the panel is cleaned by hand, laminated by vacuum, loaded on a tray, cooled for 10 minutes, or inspected immediately.

These details help Jiutu match the machine to the actual screen, not only the product category. It also helps avoid choosing a chamber that is too small for the fixture or too limited for future panel sizes.

FAQ: OCA Bubble Removal and Pressure Chamber Selection

Final Note: Make Debubble a Controlled Step

OCA bubble removal becomes easier when the line stops guessing. A bubble near the center, a silver edge line, a dust dot, and a pressure mark do not ask for the same answer. Each one points to a different part of the process.

The High Pressure Bubble Remover is valuable because it turns the final air-removal step into a controlled process. Still, it works best when cleaning, OCA film handling, lamination, fixture support, cooling, and QC inspection are already treated seriously.

For the next equipment discussion, send Jiutu the panel size, glass thickness, adhesive type, daily quantity, fixture situation, and defect photos. That gives the technical team enough context to match samples and suggest a suitable bonding and bubble removal setup.
